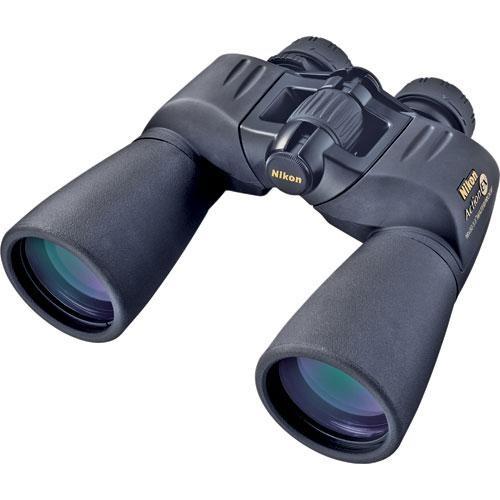

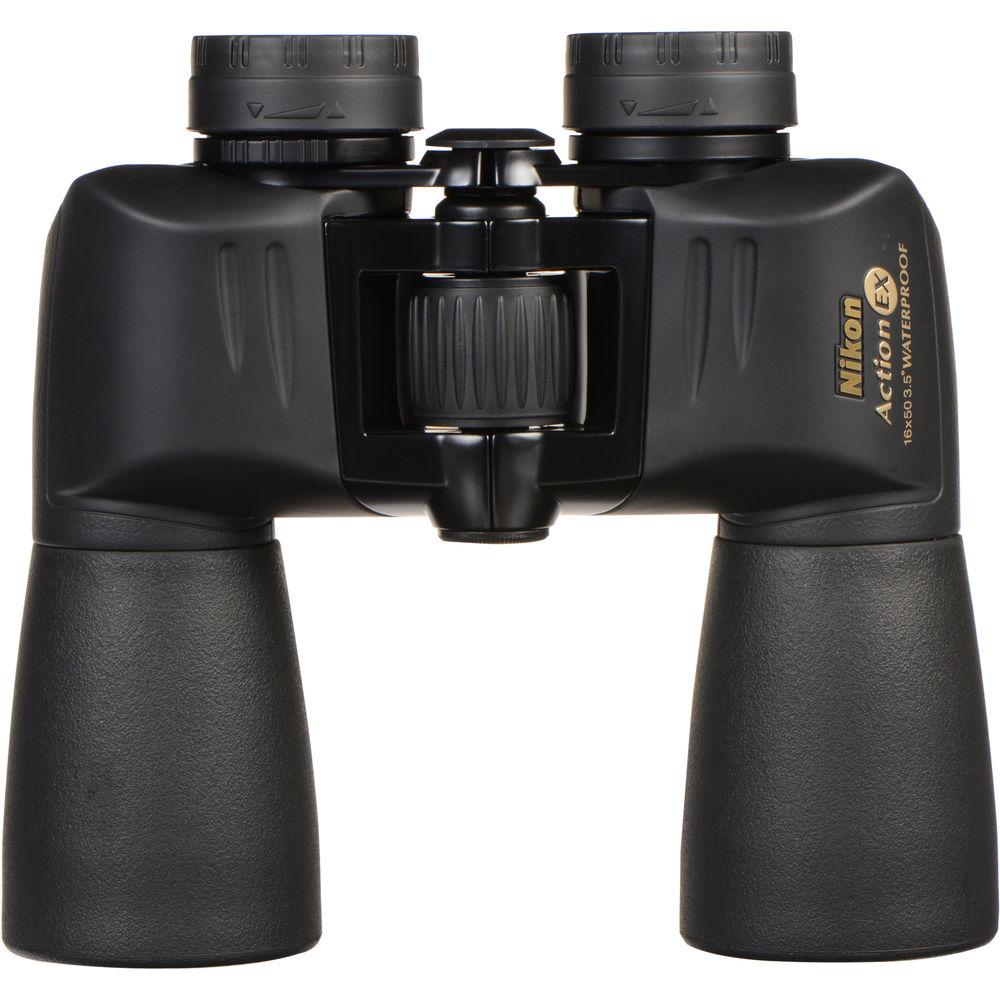

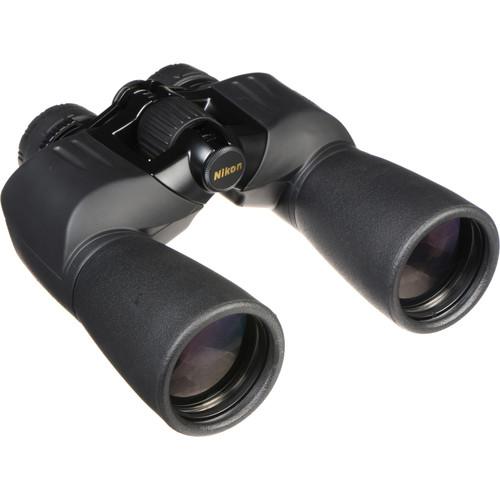

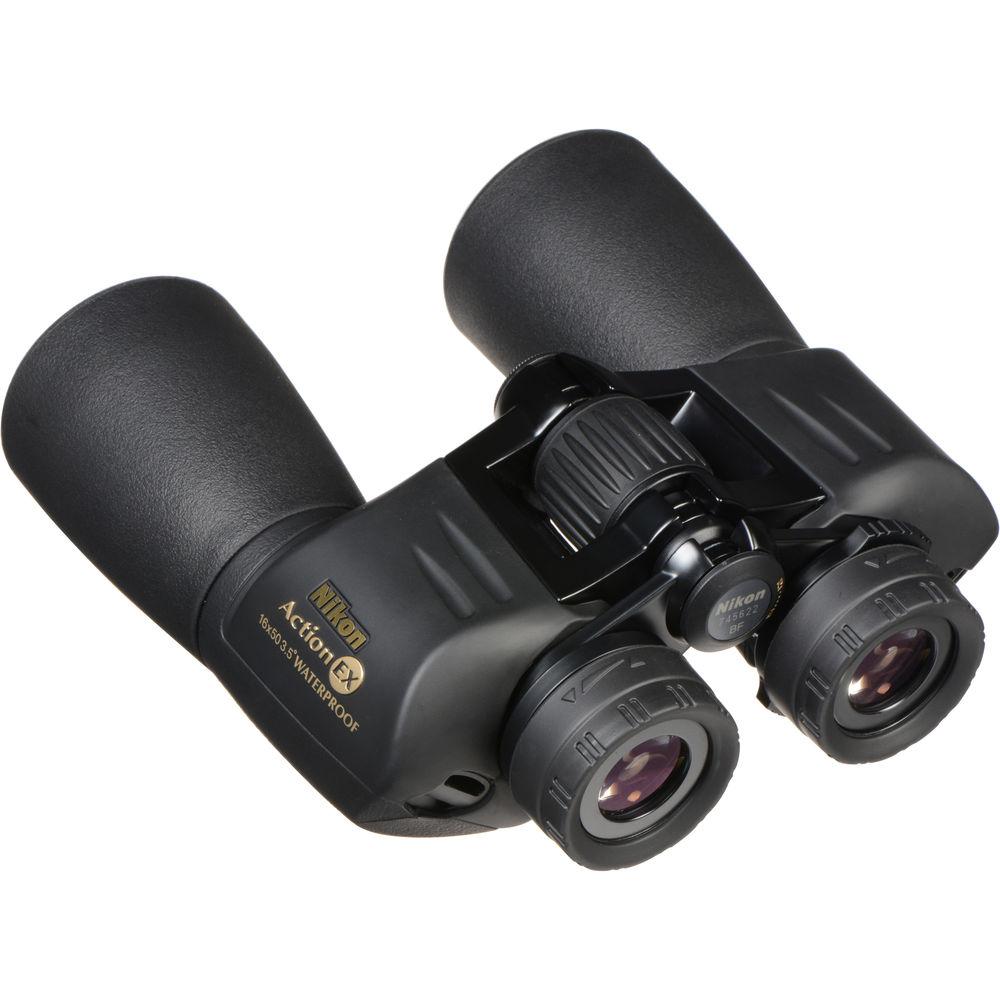

User Manual for Nikon 16x50 Action Extreme ATB Binocular Click to enlarge the picture
Contents of the user manual for the Nikon 16x50 Action Extreme ATB Binocular
- Product category: Binoculars Nikon
- Brand: Nikon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nikon Binoculars
 |
User manual for the Nikon 16x50 Action Extreme ATB Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nikon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nikon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nikon product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More raquwedsctrtfzxyqyquvwfwxxq With its powerful magnification and large objectives, the Nikon 16x50 Action Extreme ATB Binocular is the ideal companion for boaters who need to read marker buoys and see potential hazards far in advance, or for big-game hunters who need to clearly identify game at extreme distances.To help mitigate the disorientation often experienced when looking through a binocular on the water, the Action Extreme has a generous field of view and an exceptional eye relief that provides the room to back the eyes off the eyepieces for a more comfortable viewing position. The traditional Porro prism design, when combined with the over-sized objective lenses, BAK4 prism glass, and anti-reflection fully multi-coated optics, delivers immersive high-contrast views that are bright and sharp, with accurate colors and a rich depth of field so users can differentiate the relative distance between objects in the view.Complementing this optical performance are design details that allow the Action Extreme to withstand the rigors of outdoor life and make their use easier in extreme conditions. The Porro prism design has an inherently balanced and comfortable feel in the hand for long-duration observation sessions. Rubber armor protects the chassis and provides a sure and reliable grip in cold and wet weather, while the large center focus wheel is likewise rubberized, and the right-eye dioptric correction is adjusted using a thumb lever—instead of a conventional ring—to make it easier to use when wearing gloves. Its optical tubes are nitrogen filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperature and environmental conditions. A tethered one-piece ocular rainguard covers the eyecups as they hang around the neck and prevents rain and spraying water from filling them, and the objective lens caps can clip onto the neck strap to keep them safe from blowing overboard or being lost on the forest floor.From the trail, to the range, to the boat, the 16x50 Action Extreme binocular is engineered to deliver the high-power long-distance performance required by discerning observers—especially boaters and avid outdoor enthusiasts who won't let inclement weather and rough seas keep them at home or in a safe harbor. - Optical Performance
-
- Powerful 16x magnification allows detailed observations of distant subjects on land and sea
- Large 50mm objective lenses improve light-gathering ability to ensure distant views remain bright and sharp for better resolution, even in challenging light conditions
- Traditional Porro prism design makes it comfortable to hold and presents a rich depth of field
- High-index BAK4 prisms deliver a round exit pupil and a crisp and clear image with limited edge distortion
- Anti-reflection fully multi-coated optics produce neutral and accurate color fidelity and improve contrast and image brightness
- Apparent angle of view approaches wide-angle to help reduce the appearance of visible hand shake that is common when holding high-power optics such as this
- 183-foot field of view at 1000 yards
- Use and Handling
-
- Large textured and slip-resistant center fast-focusing knob is easy to manipulate in cold or wet weather or while wearing gloves
- Right-eye dioptric correction enables users to compensate for individual optical prescriptions for clearer views; large adjustment lever is easy to find and use
- 56-72mm interpupillary adjustment range allows use by a wide variety of people
- Twist-up/click-stop rubber eyecups for comfortable use with or without eyewear
- Tripod mountable with optional adapter that enables hands-free use to eliminate hand shake/vibrations and arm fatigue
- Long 17.8mm eye relief helps to reduce eyestrain and improves viewing comfort
- 3.1mm exit pupil
- Construction Details
-
- Environmentally-friendly prism and lens feature Eco-Glass that is made without lead and arsenic
- Protective textured rubber armoring provides a slip-resistant grip in cold or wet weather
- Nitrogen filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme changes in temperature and environmental conditions
- Includes tripod mount adapter to improve image stability for long-term observations, eliminate arm fatigue, and limit vibrations
- One-piece tethered ocular rainguard protects eyecups
- Objective lens caps can be clipped to neck strap to avoid losing them during observation sessions
- Weight: 37 ounces
UPC: 018208072477 In the Box Nikon 16x50 Action Extreme ATB Binocular Tripod Adapter Carrying Case Neck Strap Rainguard 2 x Lens Caps Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 raquwedsctrtfzxyqyquvwfwxxq A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 raquwedsctrtfzxyqyquvwfwxxq Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 389.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Nikon 16x50 Action Extreme ATB Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNikon 7247 Specs | Prism Type | Porro | | Magnification | 16 x | | Objective Lens Diameter | 50 mm | | Angle of View | 3.5° (actual) | | Field of View | 183.0' @ 1000 yd / 60.8 m @ 1000 m | | Minimum Focus Distance | 23' / 7 m | | Exit Pupil Diameter | 3.1 mm | | Eye Relief | 17.8 mm | | Interpupillary Adjustment | 56 to 72 mm / 2.2 to 2.8" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Included) | | Dimensions | 7.7 x 7.0" / 19.6 x 17.8 cm | | Weight | 36.7 oz / 1040.4 g | | | | Package Weight | 3.28 lb | | Box Dimensions (LxWxH) | 9.7 x 8.6 x 4.1" |
