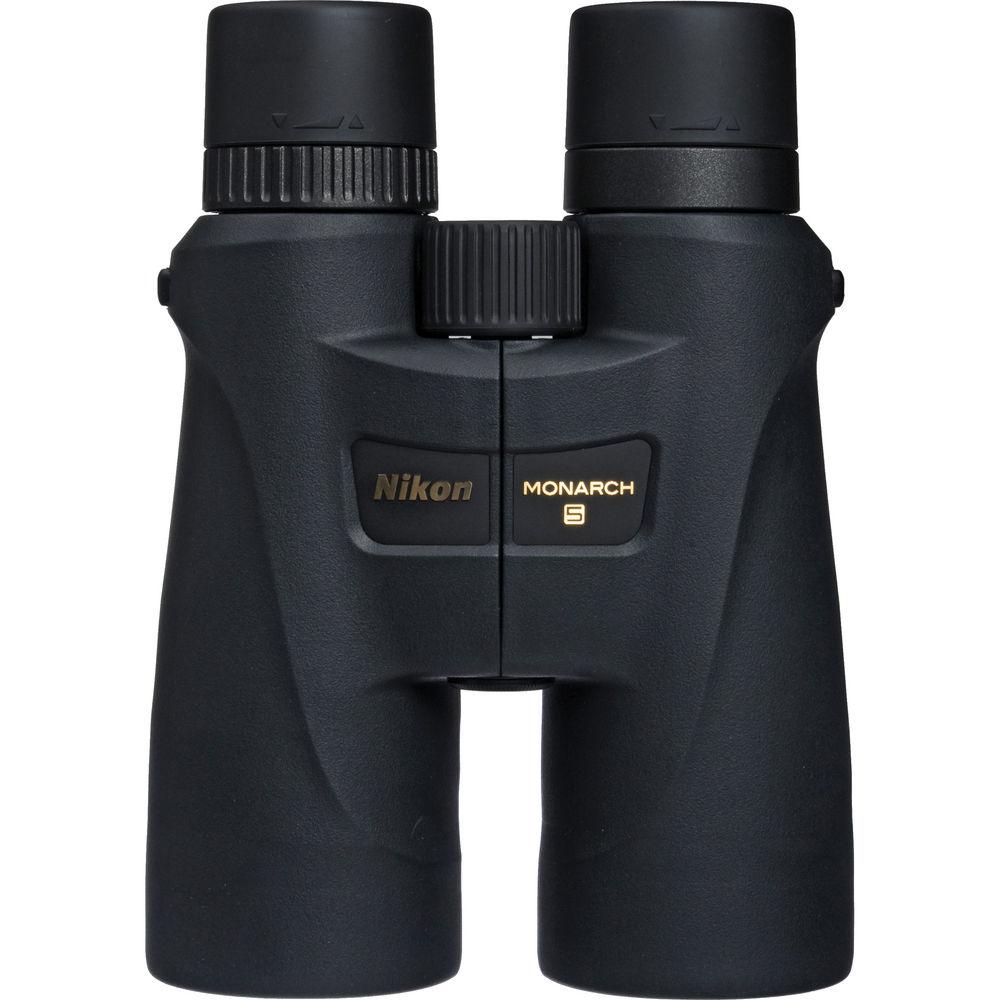

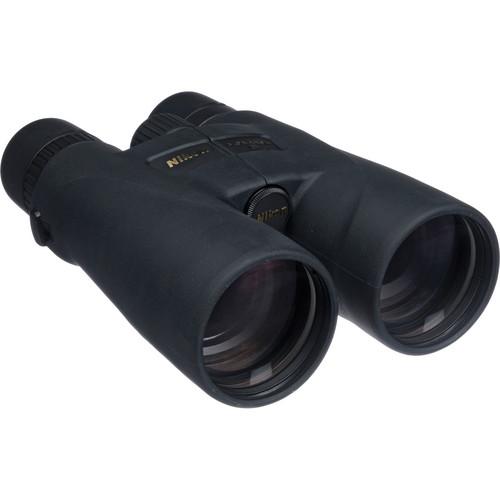

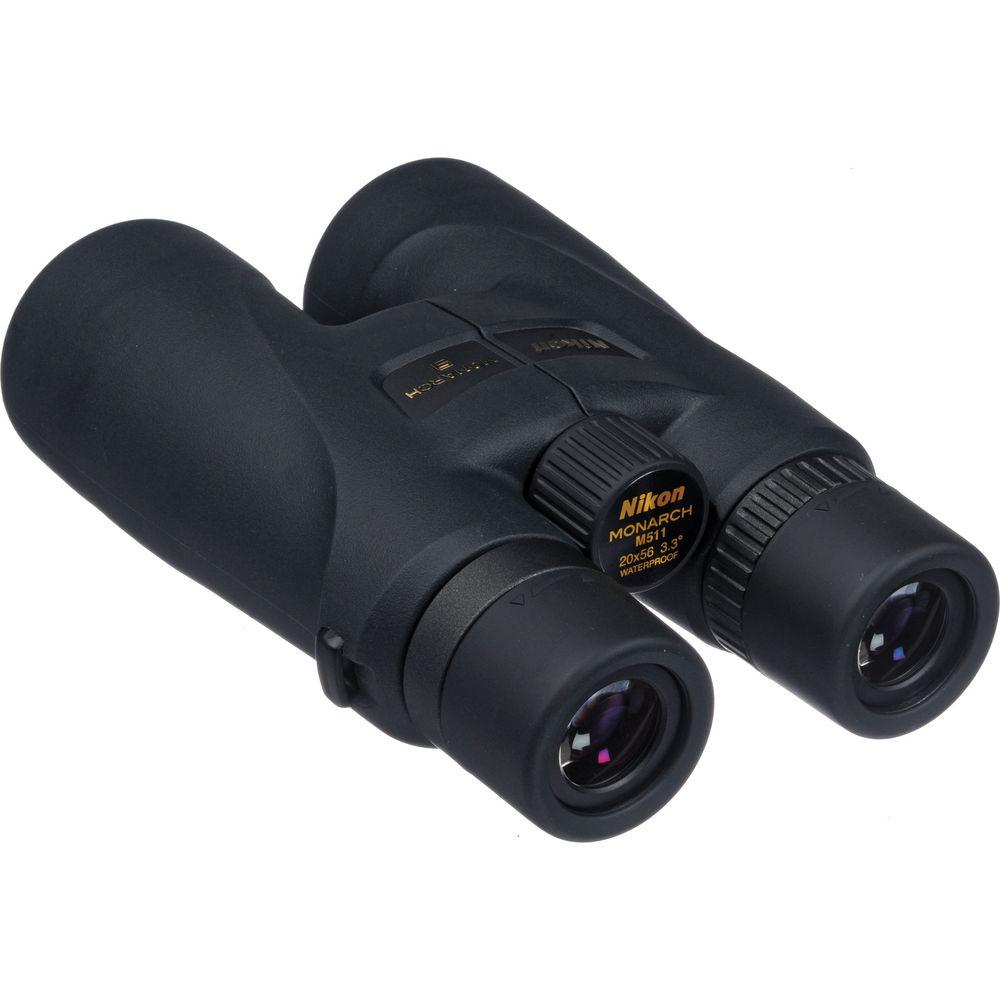

Nikon 20x56 Monarch 5 Binocular

User Manual for Nikon 20x56 Monarch 5 Binocular

• Product category: Binoculars Nikon
• Brand: Nikon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Nikon Binoculars

Product description

Optical Performance
• • Powerful 20x power is optimized to make detailed observation and identification at extreme distances
  • Large oversized 56mm objectives maximize light-gathering ability and help to offset the dimming of the view that often accompanies high-power optics when viewing at long range
  • Roof prism light path ensures optical tubes remain thin for a compact form factor
  • Extra low-dispersion glass reduces chromatic and spherical aberrations for increased contrast, improved color rendition, and sharpness without distortion across the entire field of view
  • Phase-corrected prism coatings reduce internal interference to improve light transmission, contrast, and resolution
  • Anti-reflection fully multi-coated optics maximize light transmission across the entire visible spectrum for accurate color rendition and improved contrast and clarity
  • Highly reflective dielectric prism multi-layer coatings boost internal reflection to >99% to maintain image brightness and improve contrast and clarity
  • 173' field of view at 1000 yards

Use and Handling
• • Closed-bridge configuration provides a solid and stable platform for the internal focusing mechanism
  • Large slip center focus wheel allows for precise focus control, even while wearing gloves
  • Right eye dioptric adjustment collar helps to compensate for individual eye prescription
  • 60-72mm interpupillary distance range allows easy use by a wide variety of people
  • Twist-up/click-stop rubber eyecups for use with or without eyewear
  • Tripod mountable with optional adapter for hands-free use to eliminate arm fatigue and hand shake
  • Long 16.4mm eye relief helps to reduce eyestrain and improves viewing comfort
  • 2.8mm exit pupil

Construction Details
• • Environmentally friendly Eco-Glass is made without lead and arsenic
  • Lightweight and durable fiberglass-reinforced polycarbonate chassis
  • Chassis material is temperature resistant, preventing the expansion and contraction that is common with metal, which can cause the optical components to move out of alignment over time and prevent sharp focus
  • Textured protective rubber armoring provides a slip-resistant grip, especially in cold and wet weather
  • Indents on the sides of the optical tubes are ergonomically placed where the hands naturally fall for a more comfortable feel in the hand and a more secure grip
  • Nitrogen filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperature changes and environmental conditions
  • Tripod adapter included for easy mounting onto an array of support systems
  • Black coloring allows it to remain inconspicuous in all environments
  • One-piece tethered ocular rainguard protects eyecups from water pooling in them from rain or spraying water when hanging from the neck
  • Tethered fold-down objective lens caps prevents losing them during observation sessions
  • Weight: 43 ounces
