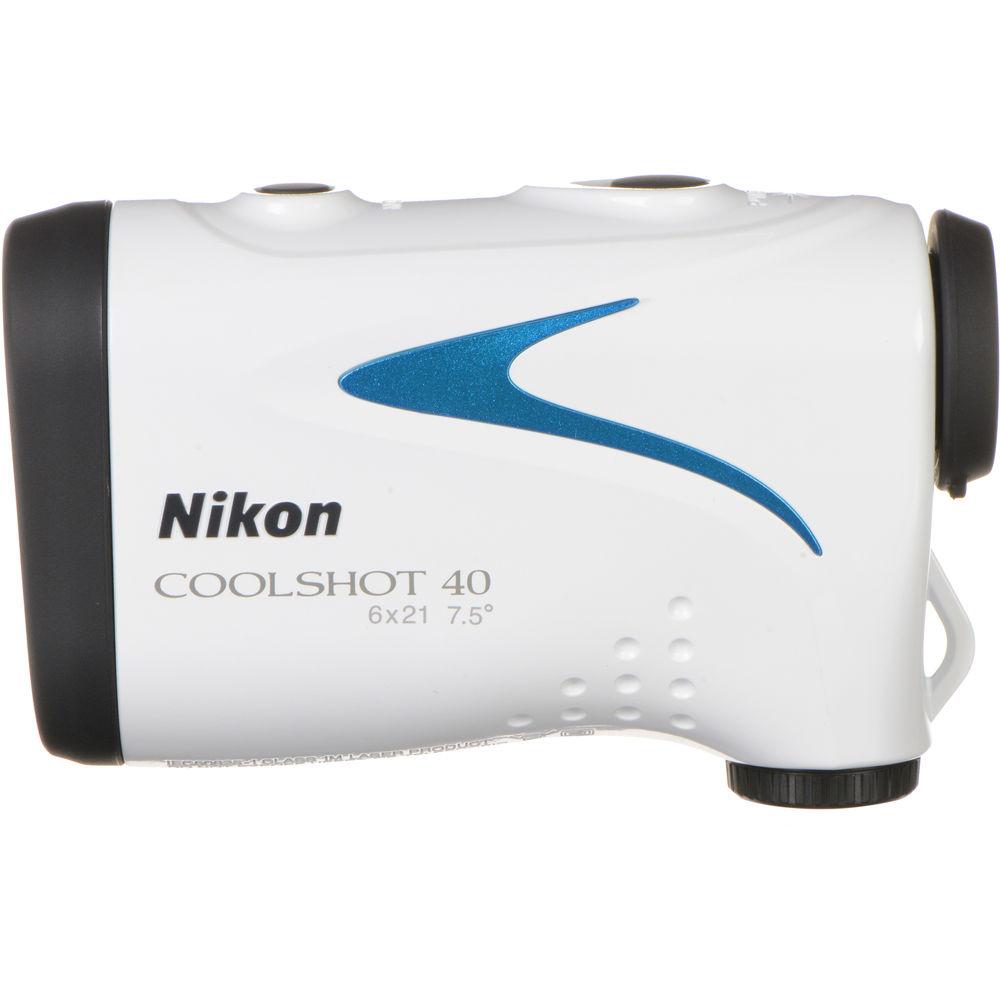

Nikon 6x21 CoolShot 40 Laser Rangefinder

Search your instruction manual in PDF to download

User Manual for Nikon 6x21 CoolShot 40 Laser Rangefinder

Click to enlarge the picture
Nikon 6x21 CoolShot 40 Laser Rangefinder Contents of the user manual for the Nikon 6x21 CoolShot 40 Laser Rangefinder
  • Product category: Laser Rangefinders Nikon
  • Brand: Nikon
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Nikon Laser Rangefinders

Nikon 6x21 CoolShot 40 Laser Rangefinder Nikon 6x21 CoolShot 40 Laser Rangefinder Nikon 6x21 CoolShot 40 Laser Rangefinder
User manual for the Nikon 6x21 CoolShot 40 Laser Rangefinder contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Nikon product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Nikon user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Nikon product will considerably shorten its lifespan!



Product description

Nikon designed the 6x21 Coolshot 40 Laser Rangefinder to be an invaluable tool that measures the distance to flagsticks up to 450 yards away, and reflective targets up to 650 yards away. The compact, lightweight rangefinder employs Nikon's proprietary HYPER READ algorithm to deliver fast and stable measurements regardless of the distance to the target, and First Target Priority mode that automatically displays the distance to the closest target sighted when overlapping subjects are viewed. The CoolShot has a measurement accuracy of ±0.75 yd/m, displays the distance in 0.5 yd/m increments, and is displayed within 0.5 seconds.The 6x magnification is suitable for identifying targets at mid-range distances and a long eye relief helps eyeglass wearers use it comfortably. Information is displayed in an in-view LED display and an auto-off function saves battery life. Multi-coated optics, weatherproof construction, a wide temperature tolerance, and one-touch activation make this rangefinder dependable and easy to use.
    Performance
    • 6x magnification
    • 21mm objective lens
    • Roof prism design
    • Anti-reflection multicoated optics
    • 394' field of view at 1000 yards
    • 45° apparent angle of view
    Rangefinder
    • Class 1 eye safe IR laser
    • Measurement range: 8-650 yards (450 yd max to flagstick)
    • Measurement accuracy: ±0.75yd/m
    • Display in 0.5-yard or 0.5-meter increments
    • Average measurement time: 0.5 second
    • Automatic power-off after 8 seconds of inactivity
    • Distance display:
      • Every 0.5 m/yd
    Use and Handling
    • Knurled focus collar
    • Simple one-button operation
    • Single spot measurement or continuous measurement scan
    • HYPER READ: Proprietary algorithm enables quick and stable measurement response regardless of distance to target
    • First Target Priority mode: When measuring overlapping subjects, the distance of the closest subject is displayed
    • In-view graphic battery status indicator
    • 18.3mm long eye relief
    Construction
    • Impact-resistant plastic housing
    • Textured slip-resistant grip
    • IPX4-rated, weatherproof
    • Runs on one CR2 coin-cell battery
    • Broad 14 to 122°F operating temperature range
    • Lightweight for portability: 5.6 oz
UPC: 018208162017 In the Box Nikon 6x21 CoolShot 40 Laser Rangefinder
  • Wrist Strap
  • Nylon Case
  • CR2 Battery
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Nikon 6x21 CoolShot 40 Laser Rangefinder in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for Nikon 6x21 CoolShot 40 Laser Rangefinder can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for Nikon 6x21 CoolShot 40 Laser Rangefinder can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the Nikon 6x21 CoolShot 40 Laser Rangefinder can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Nikon 6x21 CoolShot 40 Laser RangefinderDownload PDF User Manual - https://www.search-manual.com/ upload/ nikon-6x21-coolshot-40-laser-rangefinder-232543-user-manual.pdf
    (PDF file, 2.58 MB)


    Technical parameters

    Nikon 16201 Specs

    Prism Type Roof
    Magnification 6x
    Objective Lens Diameter 21mm
    Angle of View 7.5°, actual
    Field of View 394' @ 1000 yd / 131 m @ 1000 m
    Laser Type Class 1 IR eye safe
    Metering Range 8 - 650 yd / 7.5 - 594.4 m
    Accuracy ±0.75 yd/m
    Exit Pupil Diameter 3.5 mm
    Eye Relief 18.3 mm
    Weatherproofing IPX4-rated, weather resistant
    Tripod Socket None
    Power Source 1 x CR2 3 V battery
    Operating Temperature 14 to 122°F / -10 to 50°C
    Dimensions 4.4 x 2.8 x 1.4" / 11.2 x 7.0 x 3.6 cm
    Weight 5.6 oz / 158.8 g
    Package Weight 0.85 lb
    Box Dimensions (LxWxH) 6.5 x 5.0 x 3.8"
