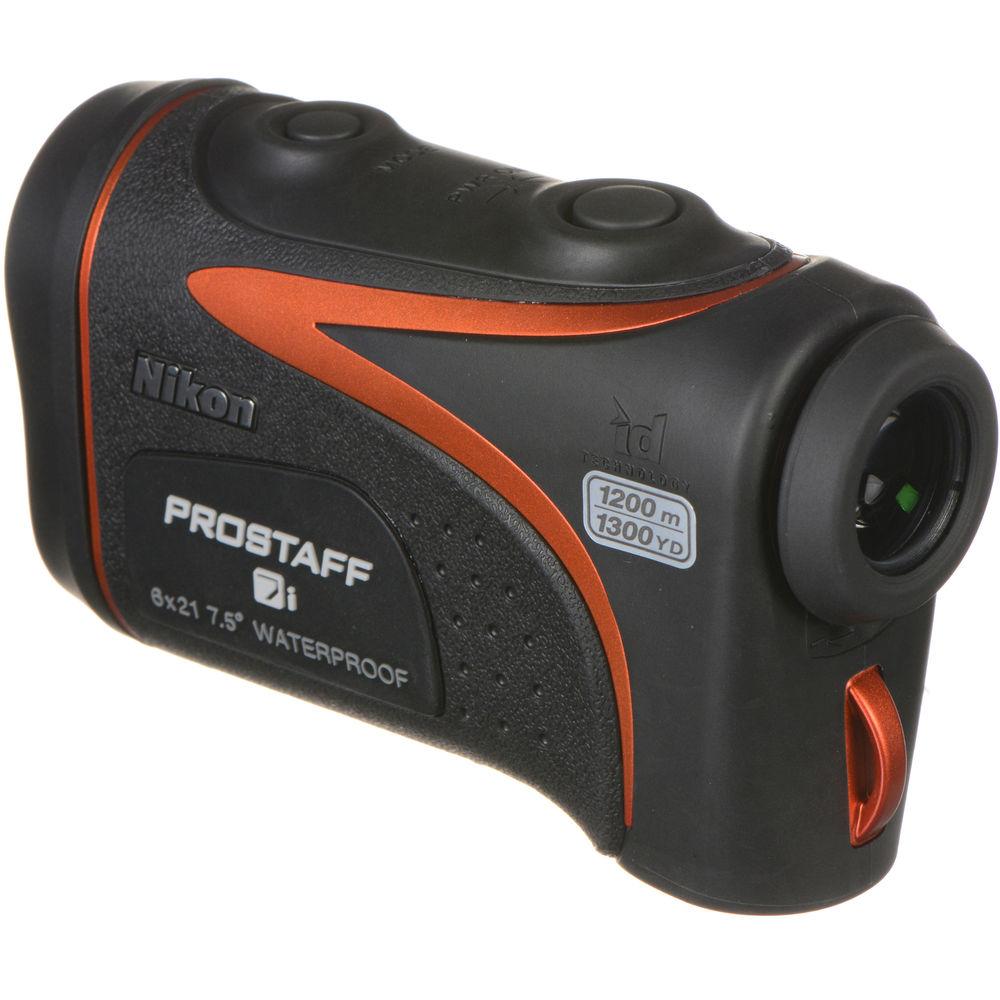

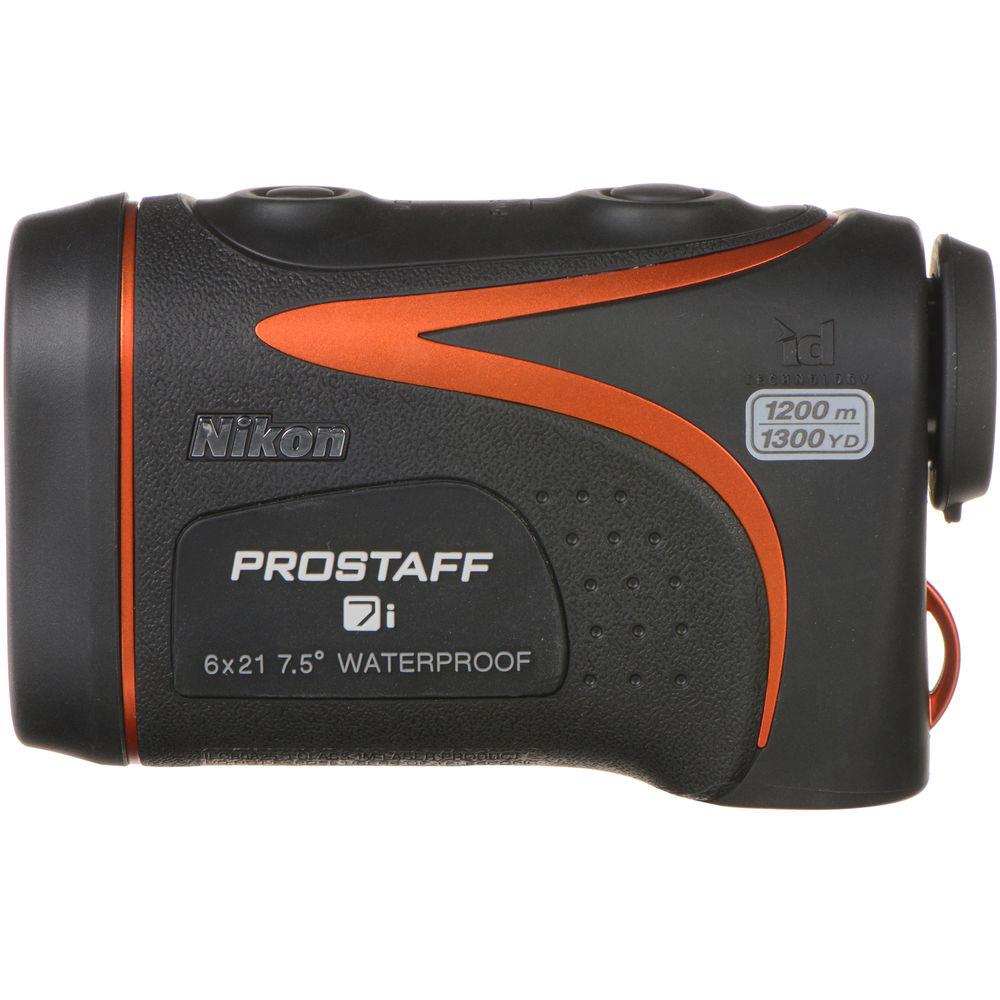

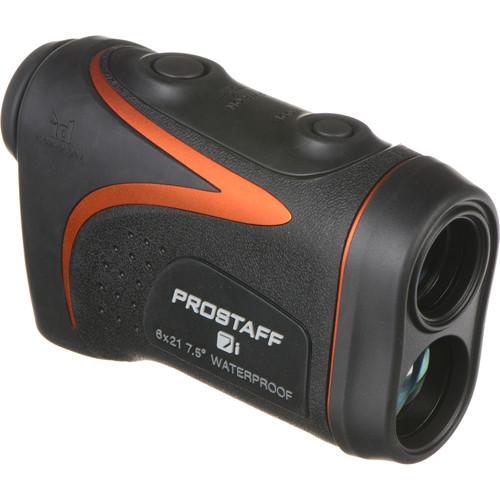

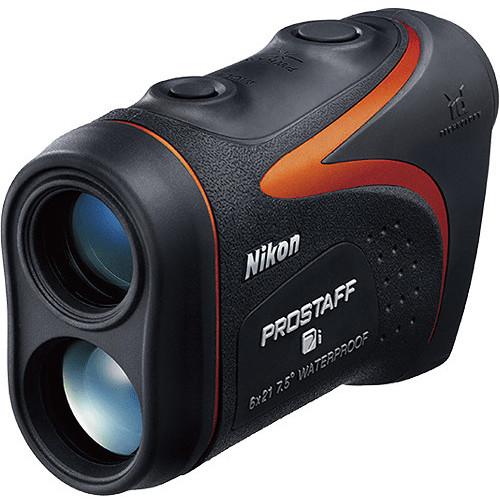

User Manual for Nikon 6x21 ProStaff 7i Laser Rangefinder Click to enlarge the picture
Contents of the user manual for the Nikon 6x21 ProStaff 7i Laser Rangefinder
- Product category: Laser Rangefinders Nikon
- Brand: Nikon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nikon Laser Rangefinders
 |
User manual for the Nikon 6x21 ProStaff 7i Laser Rangefinder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nikon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nikon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nikon product will considerably shorten its lifespan!
|
Product description Take those long shots with confidence using the Nikon ProStaff 7i 6x21 Laser Rangefinder. This hunting accessory has been designed to measure the distance of targets up to 1300 yards away and is outfitted with multiple systems to increase your accuracy. The Tru-Target ranging system lets you choose between First Target Priority mode, which allows you to range an object as small as a fence post, and Distant Target Priority mode, which measures to the farthest target among a group. The ID system uses a built-in inclinometer to measure the angle to the target, then takes the range to the target and provides an adjusted distance for users to accurately gauge the shot.Beyond its ranging capabilities, the Prostaff 7i is a competent 6x21 monocular, with anti-reflection multi-coated optics for a bright, clear image. Its impact-resistant housing is ergonomically designed for a comfortable hold, and the control buttons are strategically placed for ease of use. The wide operating temperature range and waterproofing allow it to be used in all but the most extreme conditions, and at just 4.4" long, it fits easily in a pocket or pack. - Performance
-
- 6x magnification
- 21mm objectives
- Roof prism optical path
- Anti-reflection multi-coated optics
- 394' field of view at 1000 yd
- 45° apparent angle of view
- Rangefinder
-
- Class 1M eye-safe IR laser
- Metering time: approximately 0.5 second
- Metering range from 8 to 1300 yards
- Distance display:
- 0.1 yd/m increment to from 8-1000 yd/m
- 1.0 yd/m increment over 1000 yd/m
- Accuracy:
- ±0.5 yd/m from 8-600 yd/m
- ±1 yd/m from 600 yd/m to 1000 yd/m
- ±1.5 yd/m past 1000 yd/m
- Spot or continuous measurement modes
- Automatic power-down function dafter 8 seconds to preserve battery life
- Runs on one included CR2 lithium battery
- Technology
-
- ID (Incline/Decline) Technology
- Built-in inclinometer measures the upward or downward angle from user to target
- Horizontal Distance display mode: displays adjusted distance based on incline/decline angle
- Actual Distance display mode: displays actual line-of-sight distance
- Tru-Target Priority System
- First Target Priority mode displays the distance of the closest subject
- Distant Target Priority mode displays that of the farthest subject
- Use and Handling
-
- Easy two-button operation
- Displays in meters or yards
- Simple, uncluttered display provides clear view of subject and readings
- Ergonomic pushbutton placement
- In-view battery status indicator
- ±4 dioptric correction
- Long 18.3mm eye relief
- Comfortable 3.5mm exit pupil
- Construction
-
- Impact-resistant plastic housing
- Rubber armoring protects from impacts and provides a slip-resistant grip
- Submersible to 3.3' (1m) for up to 10 minutes
- Wide 14 to 122°F (-10 to 50°C) operating temperature range
- Compact design weighs 6.2 oz at just 4.4" long
- RoHS and WEEE compliant
UPC: 018208162093 In the Box Nikon 6x21 ProStaff 7i Laser Rangefinder CR2 Lithium Battery Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nikon 6x21 ProStaff 7i Laser Rangefinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNikon 7i Specs | Prism Type | Roof | | Magnification | 6x | | Objective Lens Diameter | 21 mm | | Angle of View | 7.5°, actual | | Field of View | 394' @ 1000 yd / 131 m @ 1000 m | | Laser Type | Class 1M eye-safe IR | | Metering Range/Accuracy | 8.0 - 1300.0 yd / 7.3 - 1188.7 m | | Exit Pupil Diameter | 3.5 mm | | Eye Relief | 18.3 mm | | Weatherproofing | Submersible to 3.3' / 1 m, for up to 10 min | | Tripod Socket | None | | Power Source | 1 x CR2 lithium | | Dimensions | 4.4 x 2.8 x 1.5" / 11.2 x 7.1 x 3.8 cm | | Weight | 6.2 oz / 175.8 g, without battery | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 6.4 x 4.9 x 3.7" |
