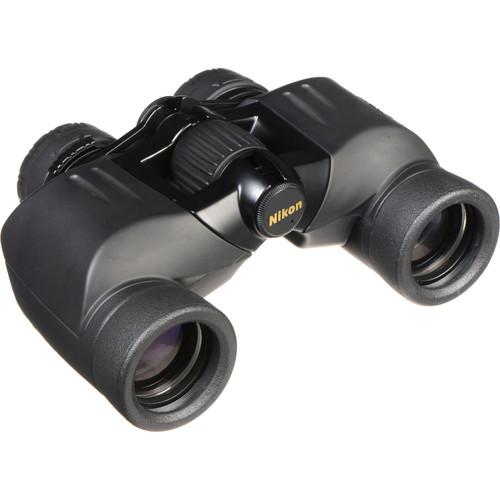

User Manual for Nikon 7x35 Action Extreme ATB Binocular Click to enlarge the picture
Contents of the user manual for the Nikon 7x35 Action Extreme ATB Binocular
- Product category: Binoculars Nikon
- Brand: Nikon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nikon Binoculars
 |
User manual for the Nikon 7x35 Action Extreme ATB Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nikon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nikon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nikon product will considerably shorten its lifespan!
|

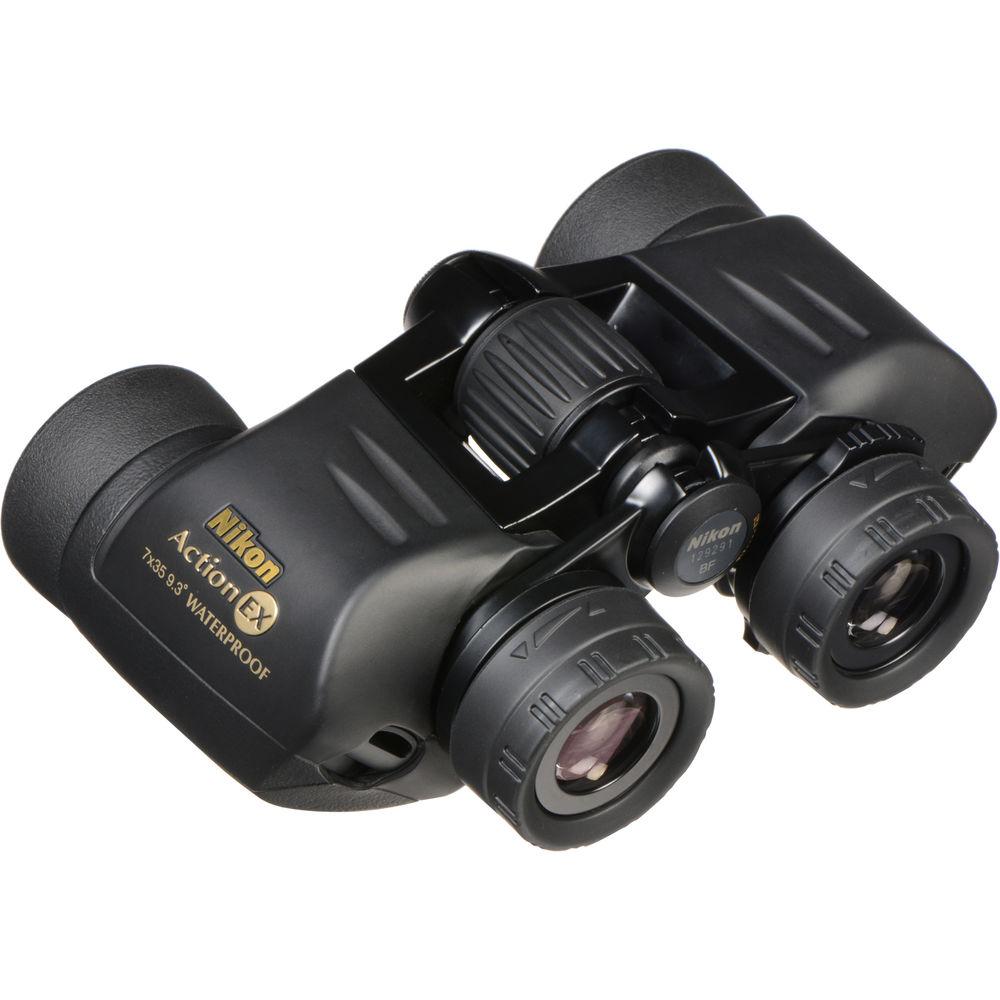

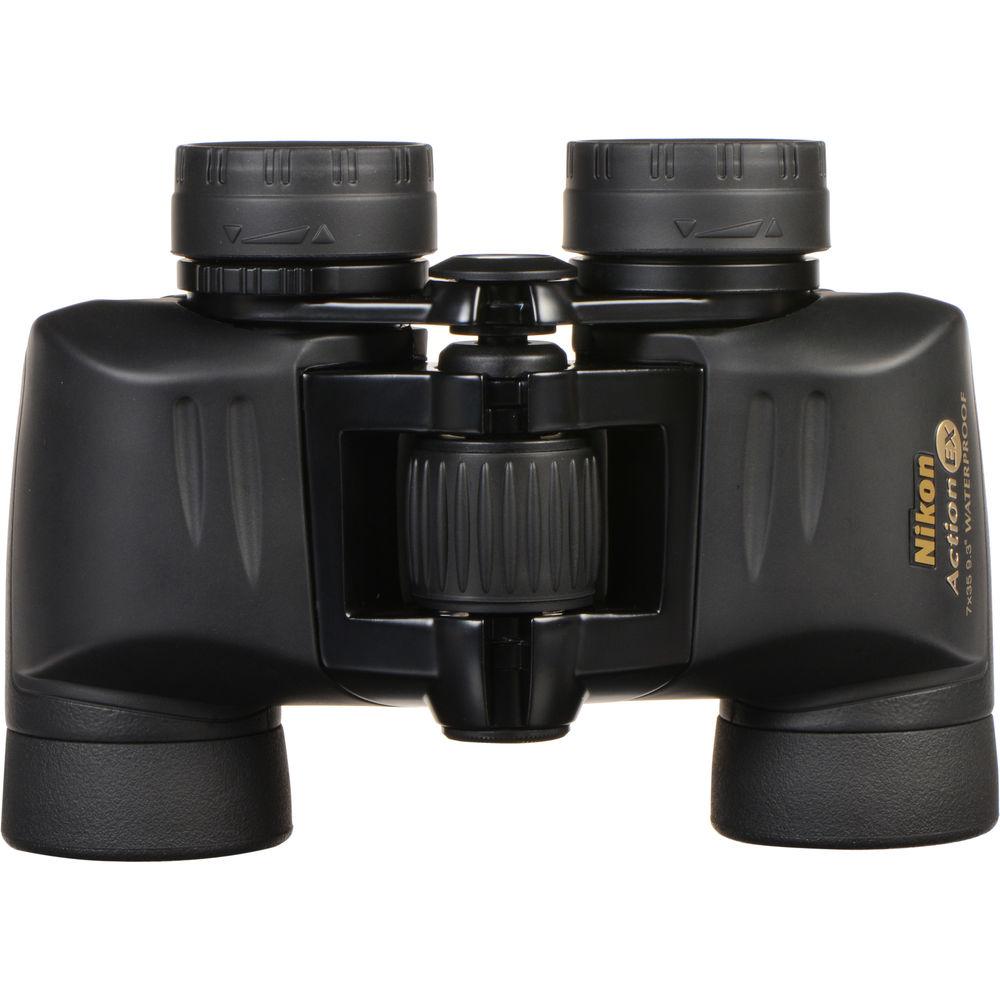

Product description The B&H Binocular Buying Guide Read More rbaczqqs Ideal for boaters and outdoor enthusiasts who won't let bad weather keep them inside and who require an optic that allows them to move and react quickly, the compact and durable Nikon 7x35 Action Extreme ATB Binocular will be an invaluable addition to any kit.Its lenses push this model into the full-sized range, delivering enhanced low-light performance versus compact models, without the associated bulk or additional weight of larger ones, enabling it to be worn easily around the neck or carried without causing fatigue. To help mitigate the disorientation and discomfort often experienced when looking through binoculars on the water, the Action Extreme has a wide field of view and a comfortable exit pupil that keeps the entire scene in view and minimizes the movement of the horizon line, plus a long eye relief that provides the room to back the eyes off the eyepieces for a more comfortable viewing position. The traditional Porro prism design, BAK4 prism glass, and anti-reflection fully multi-coated optics deliver immersive high-contrast views that are bright and sharp, with accurate colors and a rich depth of field.Complementing this optical performance are design details that allow the Action Extreme to withstand the rigors of outdoor life. The Porro prism design has an inherently balanced and comfortable feel in the hand for long-duration observation sessions, and the chassis is wrapped in a rubber armor that provides a sure and reliable grip in cold and wet weather. Its optical tubes are nitrogen filled and O-ring sealed to be waterproof, and resistant to internal fogging when moving through extreme temperature and environmental conditions. A tethered one-piece ocular rainguard covers the eyecups as they hang around the neck and prevents rain and spraying water from filling them, and the objective lens caps can clip onto the neck strap to keep them safe from blowing overboard or being lost on the forest floorFrom the trail, to the range, to the boat, the 7x35 Action Extreme binocular is engineered to deliver the performance required by discerning observers without the bulk and weight of larger models. - Optical Performance
-
- Moderate 7x magnification brings subjects in close while ensuring a wide field of view and exit pupil and minimizing the appearance of visible hand shake—essential for glassing on the water
- 35mm objective lenses helps to ensure a smaller form factor for easier handling and carrying, while providing improved low-light performance versus smaller-objective models
- Traditional Porro prism design makes it comfortable to hold and presents a rich depth of field that allows the user to more easily discern the relative distances between objects in the view
- High-index BAK4 prisms deliver a round exit pupil and a crisp and clear image with limited edge distortion
- Anti-reflection fully multi-coated optics produce neutral and accurate color fidelity and improve contrast and image brightness
- Wide 60° apparent angle of view provides sweeping views, with less disorientation, which is commonly felt when glassing on rough or rolling water
- 488-foot field of view at 1000 yards
- Use and Handling
-
- Large textured and slip-resistant center fast-focusing knob is easy to manipulate in cold or wet weather or while wearing gloves
- Right-eye dioptric correction enables users to compensate for individual optical prescriptions for clearer views; large adjustment lever is easy to find and use
- 56-72mm interpupillary adjustment range allows use by a wide variety of people
- Twist-up/click-stop rubber eyecups for comfortable use with or without eyewear
- Tripod mountable with optional adapter enables hands-free use to eliminate hand shake/vibrations and arm fatigue
- Long 17.3mm eye relief helps to reduce eyestrain and improves viewing comfort
- Comfortable 5mm exit pupil will completely cover pupils to keep the full scene in view and limit disorientation
- Construction Details
-
- Environmentally friendly prism and lens feature Eco-Glass that is made without lead and arsenic
- Protective textured rubber armoring provides a slip-resistant grip in cold or wet weather
- Nitrogen filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme changes in temperature and environmental conditions
- One-piece tethered ocular rainguard protects eyecups from water pooling in them from rain or spraying water when hanging from the neck
- Objective lens caps can be clipped to neck strap to avoid losing them during observation sessions
- Weight: 29 ounces
UPC: 018208072378 In the Box Nikon 7x35 Action Extreme ATB Binocular Carrying Case Neck Strap 1-Piece Ocular Rainguard 2 x Objective Lens Caps Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 rbaczqqs A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 rbaczqqs A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 389.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Nikon 7x35 Action Extreme ATB Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNikon 7237 Specs | Prism Type | Porro | | Magnification | 7 x | | Objective Lens Diameter | 35 mm | | Angle of View | 9.3° (Actual) | | Field of View | 488.0' @ 1000 yd / 162.0 m @ 1000 m | | Minimum Focus Distance | 16.4' / 5 m | | Exit Pupil Diameter | 5 mm | | Eye Relief | 17.3 mm | | Interpupillary Adjustment | 56 to 72 mm / 2.2 to 2.8" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 7.2 x 4.7" / 18.3 x 11.9 cm | | Weight | 28.2 oz / 799.5 g | | | | Package Weight | 2.47 lb | | Box Dimensions (LxWxH) | 8.05 x 7.45 x 3.6" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 44 owners. Add your rating and experience with the product.
