Nikon AF-S DX NIKKOR 35mm f

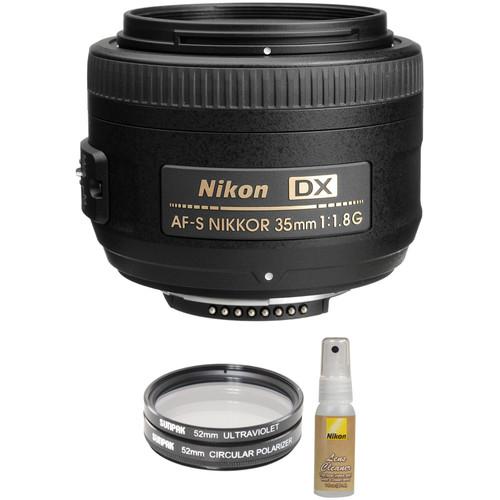

User Manual for Nikon AF-S DX NIKKOR 35mm f 1.8G Lens with Accessory Kit

• Product category: SLR Lenses Nikon
• Brand: Nikon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Nikon SLR Lenses

Product description

• Nikon AF-S DX NIKKOR 35mm f/1.8G Lens
  Nearly as versatile as a prime lens can be, the AF-S DX NIKKOR 35mm f/1.8G from Nikon is a 52.5mm-equivalent lens for DX-format cameras, and is characterized by its sleek form factor, normal field of view, and bright f/1.8 maximum aperture. The fast design of the lens suits working in difficult lighting conditions and also enables improved control over depth of field for isolating subjects and working with selective focus techniques. The optical design incorporates one aspherical element, which helps to control distortion and spherical aberrations in order to produce notable sharpness and clarity. A Super Integrated Coating has also been applied to individual elements and controls lens flare and ghosting for greater contrast and color accuracy when working in bright and backlit conditions. Complementing the optics is a Silent Wave Motor, which enables fast, near-silent autofocus performance along with full-time manual focus override, to benefit both stills and video recording.
  • Normal-length prime lens is designed for DX-format Nikon F-mount cameras and provides a 52.5mm equivalent focal length.
  • Bright f/1.8 maximum aperture is well-suited to working in low-light conditions and also affords increased control over depth of field for working with selective focus techniques.
  • One aspherical element is used to reduce spherical aberrations and distortion in order to realize sharp imagery with accurate rendering.
  • A Super Integrated Coating has been applied to individual elements to suppress internal reflections, flare, and ghosting for improved contrast and color accuracy when working in strong lighting conditions.
  • Silent Wave Motor affords quick, quiet, and precise autofocus performance along with full-time manual focus override. A rear focusing design is also used, where only the rear lens group is moved during focusing, to maintain the overall length of the lens during use and to promote faster focusing speeds.
  • Rounded seven-blade diaphragm promotes a pleasing out of focus quality that benefits the use of shallow depth of field and selective focus techniques.
  UPC: 018208021833
• Sunpak 52mm UV and Circular Polarizer Filter Kit
  This Sunpak 52mm Filter Kit includes a 52mm UV Filter and a 52mm Circular Polarizer Filter. Each filter in this kit fits a lens with 52mm front filter threads and can provide one of two enhancements to your imagery. Additionally, these filters are constructed from optical glass within an aluminum-alloy frame, which protect the front element of a lens from scratches, bumps, or impacts. A filter case that can accommodate both filters is included for storage and transport.

  The Sunpak 52mm UV Filter is a general use, clear filter designed to absorb ultraviolet light and reduce the bluish cast of daylight. Aside from the reduction of unwanted blue casts, no additional coloration or contrast is created, and adjustments to exposure are not required while using this filter.

  This UV filter is also useful as a general protective filter to leave on lenses at all times. Such filters help to reduce dust and moisture from reaching your front lens element and provide additional protection in case of drops or situations where scratching could occur.

  The Sunpak 52mm Circular Polarizer Filter helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges, and filters, this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.

  A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.

  The Sunpak 52mm UV Filter and Sunpak 52mm Circular Polarizer Filter are both non-coated and are constructed from optical glass for clarity and color fidelity. Additionally, they each feature an aluminum-alloy filter ring for durability while remaining lightweight.
  Sunpak 52mm UV Filter
  • • Absorbs UV light and reduces bluish cast of daylight
    • Does not require adjustments to exposure while in use
    • Creates no additional coloration or contrast
    • Non-coated
    • General protection filter reduces dust, moisture, and scratches from reaching lens elements
  Sunpak 52mm Circular Polarizer Filter
  • • Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface
    • Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light
    • Clears up haze in distant landscapes and provides more saturated, vivid colors
    • Strongest effect when used at a 90° angle from the sun
    • Circular polarizers are ideal for use with digital cameras and autofocus lenses where a linear polarizer will often disrupt auto exposure and focus features
    • Non-coated
    • 2x filter factor reduces exposure by 1 stop
  UPC: 090729609844
• Nikon Lens Cleaning Spray (1 oz)
  The Lens Cleaning Spray from Nikon is a 1 oz bottle of basic cleaning solution for photographic lenses and sports optics. The fluid should be sprayed on to a lens cleaning cloth or lens tissue and then gently applied to the optical surface to remove dirt, dust, or oils. Keeping your optics clean ensures sharp images and helps to prevent the degradation of lens coatings. UPC: 018208007905

• Sunpak - 52mm UV and Circular Polarizer Filter Kit

• Lens Cleaning Spray (1 oz)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Nikon AF-S DX NIKKOR 35mm f/1.8G Lens

  Focal Length	35mm (35mm Equivalent Focal Length: 52.5mm)
  Maximum Aperture	f/1.8
  Minimum Aperture	f/22
  Lens Mount	Nikon F
  Format Compatibility	APS-C
  Angle of View	44 Rating 94% users recommend this product to others. And what about you? This product has already been rated by 69 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
