Nikon AF-S NIKKOR 180-400mm f 4E

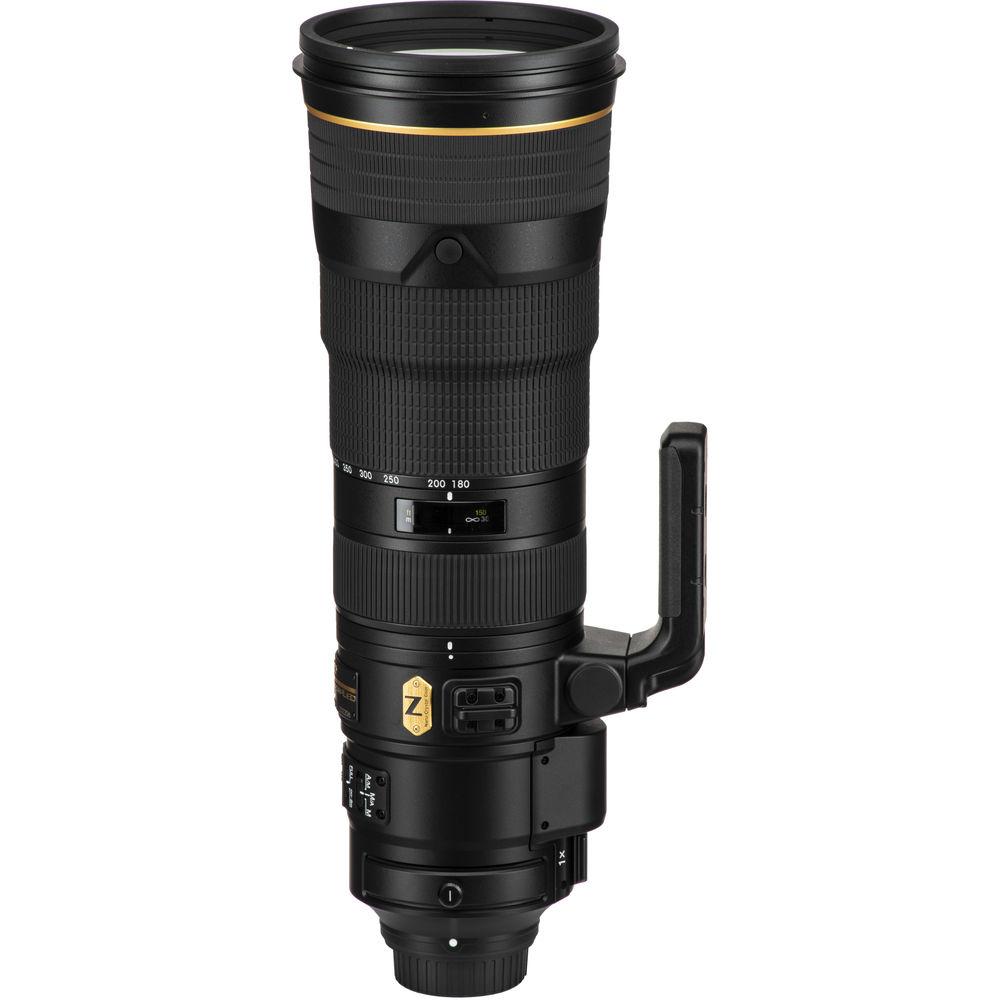

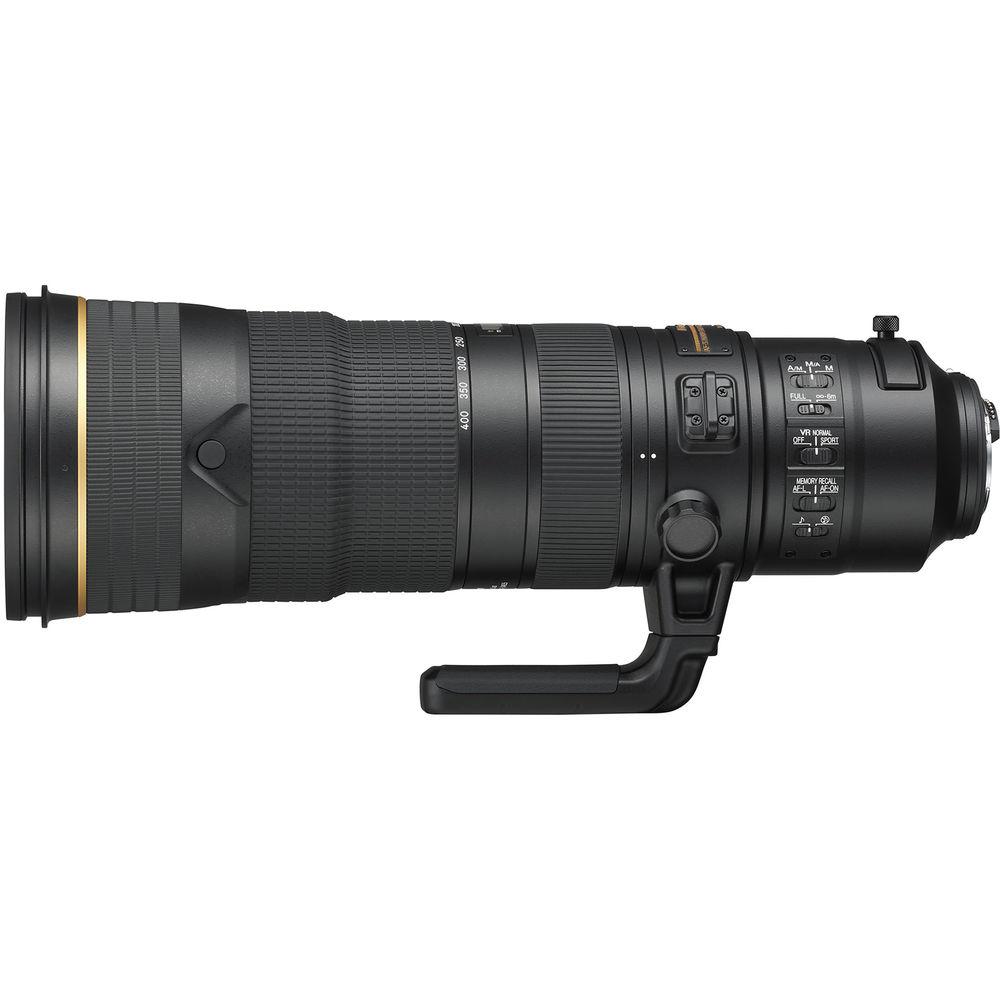

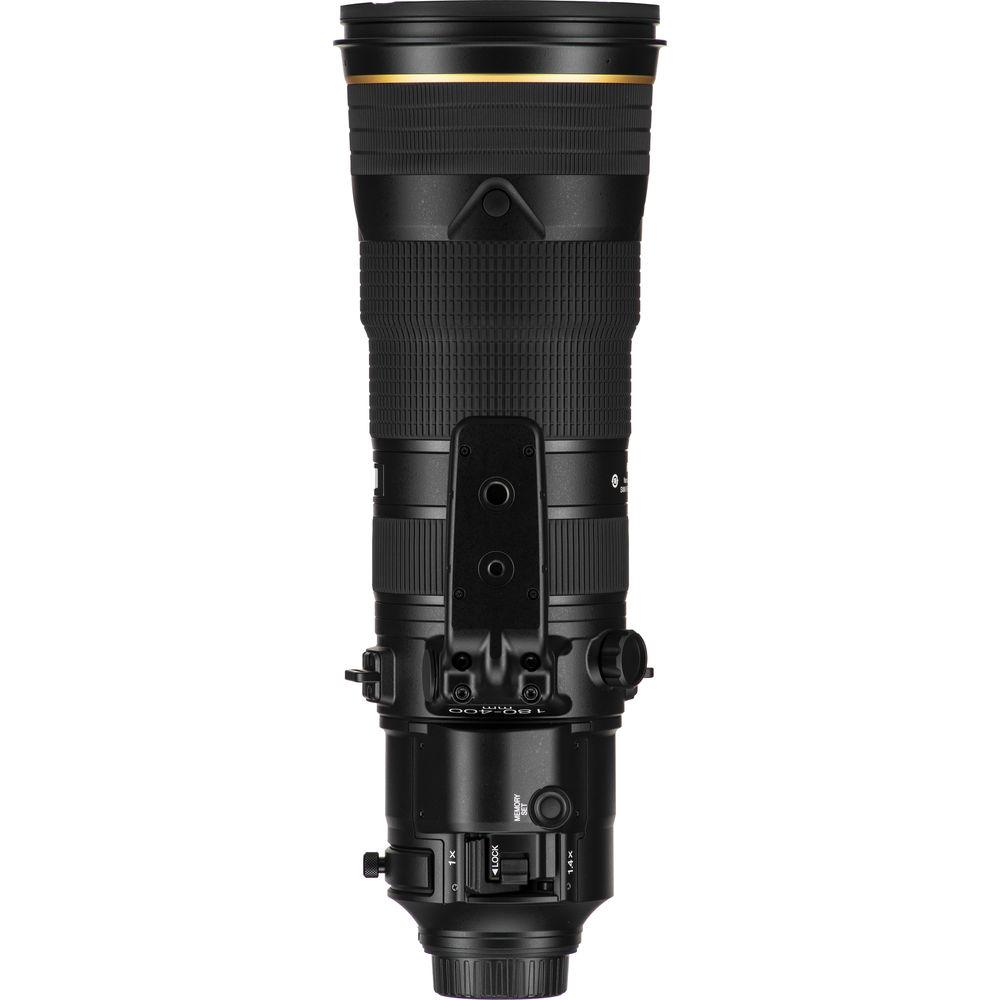

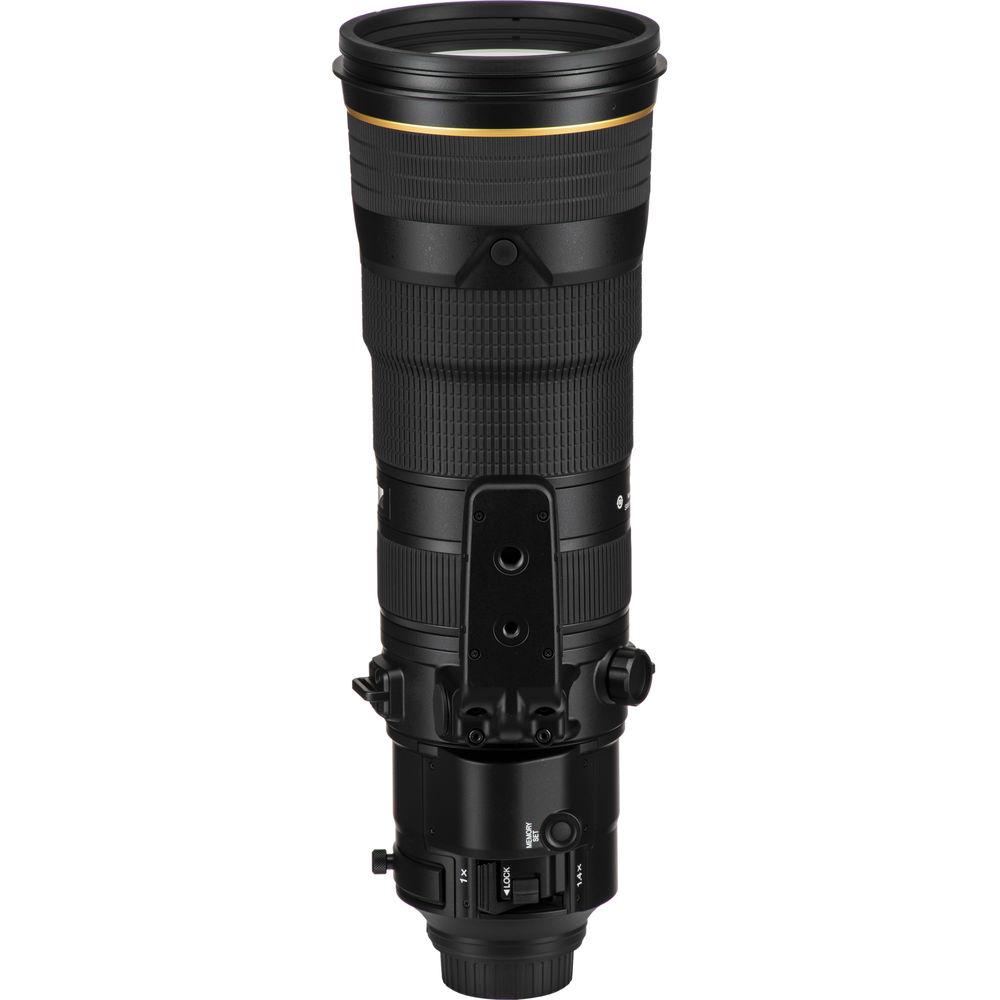

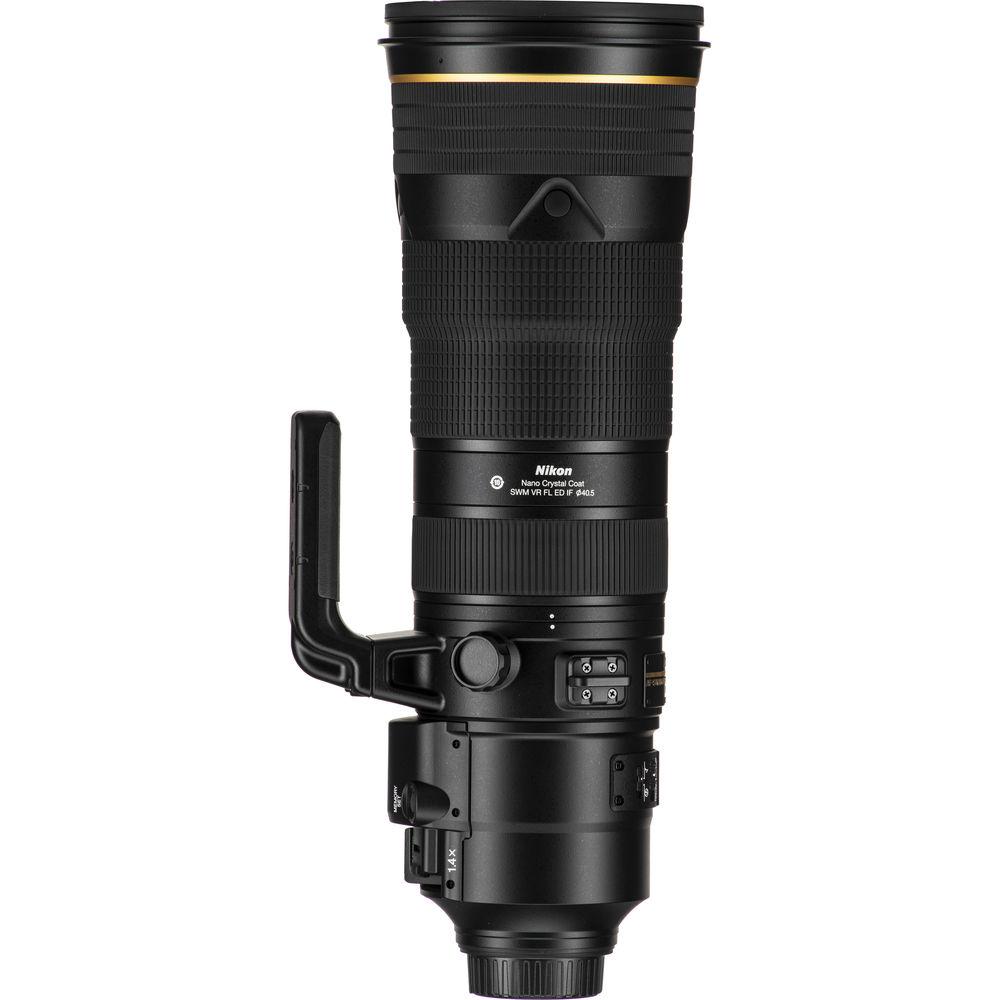

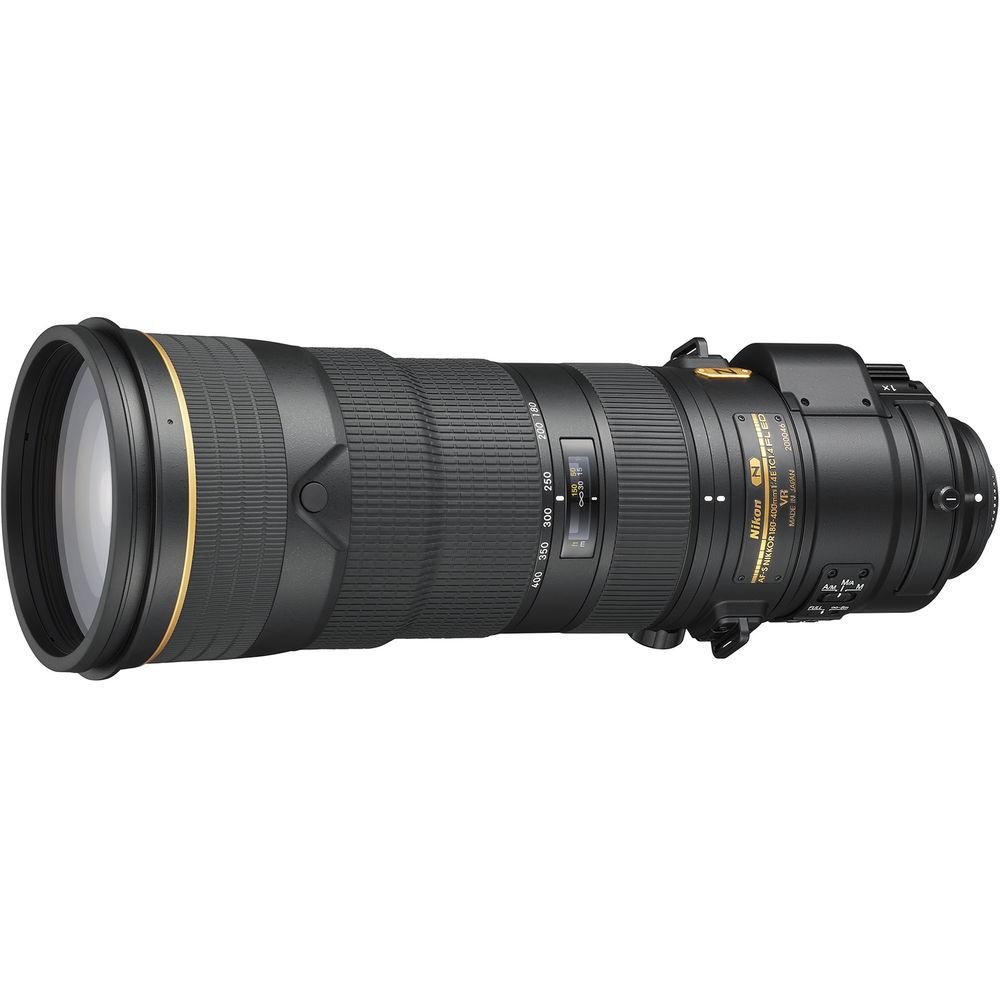

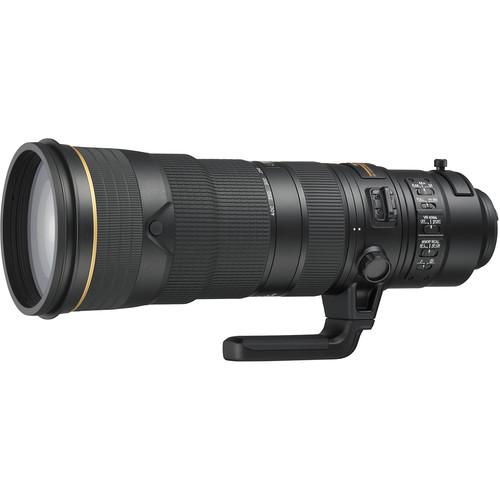

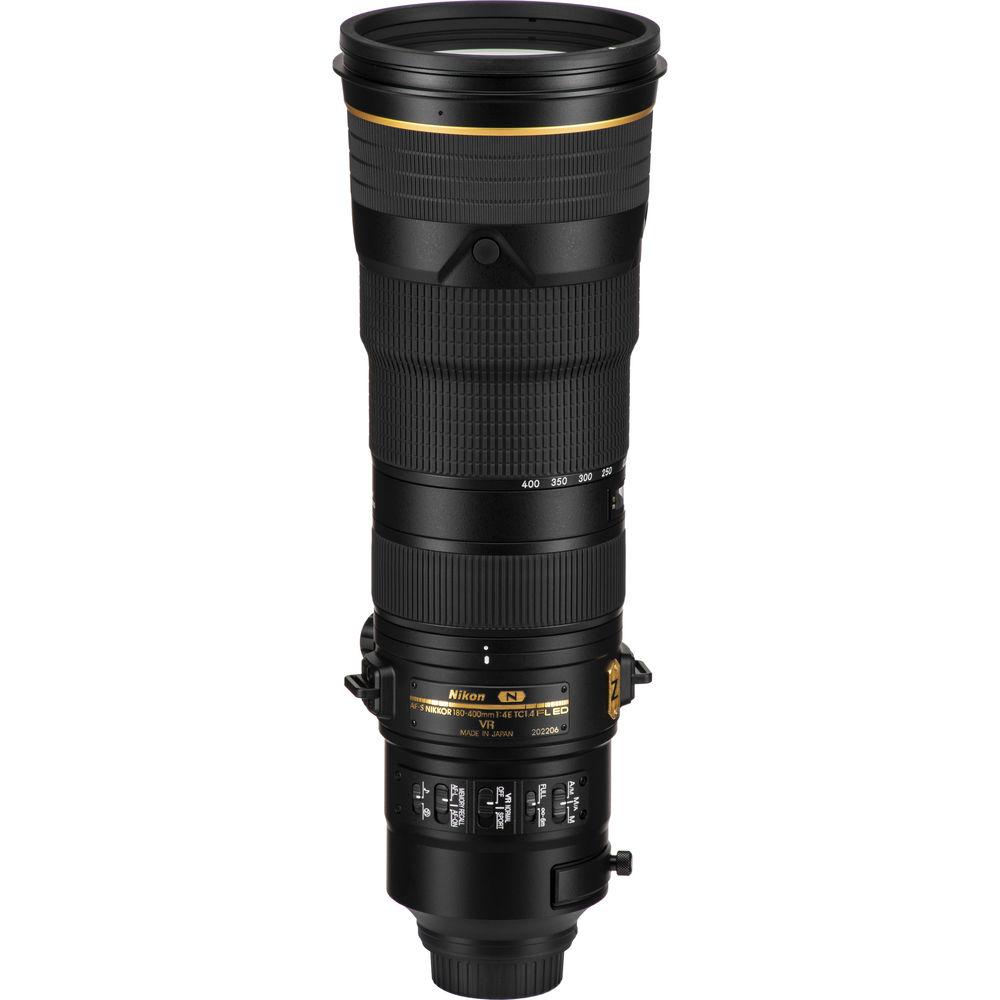

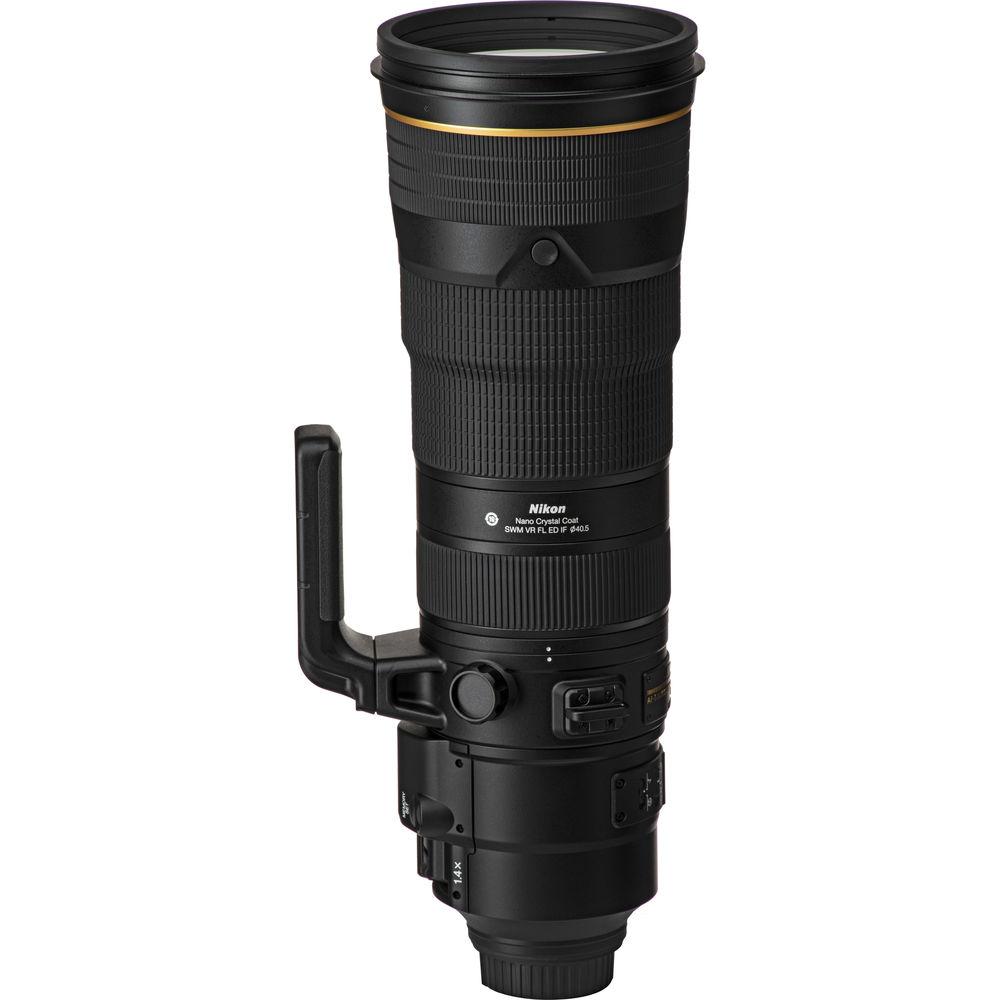

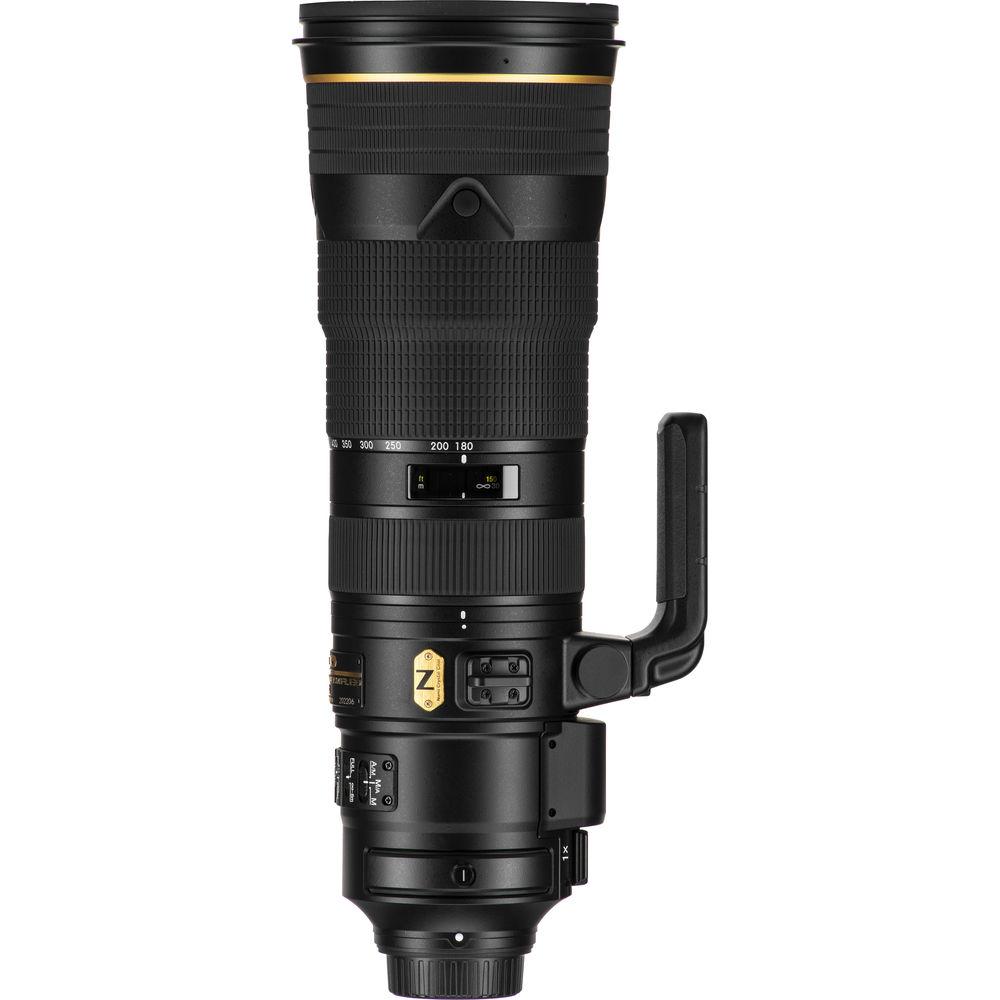

User Manual for Nikon AF-S NIKKOR 180-400mm f 4E TC1.4 FL ED VR Lens

• Product category: SLR Lenses Nikon
• Brand: Nikon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Nikon SLR Lenses

Product description

• Designed for use with FX image sensors, this 180-400mm lens is also compatible with DX sensors where it will provide a 270-600mm equivalent focal length range.

• Built-in 1.4x teleconverter allows you to instantly extend your reach to 252-560mm (or 378-840mm equivalent with DX cameras) simply by flipping the right-hand switch. Since the teleconverter is integrated within the lens housing, it is optically matched to the lens for improved imaging performance and also fully maintains the lens's weather sealing.

• Constant f/4 maximum aperture, without the teleconverter in position, offers consistent illumination throughout the zoom range. When the 1.4x teleconverter is engaged, the maximum aperture is effectively f/5.6.

• One fluorite element and eight extra-low dispersion glass elements are incorporated into the optical design to greatly reduce color fringing and chromatic aberrations in order to achieve notable clarity and color accuracy.

• A Nano Crystal Coat, along with a Super Integrated Coating, has been applied to lens elements to minimize surface and internal reflections for a marked reduction in lens flare and ghosting.

• Vibration Reduction image stabilization helps to reduce the appearance of camera shake for up to four shutter speed stops, benefiting this lens' use in low-light conditions. Additionally, a designated Sport Mode is well-suited to working in fast-paced conditions and a Tripod Mode helps to suppress subtle ground vibrations when working atop a support system.

• Silent Wave Motor affords quick, quiet, and precise autofocus performance along with full-time manual focus override. An internal focusing design is also used, where only the internal lens groups are moved during focusing, to maintain the overall length of the lens during use and to promote faster focusing speeds.

• Focus range limiter allows you to constrict the focus system to a 19.7' to infinity range for faster focusing performance.

• Assignable Function buttons can be used for lens-based activation of AF/AE Lock modes or for switching between different AF Area Modes.

• Dust- and moisture-resistant magnesium alloy lens barrel benefits the lens' use in inclement conditions.

• Fluorine-coated front element affords protection to the optical system, resists smudging and fingerprints, and is easier to clean.

• A removable tripod collar is included with the lens for well-balanced support when working from a monopod or tripod. The collar ring also incorporates ball bearings for smooth transitions between horizontal and vertical shooting orientations.

• Specialized electromagnetic aperture mechanism provides greater exposure control stability that is especially beneficial when working with fast continuous shooting rates.

  This mechanism limits the compatibility of this lens to the following cameras: D5, D4, D3 series, Df, D850, D810, D810A, D800/E, D750, D700, D610, D600, D500, D300/S, D7500, D7200, D7100, D7000, D5600, D5500, D5300, D5200, D5100, D5000, D3400, D3300, D3200, D3100, Nikon 1 J1, J2, J3, J4 with FT-1, Nikon 1 V1, V2, V3 with FT-1, and Nikon 1 S1, S2 with FT-1.

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Nikon AF-S NIKKOR 180-400mm f/4E TC1.4 FL ED VR Specs

Focal Length	180 to 400mm
Maximum Aperture	f/4
Minimum Aperture	f/32
Lens Mount	Nikon F
Format Compatibility	Full-Frame
Angle of View	13 Rating 100% users recommend this product to others. And what about you? This product has already been rated by 27 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
