User manual

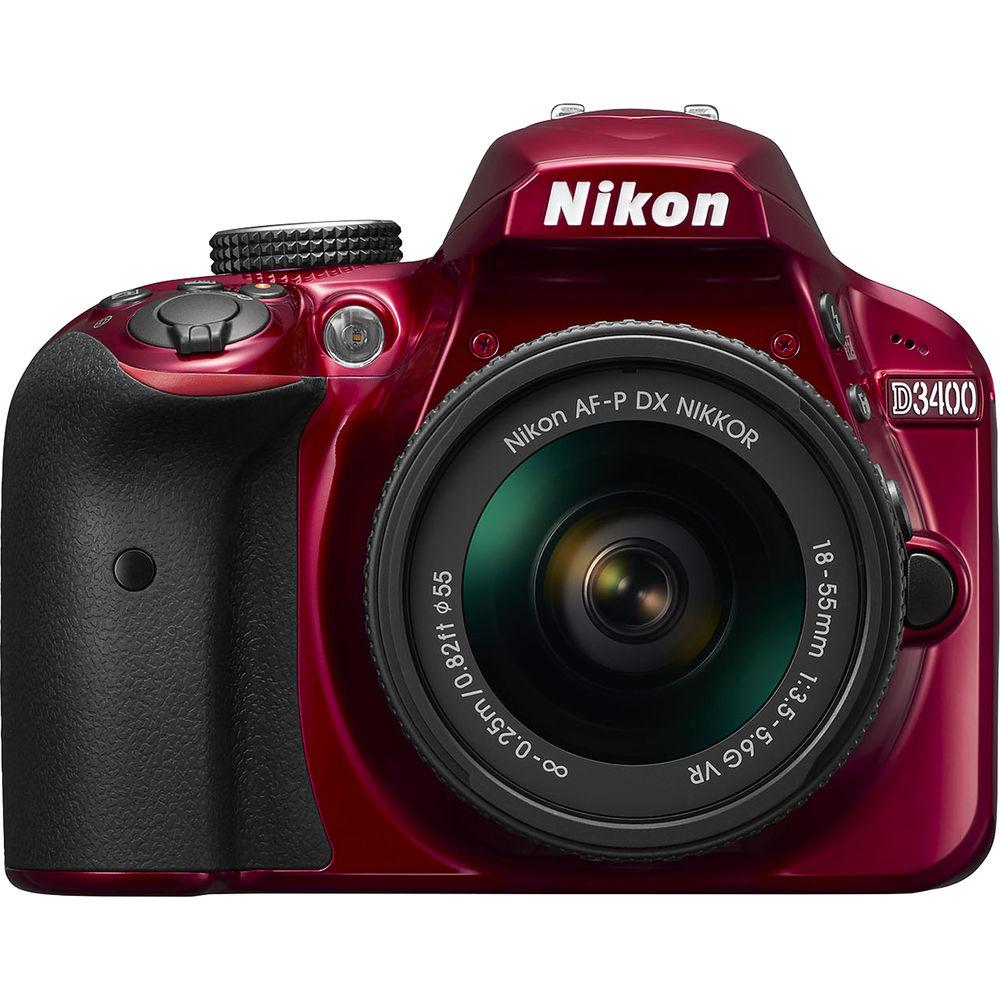

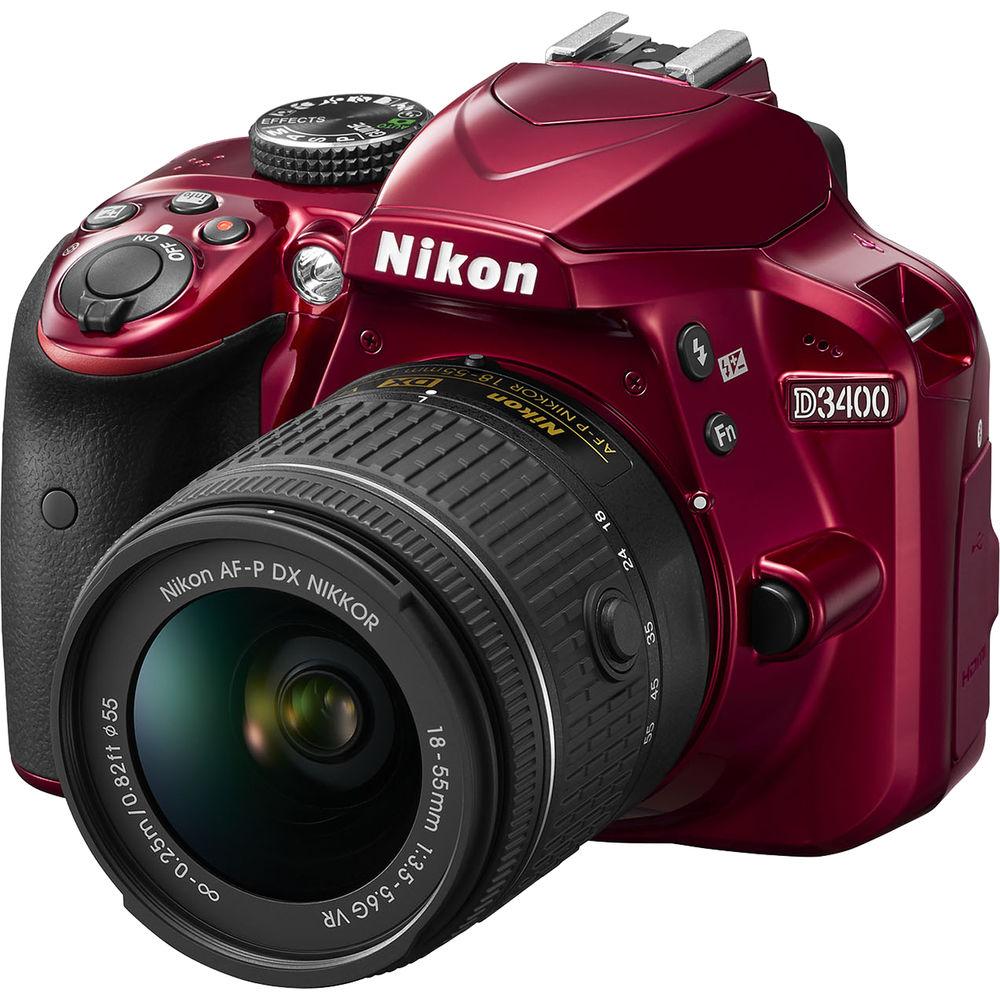

Nikon D3400 DSLR Camera with 18-55mm

User Manual for Nikon D3400 DSLR Camera with 18-55mm and 70-300mm Lenses

• Product category: DSLR Cameras Nikon
• Brand: Nikon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Nikon DSLR Cameras

Product description

24.2MP DX-Format Sensor and EXPEED 4 Processor
• The 24.2 megapixel DX-format CMOS sensor and EXPEED 4 processor work together to produce overall high image quality with notable detail, dynamic range, color accuracy, and low-light sensitivity to a native ISO 25600. Additionally, the sensor's design omits an optical low-pass filter in order to acquire the greatest sharpness and detail from subjects. The EXPEED 4 processor also enables a wealth of speed throughout the camera system, including support for Full HD 1080p movie recording and a full-resolution continuous shooting rate of 5 fps.

SnapBridge Bluetooth Connectivity
• Supporting a wealth of sharing and tagging possibilities, the D3400 features built-in SnapBridge connectivity to permit seamless transferring of imagery to a mobile device. BLE (Bluetooth Low Energy) technology enables communication between the camera and a smart device, and allows for automatic 2MP image transfers as you shoot. SnapBridge requires a one-time setup, for up to five unique devices, and also works in conjunction with NIKON IMAGE SPACE for backing up files and sharing imagery.

Multi-CAM 1000 Autofocus Sensor
• Benefitting the high image quality is an apt AF system that employs 11 distinct AF points to quickly acquire focus in a range of lighting conditions from -1 to +19 EV.

Full HD Movie Recording
• Full HD 1920 x 1080p movie recording is supported in multiple frame rates up to 60 fps, as well as HD 720p, in the MPEG-4 AVC/H.264 format. During recording, full-time autofocus can be employed, with face-detection and subject-tracking capabilities, for ensured sharpness with a wide variety of subject types. Additionally, a built-in monaural microphone can be used to record high-quality sound during movie recording.

Body Design

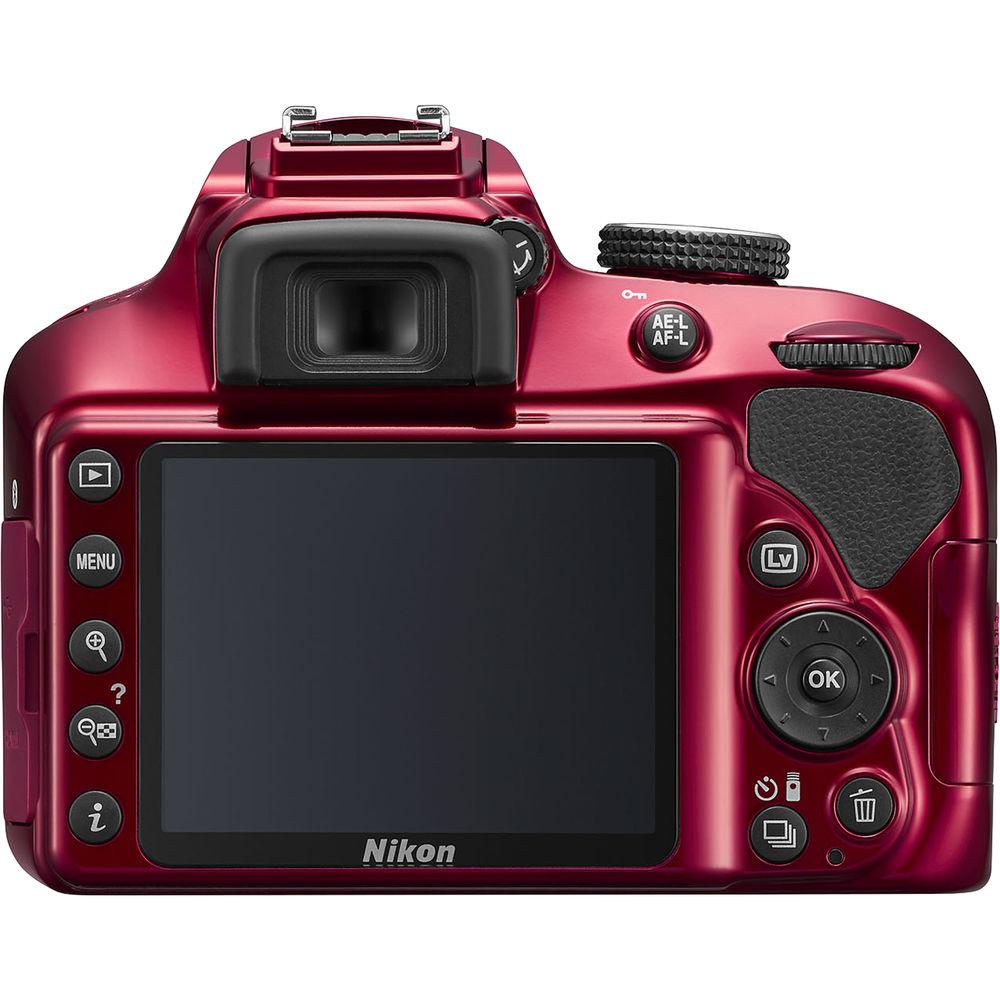

• The D3400 integrates a large 3.0" 921k-dot LCD monitor, which features a 170° wide-viewing angle to better support viewing capabilities from high and low working angles. Alternatively, a bright pentamirror optical viewfinder is also integrated into the design for precise eye-level viewing and real-time monitoring of subjects.

  A built-in pop-up flash is also available for additional illumination when working in low-light conditions and supports Nikon's i-TTL flash metering system. A hot shoe can be used, too, for connection and optional external flash for even greater lighting control.

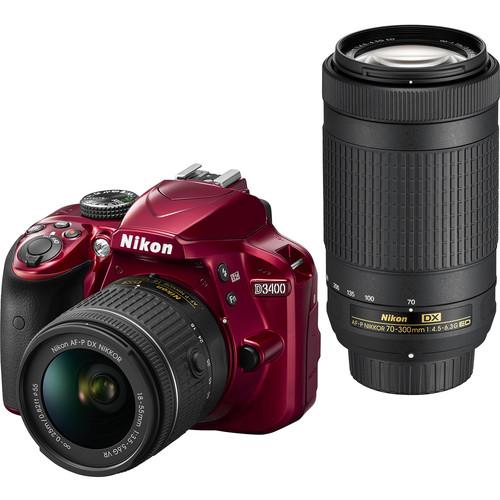

AF-P DX NIKKOR 18-55mm f/3.5-5.6G VR and AF-P DX NIKKOR 70-300mm f/4.5-6.3G ED Lenses

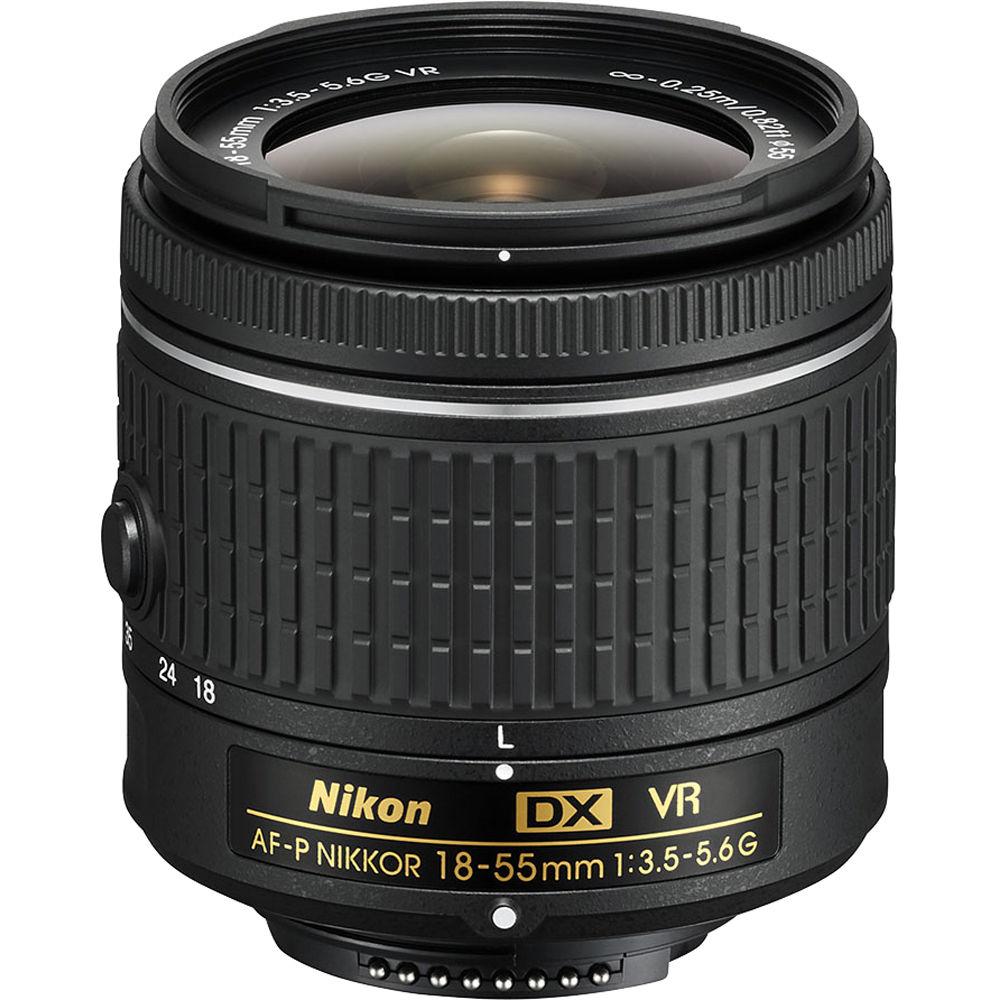

• Included with the camera body is the standard zoom AF-P DX NIKKOR 18-55mm f/3.5-5.6G VR lens, which provides a 35mm-equivalent focal length range of 27-82.5mm. Featuring an integrated pulse stepping motor, this lens exhibits exceptionally smooth, fast, and quiet autofocus performance to suit both stills and video recording. The optical design incorporates a pair of aspherical elements and a Super Integrated Coating is also featured to suppress lens flare and ghosting. Additionally, this lens also features Vibration Reduction image stabilization to minimize the appearance of camera shake when shooting handheld.

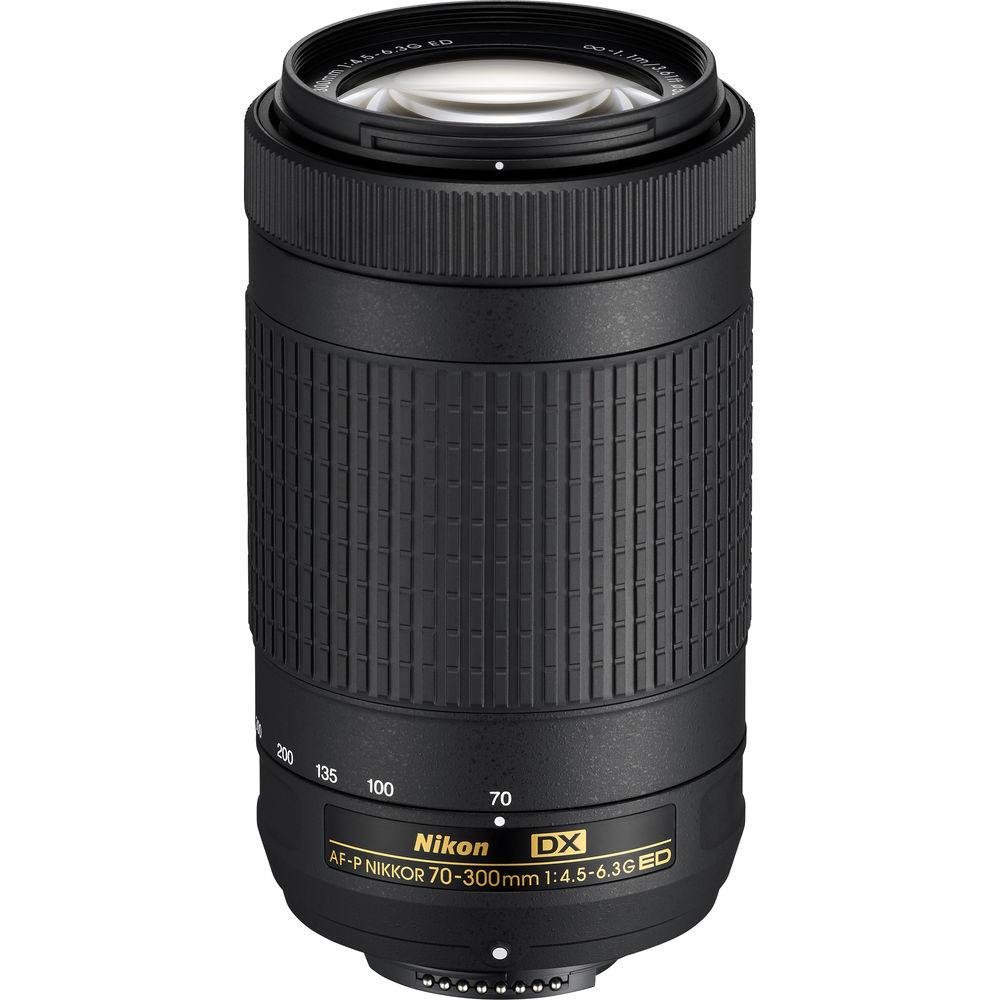

  Also included with camera is the telephoto zoom AF-P DX NIKKOR 70-300mm f/4.5-6.3G ED lens, which covers a 105-450mm equivalent zoom range. This lens incorporates one extra-low dispersion glass element into its optical design to reduce chromatic aberrations throughout the zoom range in order to provide greater clarity and color fidelity. A Super Integrated Coating is featured on this lens, too, to limit ghosting and flare when working in strong lighting conditions.

Other Camera Features
• • A helpful Guide Mode is available to aid in becoming acquainted with the D3400 through a series of step-by-step tutorials.
  • A range of Special Effects are available to creatively refine the look of imagery in-camera, and include Night Vision, Super Vivid, Pop, Photo Illustration, Toy Camera Effect, Miniature Effect, Selective Color, Silhouette, High Key, and Low Key.
  • The included EN-EL14a lithium-ion battery provides approximately 1200 shots per charge.
  • Picture Control modes can be directly accessed via a dedicated button and allow you to set predefined looks to imagery in-camera, and include Landscape, Monochrome, Neutral, Portrait, Standard, Vivid, and user-customizable settings.
  • Active D-Lighting helps to preserve both highlight and shadow details when working in contrast-rich scenarios, such as backlit lighting. Utilizing the EXPEED 4 processor's power, a more controlled image will be produced with brightness values closer to how they are naturally seen. This mode is suitable for working with moving subjects.
  • Scene Auto Selector is an automatic mode that intelligently identifies your subject and shooting scenario, selects a proper Scene Mode to apply, and adjusts exposure settings to best render the scene at hand.
  • Scene Modes: Auto, Auto (Flash Off), Child, Close-up, Landscape, Night Portrait, Portrait, and Sports.
  • In-Camera Image Editing features: Color Outline, Color Sketch, D-Lighting, Distortion Control, Filter Effects, Fisheye, Image Overlay, Miniature Effect, Monochrome, NEF (RAW) Processing, Painting, Perspective Control, Photo Illustration, Quick Retouch, Red-Eye Correction, Resize, Selective Color, Straighten, and Trim.
  • Language support: Arabic, Bengali, Brazilian Portuguese, Chinese (Simplified and Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Marathi, Norwegian, Persian, Polish, Portuguese, Romanian, Russian, Spanish, Swedish, Tamil, Telugu, Thai, Turkish, Ukrainian, and Vietnamese.

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Nikon D3400 Specs

Focal Length	18 to 55mm (35mm Equivalent Focal Length: 27 to 82.5mm)
Maximum Aperture	f/3.5 to 5.6
Minimum Aperture	f/22 to 38
Angle of View	76 Rating 92% users recommend this product to others. And what about you? This product has already been rated by 05 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
