User Manual for Nikon D5300 DSLR Camera Click to enlarge the picture
Contents of the user manual for the Nikon D5300 DSLR Camera
- Product category: DSLR Cameras Nikon
- Brand: Nikon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nikon DSLR Cameras
|
User manual for the Nikon D5300 DSLR Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nikon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nikon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nikon product will considerably shorten its lifespan!
|
Product description First Look: Nikon Goes Wi-Fi with the D5300 and Announces a New 58mm f/1.4 Lens Read More - Nikon D5300 Demo
- First Look

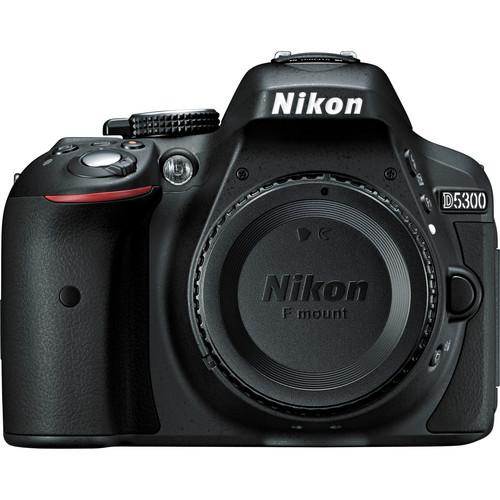

The black Nikon D5300 DSLR Camera features a DX-format 24.2 megapixel sensor and EXPEED 4 image processor to produce high-resolution still imagery and full HD video with notable low-light sensitivity to ISO 12800 and a fast continuous shooting rate of 5 fps. The sensor design omits the traditional optical low-pass filter in order to gain the utmost sharpness and resolution from both photos and videos. Complementing the imaging assets are both a versatile 39-point autofocus system, with nine cross-type sensors, and a 2,016-pixel RGB sensor for precise exposure metering in a wide variety of lighting conditions. Additionally, 1920 x 1080p movie recording is supported, in multiple frame rates up to 60 fps, with full-time continuous auto focusing capabilities.
The compact, yet durably designed, camera body incorporates both an optical pentamirror optical viewfinder along with a large 3.2" 1,037k-dot vari-angle LCD monitor, which features a 180° swivel design to better support working from high and low angles. Also integrated into the D5300 are both Wi-Fi and GPS modules, which enable advanced image sharing capabilities as well as location-based image tagging. When paired with an Android or iOS mobile device, remote viewing and control over the shutter release is possible from a distance and a vast network of pre-populated Points of Interest adds to the overall geotagging functionality.
For creatively enhancing the look and feel of imagery in-camera, a wide range of Picture Control modes, Scene Modes, and Special Effects modes are available as well as a host of in-camera image editing capabilities for adjusting settings prior to sharing. Built-in HDR and Active D-Lighting modes can also be used to optimize exposure results by preserving highlight and shadow details for an extended range of apparent tones. - 24.2MP DX-Format Sensor and EXPEED 4 Processor
- The 24.2 megapixel DX-format CMOS sensor and EXPEED 4 processor work together to produce overall high image quality with notable detail, dynamic range, color accuracy, and low-light sensitivity to a native ISO 12800, which is further expandable to ISO 25600. Additionally, the sensor's design omits an optical low-pass filter in order to acquire the greatest amount sharpness and detail from subjects. The EXPEED 4 processor also enables a wealth of speed throughout the camera system, including support for full HD 1080p movie recording and a full-resolution continuous shooting rate of 5 fps.
- Multi-CAM 4800DX Autofocus Sensor
- Benefitting the high image quality is an apt AF system that employs 39 distinct AF points, including nine cross-type sensors, to quickly acquire focus in a range of lighting conditions, from -1 to +19 EV. A unique 3D-tracking mode utilizes the 2,016-pixel RGB sensor, typically reserved for exposure metering, in order to maintain sharp focus on moving subjects. To better suit specific subject matter when working in AF-A or AF-C focus modes, Dynamic-area AF mode allows you to choose from 9, 21, or 39-point arrays for enhanced subject tracking and recognition, even if the subject briefly leaves the frame. Single-point AF, 3D-tracking, and Auto-area AF modes are also available.
When working in live view, for either still or movie shooting, a contrast-based AF system is employed to acquire focus precisely and can function in continuous, full-time servo mode to better suit working with moving subjects. Additionally, four AF-area modes are available when working in live view: Face-priority AF, Wide-area AF, Normal-area AF, and Subject-tracking AF. - Wi-Fi and GPS Connectivity
- Supporting a wealth of sharing and tagging possibilities, the D5300 features built-in Wi-Fi and GPS modules to enable seamless transferring of imagery as well as geotagging functionality. Once the Nikon Wireless Mobile Utility app has been installed on an Android or iOS mobile device, you can use that device to browse the contents of the memory card, select images, and seamlessly transfer files between devices for immediate sharing online. Additionally, the mobile device can remotely trigger the shutter and display a live view image from the camera to enable working from a distance.
The integrated GPS functionality can be used to assign locational data to all image files for geotagging purposes and for plotting imagery to an interactive map. Points of Interest can also be found using this information to further aid in efficient location-based tagging. - Body Design

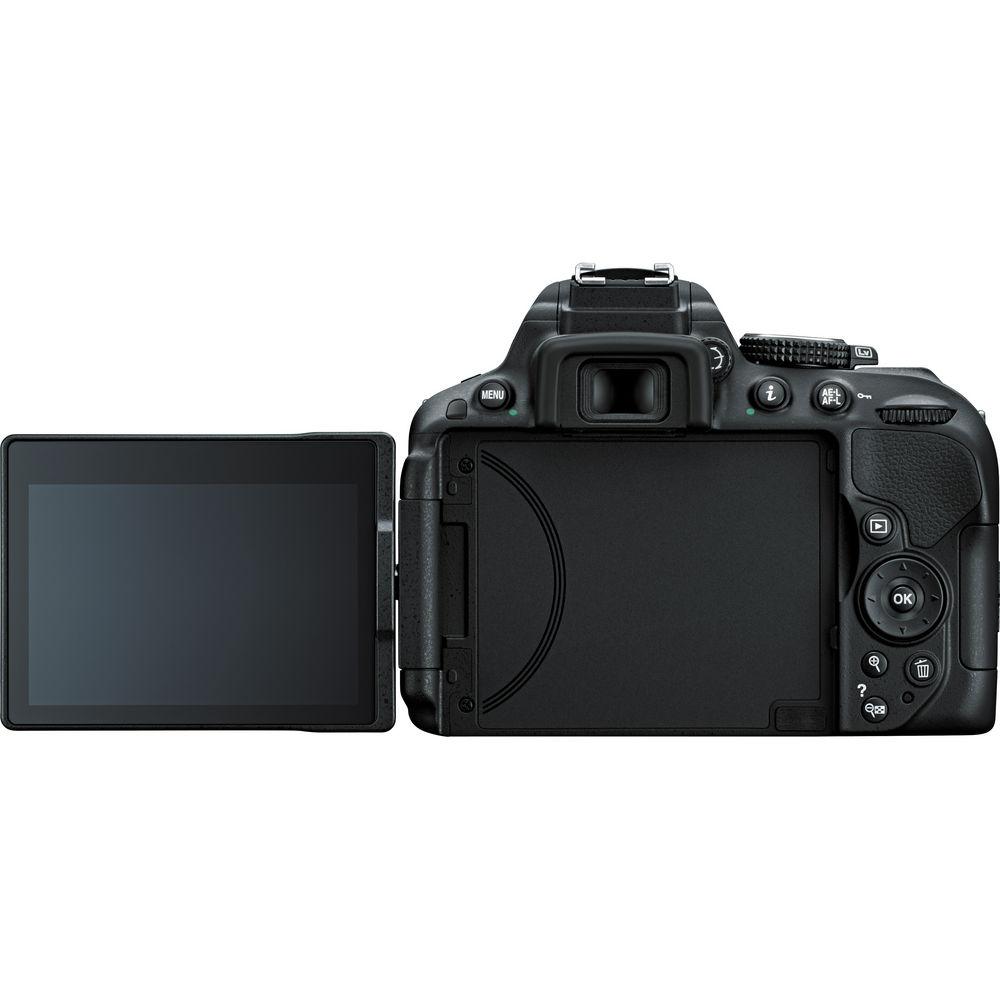

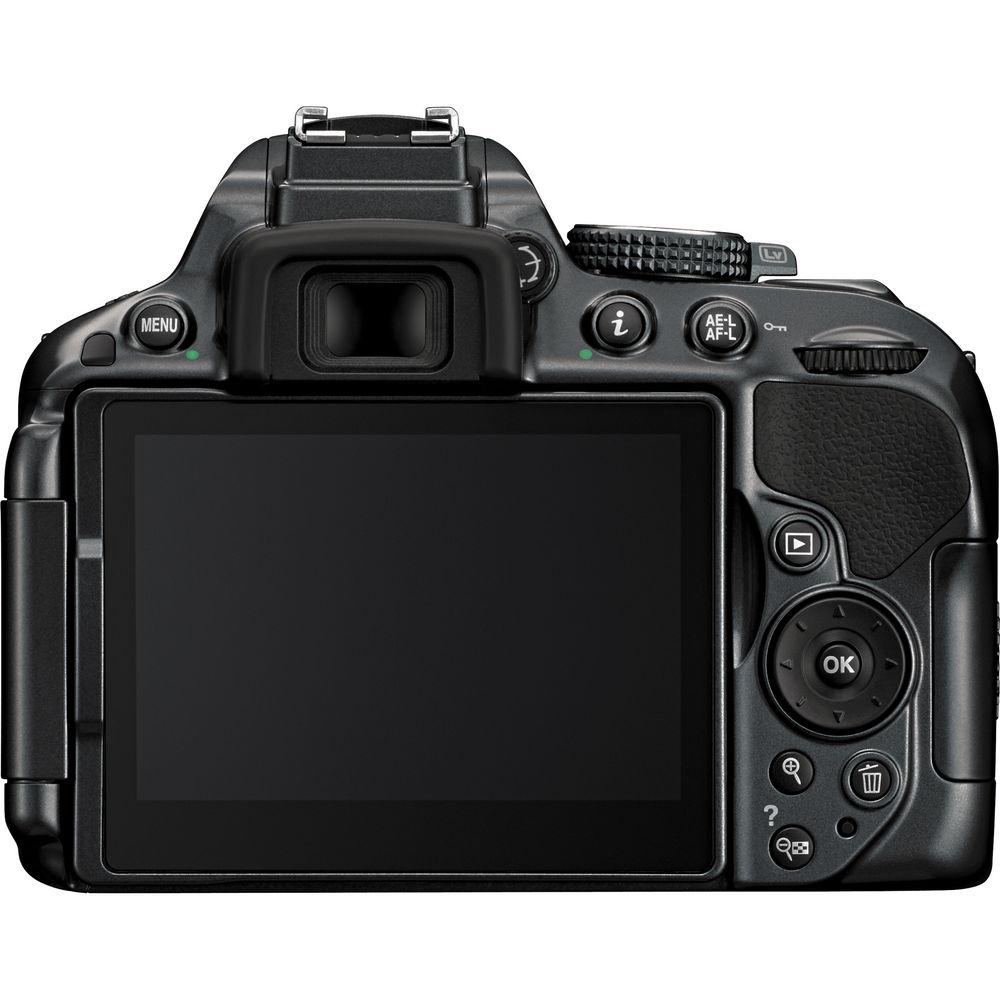

- Even while maintaining an overall compact form-factor, the D5300 integrates a large 3.2" 1,037k-dot vari-angle LCD monitor, which features a 180° swivel design to better suit working from high, low, and front-facing angles. Alternatively, a bright pentamirror optical viewfinder is also integrated into the design for precise eye-level viewing and real-time monitoring of subjects.

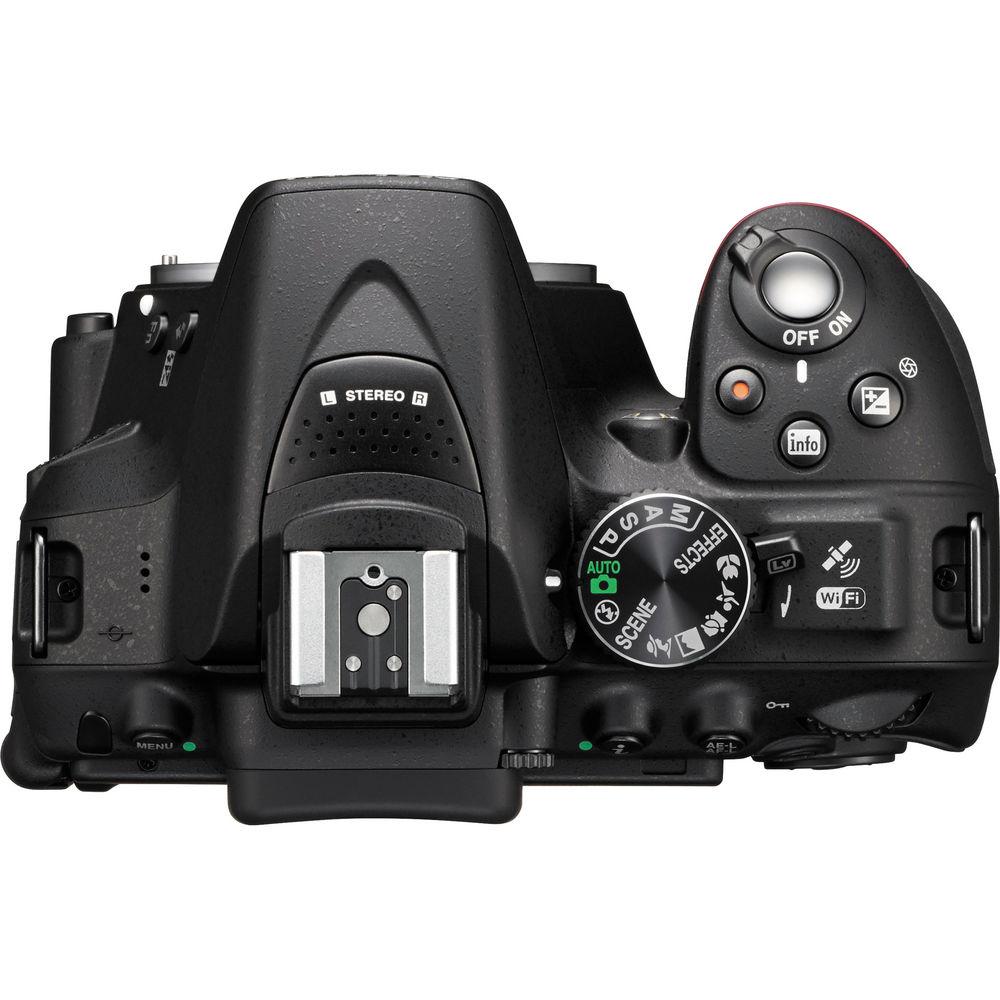

A built-in pop-up flash is also available for additional illumination when working in low-light conditions and supports Nikon's i-TTL flash metering system. A hot shoe can be used, too, for connection and optional external flash for even greater lighting control. - Scene Recognition System and Exposure Metering
- The intelligent Scene Recognition System with 3D Color Matrix Metering II utilizes a 2016-pixel RGB sensor to evaluate and analyze all aspects within a scene, including brightness, contrast, subject distance, and the scene colors, to quickly determine an accurate exposure and white balance setting to best render the scene at hand. The information gathered is also checked against onboard reference images to ensure consistency from image to image in regard to exposure, white balance, i-TTL flash settings, and subject-tracking AF performance.
- Full HD Movie Recording
- Full HD 1920 x 1080p movie recording is supported in 60, 30, 25, and 24 fps frame rates, as well as HD 720p and SD 480p in multiple frame rates, in the MPEG-4 AVC/H.264 format. During recording, full-time autofocus can be employed, with face-detection and subject-tracking capabilities, for ensured sharpness with a wide variety of subject types.
A built-in stereo microphone can be used to record high-quality sound or, alternatively, a microphone input is integrated into the body design to support the use of an external microphone for enhanced control over audio recordings. - Other Camera Features
-
- Picture Control modes can be directly accessed via a dedicated button and allow you to set predefined looks to imagery in-camera, and include Landscape, Monochrome, Neutral, Portrait, Standard, Vivid, and user-customizable settings.
- RAW (NEF) files can be recorded as lossless compressed or compressed at either 12 or 14-bit depth.
- Built-in HDR works to extend the tonal and exposure range of a single image by recording two separate exposures and blending them together in order to gain greater highlight and shadow details with an extended range of mid-tones.
- Active D-Lighting helps to preserve both highlight and shadow details when working in contrast-rich scenarios, such as backlit lighting. Utilizing the EXPEED 4 processor's power, a more controlled image will be produced with brightness values closer to how they are naturally seen. This mode is suitable for working with moving subjects.
- Scene Auto Selector is an automatic mode that intelligently identifies your subject and shooting scenario, selects a proper Scene Mode to apply, and adjusts exposure settings to best render the scene at hand.
- Scene Modes: Autumn Colors, Beach / Snow, Blossom, Candlelight, Child, Close-up, Dusk / Dawn, Food, Landscape, Night Landscape, Night Portrait, Party / Indoor, Pet Portrait, Portrait, Sports, and Sunset.
- Special Effects Modes: Night vision, Color sketch, Toy camera, Miniature effect, Selective color, Silhouette, High key, Low key, and HDR painting.
- In-Camera Image Editing Features: Color Balance, Color Outline, Color Sketch, D-Lighting, Edit Movie, Filter Effects, Fisheye, Image Overlay, Miniature Effect, Monochrome, NEF (RAW) Processing, Perspective Control, Quick retouch, Red-Eye Correction, Resize, Selective Color, Side-by-Side Comparison, Straighten, and Trim.
- Language Support: Arabic, Bengali, Brazilian Portuguese, Chinese (Simplified and Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Persian, Polish, Portuguese, Romanian, Russian, Spanish, Swedish, and Tamil.
User Manual PDF 6.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Nikon D5300 DSLR Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNikon D5300 Specs | Lens Mount | Nikon F | Camera Format | APS-C (1.5x Crop Factor) | Pixels | Actual: 24.78 Megapixel Effective: 24.2 Megapixel | Maximum Resolution | 6000 x 4000 | Aspect Ratio | 3:2 | Sensor Type | CMOS | Sensor Size | 23.5 x 15.6 mm | Image File Format | JPEG, RAW | Bit Depth | 14-Bit | Image Stabilization | None | | ISO Sensitivity | Auto, 100 to 12800 (Extended: 100 to 25600) | Shutter Speed | Electronic Front Curtain Shutter 1/4000 to 30 Seconds Bulb Mode | Metering Method | 3D Color Matrix, Center-Weighted Average, Spot | Exposure Modes | Aperture Priority, Auto, Manual, Program, Shutter Priority | Exposure Compensation | -5 to +5 EV (1/3 EV Steps) | Metering Range | 0 to 20 EV | White Balance | Auto, Cloudy, Direct Sunlight, Flash, Fluorescent, Incandescent, Preset Manual, Shade | Interval Recording | Yes | Self Timer | 2/5/10/20-Second Delay | Mirror Lock-Up | Yes | | Recording Modes | MOV/H.264 Full HD (1920 x 1080) at 24p/25p/29.97p/50p/59.94p HD (1280 x 720) at 50p/59.94p | Recording Limit | Up to 20 Minutes for Full HD (1920 x 1080) at 59.94p Up to 29 Minutes for Full HD (1920 x 1080) at 29.97p | Audio Recording | Built-In Microphone (Stereo) External Microphone Input | Audio File Format | Linear PCM | | Focus Type | Auto and Manual Focus | Focus Mode | Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S) | Autofocus Points | Phase Detection: 39 | Autofocus Sensitivity | -1 to +19 EV | | Viewfinder Type | Optical (Pentamirror) | Viewfinder Coverage | 95% | Viewfinder Magnification | Approx. 0.82x | Diopter Adjustment | -1.7 to +1 m | Monitor Size | 3.2" | Monitor Resolution | 1,037,000 Dot | Monitor Type | Articulating LCD | | Built-in Flash | Yes | Flash Modes | Auto, Auto/Red-Eye Reduction, Fill Flash, Off, Rear Curtain/Slow Sync, Rear Sync, Red-Eye Reduction, Slow Sync, Slow Sync/Red-Eye Reduction | Guide Number | 42.65' / 13 m at ISO 100 | Maximum Sync Speed | 1/200 Second | Flash Compensation | -3 to +1 EV (1/3, 1/2 EV Steps) | Dedicated Flash System | iTTL | External Flash Connection | Hot Shoe | | Memory Card Slot | 1 x SD/SDHC/SDXC | Connectivity | 3.5mm Microphone, HDMI C (Mini), USB 2.0 | Wireless | Wi-Fi | GPS | Yes | | Battery | 1 x EN-EL14a Rechargeable Lithium-Ion, 7.2 VDC, 1230 mAh | Dimensions (W x H x D) | 4.9 x 3.9 x 3.0" / 124.5 x 99.1 x 76.2 mm | Weight | 1.06 lb / 480.81 g (Body Only) | | Package Weight | 2.75 lb | Box Dimensions (LxWxH) | 8.6 x 6.7 x 5.3" | B&H Hands-on Learning Videos Hands-on Learning with the Nikon D5300 00:09:02 - Overview 9:02
