User manual

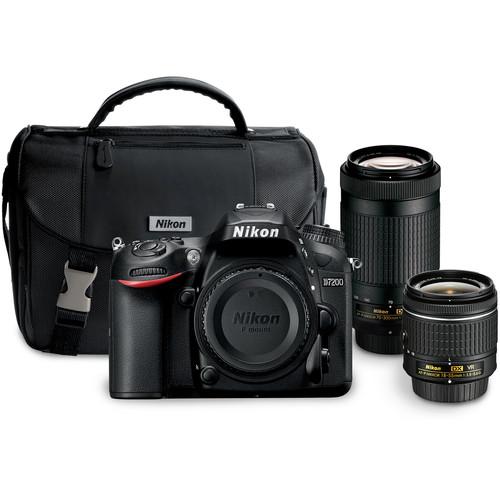

Nikon D7200 DSLR Camera with 18-55mm

User Manual for Nikon D7200 DSLR Camera with 18-55mm and 70-300mm Lenses Kit

• Product category: DSLR Cameras Nikon
• Brand: Nikon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Nikon DSLR Cameras

Product description

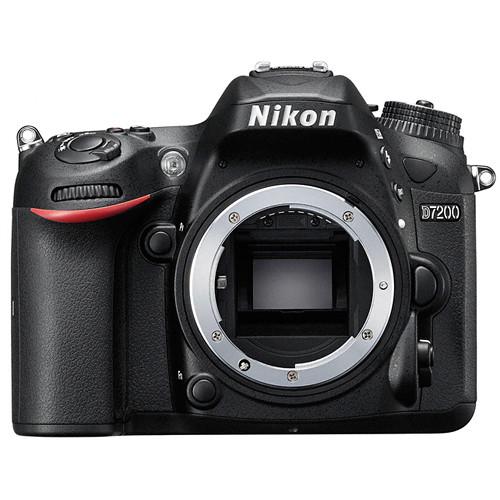

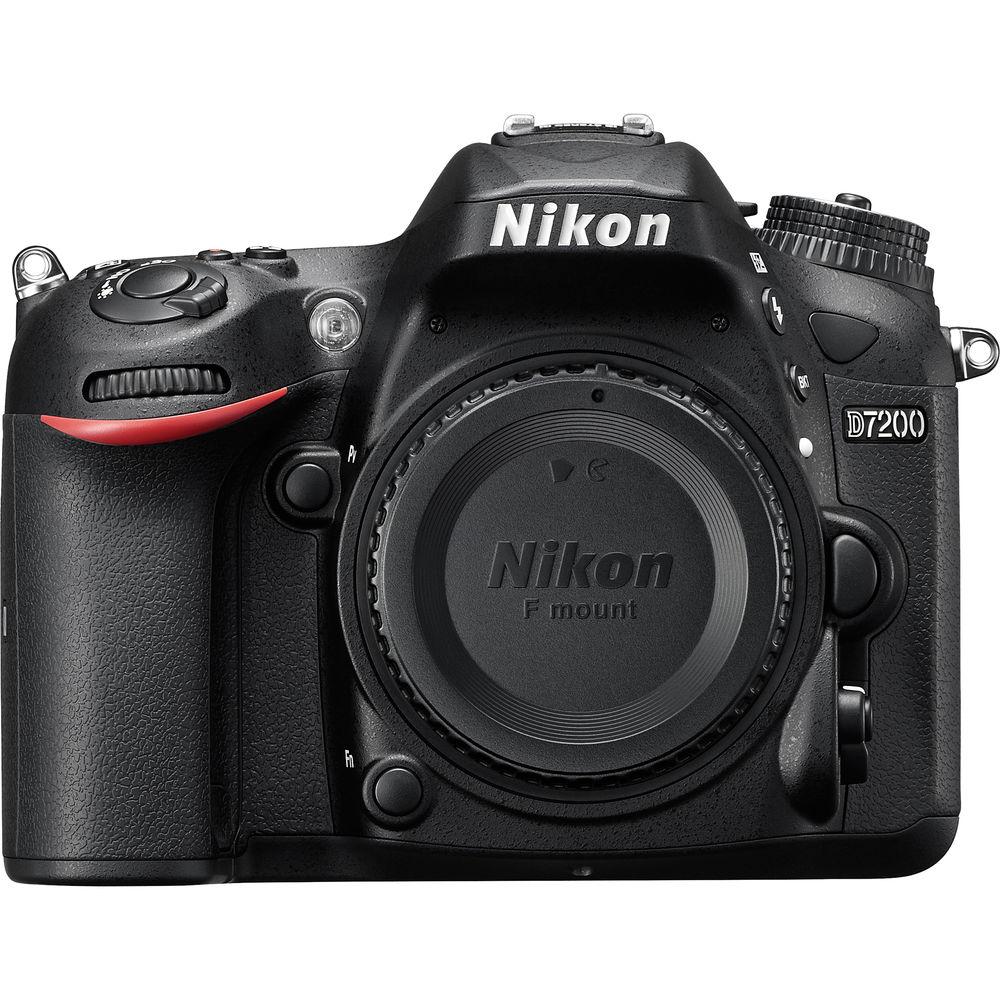

• D7200 DSLR Camera (Body Only) Poised to deliver in the most challenging of situations, Nikon's D7200 is a versatile DX-format DSLR that caters to both still photography and video users. Featuring a 24.2MP CMOS sensor which lacks an optical low-pass filter, and an EXPEED 4 image processor, the D7200 is able to record up to 6 fps at full-resolution, or 7 fps at a 1.3x crop, with a 100-frame buffer for extended high-speed shooting. This sensor and processor combination also avails a top native sensitivity of ISO 25600, which can further be expanded to black & white-dedicated ISO 51200 and ISO 102400 sensitivities. Full HD 1080p video recording is supported up to 60 fps, and in-camera time lapse shooting with automatic exposure smoothing is possible for up to 9,999 consecutive frames. In addition to the sheer imaging benefits, the D7200 also incorporates a large 3.2" 1,229k-dot LCD monitor, dual SD card slots, and features built-in snapbridge Wi-Fi connectivity with NFC for simple linking of your mobile device. Capable of performing in both still and video realms, the D7200 is an all-around shooter that blends sophisticated imaging technologies with refined handling and design.

  Rounding out its feature-set, the D7200 is also characterized by an apt 51-point AF system, with 15 cross-type points, for quick and accurate focusing in a variety of conditions. The 3D Color Matrix Metering II system, which utilizes a 2,016-pixel RGB sensor, also benefits the focusing capabilities in addition to providing precise exposure metering capabilities. Further realizing a complete imaging solution, a series of Picture Control profiles can be applied to refine the color and tonal handling of imagery.
  24.2MP DX-Format CMOS Sensor and EXPEED 4 Image Processor
  • The 24.2MP DX-format CMOS sensor enables recording high-resolution still imagery and full HD 1080p video with the utmost clarity, low noise, and smooth color gradations. The sensor's design also omits the traditional optical low-pass filter in order to gain increased image sharpness and resolution. Additionally, the sensor pairs with the advanced EXPEED 4 image processor to provide native sensitivity to ISO 25600, as well as expanded Hi BW1 ISO 51200 and Hi BW2 ISO 102400 sensitivities for monochromatic shooting in even dimmer lighting conditions.

    The sensor and processor combination also enables a top continuous shooting rate of 6 fps at full resolution, or 7 fps shooting at a 1.3x crop of the DX sensor area. Enhanced buffer capacity allows you to record up to 100 sequential JPEGs (Fine/Large), 27 12-bit NEF files, or 18 14-bit NEF files.
  Full HD Video Recording
  • The EXPEED 4 processing power extends beyond still imaging performance to benefit full HD 1080p video recording in multiple frame rates up to 60 fps, with the added ability to record 60/50p using just a 1.3x crop of the DX format for added reach while maintaining the full 1920 x 1080 resolution. During recording, fully manual control is possible over shutter speed and ISO settings, along with the ability to utilize Auto ISO adjustment in manual mode with a top sensitivity of ISO 25600. Zebra stripe highlighting can be applied to aid in controlling overexposure during recording, too, along with in-camera Picture Control profiles, custom tone curves, and a flat profile to benefit color grading applications. Recording to an optional external recorder is possible in order to gain uncompressed 4:2:2 8-bit output through the HDMI port and, when recording externally, use of the camera's LCD monitor for simultaneous live view monitoring is possible.

    In regard to audio recording, an in-camera stereo microphone can be used or, alternatively, an input is available for utilizing an optional external stereo microphone. Sound levels can be adjusted across 20 levels prior to and during recording, along with the ability to monitor audio via the headphone output. Additionally, the D7200 is compatible with the optional ME-W1 Wireless Microphone for recording clear mono sound of your subject up to 164' away.
  Advanced Multi-CAM 3500 II DX AF Sensor
  • Supporting the imaging capabilities of the D7200 is an apt autofocus system that employs up to 51 distinct points, with options available to use 9, 21, or all 51 points depending on the situation, with AF detection sensitivity down to -3 EV. 15 cross-type points are also integrated within this array to provide even greater accuracy to centrally-located subjects. Benefitting the use of telephoto lenses and teleconverters, the center-most point is also sensitive down to an aperture value of f/8. 3D Tracking, a part of the intelligent Scene Recognition System, also works to benefit maintained focusing on moving subjects for greater accuracy when shooting at high continuous shooting speeds. Furthermore, Single-point AF, Dynamic-area AF (with 9, 21, or 51 points selectable), 3D-tracking (using all 51 points), and Auto-area AF modes are also available. And when working in either horizontal or vertical shooting orientations, you can individually select your focus point and AF area settings to best fit the frame.

    When working in live view, for either still or movie shooting, a contrast-based AF system is employed to acquire focus precisely and can function in continuous, full-time servo mode to better-suit working with moving subjects.
  Scene Recognition System and Exposure Metering
  • The intelligent Scene Recognition System with 3D Color Matrix Metering II utilizes a 2,016-pixel RGB sensor to evaluate and analyze all aspects within a scene, including brightness, contrast, subject distance, and the scene colors, to quickly determine an accurate exposure and white balance setting to best render the scene at hand. The information gathered is also checked against onboard reference images to ensure consistency from image to image in regard to exposure, white balance, i-TTL flash settings, and subject-tracking AF performance.
  Camera Design Features

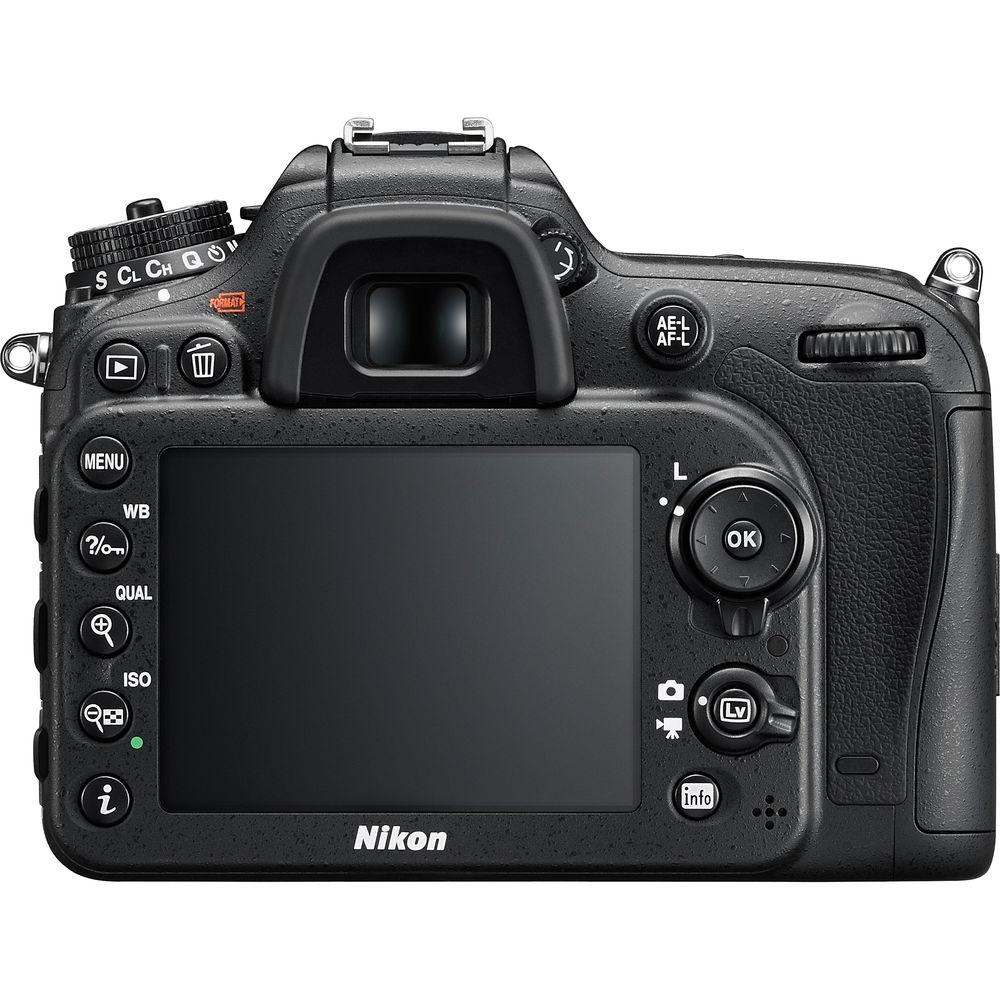

  • • A large 3.2" 1,229k-dot LCD monitor is incorporated into the D7200's design, and features an RGBW alignment for improved visibility when working in bright lighting conditions.
    • A bright pentaprism optical viewfinder offers 100% frame coverage and incorporates an organic EL display system to provide shooting information for seamless adjustment over camera settings without removing your eye from the viewfinder. Additionally, the optical glass features enhanced coatings for increased brightness, contrast, and color neutrality for more lifelike viewing.
    • A built-in pop-up flash can be used to provide additional illumination to scenes and can also be used as a flash commander to wirelessly communicate with other Nikon CLS-compatible Speedlights. Additionally, a hot shoe is available for utilizing optional external flashes.
    • Dual SD card slots are available to extend file saving capabilities by permitting either overflow recording or in-camera file duplicating. Additionally, optional HDMI-connected external recorders are supported for recording uncompressed video and time lapse sequences.
    • The front Pv button is designated as a depth of field preview button for manually checking your depth of field prior to shooting. This button, along with the front Fn button, can also be assigned to other shooting controls.
    • The included EN-EL15 rechargeable lithium-ion battery pack provides up to approximately 1110 shots or up to 80 minutes of recording per charge (based on CIPA standards).
  Snapbridge Wi-Fi Connectivity
  • Supporting a wealth of sharing and tagging possibilities, the D7200 features built-in snapbridge Wi-Fi connectivity to enable seamless transfer of imagery as well as remote shooting capabilities. Once the Nikon Wireless Mobile Utility app has been installed on an Android or iOS mobile device, you can use that device to browse the contents of the memory card, select images, and seamlessly transfer files between devices for immediate sharing online. Additionally, the mobile device can remotely trigger the shutter and display a live view image from the camera to enable working from a distance. NFC (Near Field Communication) is also supported to provide a quick and simple tap-to-connect method for linking your mobile devices with the camera.

    For faster wireless performance, the D7200 is also compatible with the optional WT-5A Wireless Transmitter and UT-1 Communication Unit, which can transmit image files via FTP.
  Other Camera Features
  • • Pairing video and still imaging capabilities, in-camera time lapse shooting is possible using the built-in intervalometer to record up to 9,999 consecutive exposures at variable intervals. Exposure smoothing can also be applied to groups of sequentially-recorded images in order to produce a naturally-appearing time lapse straight from the camera.
    • Dedicated Photo Shooting and Movie Shooting menus aid in easily accessing dedicated settings and controls depending on the medium you are working with.
    • RAW (NEF) files can be recorded as lossless compressed or compressed at either 12 or 14-bit depth.
    • Automated exposure bracketing is possible for up to 9 frames with 1/3 or 1/2 EV steps between each frame.
    • Active D-Lighting helps to preserve both highlight and shadow details when working in contrast-rich scenarios, such as backlit lighting. Utilizing the EXPEED 4's processing power, a more controlled image will be produced with brightness values closer to how they are naturally seen. This mode is suitable for working with moving subjects.
    • Built-in HDR works to extend the tonal and exposure range of a single image by recording sequential exposures and blending them together in order to gain greater highlight and shadow details with an extended range of mid-tones. This mode is best suited for working with stationary subjects.
    • Auto ISO sensitivity control allows you to select a minimum shutter speed at which camera shake can be controlled from and then will automatically set the ISO value in order to best render the scene. A maximum sensitivity level can also be set in order to maintain overall noise levels.
    • Spot White Balance control for live view shooting makes setting the white balance as easy as pointing to the area in the frame that should be white.
    • MC-DC2 port enables the connection of optional accessories, such as remote shutter releases.
    • Picture Control modes allow you to set predefined looks to imagery in-camera and include Landscape, Neutral, Portrait, Standard, Vivid, Flat, and user-customizable settings. A Clarity control setting can be used to refine the amount of definition with each of these profiles, and fine-tuned control in 0.25-step increments allows you to adjust the settings to your personal needs.
    • Special Effects modes allow you to creatively enhance imagery in-camera: Night Vision, Color Sketch, Miniature Effect, Selective Color, Silhouette, High Key, and Low Key.
    • A range of scene modes can be employed to base exposure settings on pre-defined, detected scene types: Autumn Colors, Beach/Snow, Blossom, Candlelight, Child, Close-up, Dusk/Dawn, Food, Landscape, Night Landscape, Night Portrait, Party/Indoor, Pet Portrait, Sports, and Sunset.
    • In-camera image editing: Color Balance, Color Outline, Color Sketch, D-Lighting, Distortion Control, Edit Movie, Filter Effects, Fisheye, Image Overlay, Miniature Effect, Monochrome, NEF (RAW) Processing, Perspective Control, Quick Retouch, Red-Eye Correction, Resize, Selective Color, Side-by-Side Comparison, Straighten, and Trim.
    • Language support: Arabic, Bengali, Brazilian Portuguese, Bulgarian, Chinese (Simplified and Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Marathi, Norwegian, Persian, Polish, Portuguese, Romanian, Russian, Serbian, Spanish, Swedish, Tamil, Telugu, Thai, Turkish, Ukrainian, and Vietnamese.
  UPC: 018208015542

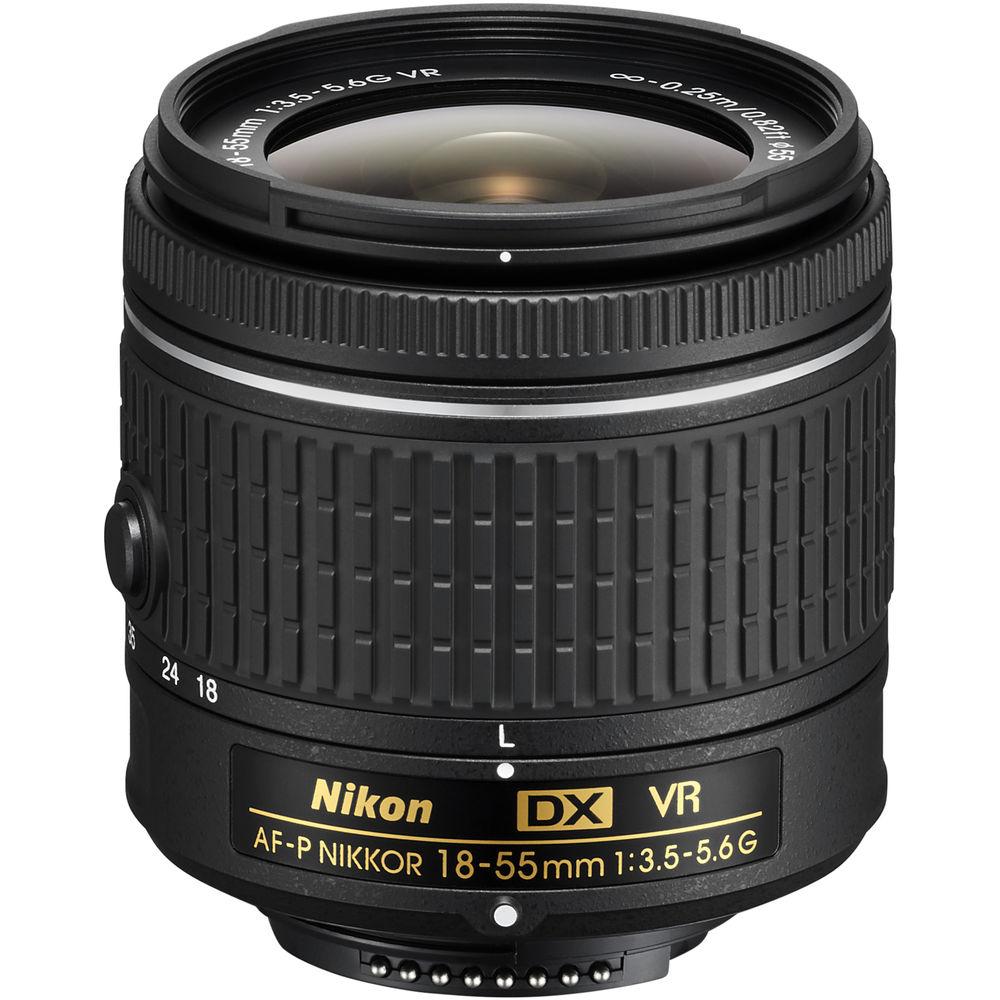

• AF-P DX NIKKOR 18-55mm f/3.5-5.6G VR Lens Updating the staple DX-format standard zoom, the AF-P DX NIKKOR 18-55mm f/3.5-5.6G VR from Nikon offers a 27-82.5mm equivalent focal length range as well as an especially sleek form factor. Two aspherical elements are featured in the optical design, which help to control spherical aberrations and distortion in order to realize high sharpness and accurate rendering. A Super Integrated Coating is also used to minimize flare and ghosting for greater contrast and color accuracy. Suiting both photo and video applications, the AF-P designation indicates the use of a pulse stepping motor that offers notably quiet, fast, and precise autofocus performance. Additionally, Vibration Reduction image stabilization compensates for up to four stops of camera shake for sharper handheld shooting.
  • Standard zoom spans wide-angle to portrait focal lengths and is designed for Nikon F-mount DX-format cameras, where it provides a 27-82.5mm equivalent range.
  • Two aspherical elements are used to reduce spherical aberrations and distortion in order to realize sharp imagery with accurate rendering.
  • A Super Integrated Coating has been applied to individual elements to suppress internal reflections, flare, and ghosting for improved contrast and color accuracy when working in strong lighting conditions.
  • AF-P pulse motor uses stepping motors to deliver impressively smooth, quiet, and fast autofocus performance that is well-suited to both stills and video applications.
  • VR (Vibration Reduction) image stabilization helps to minimize the appearance of camera shake by four stops to benefit shooting handheld in difficult lighting conditions.
  • Rounded seven-blade diaphragm promotes a pleasing out of focus quality that benefits the use of shallow depth of field and selective focus techniques.
  • A retractable lens barrel design maintains an especially compact form factor when the lens is not in use. Additionally, autofocus and VR switches have been removed from the lens design for a sleek profile; these operations are now accessible in compatible cameras' menu systems.
  Compatible Cameras
  • • Full Compatibility: D7500, D5600, D5500, D5300, D3400, D3300, D500, and later Nikon 500-, 7000-, D5000-, and D3000-series cameras.
    • Compatible with Limited Functions: D5, D850, D810/A, Df, D750, D7200, D7100, D5200, Nikon 1-series with FT1 adapter.
    • Compatible cameras may require a firmware update.
  UPC: 018208200597

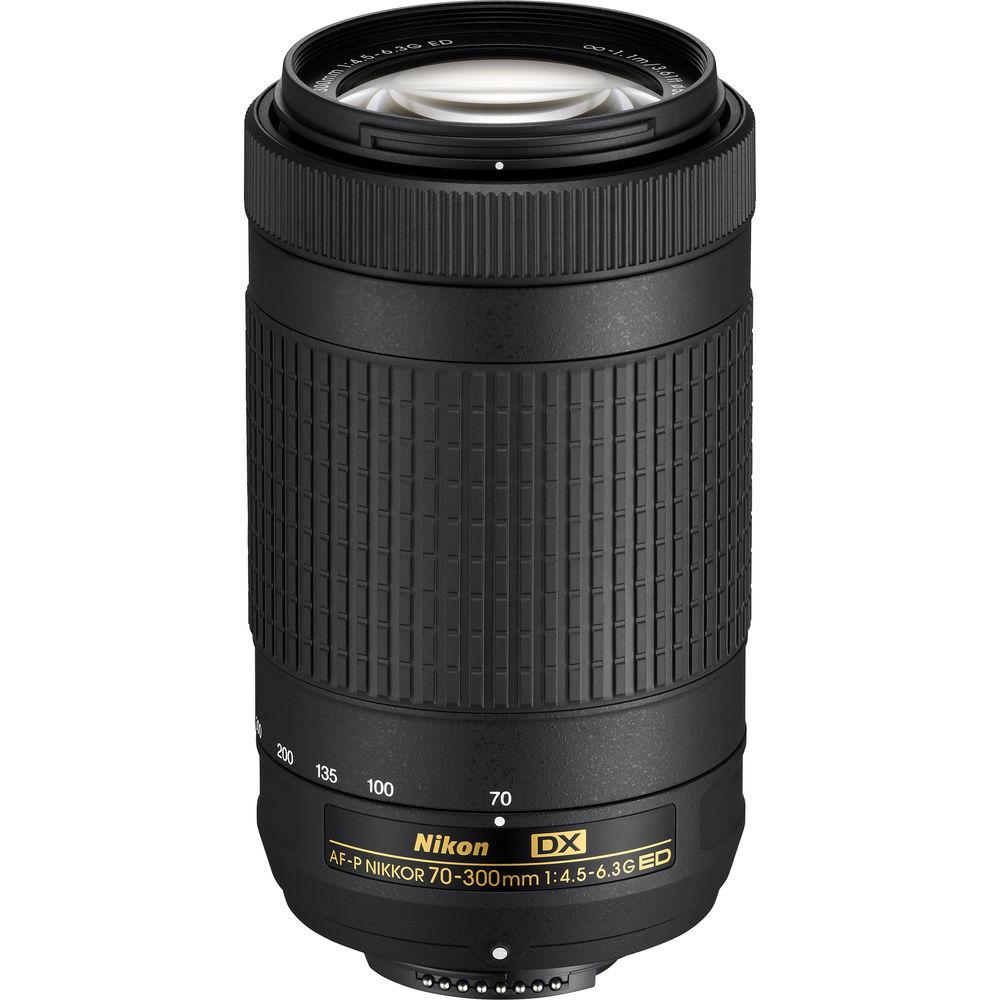

• AF-P DX NIKKOR 70-300mm f/4.5-6.3G ED Lens An evolution of the tested DX telephoto zoom, the AF-P DX NIKKOR 70-300mm f/4.5-6.3G ED from Nikon is a 105-400mm-equivalent lens featuring an updated focusing mechanism along with a compact form factor. One extra-low dispersion element is used in the optical design to greatly reduce color fringing and chromatic aberrations throughout the zoom range in order to maintain image clarity. A Super Integrated Coating has also been applied to minimize reflections and flare for greater contrast. Suiting both photo and video applications, the AF-P designation indicates the use of a pulse stepping motor that offers notably quiet, fast, and precise autofocus performance.
  • Telephoto zoom is designed for DX-format Nikon F-mount cameras and provides a 105-450mm equivalent focal length.
  • One extra-low dispersion element greatly reduces color fringing and chromatic aberrations in order to produce greater clarity and color accuracy.
  • A Super Integrated Coating has been applied to individual elements to suppress internal reflections, flare, and ghosting for improved contrast and color accuracy when working in strong lighting conditions.
  • AF-P pulse motor uses stepping motors to deliver impressively smooth, quiet, and fast autofocus performance that is well-suited to both stills and video applications.
  • Rounded seven-blade diaphragm promotes a pleasing out of focus quality that benefits the use of shallow depth of field and selective focus techniques.
  • Autofocus switch has been removed from the lens design for a sleek profile; this operation is now accessible in compatible cameras' menu systems.
  Compatible Cameras
  • • Full Compatibility: D7500, D5600, D5500, D5300, D3400, D3300, D500, and later Nikon 500-, 7000-, D5000-, and D3000-series cameras.
    • Compatible with Limited Functions: D5, D850, D810/A, Df, D750, D7200, D7100, D5200, Nikon 1-series with FT1 adapter.
    • Compatible cameras may require a firmware update.
  UPC: 018208200610

• EN-EL15 Lithium-Ion Battery (1900mAh)

• MH-25A Battery Charger for EN-EL15 Li-Ion Battery

• UC-E17 USB Cable

• AN-DC1 Camera Strap for Various Nikon DSLRs

• DK-5 Eyepiece Shield (Replacement)

• DK-23 Rubber Eyecup for Select Nikon DSLR Cameras

• BF-1B Body Cap

• Limited 1-Year Warranty

• LC-55A 55mm Snap-On Lens Cap

• Rear Lens Cap

• Limited 1-Year Warranty

• Limited 4-Year USA Warranty Extension with Online Registration

• 58mm Snap-On Lens Cap

• Rear Lens Cap

• Limited 1-Year Warranty

• Limited 4-Year USA Warranty Extension with Online Registration

Also Includes

• Shoulder Bag

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• D7200 DSLR Camera (Body Only)

  Lens Mount	Nikon F
  Camera Format	APS-C (1.5x Crop Factor)
  Pixels	Actual: 24.72 Megapixel Effective: 24.2 Megapixel
  Maximum Resolution	6000 x 4000
  Aspect Ratio	3:2, 16:9
  Sensor Type	CMOS
  Sensor Size	23.5 x 15.6 mm
  Image File Format	JPEG, RAW
  Bit Depth	14-Bit
  Image Stabilization	None

  ISO Sensitivity	Auto, 100 to 25600 (Extended: 51200 to 102400)
  Shutter Speed	Electronic Front Curtain Shutter 1/8000 to 30 Seconds
  Metering Method	3D Color Matrix, Center-Weighted Average, Spot
  Exposure Modes	Aperture Priority, Manual, Program, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3, 1/2 EV Steps)
  Metering Range	0 to 20 EV
  White Balance	Auto, Cloudy, Direct Sunlight, Flash, Fluorescent, Incandescent, Preset Manual, Shade
  Continuous Shooting	Up to 6 fps
  Interval Recording	Yes
  Self Timer	2/5/10/20-Second Delay
  Mirror Lock-Up	Yes

  Recording Modes	MOV/H.264 Full HD (1920 x 1080) at 24p/25p/29.97p/50p/59.94p HD (1280 x 720) at 50p/59.94p SD (640 x 480) at 25p/29.97p
  External Recording Modes	Full HD (1920 x 1080) HD (1280 x 720)
  Recording Limit	Up to 20 Minutes for Full HD (1920 x 1080) at 59.94p Up to 29 Minutes for Full HD (1920 x 1080) at 29.97p
  Video Encoding	NTSC/PAL
  ISO Sensitivity	Auto: 100 to 25600
  Audio Recording	Built-In Microphone (Stereo) External Microphone Input
  Audio File Format	Linear PCM (Stereo)

  Focus Type	Auto and Manual Focus
  Focus Mode	Automatic (A), Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Phase Detection: 51 (15 Cross-Type)
  Autofocus Sensitivity	-3 to +19 EV

  Viewfinder Type	Optical (Pentaprism)
  Viewfinder Eye Point	19.5 mm
  Viewfinder Coverage	100%
  Viewfinder Magnification	Approx. 0.94x
  Diopter Adjustment	-2 to +1 m
  Monitor Size	3.2"
  Monitor Resolution	1,228,800 Dot
  Monitor Type	LCD

  Built-in Flash	Yes
  Flash Modes	Auto, Auto/Red-Eye Reduction, Fill Flash, Hi-Speed Sync, Off, Rear Curtain/Slow Sync, Rear Sync, Red-Eye Reduction, Slow Sync, Slow Sync/Red-Eye Reduction
  Guide Number	39.37' / 12 m at ISO 100
  Maximum Sync Speed	1/250 Second
  Flash Compensation	-3 to +1 EV (1/3, 1/2 EV Steps)
  Dedicated Flash System	iTTL
  External Flash Connection	Hot Shoe

  Memory Card Slot	2 x SD/SDHC/SDXC
  Connectivity	3.5mm Headphone, 3.5mm Microphone, HDMI C (Mini), USB 2.0
  Wireless	Wi-Fi
  GPS	None

  Operating Temperature	32 to 104°F / 0 to 40°C

  Battery	1 x EN-EL15 Rechargeable Lithium-Ion, 7 VDC, 1900 mAh
  Dimensions (W x H x D)	5.3 x 4.2 x 3.0" / 135.5 x 106.5 x 76.0 mm
  Weight	1.49 lb / 675 g

  Box Dimensions (LxWxH)	8.8 x 6.8 x 4.9"

• AF-P DX NIKKOR 18-55mm f/3.5-5.6G VR Lens

  Focal Length	18 to 55mm (35mm Equivalent Focal Length: 27 to 82.5mm)
  Maximum Aperture	f/3.5 to 5.6
  Minimum Aperture	f/22 to 38
  Lens Mount	Nikon F
  Format Compatibility	APS-C
  Angle of View	76 Rating 94% users recommend this product to others. And what about you? This product has already been rated by 05 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
