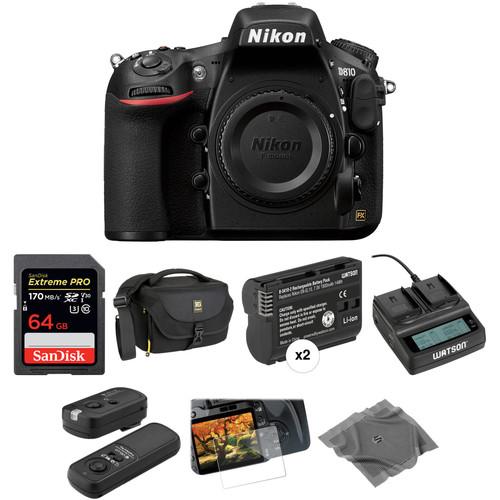

Nikon D810 DSLR Camera Body Deluxe

User Manual for Nikon D810 DSLR Camera Body Deluxe Kit

• Product category: DSLR Cameras Nikon
• Brand: Nikon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Nikon DSLR Cameras

Product description

• Nikon D810 DSLR Camera (Body Only)
  • Nikon D810 Demo
  The Nikon D810 DSLR Camera takes its place as the high resolution option in the Nikon DSLR lineup. It features a 36.3MP FX-format CMOS sensor without an Optical Low Pass Filter for particularly sharp and detailed still imaging. With the addition of the EXPEED 4 Image Processor, performance speed is increased compared to the EXPEED 3 and noise is effectively reduced throughout the ISO range. Continuous shooting speed in FX format is 5 fps and in DX format hits a maximum of 7 fps. In addition, the Full HD video capabilities of the D810 have been upgraded to include 1080p capture at 24, 30 and 60 fps. Also, the improved efficiency of the processor enables up to 1200 shots on one battery charge and 40 minutes of video recording. Low light performance has been upgraded thanks to a wide native ISO sensitivity range that runs from 64 to 12,800 and can be expanded from 32 to 51,200. The advanced Multi-CAM 3500FX autofocus sensor offers 51 AF points with 15 cross-type sensors and Group Area AF enables five AF sensors to be used as one group. This is useful when shooting subjects that cannot be tracked easily by one AF point due to lighting conditions. As a camera optimized for video capture, the D810 features recording in both FX and DX formats including simultaneous recording to memory cards and an external recorder as well as recording 60p output to an external recorder. The ISO range for video has also been expanded to run from ISO 64 to 12,800 and expand to 51,200. Automatic ISO adjustment in manual mode enables smooth exposure transitions. A built-in stereo microphone is supported as are jacks for an external mic and headphones. A selectable audio frequency range provides exacting control over sound recording.A 3.2" LCD with 1,229K-dot resolution provides playback viewing and live view, and improved coatings on the optical viewfinder components provide brighter images and more accurate colors. Live View function now includes split screen display zoom for stills, and zebra highlighting display in video mode. Full aperture metering during live view for still shooting is supported.Interval and time-lapse shooting feature exposure smoothing, and the maximum number of images per sequence is now 9,999. Improved Picture Control settings now offer Flat Picture Control to enable maximum dynamic range and color adjustments in post-production.The D810 utilizes dual media slots for both Compact Flash and SD cards, and it provides a built-in flash with i-TTL metering as well as a hot shoe mount. A larger grip enables comfortable control for extended shooting, and a secondary "i" button has been added to back panel for faster access to important settings.
  36.3MP FX-Format CMOS Sensor without an Optical Low Pass Filter
  • Nikon's highest resolution sensor is housed in the D810, and by omitting the Optical Low Pass Filter, the sensor provides superior sharpness and detail. The sensor boasts fast channel readout, wide dynamic range, rich tones and improved imaging at high sensitivities.
  EXPEED 4 Image Processor
  • The EXPEED 4 processor provides 30% faster performance over the EXPEED 3 as well improved low noise imaging throughout the ISO range. Support for 1080p video capture at 60 fps is featured and the processor's increased efficiency enables up to 1200 still shots and 40 minutes of video recording per charge.
  Native ISO Range of 64 to 12,800
  • The improved ISO range compared to the D800 enables more effective low light imaging, and the ISO can be expanded from 32 to 51,200.
  Advanced Multi-CAM 3500FX Auto Focus Sensor
  • Versatile AF Modes of 9, 21, and 51 points and 3D tracking enable fast, precise auto focus control. AF sensitivity down to -2 EV is effective in low light and 15 cross-type sensors are compatible with AF NIKKOR lenses with open aperture of f/5.6 or faster. Eleven central focus points work with an open aperture of f/8. Improvements include upgraded 'lock-on', expanded 'store by orientation,' and more options for AF mode restrictions.
  Group Area AF
  • Group Area AF enhances subject detection and tracking in challenging lighting conditions or when shooting comparatively small subjects against a high-contrast background by grouping and monitoring 5 individual AF points. The 5-point AF area can be shifted across the 51-point array as your composition changes.
  RAW Size S
  • Accelerate your workflow with Nikon's RAW Size S file format which delivers 12-bit uncompressed Nikon NEF files that enable faster image transfer and smoother post-production.
  Continuous Shooting
  • In FX mode, the D810 can shoot up to 5 fps, and in DX mode it can capture up to 7 fps when utilizing the MB-D12 battery grip with AA batteries.
  Reduced Vibration for Sharper Imaging
  • The D810's shutter/mirror box architecture and electronic front-curtain feature improve overall image clarity. The shutter/mirror mechanism reduces image shake for a steady viewfinder image with minimal blackout during high-speed shooting. When activated, the electronic front-curtain shutter reduces the risk of blur in even subtle details by minimizing internal vibrations during exposure.
  Quiet Continuous Mode
  • A redesigned Sequencer/Balancer Mechanism enables Quiet Continuous Mode for near silent sequential shooting.
  Picture Control
  • In addition to standard, neutral, vivid, monochrome, portrait and landscape, image control options have been expanded to include Flat Picture Control which is geared for shooting in RAW modes and for video capture when adjustments will be made in post-production. Also, a clarity option has been added to all Picture Control settings and better control over Picture Control is enabled by fine 0.25 steps.
  Full HD 1080p Video Capture in 60/30/24 fps
  • Video recording is supported in both FX and DX formats with an ISO range from 64 to 12,800 and expandable to 51, 200. Simultaneous recording to memory cards and to an external recorder is now supported. Auto ISO adjustment is possible in manual mode for smooth exposure transitions. Nikon's 3D noise reduction reduces random noise, distortion, and flicker when filming at high sensitivities. Zebra mode on the camera monitor shows you exactly where highlights are. A built-in stereo microphone as well as jacks for external microphone and headphones are provided. You can fine-tune audio levels in isolation both before and during recording and select the sound range (wide/voice).
  3.2" LCD Monitor with 1,229k-dot Resolution
  • A high resolution LCD provides detailed playback viewing and live view capture with color balance and brightness control. A split screen display zoom for still shooting lets you compare two enlarged points in the image for sharpness and exposure.
  Optical Viewfinder
  • Improved coatings on the optical components render brighter and more accurate color, and the Organic EL information display makes it easier to make adjustments under bright/dim conditions.
  Interval Timer/Time-Lapse Shooting
  • Exposure smoothing is supported in time-lapse and interval shooting modes and the number of recordable images has been increased to 9,999.
  Flash
  • Both a built-in flash and hot shoe mount are supported with i-TTL metering, as is a flash sync terminal. The built-in flash offers commander mode for wireless control of up to two groups of off-camera flash units.
  CF and SD Card Slots
  • Two card slots are supported for versatile image storage and smoother workflow. One CF card slot for high-speed UDMA 7 cards, and one SD card slot for high-speed, high-capacity SDXC and UHS-I cards allow you to use one card as back-up or place still images on one card and video on the other or RAW on one and JPEG on the other.
  Wi-Fi with Optional Transmitter
  • The D810 offers wireless connectivity for image transfer to a computer or FTP server and for remote camera control using Nikon's Camera Control Pro 2 software via the optional WT-5A Wireless Transmitter in combination with the optional UT-1 Communications Unit. The WT-5 attaches to the UT-1 unit which mounts to the camera's accessory hot shoe.
  Form Factor
  • A deeper hand grip improves handling, and a secondary "i" button has been added for easier access to important settings. A durable magnesium alloy body with extensive weather and dust sealing ensure the D810 is moisture- and dust-resistant.
  UPC: 018208015429
• SanDisk 64GB Extreme PRO UHS-I SDXC Memory Card
  • Nikon D810 Demo
  Designed for SD devices that can capture Full HD, 3D, and 4K video, as well as raw and burst photography, the 64GB Extreme PRO UHS-I SDXC Memory Card from SanDisk has a capacity of 64GB, is compatible with the UHS-I bus, and features a speed class rating of V30, which guarantees minimum write speeds of 30 MB/s. If your device does not support the V30 standard, this card also supports the U3 standard, which likewise guarantees minimum write speeds of 30 MB/s. Read speeds are supported up to 170 MB/s and write speeds max out at 90 MB/s. A built-in write-protect switch helps to safeguard against the accidental erasure of card data.

  While this card has been designed for cameras that are UHS-I / V30 / U3 compatible, it may be used in devices that do not support UHS-I / V30 / U3. However, bear in mind that this card will then default to your device's speed class and bus rating, such as UHS-I and U1, which supports minimum write speeds of 10 MB/s, or Class 10, which also supports minimum write speeds of 10 MB/s.

  As with most SanDisk cards, this memory card is shockproof, X-ray proof, waterproof, while also being able to withstand temperatures from -13 to 185°F, allowing you to take this card with you into extreme environments, such as snow, deserts, and pools. Should the card's data become compromised, you also benefit from the option to download RescuePRO Deluxe software as well as a limited lifetime warranty.

  General Features

  Transfer Speeds up to 170 MB/s
  • Once the shots are taken, your work is only half done. Accelerating your workflow means you can carve out more time to take your creativity to the next level.
  Record 4K UHD Video
  • Sometimes speed is what you need. The SanDisk Extreme PRO UHS-I SDXC card delivers the performance to capture uninterrupted 4K UHD video.
  Sequential Burst Mode Shots
  • Rated UHS Speed Class 3 (U3) and Video Speed Class 30 (V30), the SanDisk Extreme PRO UHS-I SDXC card lets you capture sequential burst mode shots.
  Durability You Can Count On
  • Built for and tested in harsh conditions, the SanDisk Extreme PRO UHS-I SDXC card is shockproof, X-ray proof, and waterproof, while also being able to withstand temperatures from -13 to 185°F.
  Recover Images You Accidentally Deleted
  • Includes an offer for RescuePRO Deluxe 2-year data recovery software, which lets you restore images you accidentally deleted. Registration is required.
  UPC: 619659169299
• 2 x Watson EN-EL15 Lithium-Ion Battery Pack (7.0V, 1900mAh)
  • Nikon D810 Demo
  This second version of the Watson EN-EL15 Lithium-Ion Battery Pack works with all cameras that take the Nikon EN-EL15. This replacement pack features a 1900-2000mAh capacity, 7.0V of output power, and 14 watt-hours. Small and lightweight, lithium-ion batteries can be charged or discharged at any time without developing memory effect.
  Compatible Cameras
  • • Z6
    • Z7
    • 1 V1
    • D600
    • D610
    • D750
    • D800
    • D800E
    • D810
    • D810A
    • D850
    • D7000
    • D7100
    • D7200
    • D7500
  UPC: 847628598140
• Watson Duo LCD Charger with Two EN-EL15 Battery Plates
  • Nikon D810 Demo
  This Duo LCD Charger from Watson restores power to one or two EN-EL15 batteries via the included, dedicated plates. These can be replaced by optional plates for various other batteries. Additionally, the Duo can simultaneously charge two different batteries with different voltages. Charging time is between two and six hours. The unit also features a USB 2.0 port, which enables you to charge and power a mobile device while your camera batteries are being replenished. The LCD screen displays each battery's charge percentage--even when the Duo is unplugged--via the test button.

  Running on 100-240 VAC power, the Duo can be used all over the world. It includes a power cord with a 2-prong North American plug, as well as a 12 VDC car charger that plugs into a cigarette lighter. UPC: 847628544918
• Vello FreeWave Plus Wireless Remote Shutter Release for Nikon
  • Nikon D810 Demo
  Trigger your camera's shutter wirelessly with the FreeWave Plus Wireless Remote Shutter Release from Vello, a lightweight remote control system that will help you avoid unwanted camera movement. This 2.4 GHz model is compatible with Nikon cameras and will work both wired and wirelessly up to 320', depending on your own needs and setup. This makes it useful for photographing wildlife or for macro and long exposures where it is necessary to eliminate any chance of camera shake.

  The FreeWave system also has access to 16 channels for triggering multiple receivers and has an internal antenna that will be protected from any accidental damage. Multiple features are available for shooting, such as a four-second delay as well as multi-exposure and long exposure modes. The device also has a dual function release, enabling focus on half press and triggering the shutter release on a full press. Additionally, it has LED indicators to confirm pre-focus and exposure while in wireless mode and the receiver and transmitter each run on two AAA batteries.
  Compatible Cameras
  • Nikon: D5, D4S, D4, D3x, D3s, D3, D2Xs, D2X, D2Hs, D2H, D2, D1X, D1H, D1, D850, D810, D800, D800e, D700, D500, D300s, D300, D200
    D750, D610, D600, Df, D7500, D7200, D7100, D7000, D90, D5600, D5500, D5300, D5200, D5100, D5000, D3300, D3200, D3100, Z7, Z6; Coolpix A, P7800, P7700
    Fuji: S3 and S5
    Kodak: DCS-14N
  UPC: 847628029514
• Vello LCD Screen Protector Ultra for Nikon Df, D4s, D7100, D7200, D500, D610, D750, D810 & D850 Camera
  • Nikon D810 Demo
  This LCD Screen Protector Ultra from Vello is a sheet of ultra-thin (0.02") optical glass used to safeguard the LCD monitor of the Nikon Df, D4, D4s, D7100, D7200, D500, D600, D610, D750, D800, D810, and D850. It easily adheres to the screen via static, without trapping air bubbles, and if removed, won't leave a sticky residue behind. Multiple layers of protective material shield your display from dirt, scratches, sweat, smears, and light impact. The shatter-proof glass blocks UV rays while allowing visible light in. It can be easily cleaned using the supplied microfiber cloth and wet wipe.
  Camera Compatibility
  • Nikon:
    • D800
    • D800E
    • D810
    • D850
    • D500
    • D600
    • D610
    • D7200
    • D3
    • D3s
    • D3x
    • D4
    • D4s
    • D5
    • Df
  UPC: 847628561199
• Sensei Microfiber Lens Cleaning Cloth (Gray)
  • Nikon D810 Demo
  Safely clean your glass lenses, television screens, computer monitors, binoculars, and more with this gray Microfiber Lens Cleaning Cloth from Sensei. This handy item is also useful for wiping dust or smudges off CDs, DVDs, or Blu-ray discs. The soft microfiber fabric will not scratch glass or other sensitive surfaces, and allows for streak-free cleaning.

  One side of the cloth features a covering of textured rubber dots to give you a more secure grip, preventing the cloth from slipping out of your hand. Additionally, the fabric is approximately 18% gray, so it can assist you in setting your camera's white balance. At only 7 x 7.9" in size, the cloth is small and easily packed in a pocket, pouch, or bag for convenient carrying. It's also machine washable in cold water on a gentle cycle for reuse again and again. UPC: 847628587908

• D810 DSLR Camera (Body Only) vetxtbqfzxfuwzbdvzyydvdbxvazbrbbsaz
• EN-EL15 Lithium-Ion Battery (1900mAh)
• DK-17 Eyepiece
• BM-12 LCD Monitor Cover
• BF-1B Body Cap
• MH-25A Battery Charger without Cable
• AN-DC12 Camera Strap
• UC-E22 USB 3.0 Cable
• USB Cable Clip
• HDMI Cable Clip
• ViewNX 2 CD-ROM
• Limited 1-Year Warranty

• SanDisk - 64GB Extreme PRO UHS-I SDXC Memory Card

• 2 x Watson - EN-EL15 Lithium-Ion Battery Pack (7.0V, 1900mAh) vetxtbqfzxfuwzbdvzyydvdbxvazbrbbsaz

• Watson - Duo LCD Charger with Two EN-EL15 Battery Plates

• Vello - FreeWave Plus Wireless Remote Shutter Release for Nikon

• Vello - LCD Screen Protector Ultra for Nikon Df, D4s, D7100, D7200, D500, D610, D750, D810 & D850 Camera

• Sensei - Microfiber Lens Cleaning Cloth (Gray)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Nikon D810 DSLR Camera (Body Only)

  Lens Mount	Nikon F
  Camera Format	Full-Frame (1x Crop Factor)
  Pixels	Actual: 37.09 Megapixel Effective: 36.3 Megapixel
  Maximum Resolution	7360 x 4912
  Aspect Ratio	3:2
  Sensor Type	CMOS
  Sensor Size	35.9 x 24 mm
  Image File Format	JPEG, RAW, TIFF
  Bit Depth	14-Bit
  Image Stabilization	None

  ISO Sensitivity	Auto, 64 to 12800 (Extended: 32 to 51200)
  Shutter Speed	Electronic Front Curtain Shutter 1/8000 to 30 Seconds Bulb Mode
  Metering Method	3D Color Matrix, Center-Weighted Average, Spot, Highlight Weighted
  Exposure Modes	Aperture Priority, Manual, Program, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3, 1/2, 1 EV Steps)
  Metering Range	0 to 20 EV
  White Balance	Auto, Cloudy, Color Temperature, Direct Sunlight, Flash, Fluorescent, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Natural White), Fluorescent (Warm White), Fluorescent (White), Incandescent, Preset Manual, Shade
  Continuous Shooting	Up to 5 fps
  Interval Recording	Yes
  Self Timer	2/5/10/20-Second Delay
  Mirror Lock-Up	Yes

  Recording Modes	MOV/H.264 Full HD (1920 x 1080) at 23.976p/25p/29.97p/50p/59.94p HD (1280 x 720) at 50p/59.94p
  External Recording Modes	Full HD (1920 x 1080) HD (1280 x 720)
  Recording Limit	Up to 20 Minutes for Full HD (1920 x 1080) at 50p/59.94p Up to 29 Minutes, 59 Seconds for Full HD (1920 x 1080) at 23.976p/25p/29.97p Up to 29 Minutes, 59 Seconds for HD (1280 x 720) at 50p/59.94p
  Video Encoding	NTSC
  ISO Sensitivity	64 to 12800 (Extended: 51200)
  Audio Recording	Built-In Microphone (Stereo) External Microphone Input
  Audio File Format	Linear PCM

  Focus Type	Auto and Manual Focus
  Focus Mode	Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	51 (15 Cross-Type)
  Autofocus Sensitivity	-2 to +19 EV

  Viewfinder Type	Optical (Pentaprism)
  Viewfinder Eye Point	17 mm
  Viewfinder Coverage	100%
  Viewfinder Magnification	Approx. 0.7x
  Diopter Adjustment	-3 to +1 m
  Monitor Size	3.2"
  Monitor Resolution	1,229,000 Dot
  Monitor Type	LCD

  Built-in Flash	Yes
  Flash Modes	Auto, First-Curtain Sync, Off, Rear Curtain/Slow Sync, Rear Sync, Red-Eye Reduction, Slow Sync, Slow Sync/Red-Eye Reduction
  Guide Number	39' / 11.89 m at ISO 100
  Maximum Sync Speed	1/250 Second
  Flash Compensation	-3 to +1 EV (1/3, 1/2, 1 EV Steps)
  Dedicated Flash System	iTTL
  External Flash Connection	Hot Shoe, PC Terminal, Wireless

  Memory Card Slot	1 x SD/SDHC/SDXC 1 x CompactFlash
  Connectivity	3.5mm Headphone, 3.5mm Microphone, HDMI C (Mini), USB 3.0 Micro-B
  Wireless	Wi-Fi (Via Adapter)
  GPS	None

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	0 to 85%

  Battery	1 x EN-EL15 Rechargeable Lithium-Ion, 7.0 VDC, 1900 mAh
  Dimensions (W x H x D)	5.7 x 4.8 x 3.2" / 146.0 x 123.0 x 81.5 mm
  Weight	31.04 oz / 880 g

  Box Dimensions (LxWxH)	9.7 x 6.6 x 6.1"

• SanDisk 64GB Extreme PRO UHS-I SDXC Memory Card

  Card Type	SDXC
  Storage Capacity	64 GB
  Bus Type	UHS-I
  Speed Class	10
  UHS Speed Class	U3
  Video Speed Class	V30
  Data Transfer	Read Speed: 170 MB/s Maximum (Burst) Write Speed: 90 MB/s Maximum (Burst) Write Speed: 30 MB/s Minimum
  Durability	Shockproof, Temperature Extremes, Waterproof, X-Ray Proof
  Operating Temperature	-13 to 185°F/ -25 to 85°C
  Storage Temperature	-40 to 185°F/ -40 to 85°C
  Built-in Write-Protect Switch	Yes
  Wireless Capability	None

  Box Dimensions (LxWxH)	17.0 x 10.5 x 5.0"

• 2 x Watson EN-EL15 Lithium-Ion Battery Pack (7.0V, 1900mAh)

  Chemistry	Lithium-ion
  Capacity	Min: 1900 mAh Max: 2000 mAh
  Output Voltage	7.0 V
  Watt-Hours	14 Wh

  Box Dimensions (LxWxH)	3.2 x 2.5 x 1.3"

• Watson Duo LCD Charger with Two EN-EL15 Battery Plates

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 / 24 VDC at 2000 mA
  Output Voltage	1.2 to 8.4 VDC at 2000 mA
  Charging Time	2 to 6 Hour
  USB Port	1 x USB Type-A
  USB Output Current	2000 mA
  Operating Temperature	32 to 104°F / 0 to 40°C
  Storage Temperature	-4 to 140°F / -20 to 60°C
  Dimensions (W x H x D)	4.9 x 4.5 x 1.8" / 12.4 x 11.4 x 4.5 cm
  Weight	7.7 oz / 217 g

  Box Dimensions (LxWxH)	10.6 x 6.4 x 2.5"

• Vello FreeWave Plus Wireless Remote Shutter Release for Nikon

  Release Type	Wireless: RF (Radio Frequency)
  Camera Connection	Nikon 10-pin
  Channels	16
  Wireless Frequency	2.4 GHz
  Interval Timer/Programmable	No
  Live View	No
  Mobile Device/App-enabled	No
  Shutter Modes	Bulb, Continuous, Single Shot, 4-Second Delay, 1-Second Continuous
  Wireless Range	328' / 100 m
  Receiver Power Source	Battery
  Receiver Battery Requirements	2 x AAA
  Transmitter Power Source	Battery
  Transmitter Battery Requirements	2 x AAA

  Box Dimensions (LxWxH)	8.7 x 4.1 x 1.5"

• Vello LCD Screen Protector Ultra for Nikon Df, D4s, D7100, D7200, D500, D610, D750, D810 & D850 Camera

  Material	Glass
  Thickness	19.69 mil / 0.5 mm

  Box Dimensions (LxWxH)	3.8 x 3.8 x 0.9"

• Sensei Microfiber Lens Cleaning Cloth (Gray)

  Material	Microfiber Rubber dots on one side
  Dimensions	7.0 x 7.9" / 17.8 x 20 cm

  Box Dimensions (LxWxH)	3.7 x 3.3 x 0.1"
