Product description

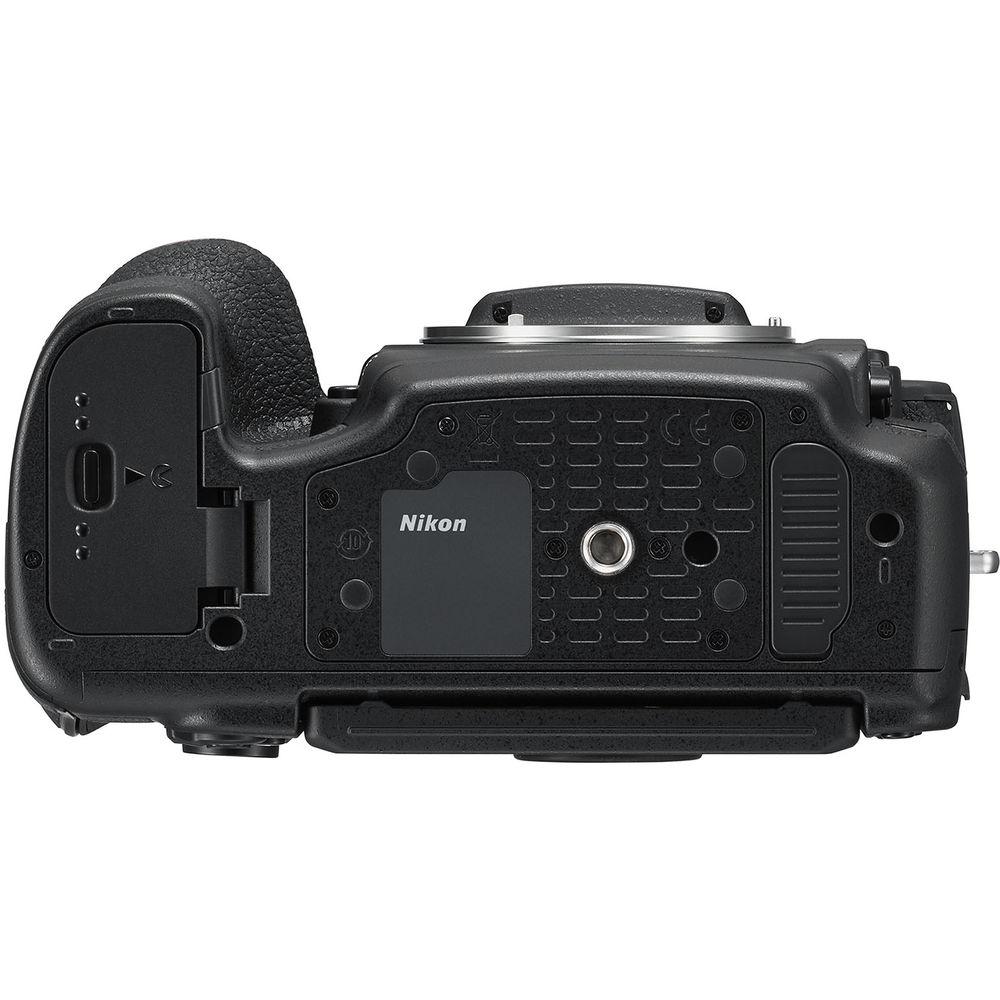

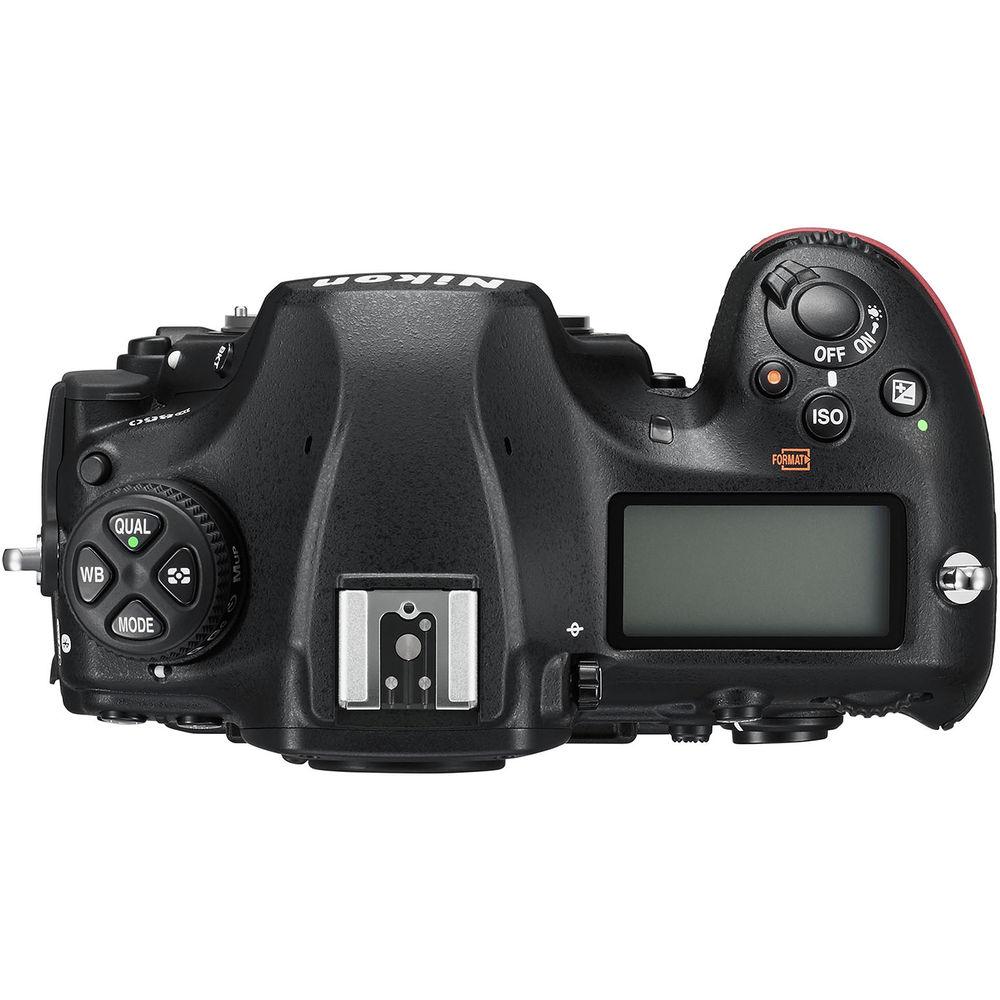

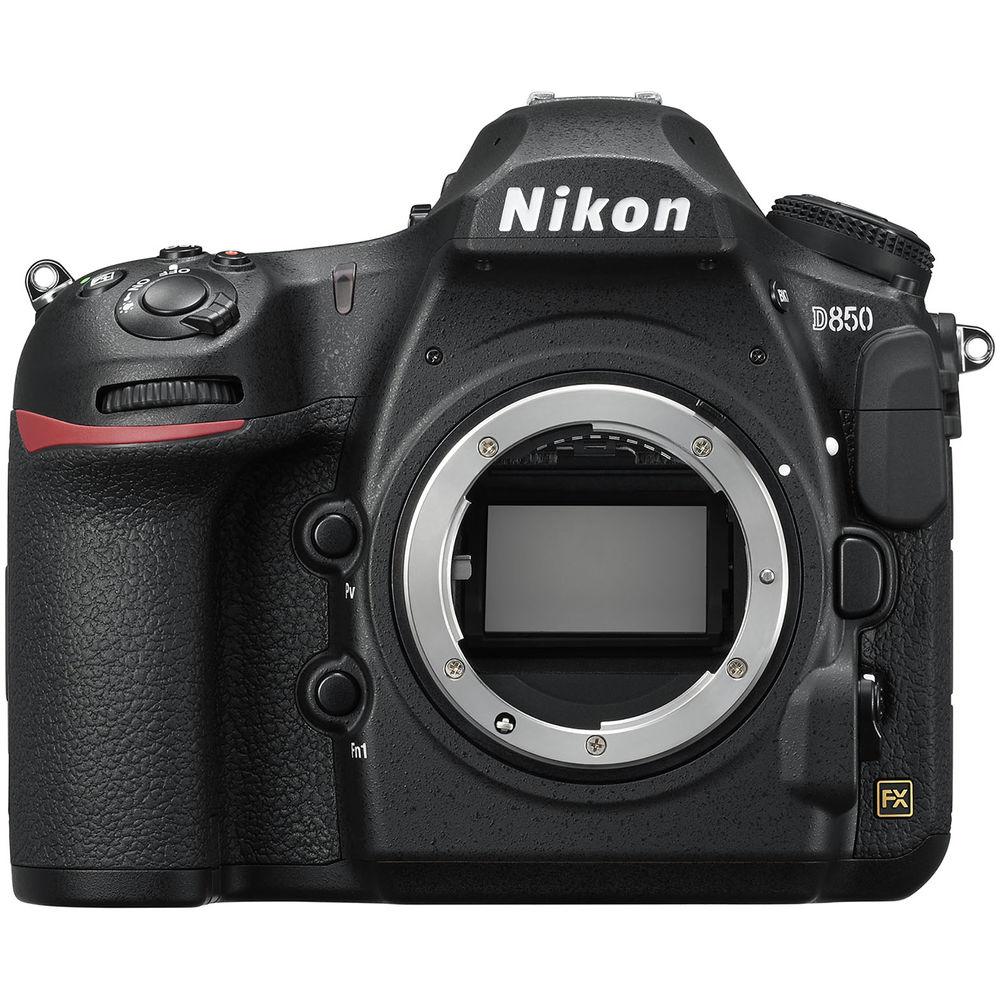

• D850 DSLR Camera (Body Only) Proving that speed and resolution can indeed coexist, the Nikon D850 is a multimedia DSLR that brings together robust stills capabilities along with apt movie and time-lapse recording. Revolving around a newly designed 45.7MP BSI CMOS sensor and proven EXPEED 5 image processor, the D850 is clearly distinguished by its high resolution for recording detailed imagery. The back-illuminated design of the sensor is able to acquire greater detail and clarity when working in low-light conditions, and the sensor also forgoes an optical low-pass filter for improved sharpness. Working in conjunction with the sensor is the EXPEED 5 image processor, which together afford a 7 fps continuous shooting rate for up to 51 consecutive frames, an expandable sensitivity range from ISO 32 to 102400, and 4K UHD video recording using either a DX crop or the entire area of the full-frame sensor. An 8K time-lapse recording mode is also available, as well as additional specialized recording modes for digitizing film negatives and for focus stacking applications. Benefitting the imaging capabilities is an advanced Multi-CAM 20K 153-point AF system, which debuted with the flagship D5 and offers 99 cross-type sensors for refined focusing accuracy in a variety of lighting conditions. Checking off a number of boxes for multimedia image-makers, the D850 positions itself as not only a high-resolution DSLR but also as a camera for speed, movies, and low-light shooting needs.

  Balancing the versatile imaging features, the D850 is also equally refined in its physical design. A large optical pentaprism offering a wide field of view and 0.75x magnification affords photographers a bright, clear, and realistic view for critical shooting needs. Conversely, a 3.2" 2.36m-dot LCD touchscreen is also available for live view shooting, playback, and menu navigation, and features a tilting design to suit working from high and low angles. A weather-sealed design is also employed, to suit working in a variety of environmental conditions, and the optional MB-D18 grip can be added to boost overall shooting times and continuous shooting rates. Additionally, built-in SnapBridge allows for wireless sharing of low-resolution imagery and remote live view use on a linked mobile device, and an optional WT-7a Wireless Transmitter can also be used for faster wireless transferring of files.
  45.7MP FX-Format BSI CMOS Sensor and EXPEED 5 Processor
  • A first for Nikon DSLRs, a 45.7MP BSI CMOS sensor is used for high-resolution shooting, impressive low-light quality, and fast readout speeds to benefit continuous shooting, movies, and time-lapse recording. The back-illuminated design of the sensor affords noticeably cleaner high-sensitivity output for reduced noise when working at high ISO values, up to a native ISO 25600, as well as vivid and smooth quality at sensitivities as low as ISO 64. The sensor's design also omits the conventional optical low-pass filter in order to achieve the greatest sharpness and resolution from the sensor.

    Benefitting the sensor is the apt EXPEED 5 image processor, which affords a wealth of speed throughout the camera system, including the ability to shoot continuously at 7 fps for up to 51 consecutive 14-bit lossless compressed raw files in a single burst. When working with the optional MB-D18 grip and EN-EL18a/b battery, this shooting rate can be increased to 9 fps, and up to 30 fps shooting is possible when working in a DX crop mode during Silent Live View.
  153-Point Multi-CAM 20K Autofocus System
  • Complementing the rendering capabilities and speed of the image sensor is the robust Multi-CAM 20K AF system, which features 153 total phase-detection points, including 99 cross-type sensors for improved subject recognition, and 55 of the points are selectable for greater compositional freedom. Benefitting the use of super telephoto lenses and teleconverters, 15 of the points, including nine selectable points, are compatible with an effective aperture of f/8, and all 153 points support working with effective aperture of f/5.6 or brighter.

    Managing the abundance of focusing points is a dedicated AF engine, which offers quick response times to benefit tracking fast and randomly moving subjects, even at the top 7 fps shooting rate. The AF engine also contributes to enhanced focusing sensitivity, with all points capable of focusing -4 EV for working in very dark, low-contrast situations.

    Furthering the versatility of the focusing system, different AF-area modes can be selected to support varying types of subject matter:

    • Single-Point AF: The camera uses a single point to find focus.
    • Dynamic-Area AF: Available with 25, 72, or 153-point selections, this mode uses a primary single focus point to lock onto focus, and then makes use of the surrounding points for maintaining focus while tracking erratically-moving subjects.
    • Group-Area AF: This mode treats smaller groups of AF points as a single point for a wider field of recognition, and is well-suited to tracking faces or other detailed subjects.
    • 3D-Tracking: Using a subject's color information, this mode utilizes all 153 points to maintain focus on a moving subject while half-pressing the shutter button.
    • Auto-Area AF: This mode makes use of all 153 points to quickly identify the main subject, and then prioritizes recognized faces as portrait subjects in any AF servo mode.

    Lastly, a unique auto AF fine-tune function can be employed to ensure the best possible focus for each mounted lens. Rather than relying on photographing distance charts, this function lets you achieve precise focus manually in live view, and then have the AF system calibrate itself to the fine-tuned focus position in order to alleviate front- and back-focusing issues.
  4K UHD Video Recording and 8K Time-Lapse
  • Utilizing the sensor and processor attributes for more than just still imagery, the D850 is also a more-than-capable multimedia camera. Video recording is possible at 4K UHD (3840 x 2160) using either the full-frame area or a DX crop area in 30p, 25, or 24p frame rates. Full HD 1080p video recording is also supported at up to 120p for slow motion playback, and video files can be saved to the in-camera memory cards or as an uncompressed file to an optional external recorder via HDMI out.

    Benefitting video recording, a dedicated power aperture button (Pv) makes it possible to achieve smooth, continuous exposure transitions when switching from light to dark areas, and Auto ISO can also be used to maintain a consistent brightness when working in changing lighting situations. Focus Peaking can be used to benefit manual focus control and a Zebra Stripes option is also available to help detect over-exposed areas within the frame. Audio recording can be handled using the built-in stereo microphone or an optional external mic can be added via the 3.5mm stereo jack for greater control over quality, and live monitoring is possible via the headphone jack.

    The D850 also blends both still and video capabilities with the ability to produce 8K time-lapses using the Interval Timer Mode or in-camera 4K time-lapse movies, with the ability to record up to 9999 exposures for either method. This system also makes use of a silent interval timer, which produces no shutter noise, does not contribute to wear on the shutter mechanism, and is energy efficient to maximize battery life.
  Body Design
  • • A large 3.2" 2.359m-dot LCD screen is available for bright, clear, and vivid image playback and live view shooting. The screen has a tilting design to benefit working from both high and low angles, and it is also a touchscreen for more intuitive operation, navigation, and settings control.
    • The bright optical pentaprism viewfinder offers a large 0.75x magnification and a wide field of view for comfortable and accurate use.
    • Configured with one XQD memory card slot and one UHS-II-compliant SD memory card slot, which allows you to extend file saving capabilities by permitting overflow recording, in-camera file-duplicating, or the ability to segregate raw and JPEG files between the two cards.
    • A robust magnesium alloy chassis is both dust- and weather-resistant to benefit working in harsh climates and inclement conditions.
    • The ergonomic grip and overall form factor is shaped to benefit handling for extended periods of time and is further accentuated by an anti-slip material and a joystick for seamless settings and focus point selection. Additionally, most of the rear buttons are illuminated for greater visibility when working in dim lighting conditions.
    • The included EN-EL15a rechargeable lithium-ion battery is CIPA-rated to last for approximately 1840 shots per charge. If paired with the optional MB-D18 grip and EN-EL18a/b battery, you can record approximately 5140 shots per charge.
  Scene Recognition System and Exposure Metering
  • The intelligent Scene Recognition System with 3D Color Matrix Metering III utilizes a 180,000-pixel RGB sensor to evaluate and analyze all aspects within a scene, including brightness, contrast, subject distance, and the scene colors, to quickly determine an accurate exposure and white balance setting to best render the scene at hand. The information gathered is also checked against onboard reference images to ensure consistency from image to image in regard to exposure, white balance, i-TTL flash settings, and subject-tracking AF performance.
  Other Camera Features
  • • Built-in SnapBridge connectivity to enable seamless transfer of low-resolution imagery as well as remote shooting capabilities. BLE (Bluetooth Low Energy) and Wi-Fi enables communication between the camera and a smart device and, additionally, the mobile device can remotely trigger the shutter and display a live view image from the camera to enable working from a distance.
    • Faster wireless transfer is possible using the optional WT-7a Wireless Transmitter.
    • A Negative Digitizer mode is specifically designed for photographing film negatives and slides to convert them to high-resolution digital files. This mode is intended to be used with the optional AF-S Micro NIKKOR 60mm f/2.8G ED lens and the ES-2 Slide Copying Adapter.
    • Focus Shift Mode benefits working with focus stacking techniques by automatically recording a series of images at up to 10 different focus steps. Up to 300 individual frames can be recorded within these 10 steps, with the D850 automatically shifting focus between each shot to achieve an extended depth of field. The sequential images will be saved within a unique folder on the memory card in order to keep each series of exposures segregated for a faster and easier post-production workflow.
    • In-camera shooting in the 1:1 square format and classic 4:5 format is possible, and the viewfinder will be automatically shaded during shooting in order to aid in more accurate composition.
    • Raw files can be recorded in three separate sizes for expedited post-production, and in-camera raw file batch processing is also possible.
    • The D850 is compatible with the radio-controlled Advanced Wireless Lighting system, which permits working with the optional WR-R10 Controller and WR-A10 Receiver, along with the SB-5000, for intuitive, controllable wireless flash shooting.
    • Picture Control modes allow you to set predefined looks to imagery in-camera and include Flat, Landscape, Monochrome, Neutral, Portrait, Standard, Vivid, and auto settings.
    • Language support: Arabic, Bengali, Brazilian Portuguese, Bulgarian, Chinese (Simplified and Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Marathi, Norwegian, Persian, Polish, Portuguese, Romanian, Russian, Serbian, Spanish, Swedish, Tamil, Telugu, Thai, Turkish, Ukrainian, and Vietnamese.
  UPC: 018208015856

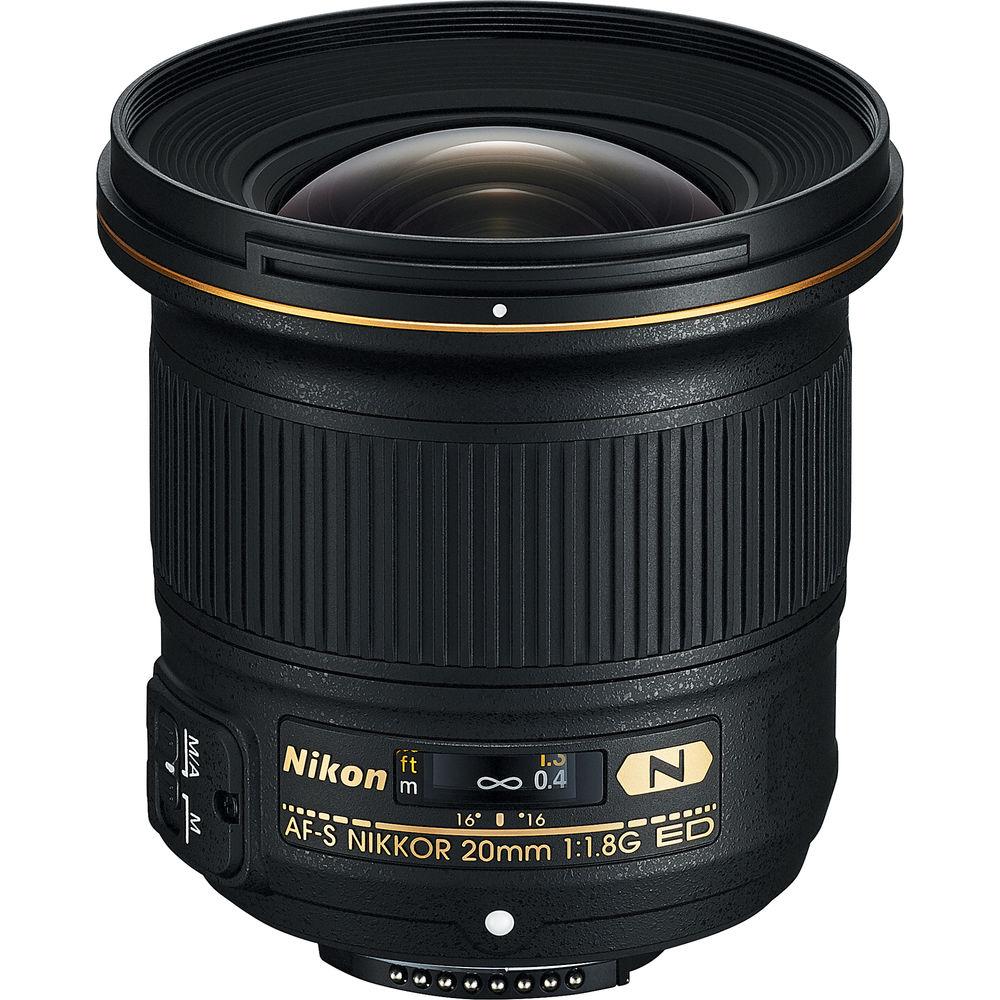

• AF-S NIKKOR 20mm f/1.8G ED Lens A smart ultra-wide, the AF-S NIKKOR 20mm f/1.8G ED from Nikon blends a desirable broad field of view with a sleek form factor, a bright design, and a sophisticated optical layout. The fast f/1.8 maximum aperture excels in difficult lighting conditions and also offers increased control over depth of field. The optical design incorporates both aspherical and extra-low dispersion element to minimize spherical and chromatic aberrations for greater sharpness and clarity. Also, both Nano Crystal and Super Integrated Coatings have been applied to reduce flare and ghosting for improved contrast and color accuracy. Balancing the optical attributes, the lens is also characterized by a Silent Wave Motor that produces fast, smooth, and quiet autofocus capabilities, along with the ability to manually override focus at any time for more selective control.
  • Ultra wide-angle prime is designed for FX-format Nikon F-mount cameras, however can also be used with DX models where it provides a 30mm equivalent focal length.
  • Bright f/1.8 maximum aperture benefits working in low-light conditions.
  • Two extra-low dispersion glass elements are used in the optical construction to reduce a variety of chromatic aberrations and color fringing for a high degree of clarity and color neutrality.
  • Two aspherical elements are featured to control spherical aberrations and distortion in order to produce notable sharpness and resolution.
  • Nano Crystal and Super Integrated Coatings has been applied to lens elements to minimize surface and internal reflections for a marked reduction in lens flare and ghosting.
  • Silent Wave Motor affords quick, quiet, and precise autofocus performance along with full-time manual focus override. A rear focusing design is also used, where only the rear lens group is moved during focusing, to maintain the overall length of the lens during use and to promote faster focusing speeds.
  UPC: 018208200511

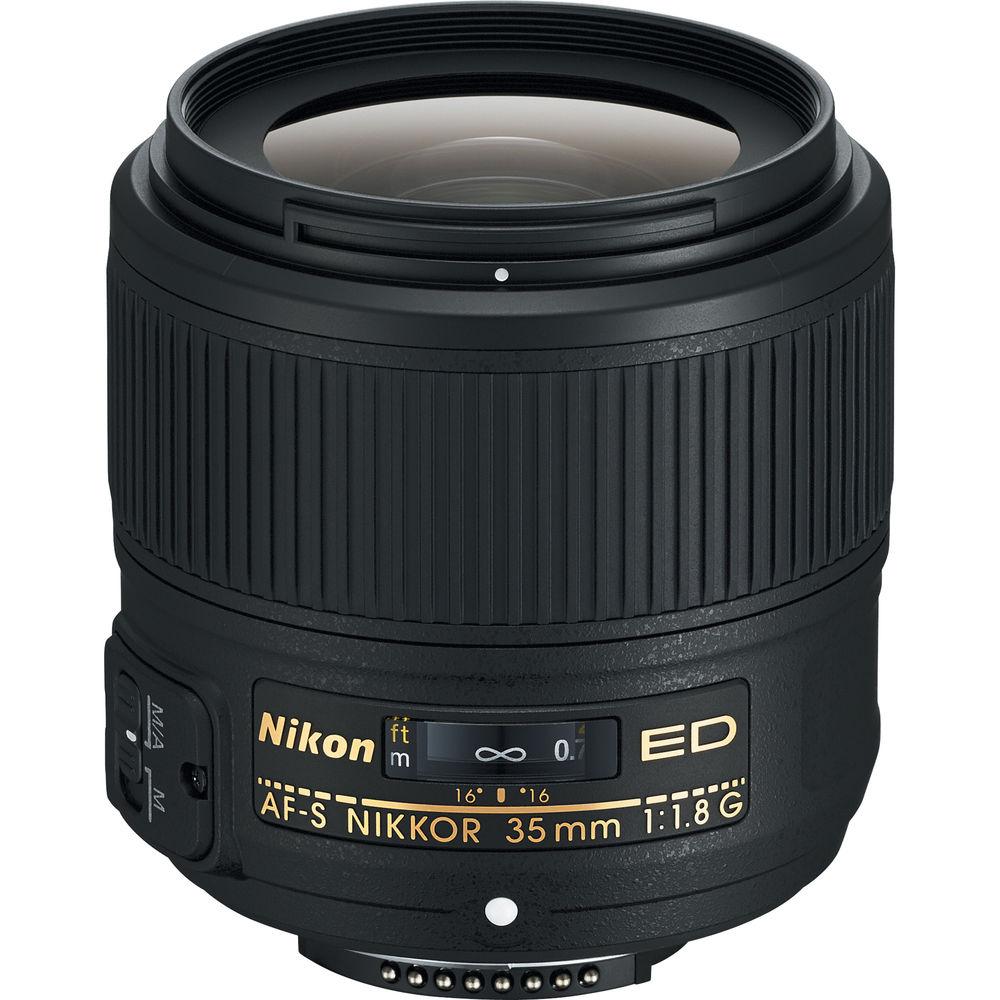

• AF-S NIKKOR 35mm f/1.8G ED Lens One of the most flexible single focal lengths available, the AF-S NIKKOR 35mm f/1.8G ED from Nikon is a compact prime wide-angle well-suited for everyday shooting. Its bright f/1.8 maximum aperture excels in a variety of lighting conditions and also helps to maintain a relatively compact, lightweight design for walk-around use. The optical design employs both aspherical and extra-low dispersion elements to control both spherical and chromatic aberrations for high sharpness, clarity, and color accuracy. A Super Integrated Coating has also been applied to limit flare and ghosting for improved contrast. Additionally, benefitting the optical assets, a Silent Wave Motor affords fast and precise autofocus performance, along with full-time manual focus override, to benefit both stills and video applications.
  • Wide-angle 35mm lens is designed for FX-format F-mount cameras, however can also be used with DX models where it provides a 52.5mm equivalent focal length.
  • Bright f/1.8 maximum aperture benefits working in low-light conditions and also affords control over depth of field for working with selective focus techniques.
  • One extra-low dispersion glass element is used in the optical construction to reduce a variety of chromatic aberrations and color fringing for a high degree of clarity and color neutrality.
  • One aspherical element is used to reduce spherical aberrations and distortion in order to realize sharp imagery with accurate rendering.
  • Super Integrated Coating has been applied to individual elements to suppress internal reflections, flare, and ghosting for improved contrast and color accuracy when working in strong lighting conditions.
  • Silent Wave Motor affords quick, quiet, and precise autofocus performance along with full-time manual focus override. A Rear Focusing System is also used, where only the rear lens group is moved during focusing, to maintain the overall length of the lens during use and to promote faster focusing speeds.
  • Rounded seven-blade diaphragm promotes a pleasing out of focus quality that benefits the use of shallow depth of field and selective focus techniques.
  UPC: 018208022151
• AF-S NIKKOR 85mm f/1.8G Lens A highly desirable focal length for portraiture, the AF-S NIKKOR 85mm f/1.8G from Nikon is a short-telephoto prime featuring a bright f/1.8 maximum aperture. This design finds balance between a lightweight, compact form factor while also being fast enough to effectively control depth of field and suit working in low light. Individual lens elements feature a Super Integrated Coating, which controls flare and ghosting to produce greater contrast and color fidelity when working in bright and backlit conditions. Additionally, the Silent Wave Motor affords fast and accurate autofocus performance along with full-time manual focus override.
  • Short-telephoto prime is designed for FX-format Nikon F-mount cameras, however can also be used with DX models where it provides a 127.5mm equivalent focal length.
  • Bright f/1.8 maximum aperture helps to achieve shallow depth of field imagery and also benefits working in low-light conditions.
  • Super Integrated Coating has been applied to lens elements to minimize surface and internal reflections for a marked reduction in lens flare and ghosting.
  • Silent Wave Motor affords quick, quiet, and precise autofocus performance along with full-time manual focus override. An internal focusing design is also used, where only the internal lens groups are moved during focusing, to maintain the overall length of the lens during use and to promote faster focusing speeds.
  • Rounded seven-blade diaphragm contributes to a pleasing bokeh quality.
  UPC: 018208022014
• EN-EL15a Rechargeable Lithium-Ion Battery Power select Nikon DSLRs with this EN-EL15a Rechargeable Lithium-Ion Battery, which serves as a spare or replacement for the one provided with the camera. It is designed to offer long life and consistent power, even when you're shooting in cold conditions, and can be charged or discharged at any time without developing memory effects. The battery is compatible with the MH-25a charger.
  Camera Compatibility
  • Nikon DSLRs:
    • D7500
    • D7200
    • D7100
    • D7000
    • D850
    • D810A
    • D810
    • D800E
    • D800
    • D750
    • D610
    • D500
  UPC: 018208271900
• ME-1 Stereo Microphone Create higher-quality audio than your camera can alone with this stereo mic. The Nikon ME-1 Stereo Microphone is designed specifically for recording audio while making DSLR videos. The ME-1 fits into compatible camera shoes, and connects to the camera via the 3.5mm stereo mini-plug. A low-cut filter blocks wind noise, while the cable stop helps prevent noises caused by cable movement.
  • Designed for use with a digital SLR camera with a 3.5mm (diameter) stereo mini-pin jack
  • Equipped with a cable stop which holds the cable in place to prevent noise from being recorded with accidental contact with the cable
  • Reduces vibration noise during autofocus
  • Low-cut filter reduces wind noise and other low-frequency noise not blocked by the wind screen
  UPC: 018208270453
• ME-W1 Wireless Microphone Set Record monaural audio from subjects from up to 164' away with the water-resistant ME-W1 Wireless Microphone Set from Nikon. The mic uses Bluetooth connectivity and is compatible with all Nikon DSLR, Nikon 1, and COOLPIX cameras that have a 3.5mm microphone jack. The set includes a microphone, receiver, windscreen, audio cable, and a case.

  Both the microphone and the receiver capture audio, allowing you to record voices of both the photographer and the subject. Headphones can be plugged into both the mic and the receiver so that both parties can hear each other when shooting at a distance. Stereo recording can be achieved by connecting the optional ME-1 microphone to the ME-W1.
  Functions
  • Mixing (mono and stereo, mono and mono)

  • Sound delay suppressive function

  • Echo cancellation

  • Noise cancellation

  • Popping sound cancellation
  UPC: 018208271597

• EN-EL15a Rechargeable Lithium-Ion Battery

• MH-25A Battery Charger for EN-EL15 Li-Ion Battery

• UC-E22 USB 3.0 Cable

• HDMI/USB Cable Clip

• AN-DC18 Camera Strap

• BF-1B Body Cap

• DK-17F Fluorine-Coated Finder Eyepiece

• Limited 1-Year Warranty

• 77mm Snap-On Lens Cap

• LF-4 Rear Lens Cap

• HB-72 Lens Hood for AF-S NIKKOR 20mm f/1.8G ED

• CL-1015 Soft Lens Case

• Limited 1-Year Warranty

• Limited 4-Year USA Warranty Extension with Online Registration

• 58mm Snap-On Lens Cap

• LF-4 Rear Lens Cap

• HB-70 Bayonet Lens Hood for AF-S NIKKOR 35mm f/1.8G ED Lens

• CL-0915 Soft Case

• Limited 1-Year Warranty

• Limited 4-Year USA Warranty Extension with Online Registration

• 67mm Snap-On Lens Cap

• LF-4 Rear Lens Cap

• HB-62 Bayonet Lens Hood

• CL-1015 Soft Lens Case

• Limited 1-Year Warranty

• Limited 4-Year USA Warranty Extension with Online Registration

• Wind Screen

• Soft Case

• Limited 1-Year Warranty

• Microphone

• Receiver

• Windscreen

• Audio Cable

• Case

• Limited 1-Year Warranty

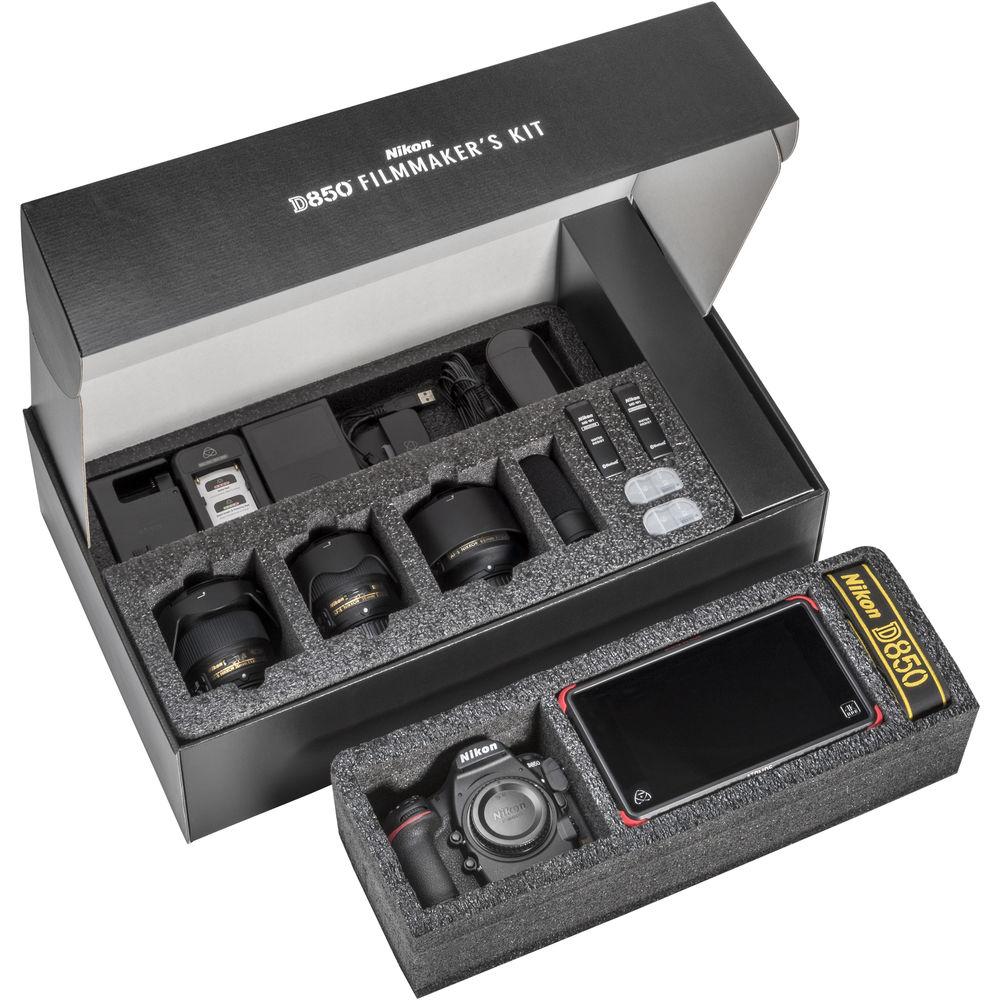

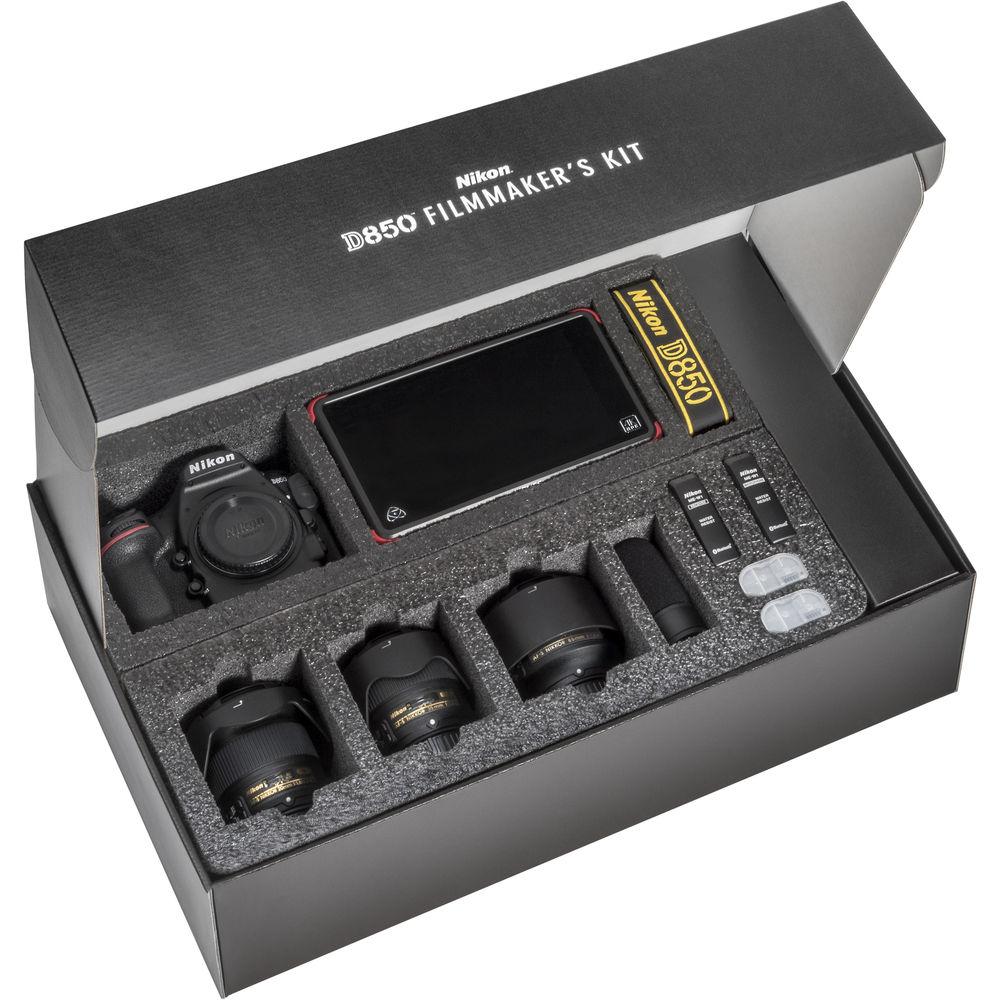

Also Includes

• Atomos Ninja Flame 7" 4K HDMI Recording Monitor
• Atomos Master Caddy II
• Atomos 12V-3A AC Power Supply
• Atomos Power Kit for Shogun/Ninja Inferno & Flame
• Atomos Powered Docking Station with USB 3.0 & 2.0
• 2 x Atomos 5200mAh Batteries
• Atomos Battery Charger with Power Supply
• Atomos Full to Mini-HDMI Coiled Cable

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• D850 DSLR Camera (Body Only)

  Lens Mount	Nikon F
  Camera Format	Full-Frame (1x Crop Factor)
  Pixels	Actual: 46.89 Megapixel Effective: 45.7 Megapixel
  Maximum Resolution	8256 x 5504
  Aspect Ratio	1:1, 3:2, 4:5
  Sensor Type	CMOS
  Sensor Size	35.9 x 23.9 mm
  Image File Format	JPEG, RAW, TIFF
  Bit Depth	14-Bit
  Image Stabilization	None

  ISO Sensitivity	Auto, 64 to 25600 (Extended: 32 to 102400)
  Shutter Speed	1/8000 to 30 Seconds Bulb Mode
  Metering Method	3D Color Matrix, Center-Weighted Average, Spot, Highlight Weighted
  Exposure Modes	Aperture Priority, Manual, Program, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3, 1/2, 1 EV Steps)
  Metering Range	-3 to 20 EV
  White Balance	Auto, Cloudy, Color Temperature, Direct Sunlight, Fine, Flash, Fluorescent, Fluorescent (White), Incandescent, Neutral White, Preset Manual, Shade
  Continuous Shooting	Up to 7 fps at 45.7 MP for up to 51 Exposures (Raw Format)
  Interval Recording	Yes
  Self Timer	2/5/10/20-Second Delay
  Mirror Lock-Up	Yes

  Recording Modes	MOV/MP4/H.264 UHD 4K (3840 x 2160) at 23.976p/25p/29.97p Full HD (1920 x 1080) at 23.976p/25p/29.97p/50p/59.94p/120p HD (1280 x 720) at 50p/59.94p
  Recording Limit	Up to 29 Minutes, 59 Seconds for UHD 4K (3840 x 2160) at 29.97p
  Video Encoding	NTSC/PAL
  Audio Recording	Built-In Microphone (Stereo) External Microphone Input
  Audio File Format	AAC, Linear PCM (Stereo)

  Focus Type	Auto and Manual Focus
  Focus Mode	Automatic (A), Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Phase Detection: 153 (99 Cross-Type)
  Autofocus Sensitivity	-4 to +20 EV

  Viewfinder Type	Optical (Pentaprism)
  Viewfinder Eye Point	17 mm
  Viewfinder Coverage	100%
  Viewfinder Magnification	Approx. 0.75x
  Diopter Adjustment	-3 to +1 m
  Monitor Size	3.2"
  Monitor Resolution	2,359,000 Dot
  Monitor Type	Tilting Touchscreen LCD

  Built-in Flash	None
  Flash Modes	First-Curtain Sync, Rear Sync, Red-Eye Reduction, Slow Sync, Slow Sync/Red-Eye Reduction
  Maximum Sync Speed	1/250 Second
  Flash Compensation	-3 to +1 EV (1/3, 1/2, 1 EV Steps)
  Dedicated Flash System	iTTL
  External Flash Connection	Hot Shoe, PC Terminal

  Memory Card Slot	1 x SD/SDHC/SDXC 1 x XQD
  Connectivity	3.5mm Headphone, 3.5mm Microphone, HDMI C (Mini), Nikon 10-Pin, X-Sync Socket, USB 3.0 Micro-B
  Wireless	Wi-Fi Bluetooth
  GPS	None

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	0 to 85%

  Battery	1 x EN-EL15a Rechargeable Lithium-Ion
  Dimensions (W x H x D)	5.7 x 4.9 x 3.1" / 146.0 x 124.0 x 78.5 mm
  Weight	2.01 lb / 915 g

  Box Dimensions (LxWxH)	9.6 x 6.4 x 5.8"

• AF-S NIKKOR 20mm f/1.8G ED Lens

  Focal Length	20mm
  Maximum Aperture	f/1.8
  Minimum Aperture	f/16
  Lens Mount	Nikon F
  Format Compatibility	Full-Frame
