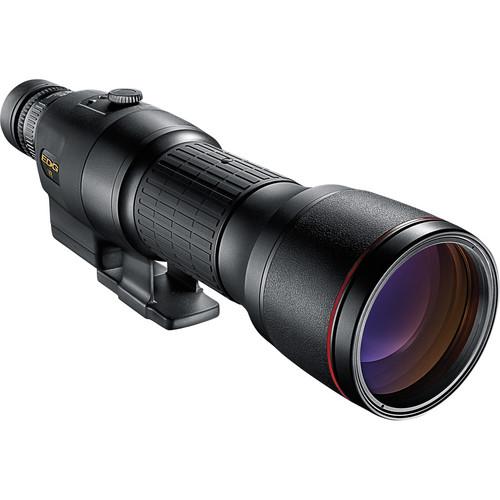

User Manual for Nikon EDG VR Fieldscope 20-60x85 Spotting Scope Click to enlarge the picture
Contents of the user manual for the Nikon EDG VR Fieldscope 20-60x85 Spotting
- Product category: Spotting Scopes Nikon
- Brand: Nikon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nikon Spotting Scopes
|
User manual for the Nikon EDG VR Fieldscope 20-60x85 Spotting contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nikon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nikon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nikon product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More The EDG VR Fieldscope 20-60x85 Spotting Scope from Nikon features a lens-shift type Vibration Reduction (VR) system that reduces image vibrations and blur during observation. The two voice coil motors that control the shaking are capable of detecting movement every .001 of a second. VR keeps the world still so that the small details of viewing can be appreciated with clarity. The batteries have a 17-hour runtime and power off automatically after 30 minutes without use. A power button and lock-on knob with a green LED controls the 4 AA user-supplied batteries. The EDG VR can also be used without the VR and function like a standard fieldscope.Additional optics technologies in this spotting scope include extra-low dispersion (ED) glass to compensate for chromatic aberration and an advanced apochromatic, field-flattener lens system. Multilayer lens and prism coatings contribute to the exceptional optical visual feast, dispensing sharper, clearer, and more brilliant fields of view with bright details, even in low-light conditions. The aspherical eyepiece lens construction contributes to the elimination of edge aberrations. The body and eyepieces are waterproofed with O-ring seals and nitrogen filled to prevent fogging and condensation. The relative brightness level is 18.5 at 20 power. Three sets of tripod mounting threads are engineered into the housing for optimizing balancing. Focusing is achieved with a hand-gripped ring at the objective end of the optics, offering coarse and fine focusing abilities. An integrated sunshade blocks out unwanted glare when extended.This spotting scope has been engineered with a plethora of features and superior optics for the optics connoisseur looking for the maximum in a fieldscope. - O-ring sealed, nitrogen filled, provides water and fogproof protection
- Dielectric high-reflective multilayer prism coating provides exceptionally bright view
- Flexible mounting furnishes multiple positioned mounting threads for optimal balance whether observing or digiscoping
- Optimized Focusing System furnishes a large focusing ring with fine and coarse ability for smoother, faster, and less stressful focusing
- Aspherical lens system minimizes aberrations at the edge of the field of view, creating a sharper, clearer view right out to the edge
- Extra-low Dispersion (ED) glass delivers sharp images free of violet chromatic aberration in addition to the conventional RBG color correction
- Vibration reduction is powered by four user-supplied batteries. It reduces image vibrations caused by wind or normal usage, helping to eliminate blurry, fuzzy images
- Vibration is reduced to ≈
|
Upload User Manual
Have you got an user manual for the Nikon EDG VR Fieldscope 20-60x85 Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNikon EDG VR Specs | | | Magnification | 20 to 60x | | Objective Lens Diameter | 85 mm | | Angle of View | 20x: 2.2° (Actual)
60x: 1.1° (Actual) | | Field of View | 20x: 115.0' @ 1000 yd / 38.2 m @ 1000 m
60x: 58.0' @ 1000 yd / 19.3 m @ 1000 m | | Minimum Focus Distance | 16.5' / 5.0 m | | Exit Pupil Diameter | 20x: 4.25 mm
60x: 1.4 mm | | Eye Relief | 18.4 to 16.5 mm | | | | Fogproof | Yes | | Water Resistance | Waterproof | | | | Battery / Runtime | 4 x AA / Up to 31 Hours | | Filter Thread | None | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 14.9 x H: 5.6 x W: 4.1" / L: 37.9 x H: 14.1 x W: 10.4 cm | | Weight | 84.7 oz / 2.4 kg | | | | Package Weight | 9.45 lb | | Box Dimensions (LxWxH) | 18.0 x 10.0 x 6.0" |
