User Manual for Nikon Forestry Pro Laser Rangefinder Click to enlarge the picture
Contents of the user manual for the Nikon Forestry Pro Laser Rangefinder
- Product category: Laser Rangefinders Nikon
- Brand: Nikon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nikon Laser Rangefinders
 |
User manual for the Nikon Forestry Pro Laser Rangefinder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nikon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nikon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nikon product will considerably shorten its lifespan!
|

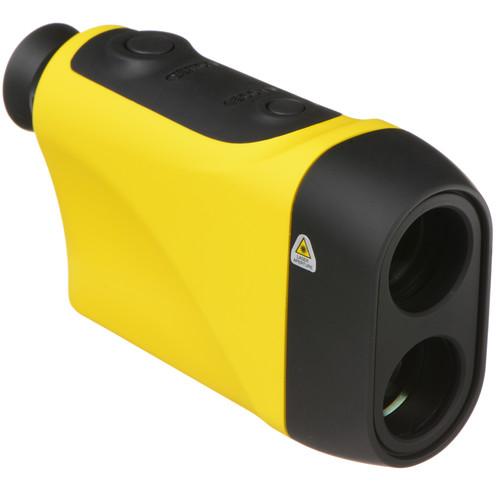

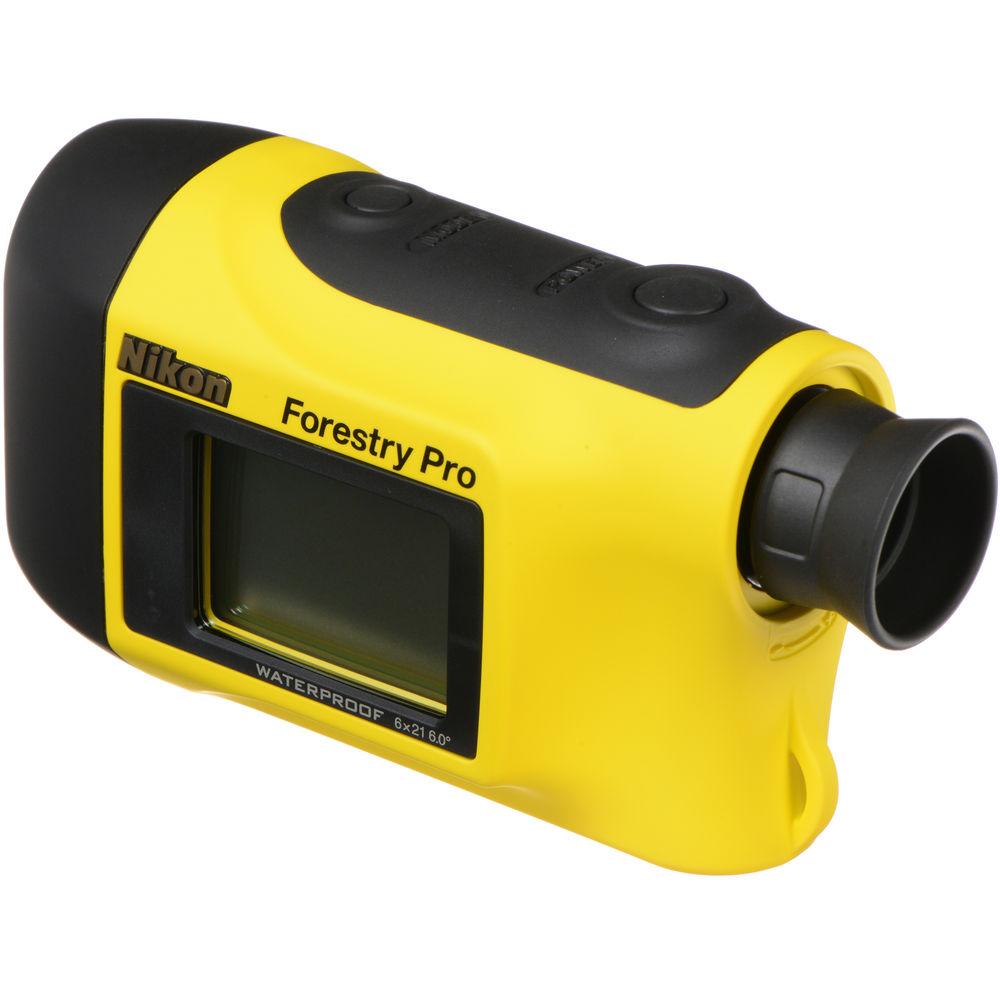

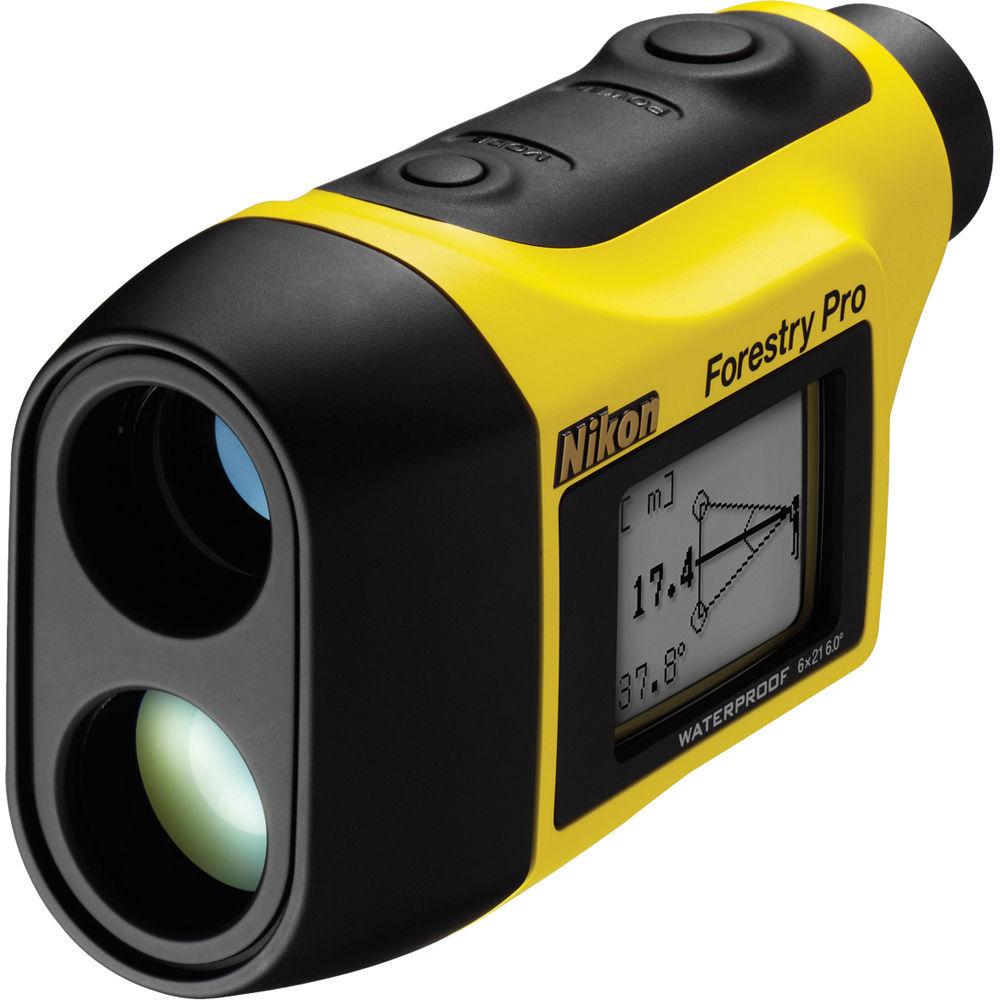

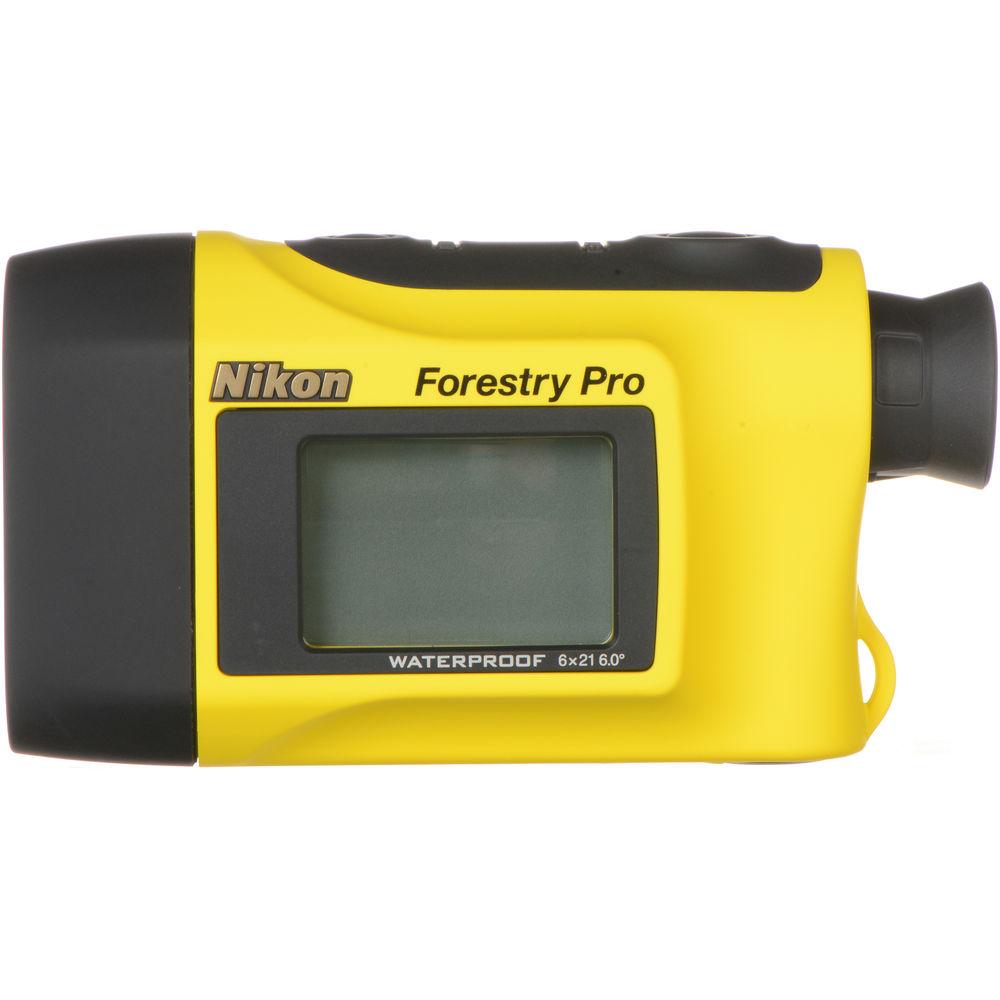

Product description You'll get fast, accurate measurements of distance, angle, relative height and height between two points on a given tree with the Forestry Pro Laser Rangefinder from Nikon. This lightweight, waterproof instrument was designed for the forestry industry but can be applied to golf, hunting, and any other activities where knowing the distance to an object is important. The Forestry Pro has a range of 11-550 yards. It offers a choice of single or continuous measurement (up to 20 seconds), first-target or distant-target priority and readings in yards or meters. Readings are visible in the viewfinder and on an external display on the side of the unit. The Forestry Pro is equipped with premium optical features that make it easy to find your target, including multi-coated lenses for optimal light transmission and reduced glare and 6x magnification for observing distant details. - Optical Performance
-
- 6x magnification
- 21mm objective lens
- Roof prism design
- Anti-reflection multi-coated optics
- 315' field of view at 1000 yards
- 36° apparent angle of view
- Rangefinder
-
- Class 1 eye safe IR laser
- Measurement range: 1-550 yards
- Measurement accuracy: ±1 yard out to 300 yards, ±0.6% beyond
- Displays linear distance in 0.5-yard/0.5-meter or 1' increments out to 100 meters/yards or feet
- Use and Handling
-
- Measures linear & horizontal distance, height, angle, vertical separation (relative height of two targets) and height between two points on a target
- Readings displayed on viewfinder and external LCD
- First-target and distant-target priority modes
- Single spot or continuous (20-second) scan
- 18.2mm long eye relief
- Exit pupil: 3.5mm
- Construction
-
- Submersible to 3.3' for 10 minutes
- Automatic power-off after 30 seconds of inactivity
- Broad 14 to 122°F operating temperature range
- Lightweight at 7.4 oz
UPC: 018208083817 In the Box Nikon Forestry Pro Laser Rangefinder Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nikon Forestry Pro Laser Rangefinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNikon Forestry Pro Specs | | | Laser Type | Class 1M Eye Safe | | Metering Range | 11 to 550 yd / 10 to 500 m | | Accuracy | < 100 yd / 100 m:
