Product description Connecting the KeyMission 360 and 170 to SnapBridge for iOS Users Read More - Nikon KeyMission 360 Action Camera
- Nikon KeyMission with 360
- KeyMission Action Camera

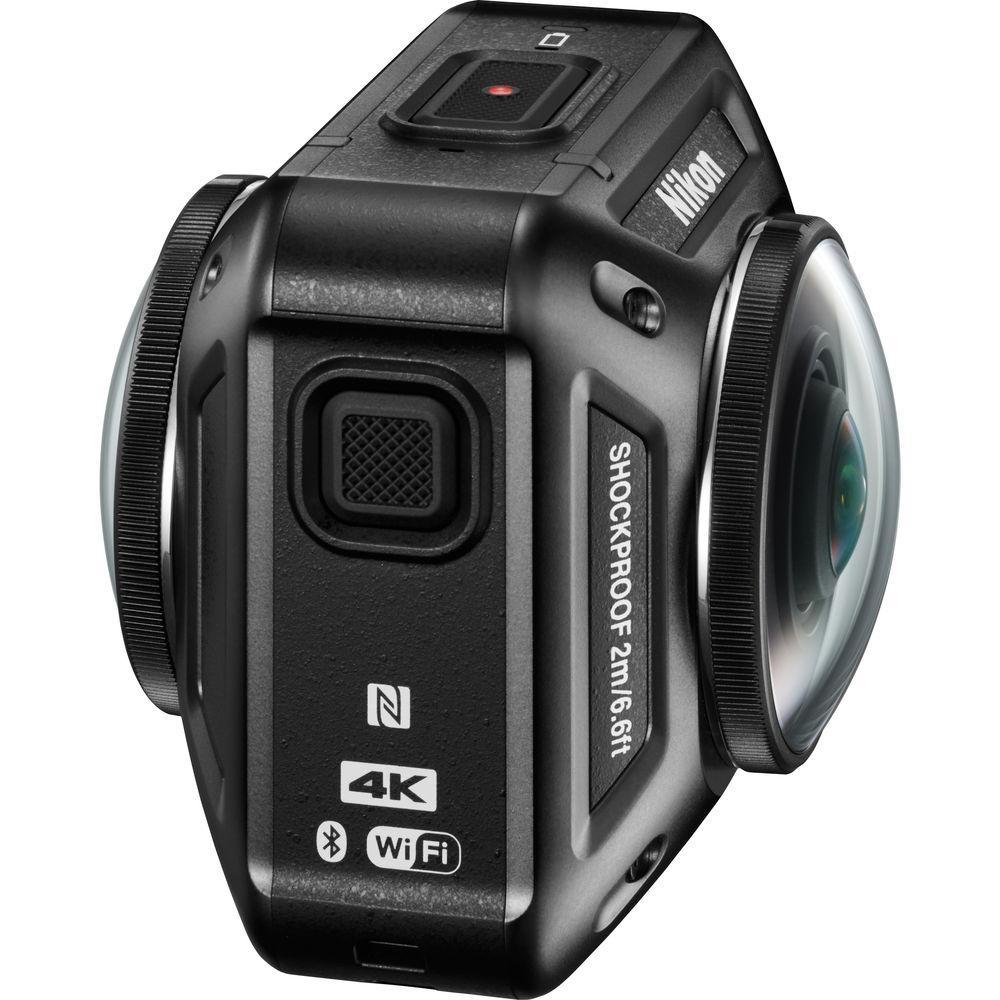

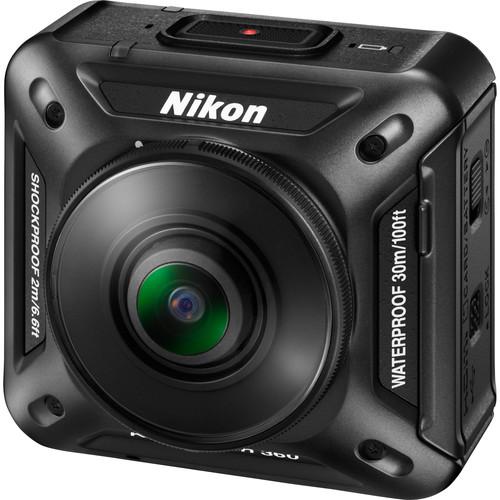

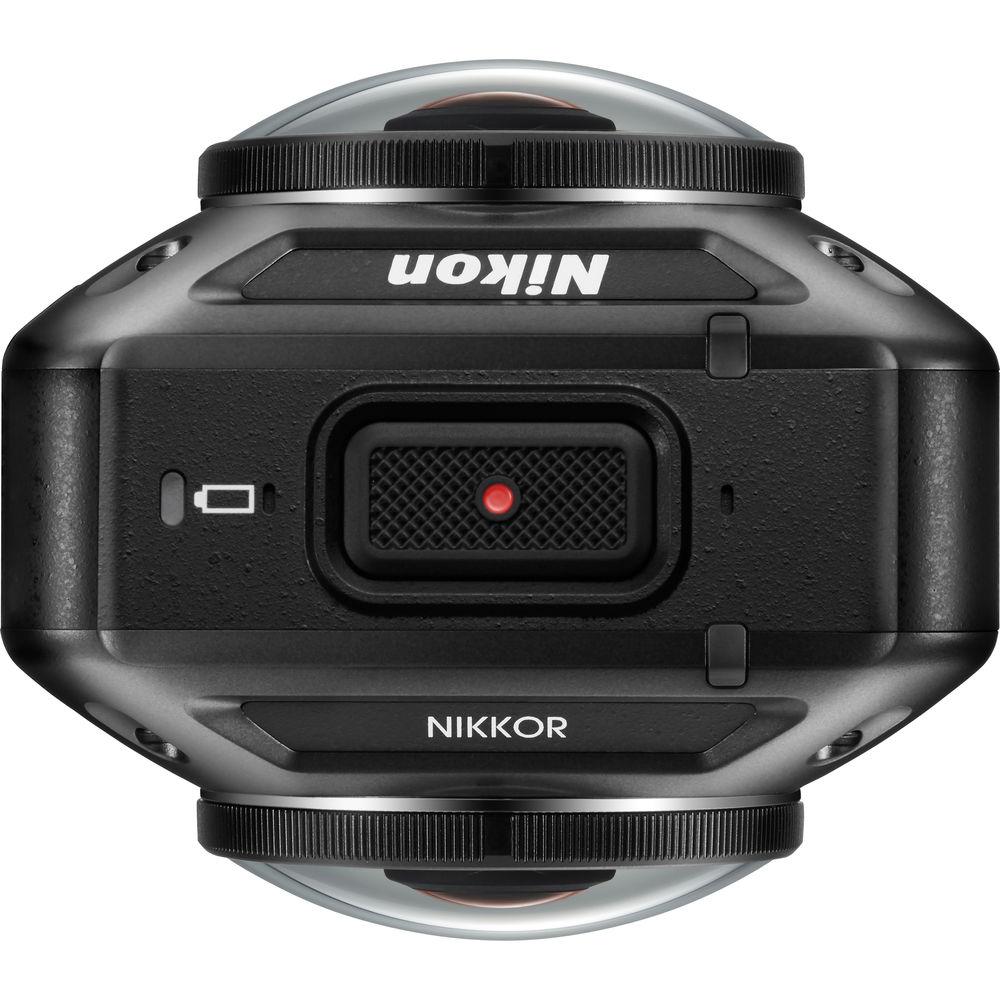

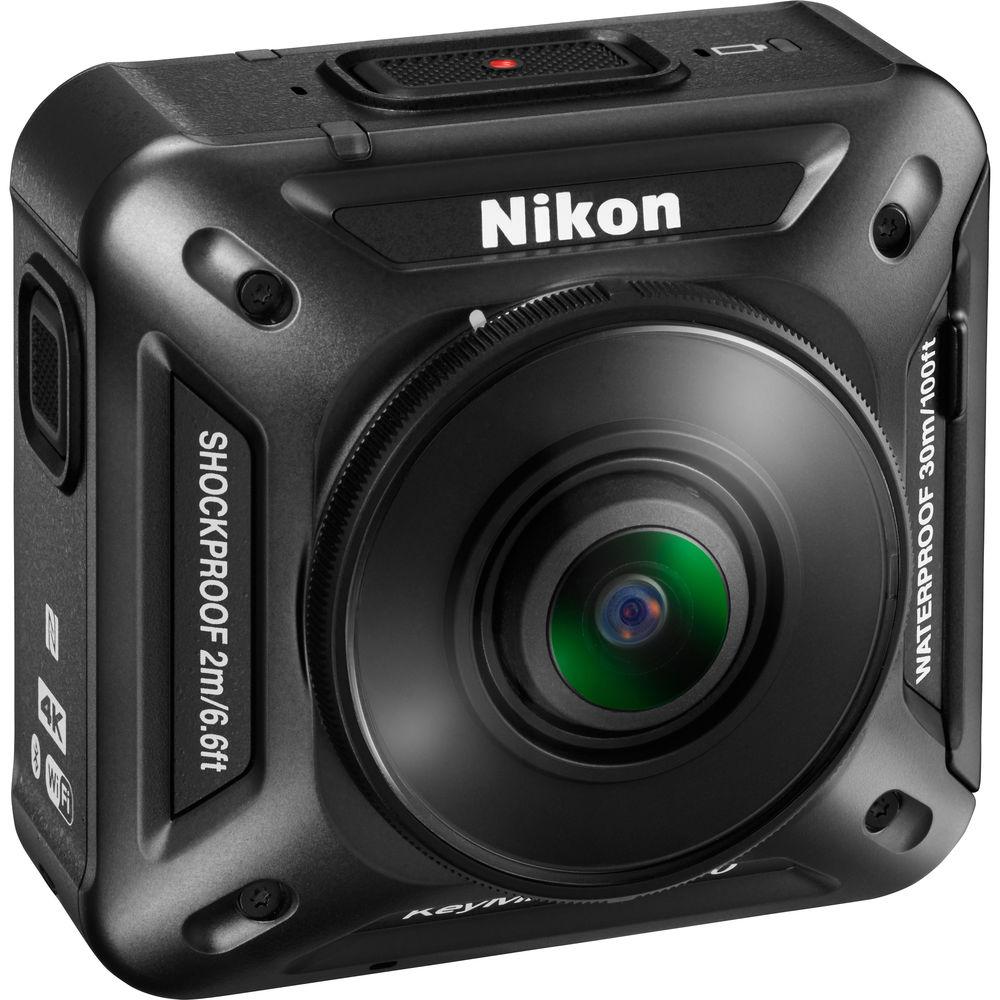

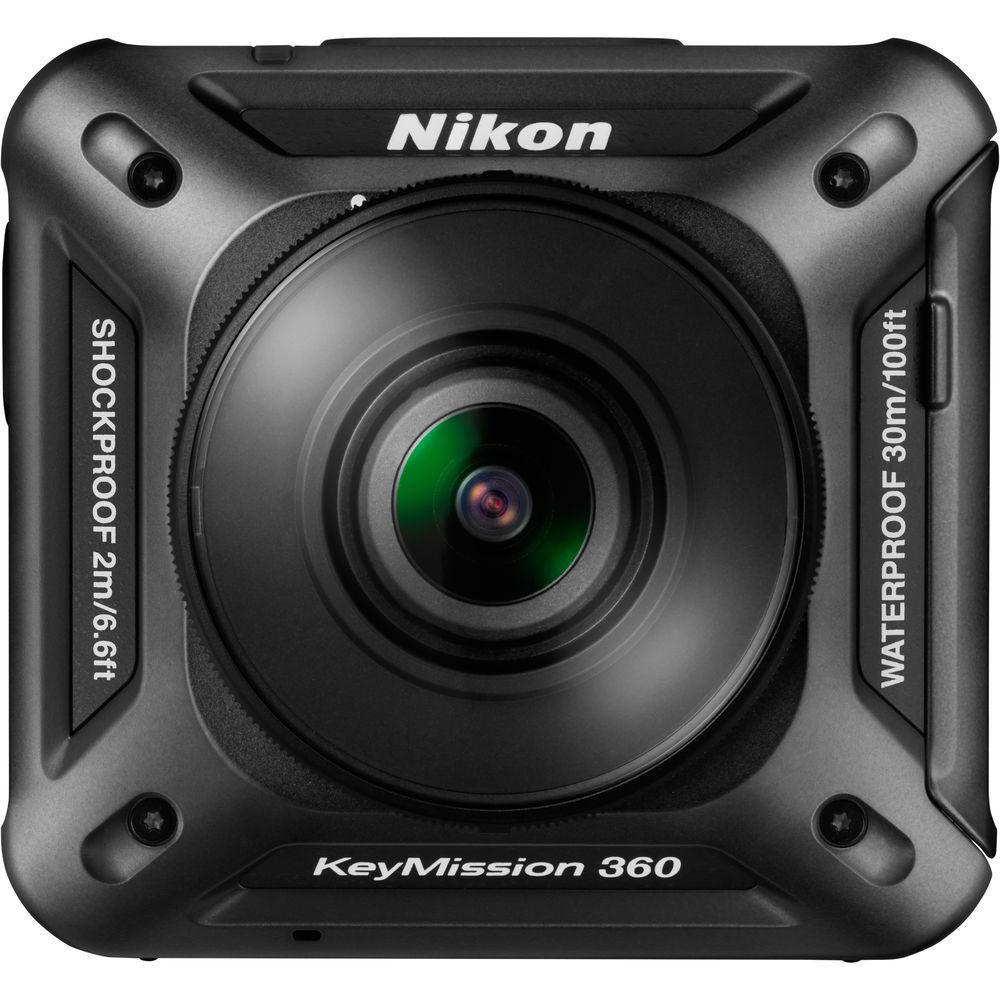

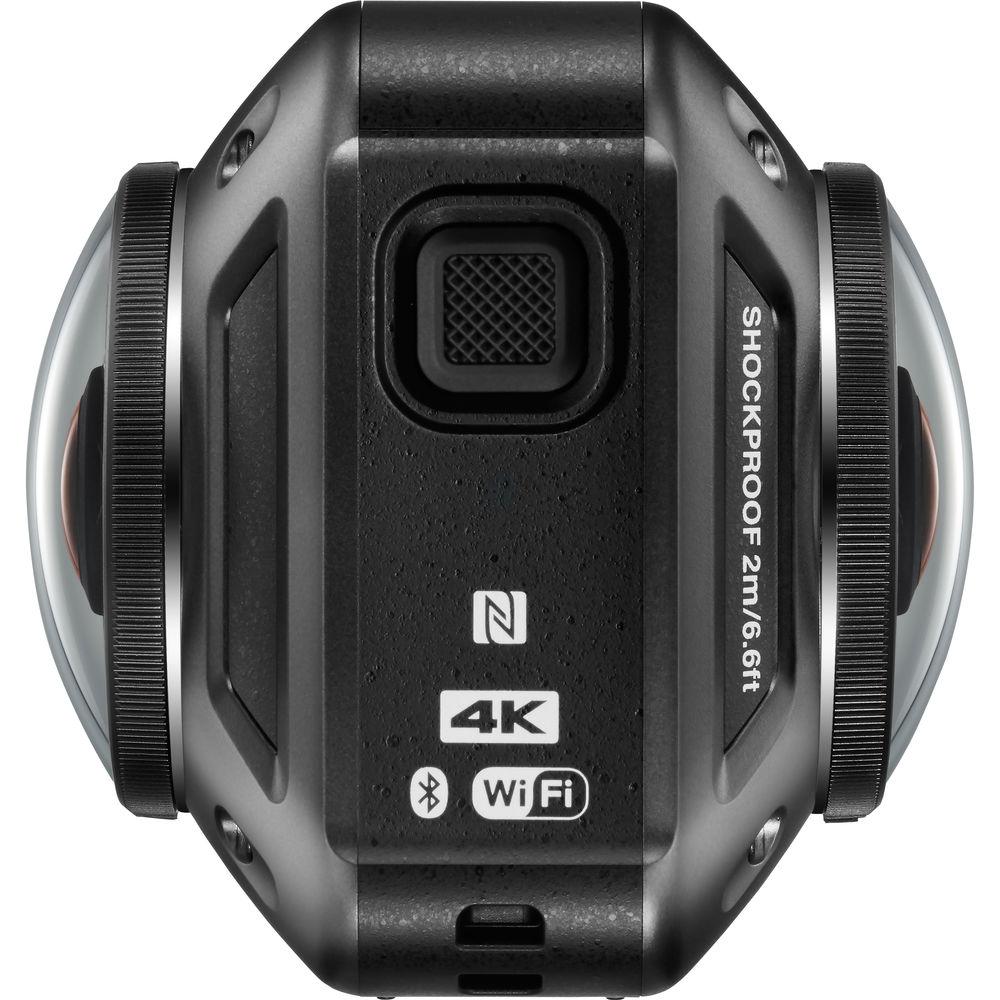

The Nikon KeyMission 360 is a dual-lens action camera that simultaneously captures two 180°+ UHD 4K images and automatically stitches them into a single 360° video. This single image can then be viewed with optional VR goggles or on 360 platforms, such as YouTube 360, where you can move around the image in all directions. You can also upload the stitched image into various VR editing software and enhance it before viewing it on goggles or 360 platforms.
The camera is capable of recording Ultra HD 4K resolution at 24 fps, Full HD 1080p video at 24 fps, 1440 x 960 video at 25/30 fps, and 29MP still images. In all shooting modes, both lenses automatically work at the same time. Each lens features 7 lens elements in 7 groups and offers approximately a 12" focusing distance. Like the rest of the KeyMission series, the KeyMission 360 uses glass Nikon Nikkor lenses, representing Nikon's commitment to this lineup.
The KeyMission 360 features a rugged design and is built to withstand the elements: Without any additional housing, it is waterproof down to 100 ft, shockproof from 6.6 ft, freezeproof, and dustproof. Aside from added convenience, not requiring a housing allows for cleaner image and audio capture, as no additional layers are required between the lenses and mic and your subject.
The KeyMission 360 also features internal electronic Vibration Reduction (for 1080p capture) that will reduce the effects of shakes and jitters in your outdoor adventures, providing you with a smoother final image. A free-to-download Nikon control and playback app is also included with the camera that's compatible with both iOS and Android mobile devices.
The KeyMission 360 comes with a varied set of accessories, including a cage-like Silicone Jacket, lens protector to prevent scratches, and underwater lens protector that will allow you to achieve better focus underwater. Additionally, it supports many more optional KeyMission accessories for riding, watersports, and everyday outdoor activities. - Key Features
-
- Captures and stitches two 180°+ images in Ultra HD 4K resolution at 24 fps
- Provides you with one 360° spherical VR image
- Also offers video recording at 1080 at 24 fps and 1440 x 960 at 24/25 fps
- 29MP still-image capture
- Waterproof to 100 ft, shockproof from 6.6 ft, freezeproof, and dustproof without any external housing
- Internal electronic Vibration Reduction (for 1080p capture)
- Features glass Nikon Nikkor lenses
- Includes Nikon control and playback app for iOS and Android
- 7 lens elements in 7 groups
- 12" focusing distance
- Built-in Wi-Fi and Bluetooth
- Micro-HDMI output and Micro-USB 2.0 interface
- microSD card slot
UPC: 018208265138 In the Box Nikon KeyMission 360 4K Action Camera EN-EL12 Rechargeable Lithium-Ion Battery (3.7V, 1050mAh) EH-73P Charging AC Adapter UC-E21 USB Type-A Male to Type-B Micro Male Cable (Black) Base Adapter for KeyMission 360 & 80 Action Cameras Base Mount Set for KeyMission Base Adapters Black Silicone Jacket for KeyMission 360 Action Camera Lens Protector for KeyMission 360 Action Camera Underwater Lens Protector for the KeyMission 360 Action Camera Head-Mounted Display Limited 1-Year Warranty Nikon Makes a Splash in the Action-Camera Market David Adler 09/19/2016 Unveiled: Nikon Enters the Action Camera Market with the KeyMission 360 Justin Dise 01/05/2016 Quick start Guide PDF 3.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Nikon KeyMission 360 4K Action Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNikon KeyMission 360 Specs | | | Sensor | -Chip 1/2.3" CMOS | | Sensor Resolution | 21 MP | | Effective Pixels | 20.3 MP (Photo) | | | | Focal Length | 1.6mm | | 35mm-Equivalent Focal Length | 8.7 | | Maximum Aperture | f/2 | | Lens Elements | 7 | | Minimum Focusing Distance | 11.8" / 30.0 cm | | | | System | NTSC/PAL | | Recording Media | x microSD/HC/XC | | Video Format | 3840 x 2160p at 24 fps (H.264)
1920 x 1080p at 24 fps (H.264)
1440 x 960p at 25/30 fps (H.264) | | Still Image Resolution | JPEG: 29 Megapixel, 7744 x 3872 (2:1) | | Audio Format | AAC | | | | Shutter Speed | 1/16000 - 1/30 Second (Video) | | Photo ISO Range | 100 - 1600 (Auto) | | Video ISO Range | 100 - 1600 (Auto) | | Exposure Metering | Center-Weighted, Matrix | | Exposure Modes | Modes: Programmed Auto
Compensation: -2 EV to +2 EV (in 1/3 EV Steps) | | | | Image Stabilization | Digital For 1080p mode | | Shockproof Rating | 6.6' / 2.0 m | | Waterproof Depth Rating | 100.0' / 30.0 m (Camera) | | IP Rating | IP6X | | Built-In Mic | Yes | | Wi-Fi | Yes | | Tripod Mount | 1/4" - 20 | | | | Outputs | 1 x Micro-HDMI (Type D)
1 x USB Micro-B 2.0 | | | | Supported Languages | Dutch
English
French
German
Italian
Japanese
Korean
Russian
Simplified Chinese
Spanish
Traditional Chinese | | Battery | Rechargeable Lithium-Ion Battery Pack, 3.7 VDC, 1050 mAh | | Charging Method | USB | | Operating Temperature | 14 to 104°F / -10 to 40°C
Humidity: 85% | | Dimensions (W x H x D) | 2.4 x 2.4 x 2.6" / 6.1 x 6.1 x 6.6 cm | | Weight | 0.44 lb / 199.58 g | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 8.8 x 8.3 x 4.4" |
