User Manual for Nikon R1C1 Wireless Close-Up Speedlight System Click to enlarge the picture
Contents of the user manual for the Nikon R1C1 Wireless Close-Up Speedlight System
- Product category: Macro & Ringlights Nikon
- Brand: Nikon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nikon Macro & Ringlights
 |
User manual for the Nikon R1C1 Wireless Close-Up Speedlight System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nikon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nikon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nikon product will considerably shorten its lifespan!
|

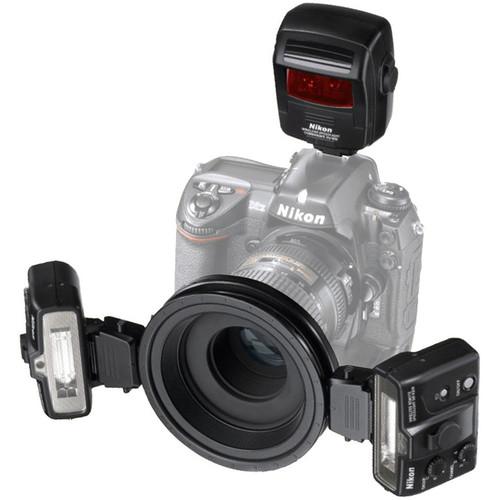

Product description The Nikon R1C1 Wireless Close-Up Speedlight System (a.k.a. Macro Kit A) is a macro flash solution for i-TTL capable cameras that do not feature a built-in flash (e.g. D2X, D2H/D2Hs, F6). The kit is fully compatible with the Nikon Creative Lighting System and Advanced Wireless Lighting system when used with compatible cameras and/or flashes. The kit's main components consist of the SX-1 Attachment Ring that attaches to the lens filter treads via an adapter ring (included), two SB-R200 wireless macro flash heads, and the SU-800 Commander Unit. The SX1 accommodates up to eight SB-R200 Speedlights off camera, and up to four on camera.This solution enables excellent close-up lighting control with exceptional flexibility and innovative options. When using the SU-800 with cameras that are not compatible with i-TTL flash control, only close-up flash operation is possible using the optional SC-30 TTL Cord. - Flexible Control
- The built-in Speedlights of the D200, D70s or D70 serve as the system's Master controller. Or, for non i-TTL cameras, the SC30 sync cord can be used for off-camera control.
- The SX-1 Attachment Ring can accept up to eight SB-R200s and can be attached to a tripod for remote lighting.
- Creative Lighting System
- Supports the Nikon Creative Lighting System (CLS) and compatible CLS cameras
- Built-in target light and AF Illuminator allows for proper position of Speedlight on the subject as well as autofocus operation in low light situations
- Accurate i-TTL flash control achieved through flash exposure monitoring control
- Can be set to one of three Speedlight Groups (A,B and C)
- Offers four independent channels for competitive shooting environments
- Auto FP High-Speed Sync; use with fast shutter speeds achieves effective blurring of out-of-focus background elements
- FV lock holds flash value, enabling recomposition prior to shooting
- Flash head tilts down (toward the optical axis) to 60° with click stops at every 15°, or up to 45° (in the opposite direction) with click stops at every 15°

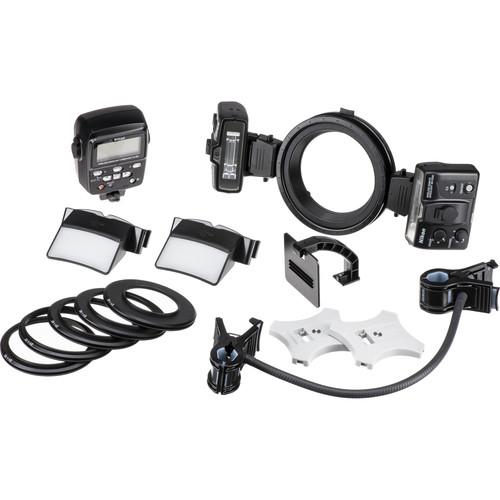

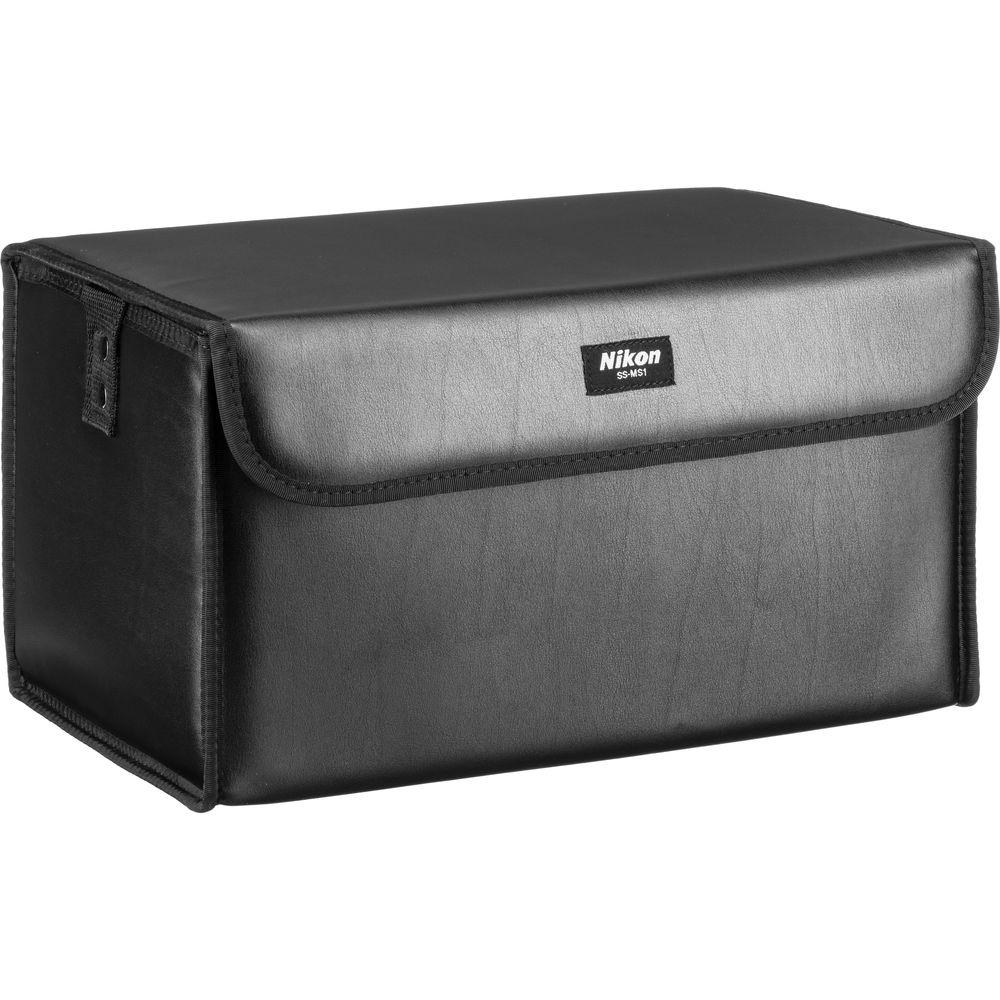

In the Box Nikon R1C1 Wireless Close-Up Speedlight System SU-800 Wireless Speedlight Commander Unit 2 x SB-R200 Wireless Remote Speedlights SX-1 Attachment Ring SS-MS1 Close-Up Speedlight Kit Case 2 x SS-R200 Flash Head Soft Case SS-SX1 Soft Case SG-31R IR Panel for Built-In Flash SW-C1 Flexible Arm Clip 2 x SW-11 Extreme Close-Up Positioning Adapter SW-12 Diffuser Adapter Ring Kit:- SY-1-52 52mm Adapter Ring
- SY-1-62 62mm Adapter Ring
- SY-1-67 67mm Adapter Ring
- SY-1-72 72mm Adapter Ring
- SY-1-77 77mm Adapter Ring
SB-R200 Flash Head Accessories: AS-20 Speedlight Stand SS-R200 Soft Case SJ-R200 Color Filter Set SZ-1 Color Filter Holder Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nikon R1C1 Wireless Close-Up Speedlight System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNikon R1C1 Specs | Type | Flash | | Guide No. | 33' / 10.06 m ISO 100 at 24 mm Position | | Modeling Light | No | | Angle of Coverage | 78° | | TTL Dedication | Yes | | Recycle Time | Approximately 5 to 6 Seconds | | Power Source | 1 x CR123A Lithium Battery | | Dimensions (W x H x D) | 3.1 x 3.0 x 2.2" / 7.9 x 7.6 x 5.6 cm | | Weight | 4.2 oz / 119.1 g | | | | Package Weight | 7.3 lb | | Box Dimensions (LxWxH) | 13.071 x 10.945 x 8.74" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 30 owners. Add your rating and experience with the product.
