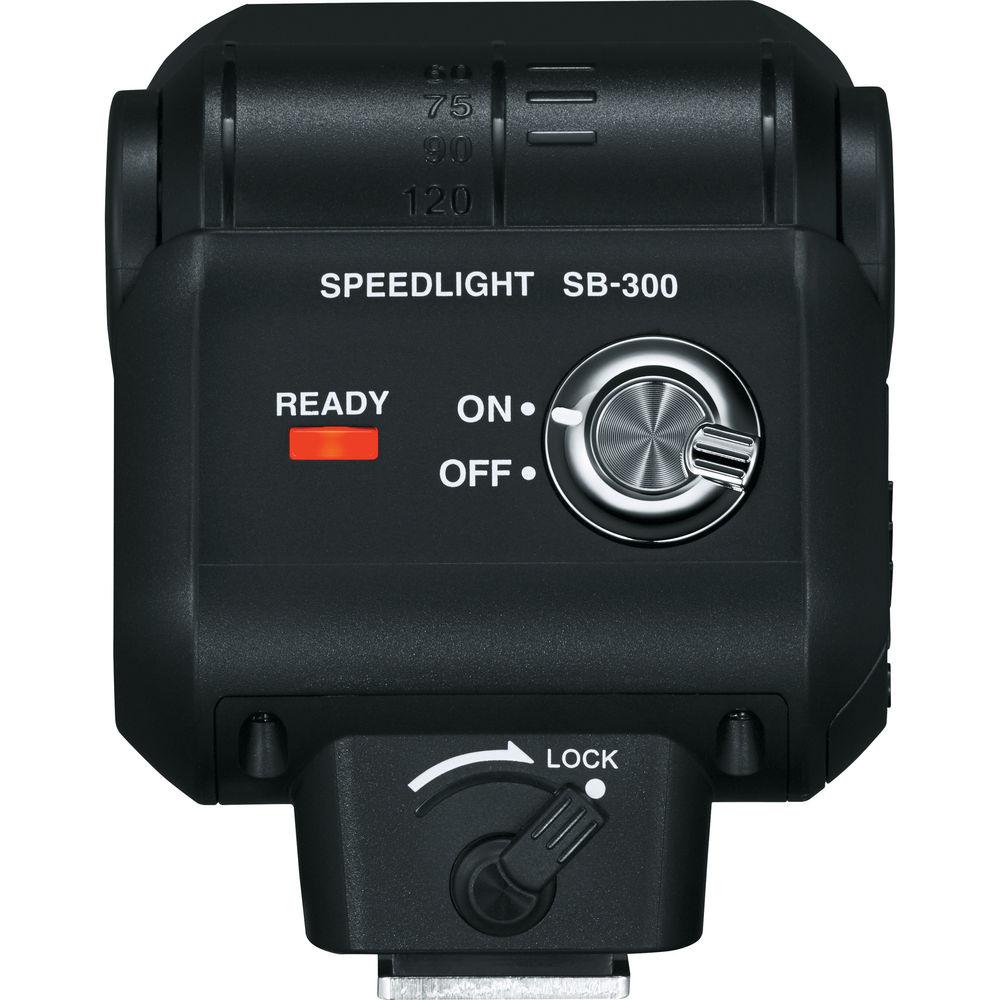

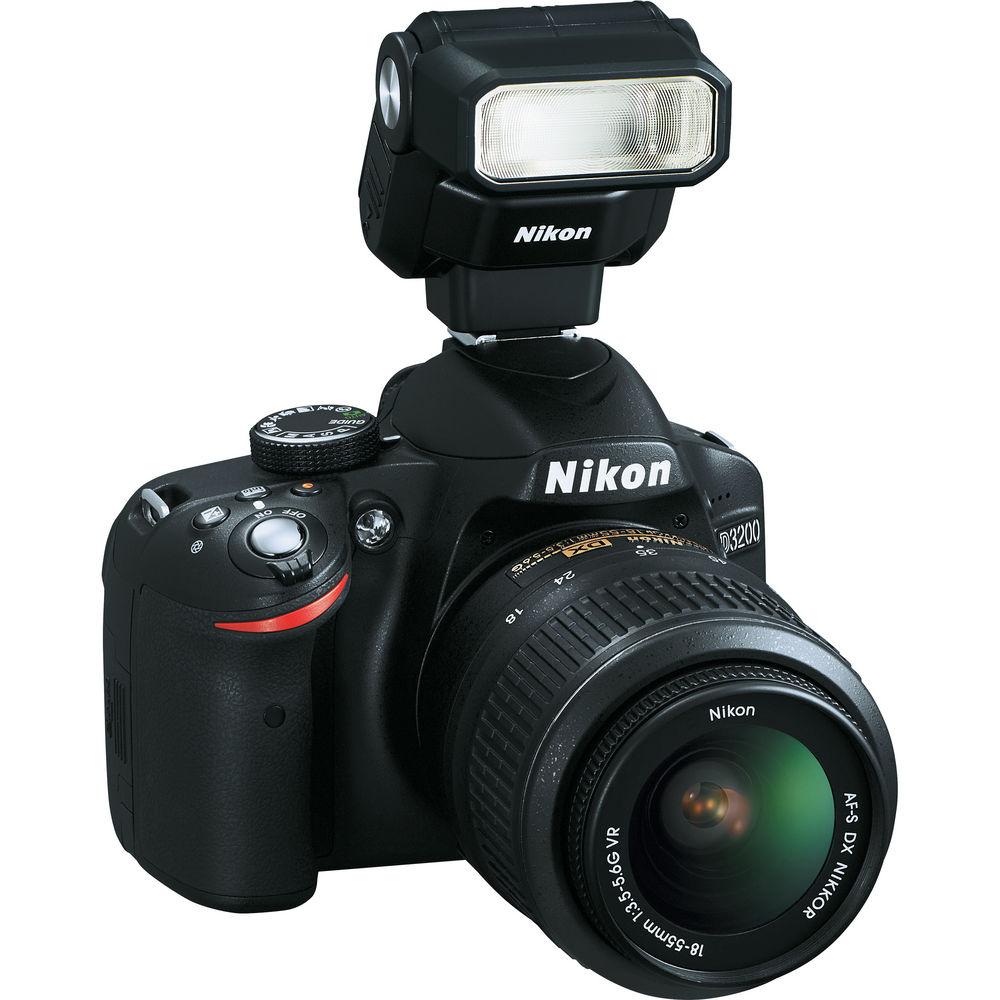

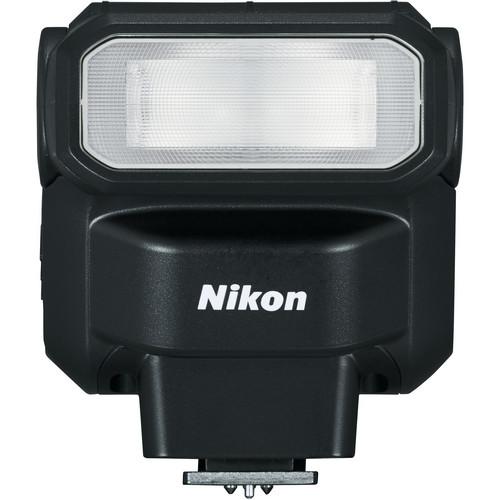

Product description Nikon Announces a New COOLPIX, Zoom Lens, and Speedlight Read More The Nikon SB-300 AF Speedlight is a lightweight on-camera flash that is compatible with Nikon cameras featuring i-TTL support. The SB-300 has a guide number of 59' at ISO 100 and a coverage of a 27mm lens with FX-format cameras. Additionally, the flash has a distance range of 2-66'.
The SB-300 ensures proper exposure and color balance with i-TTL metering. When used with cameras featuring Nikon's Creative Lighting System you can access advanced controls like rear-curtain sync and fill flash.

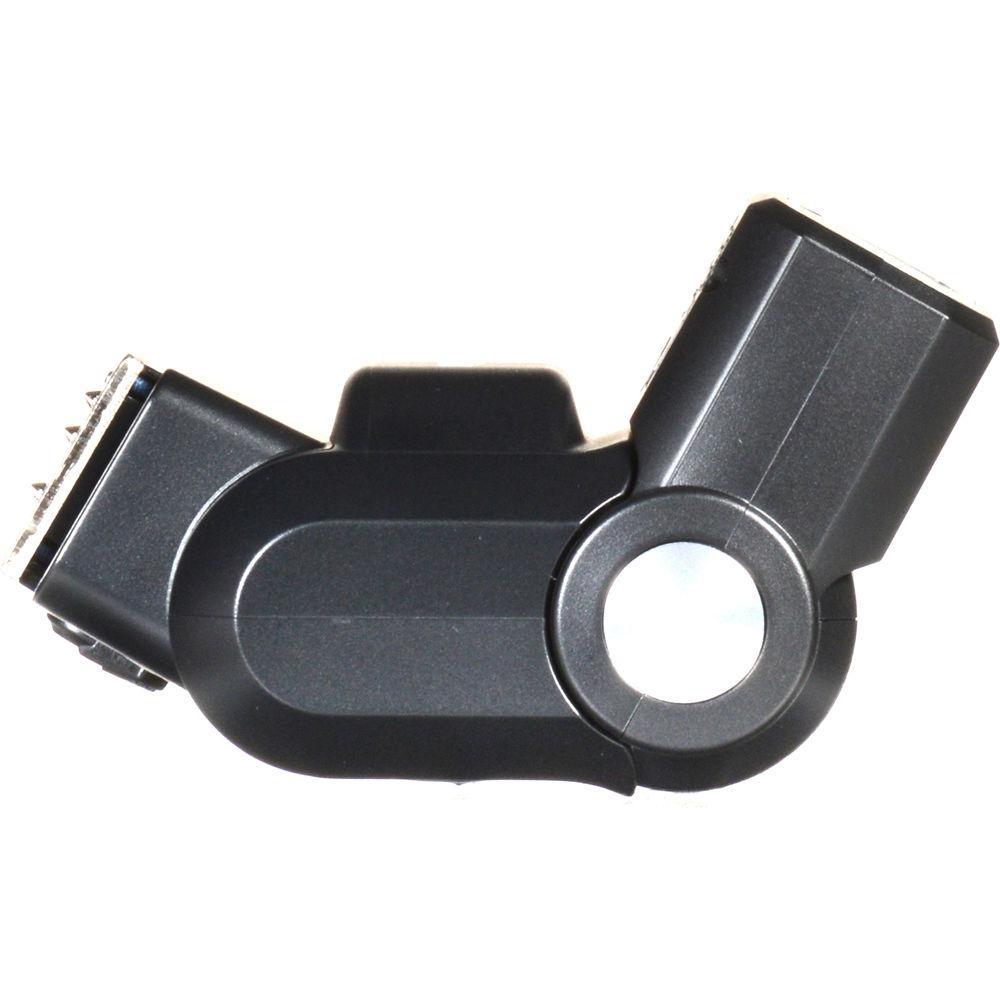

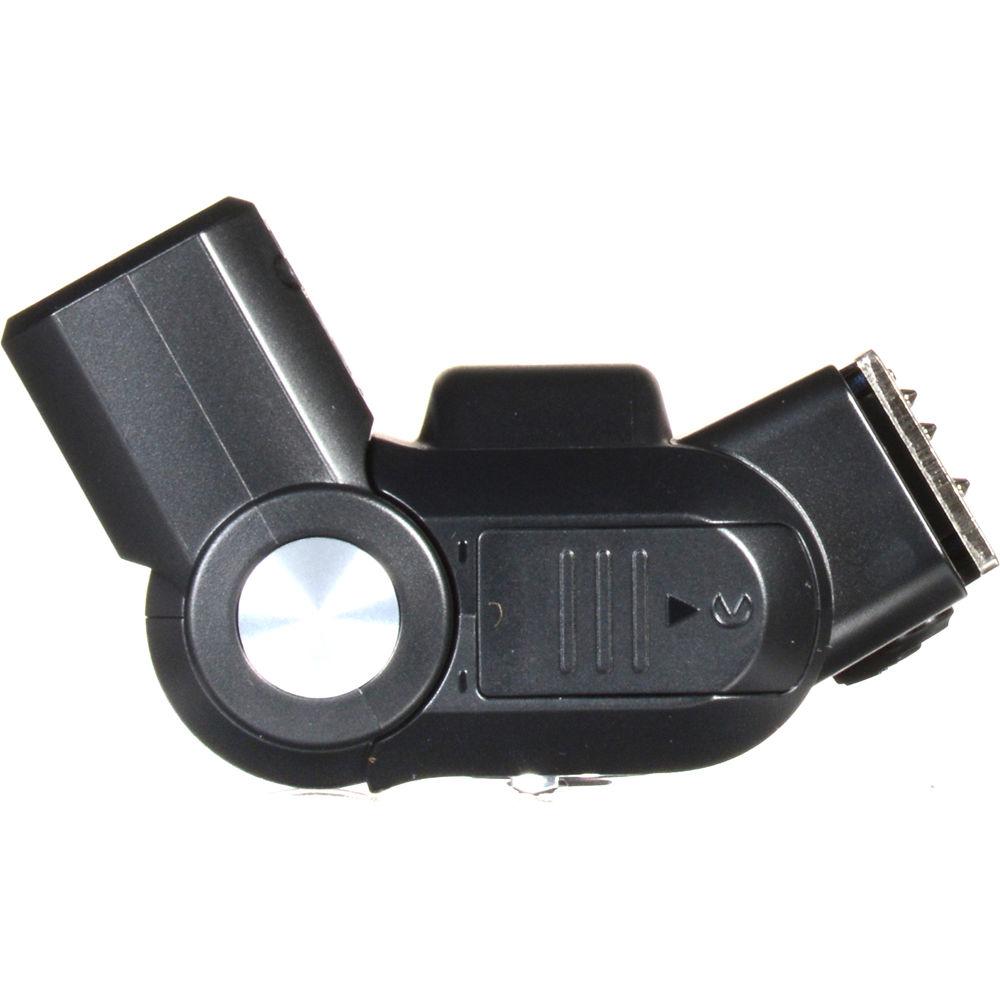

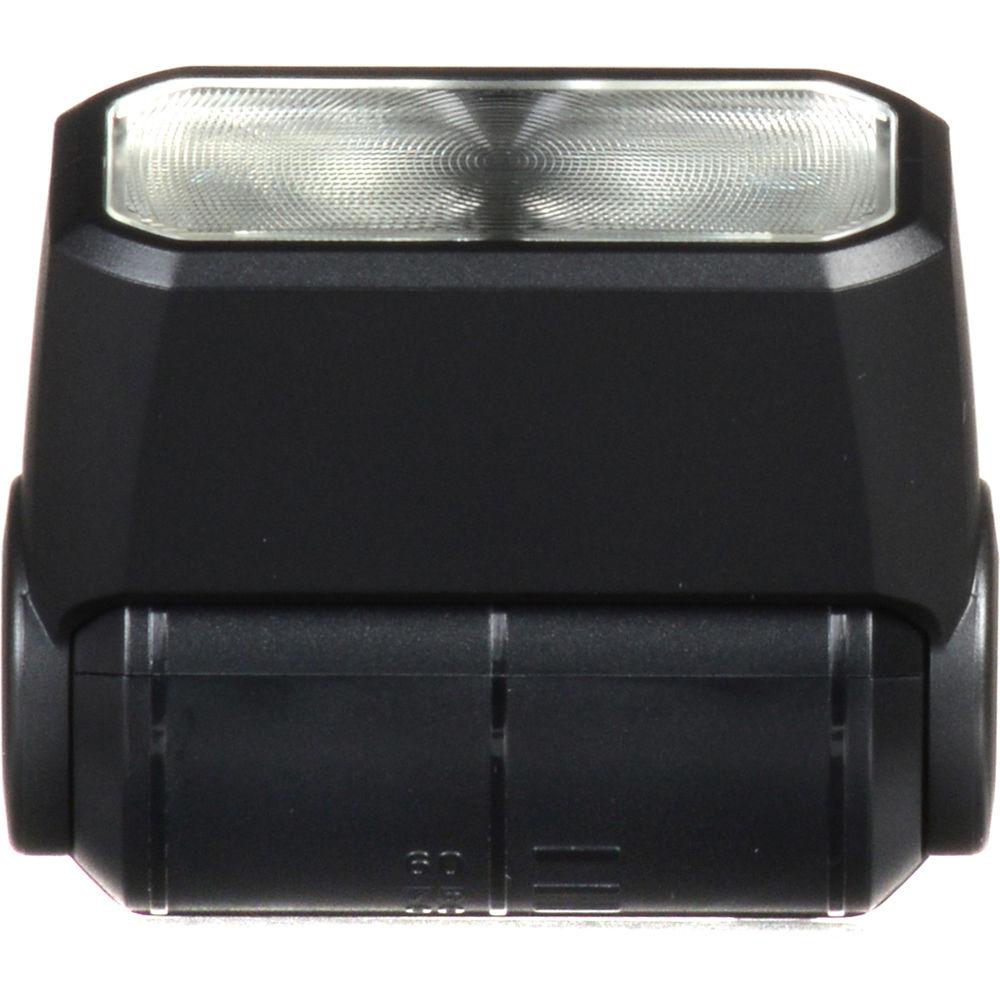

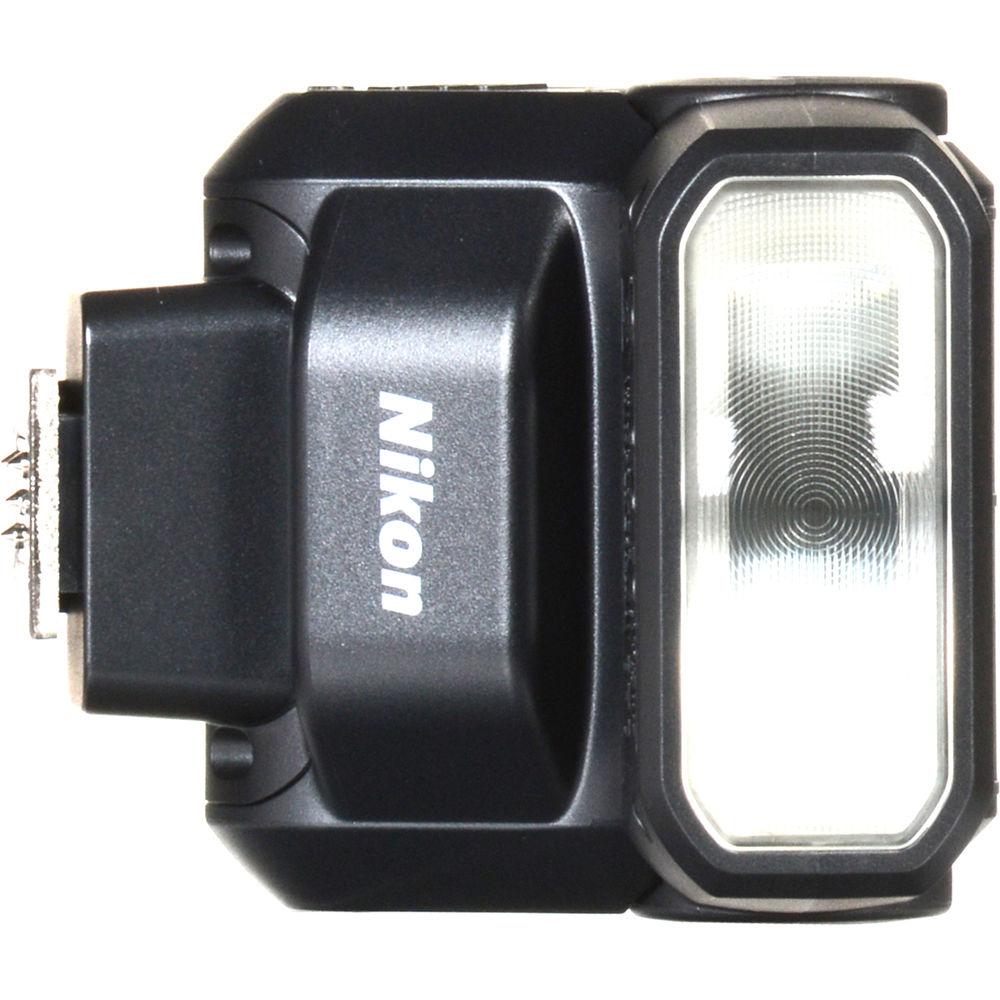

Bouncing light off a ceiling or wall is made possible with a 120° tilting head. This provides soft, even light on your subject. For security during operation, the flash will click into position at 120°, 90°, 75°, 60°, and when facing directly ahead. The flash also offers slow, first and second curtain sync for more creative control over your light.
Weighing only 3.4 oz, its compact design makes traveling with this flash easy. The SB-300 operates on two AAA batteries which will provide a recycle time between 3.5-30 seconds and it comes with the Nikon SS-DC1 Soft Case for storage. - Creative control methods include fill-flash, front-curtain with slow sync, rear-curtain sync, and rear-curtain with slow sync
- Flash head provides wide-angle coverage for 18mm lenses in DX-format cameras or 27mm in FX-format
- Recycle Time: Alkaline/4 sec - Ni-MH/3.5 sec

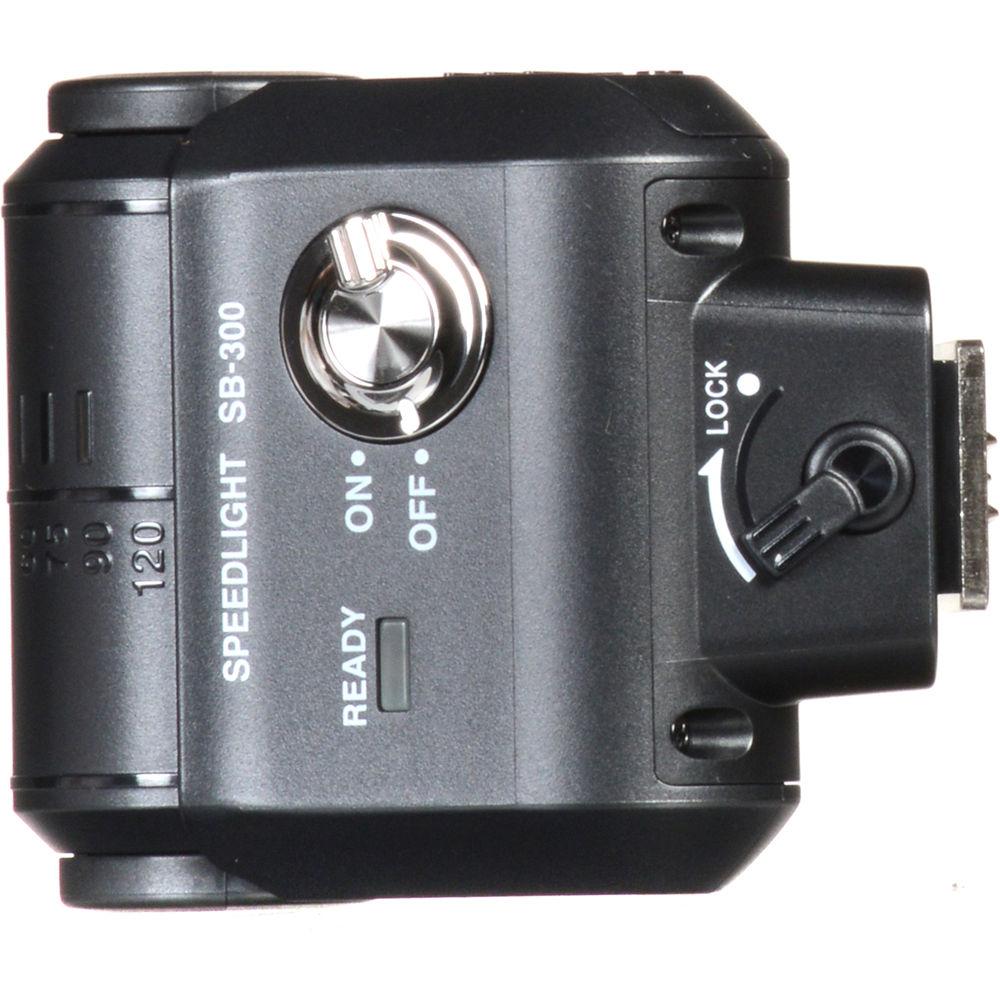

- Flash-ready light turns on when flash is ready to fire

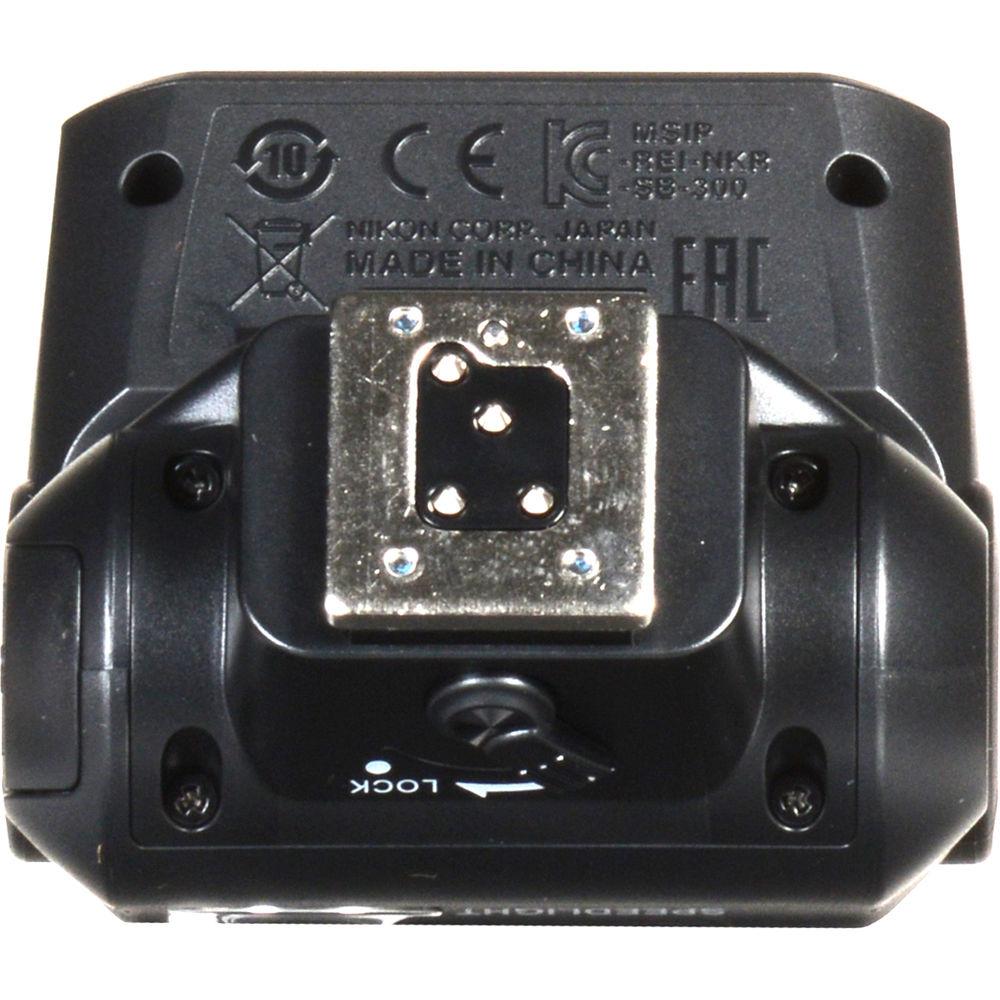

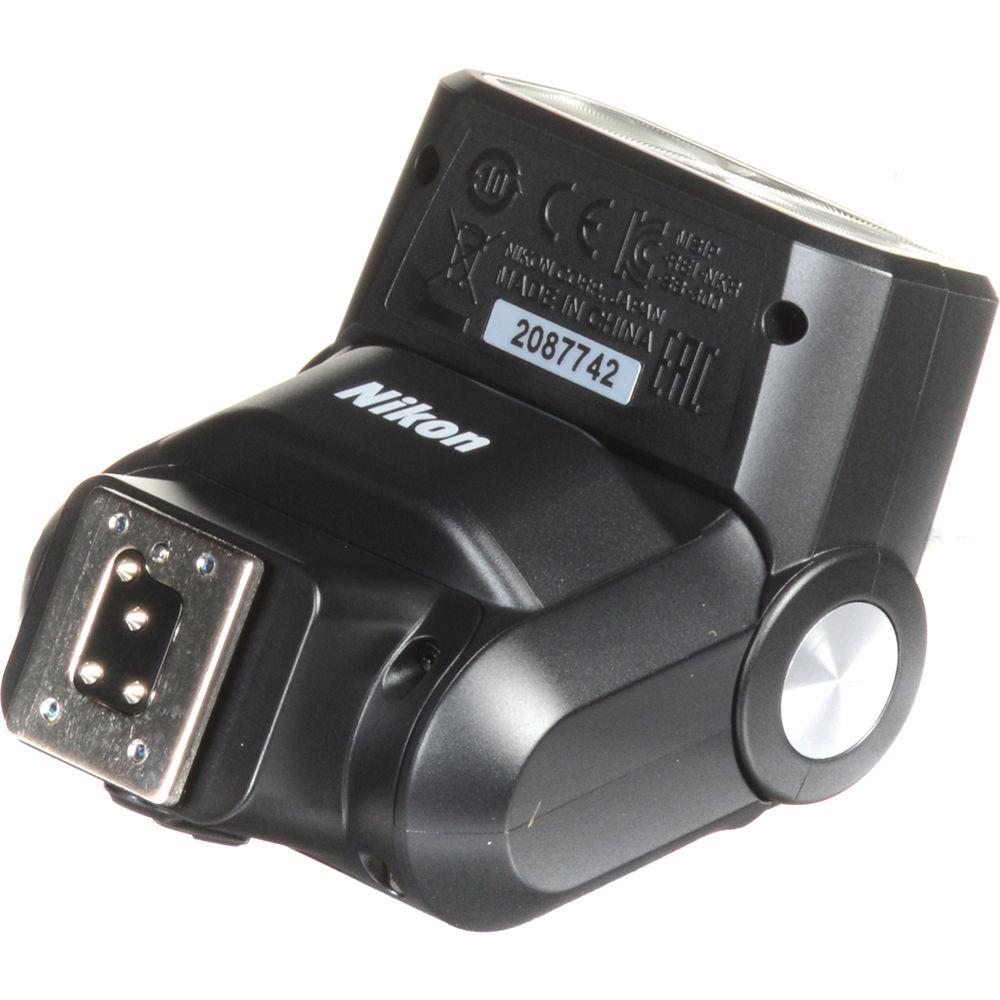

- Foot lock lever for secure mounting to the camera
- Thermal cut-out protection prevents damage from overheating
- Firmware update possible through camera body
In the Box Nikon SB-300 AF Speedlight SS-DC1 Polyester Soft Case Limited 1-Year Warranty User Manual PDF 1.1mbyxfdfzbrdybswxbfybvyxbe Table of Contents
|
Upload User Manual
Have you got an user manual for the Nikon SB-300 AF Speedlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNikon SB-300 Specs | Mount | Shoe | | Guide No. | 59' / 17.98 m ISO 100 | | Exposure Control | i-TTL | | Bounce Head | Yes, 0 to +120° | | Swivel Head | None | | Coverage | Up to 27 mm (Full Frame) | | Distance Range | 2 to 66' (0.61 to 20.12 m) | | Off-Camera Terminal | None | | Recycle Time | Approximately 4 Seconds | | Flash Duration | 1/1650 sec @ Full Power | | Flash-Ready Indicator | Yes | | Compensation | -3 EV to +1 EV (in 1/3 EV steps) In-camera control | | Power Source | 2 x AAA Alkaline, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 2.3 x 2.6 x 2.5" / 58.4 x 66.0 x 63.5 mm | | Weight | 3.42 oz / 96.96 g | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 5.4 x 3.8 x 3.1" |
