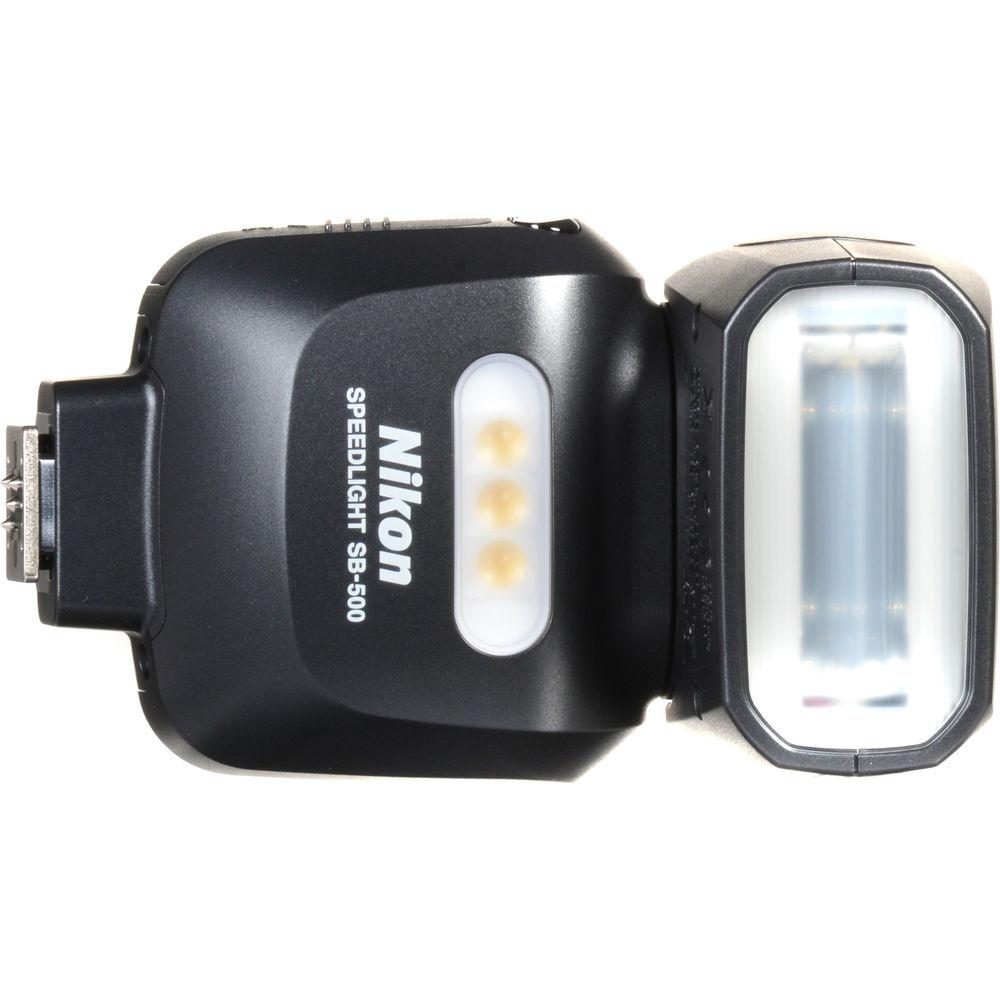

User Manual for Nikon SB-500 AF Speedlight Click to enlarge the picture
Contents of the user manual for the Nikon SB-500 AF Speedlight
- Product category: On Camera Flashes Nikon
- Brand: Nikon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nikon On Camera Flashes
 |
User manual for the Nikon SB-500 AF Speedlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nikon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nikon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nikon product will considerably shorten its lifespan!
|

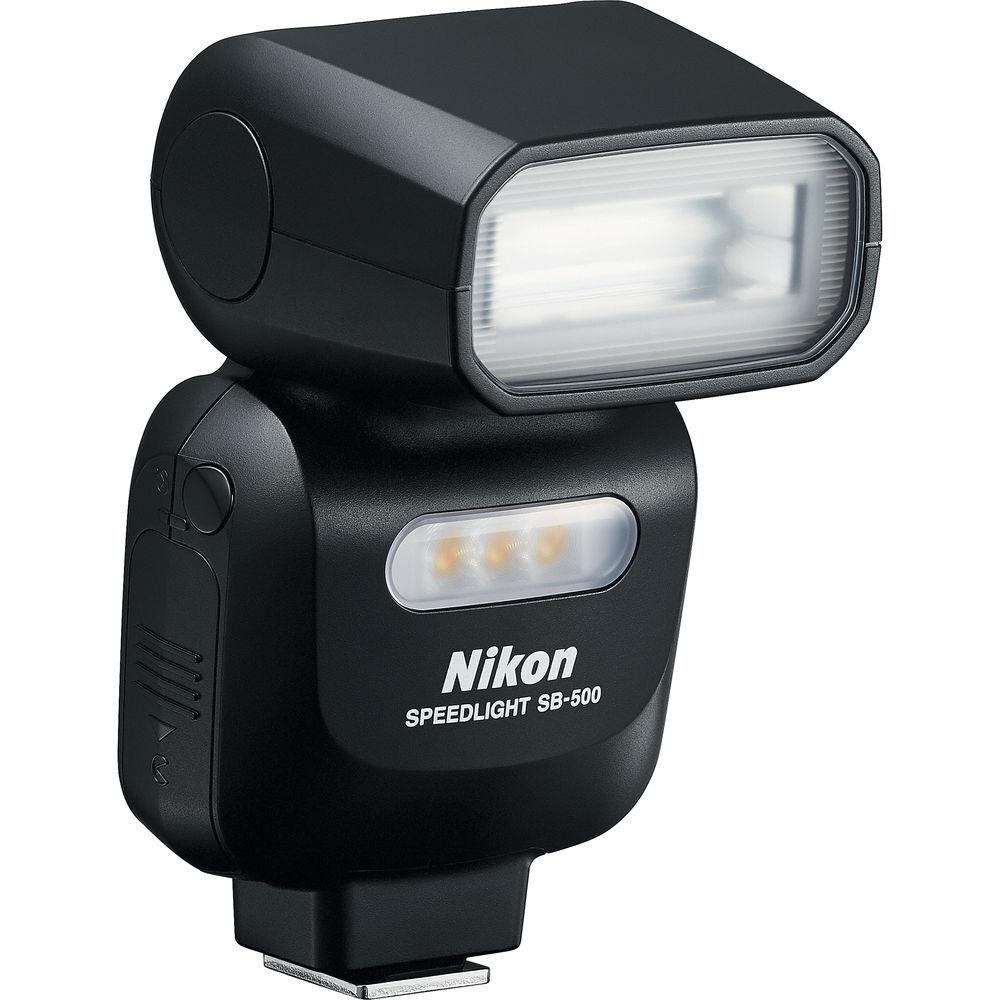

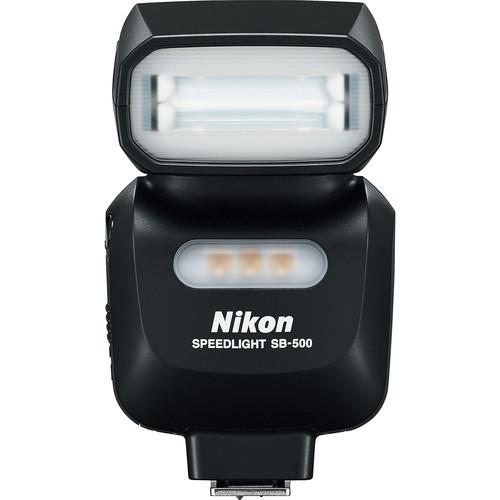

Product description Featuring an LED video light and a compact design, the SB-500 AF Speedlight from Nikon provides users with a portable unit for use specifically with Nikon's i-TTL metering system. The flash has good power with a guide number of 79' at ISO 100 and while no direct manual adjustments are available the output can be tuned via the camera's flash exposure compensation settings. The unit offers wide coverage for a 24mm lens with FX-format full-frame cameras and the 100 lux LED light has quarter, half or full power output levels, which is beneficial for both video and close up still photography.
Versatility is important in this unit with the ability to tilt upward 90° and rotate left and right 180° for excellent bounce and swivel capabilities. The flash will also function wirelessly as either a commander unit on the D810 and D750 or a remote slave for full compatibility with cameras, other flash units, and wireless flash controllers in Nikon's Creative Lighting System. Other features include slow, Auto FP high-speed, 1st, and 2nd curtain synchronization. The SB-500 will also transmit LED and flash color information to the camera for setting an optimal white balance and runs on 2 AA batteries, which provide a recycle time as fast as 3.5 seconds. Included with the camera are a soft case and stand. - Offers test firing, the ability to monitor pre-flashes, and an LED modeling flash function
- Flash compensation from -3 to +1 EV in 1/3 EV steps is available in-camera

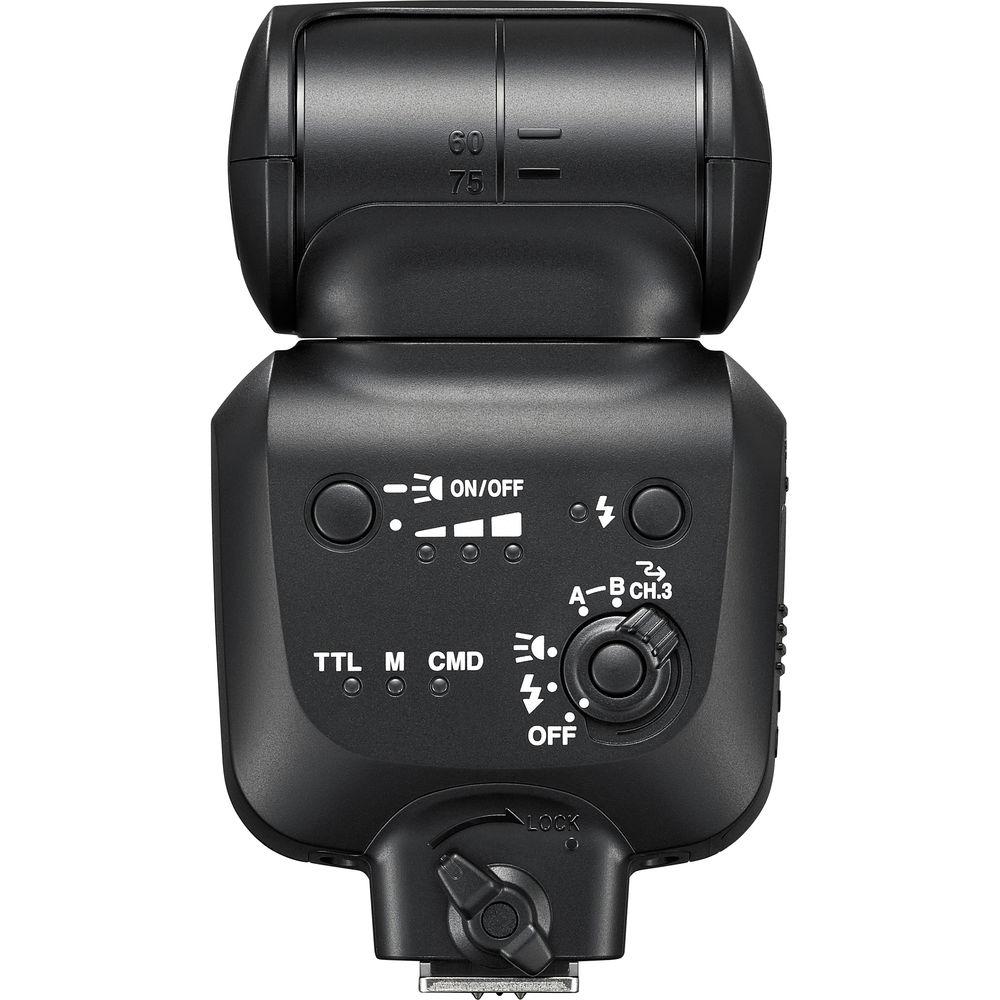

- Head tilts up 90° with click-stops at 0°, 60°, 75°, and 90°
- Head rotates horizontally 180° to the left and right with click-stops at 0°, 30°, 60°, 75°, 90°, 120°, 150°, and 180°
- Four wireless channels are available in Commander mode while only 1 is available in Remote mode
- Two wireless groups, A and B, are available
- Flash-ready indicator lights up when fully recycled or flashes slowly as a warning
- Delivers approximately 100 full-power flashes from a pair of Alkaline batteries and 140 from Ni-MH
- A thermal cut-out function protects the flash
- Firmware can be updated through camera body

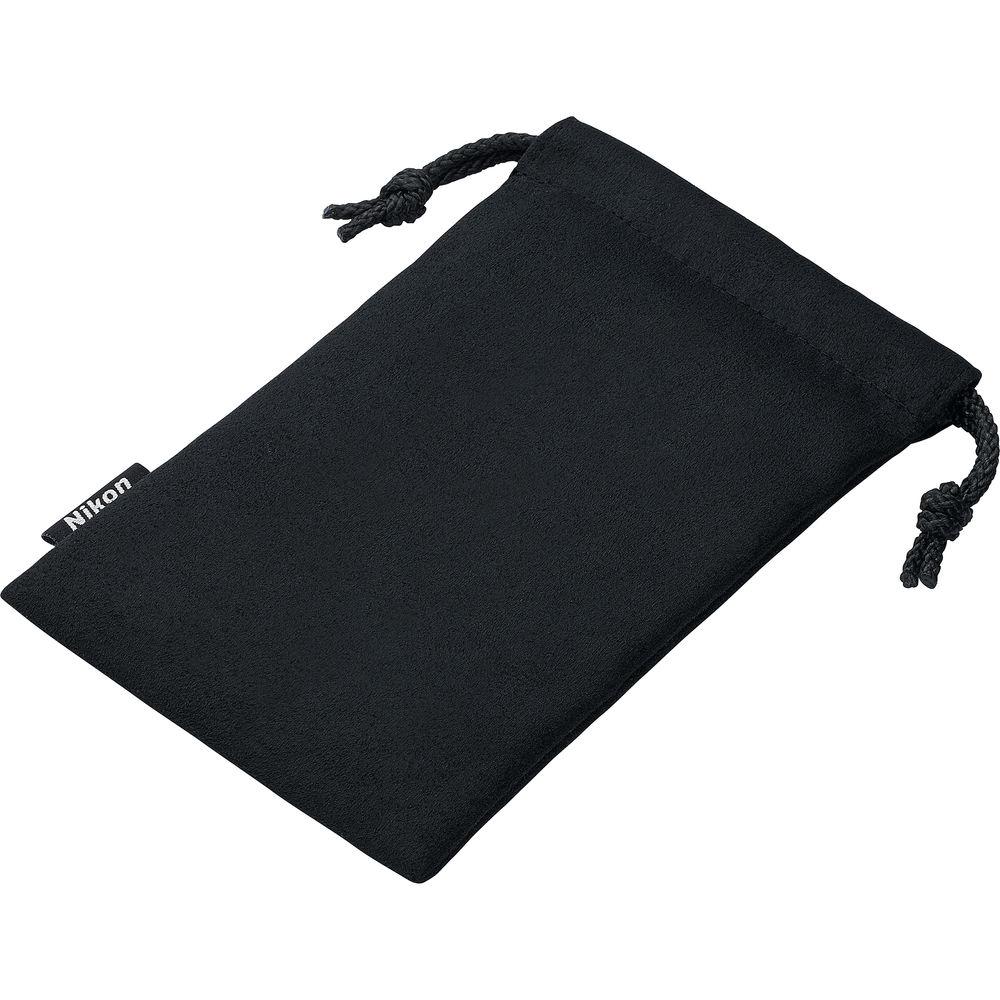

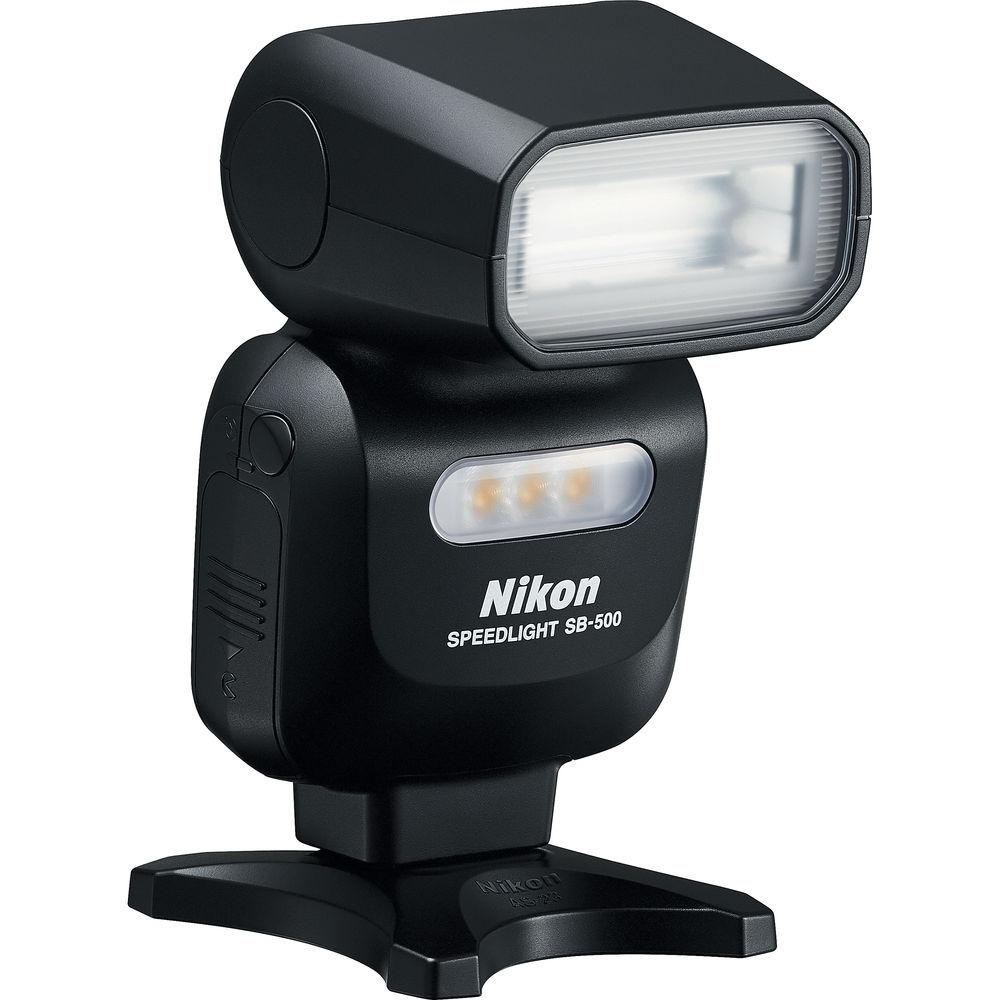

In the Box Nikon SB-500 AF Speedlight AS-23 Speedlight Stand for SB-500 AF Speedlight Flash zbabrubzcdzdbdaay SS-DC2 Soft Case for SB-500 AF Speedlight Flash (Black) User Manual PDF 2.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Nikon SB-500 AF Speedlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNikon SB-500 Specs | Mount | Shoe | | Guide No. | 78.74' / 24 m ISO 100 | | Exposure Control | i-TTL | | Angle of Coverage | 84° | | Bounce Head | Yes0 to +90° | | Swivel Head | Yes, 360° | | Coverage | - mm (Full Frame) | | Distance Range | 1.97 to 65.62' (0.6 to 20 m) | | Zoom Head | None | | Off-Camera Terminal | None | | Recycle Time | Approximately 3.5 to 30 Seconds | | Flash Duration | 1/1100 sec @ Full Power | | Flash-Ready Indicator | Yes | | Compensation | -3 EV to +1 EV (in 1/3 EV steps) In-camera control | | Wireless Operation |
Distance: Up to 32.81' / 10 m
Mode: Commander, Slave | | Wireless Communication Channels | 4 Channels | | Wireless Groups | 2 Groups | | Power Source | 2 x AA Alkaline, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 2.6 x 4.5 x 2.8" / 67.0 x 114.5 x 70.8 mm | | Weight | 8.0 oz / 226.8 g | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 7.0 x 4.6 x 3.4" |
