User Manual for Nikon SB-5000 AF Speedlight Click to enlarge the picture
Contents of the user manual for the Nikon SB-5000 AF Speedlight
- Product category: On Camera Flashes Nikon
- Brand: Nikon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nikon On Camera Flashes
 |
User manual for the Nikon SB-5000 AF Speedlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nikon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nikon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nikon product will considerably shorten its lifespan!
|

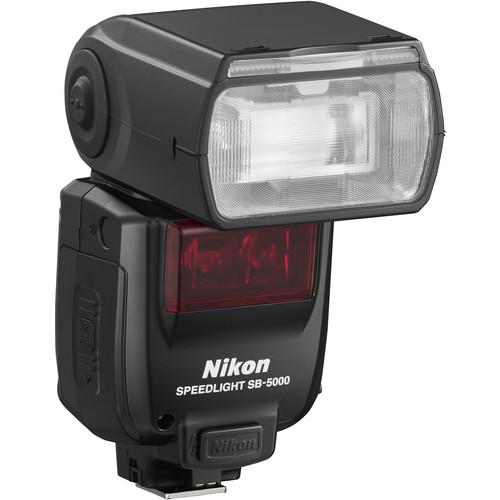

Product description Vape and Crepe: Hands On the Flagship Nikon D5 + SB-5000 Read More Nikon has reimagined both on- and off-camera lighting with the SB-5000 AF Speedlight, which brings revolutionary radio control to the Creative Lighting System with Advanced Wireless Lighting and comes equipped with a world's first shoe-mounted flash cooling system that enables up to 100 consecutive full-power flashes. These features alone are enough to put it at the top of the speedlight heap, but the SB-5000 doesn't rest and provides a powerful guide number of 113' at ISO 100 and 35mm while also shrinking in overall size compared to its predecessors.
Of course, the SB-5000 AF Speedlight is fully compatible with Nikon's i-TTL automatic exposure system found in a majority of their cameras for fast, accurate operation. The radio control implemented in the SB-5000 requires a compatible DSLR using the WR-A10 Wireless Remote Adapter and WR-R10 Wireless Remote Controller in order to fully realize the power of the system. This enables the camera and flash to wirelessly control up to six groups of flashes from up to 98' away, without requiring any line of sight. Also, the SB-5000 and the radio system are fully compatible with the existing optical triggering method of older units and can even be mixed and matched for maximum versatility.
Designed for reliability as well as versatility, the innovative built-in cooling system of the SB-5000 is a first for shoe-mounted flashes. It vents heat quickly and efficiently, allowing you to fire up to 100 consecutive full power flashes without issue. It also means that the flash can be made smaller without compromising performance. This new design also ensures speedy and intuitive operation, implementing an Info button for fast access to some of your most commonly used settings.
As a standard flash the SB-5000 will not disappoint, providing a wide ranging zoom head of 24-200mm which can be extended down to 14mm with use of the built-in diffusion panel. The head will also tilt from -7 to +90° and rotate left and right 180° for complete bounce capabilities. Full sync mode support is available with slow, high-speed, 1st and 2nd curtain options.
The flash has a quick recycle time of 1.8-2.6 seconds and runs on four AA batteries. It can be powered by select external battery packs. A PC terminal can be found on the SB-5000 for further triggering options and it comes with a stand, diffusion dome, fluorescent and incandescent filters, and a soft case. - Radio control Advanced Wireless Lighting when used with a D5 or D500 DSLR equipped with WR-R10 Wireless Remote Controller and WR-A10 Wireless Remote Adapter
- Radio triggering range of 98' with no line-of-sight requirement and with control over 6 groups of flashes
- Shoe-mount flash cooling system with a heat-shedding design enables over 100 bursts at full output without overheating
- Guide number of 113' at ISO 100 and 35mm or 180' at ISO 100 and 200mm
- Coverage of 14-24mm in FX when using built-in wide-angle diffusion panel
- Manual power output from 1/1 to 1/256
- Light distribution angle is automatically adjustable to the camera's image area in both FX and DX formats with standard, even, and center-weighted options
- Wireless Commander TTL capabilities with both optical and radio trigger options
- Commander Mode to set up optical wireless flashes in 3 groups and in one of 4 channels
- Control and mix optical and radio flashes
- Customize settings with Unified Flash Control and a personal computer with version 2.23 or later of Nikon's Camera Control Pro 2 software installed
- Flash head tilts with click-stops at -7°, 0°, 45 °, 60°, 75°, and 90°
- Flash head rotates left and right with click-stops at 0°, 30°, 60°, 75°, 90°, 120°, 150°, and 180°
- Flash exposure compensation from -3 to +3 EV in 1/3 EV steps

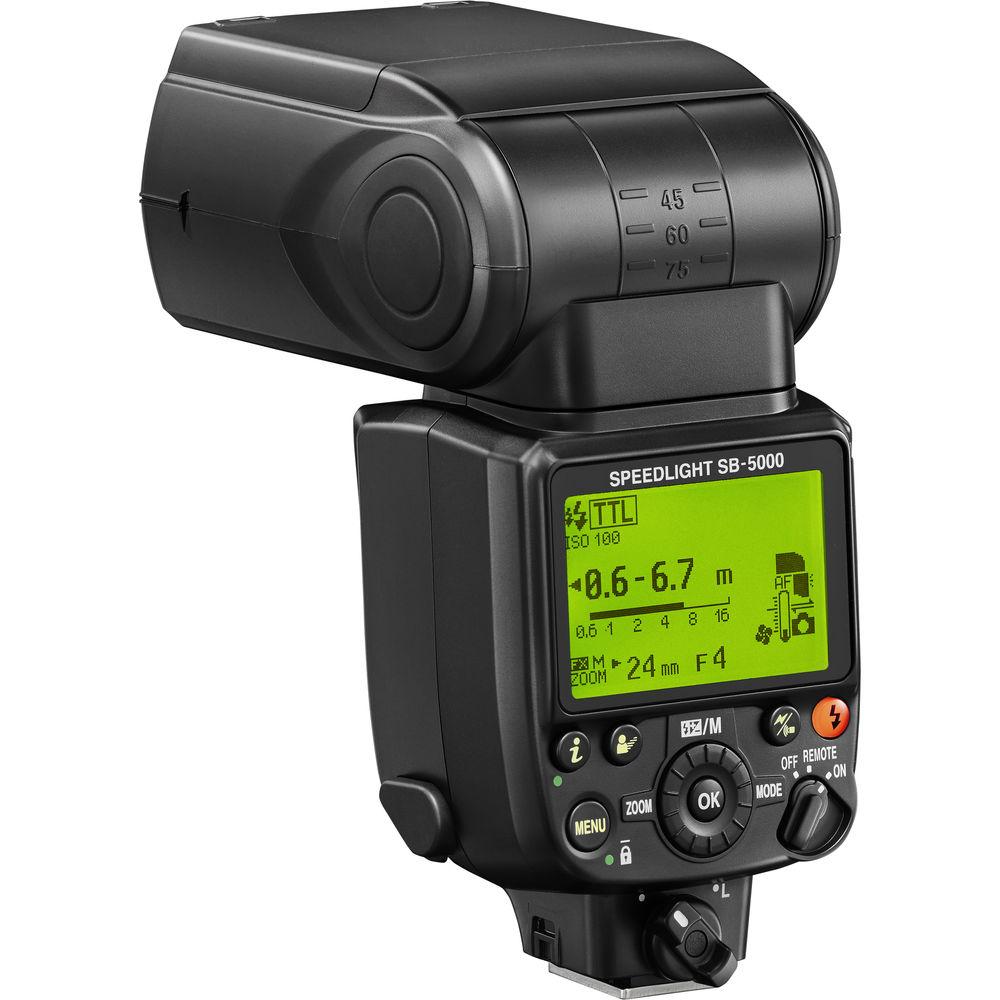

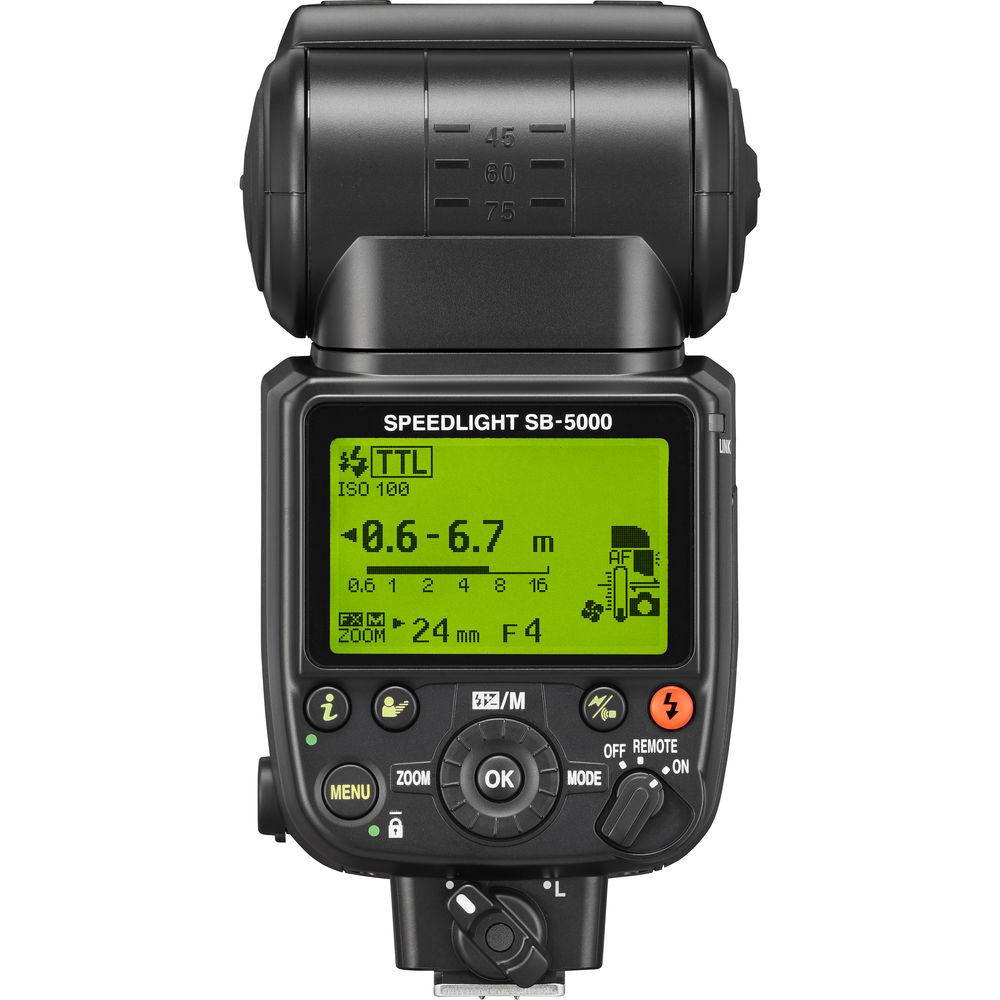

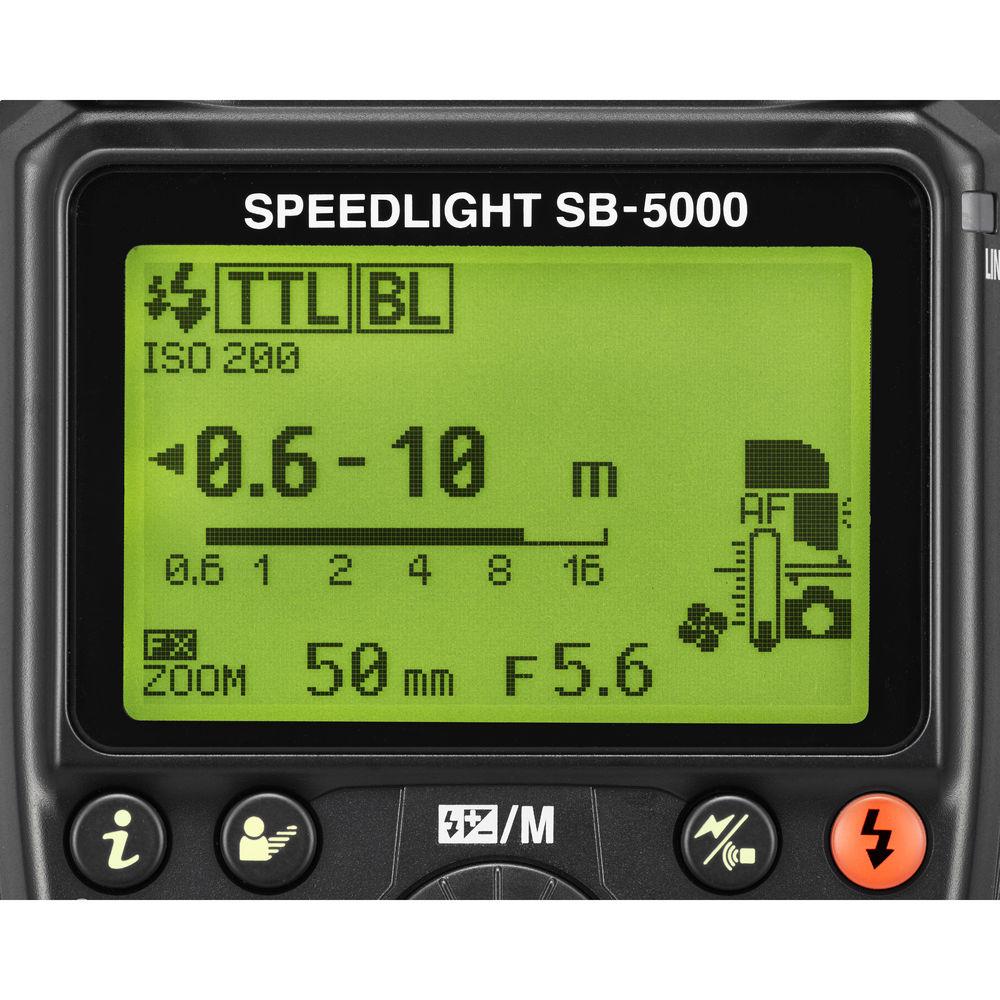

- Info button for fast access to commonly adjusted settings
- Works with SK-6 Power Bracket Unit and SD-9 High-Performance Battery Pack
- Flash-ready indicator lights
- Flash duration of 1/980 to 1/30,820 second depending on output setting
- AF-assist light, modeling illuminator, monitor pre-flashes, and test firing settings
- Automatic color filter detection for adjusting the camera's color temperature settings
- Firmware can be updated through camera
UPC: 018208950157 In the Box Nikon SB-5000 AF Speedlight SW-15H Diffusion Dome for SB-5000 Speedlight AS-22 Speedlight Stand for SB-700 (Replacement) wawytveb SZ-4FL Fluorescent Filter SZ-4TN Incandescent Filter for SB-5000 AF Speedlight SS-5000 Soft Case for SB-5000 AF Speedlight Limited 1-Year Warranty Unveiled: Nikon's 4K-Capable D5, DX-Format D500 & Radio-Controlled SB-5000 Flash Shawn C. Steiner 01/05/2016 A Guide to On-Camera Flash Bjorn Petersen 12/03/2014 User Manual PDF 5.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Nikon SB-5000 AF Speedlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNikon SB-5000 AF Specs | Mount | Shoe | | Guide No. | 113.19' / 34.5 m ISO 100 at 35 mm Position
180.45' / 55 m ISO 100 at 200 mm Position | | Exposure Control | Manual, i-TTL | | Angle of Coverage | 84° - 12°
Wide-Angle Adapter: 114° - 84° | | Vari-Power | 1/1 to 1/256 | | Bounce Head | -7 to +90° | | Swivel Head | 360° | | Coverage | 14 - 200 mm (Full Frame) | | Zoom Head | Full Frame: 24 - 200 mm | | Off-Camera Terminal | PC | | Recycle Time | Approximately 1.8 to 2.6 Seconds | | Flash Duration | 1/980 to 1/30820 sec | | Flash-Ready Indicator | Yes | | Compensation | -3 EV to +3 EV (in 1/3 EV steps) | | Wireless Operation | Method: RF
Distance: Up to 98.43' / 30 m
Mode: Commander, Slave
Method: Optical Pulse
Distance: Up to 32.81' / 10 m
Mode: Commander, Slave | | Wireless Communication Channels | 4 Channels | | Wireless Groups | 6 Groups | | Power Source | 4 x AA Alkaline, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 2.9 x 5.4 x 4.1" / 73.0 x 137.0 x 103.5 mm | | Weight | 14.81 oz / 420 g | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 10.5 x 4.6 x 4.6" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
