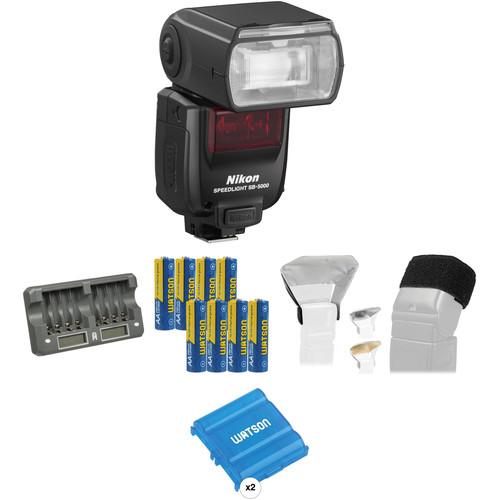

Nikon SB-5000 AF Speedlight Essential Portrait

User Manual for Nikon SB-5000 AF Speedlight Essential Portrait Kit

• Product category: On Camera Flashes Nikon
• Brand: Nikon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Nikon On Camera Flashes

Product description

• Nikon SB-5000 AF Speedlight Nikon has reimagined both on- and off-camera lighting with the SB-5000 AF Speedlight, which brings revolutionary radio control to the Creative Lighting System with Advanced Wireless Lighting and comes equipped with a world's first shoe-mounted flash cooling system that enables up to 100 consecutive full-power flashes. These features alone are enough to put it at the top of the speedlight heap, but the SB-5000 doesn't rest and provides a powerful guide number of 113' at ISO 100 and 35mm while also shrinking in overall size compared to its predecessors.

  Of course, the SB-5000 AF Speedlight is fully compatible with Nikon's i-TTL automatic exposure system found in a majority of their cameras for fast, accurate operation. The radio control implemented in the SB-5000 requires a compatible DSLR using the WR-A10 Wireless Remote Adapter and WR-R10 Wireless Remote Controller in order to fully realize the power of the system. This enables the camera and flash to wirelessly control up to six groups of flashes from up to 98' away, without requiring any line of sight. Also, the SB-5000 and the radio system are fully compatible with the existing optical triggering method of older units and can even be mixed and matched for maximum versatility.

  Designed for reliability as well as versatility, the innovative built-in cooling system of the SB-5000 is a first for shoe-mounted flashes. It vents heat quickly and efficiently, allowing you to fire up to 100 consecutive full power flashes without issue. It also means that the flash can be made smaller without compromising performance. This new design also ensures speedy and intuitive operation, implementing an Info button for fast access to some of your most commonly used settings.

  As a standard flash the SB-5000 will not disappoint, providing a wide ranging zoom head of 24-200mm which can be extended down to 14mm with use of the built-in diffusion panel. The head will also tilt from -7 to +90° and rotate left and right 180° for complete bounce capabilities. Full sync mode support is available with slow, high-speed, 1st and 2nd curtain options.

  The flash has a quick recycle time of 1.8-2.6 seconds and runs on four AA batteries. It can be powered by select external battery packs. A PC terminal can be found on the SB-5000 for further triggering options and it comes with a stand, diffusion dome, fluorescent and incandescent filters, and a soft case.
  • Radio control Advanced Wireless Lighting when used with a D5 or D500 DSLR equipped with WR-R10 Wireless Remote Controller and WR-A10 Wireless Remote Adapter
  • Radio triggering range of 98' with no line-of-sight requirement and with control over 6 groups of flashes
  • Shoe-mount flash cooling system with a heat-shedding design enables over 100 bursts at full output without overheating
  • Guide number of 113' at ISO 100 and 35mm or 180' at ISO 100 and 200mm
  • Coverage of 14-24mm in FX when using built-in wide-angle diffusion panel
  • Manual power output from 1/1 to 1/256
  • Light distribution angle is automatically adjustable to the camera's image area in both FX and DX formats with standard, even, and center-weighted options
  • Wireless Commander TTL capabilities with both optical and radio trigger options
  • Commander Mode to set up optical wireless flashes in 3 groups and in one of 4 channels
  • Control and mix optical and radio flashes
  • Backlit rear LCD panel
  • Customize settings with Unified Flash Control and a personal computer with version 2.23 or later of Nikon's Camera Control Pro 2 software installed
  • Flash head tilts with click-stops at -7°, 0°, 45 °, 60°, 75°, and 90°
  • Flash head rotates left and right with click-stops at 0°, 30°, 60°, 75°, 90°, 120°, 150°, and 180°
  • Flash exposure compensation from -3 to +3 EV in 1/3 EV steps
  • Info button for fast access to commonly adjusted settings
  • Works with SK-6 Power Bracket Unit and SD-9 High-Performance Battery Pack
  • Flash-ready indicator lights
  • Flash duration of 1/980 to 1/30,820 second depending on output setting
  • AF-assist light, modeling illuminator, monitor pre-flashes, and test firing settings
  • Automatic color filter detection for adjusting the camera's color temperature settings
  • Firmware can be updated through camera
  UPC: 018208048151
• Watson 8-Bay Rapid Charger for AA / AAA NiMH or NiCd Rechargeable Batteries The Watson 8-Bay Rapid Charger for AA / AAA NiMH or NiCd Rechargeable Batteries charges up to 8 AA or AAA size nickel-metal hydride or nickel-cadmium rechargeable batteries. Charging time ranges from 3.6-4.6 hr for AA batteries, and 1.6-2 hr for AAA's. Eight individual LCD indicators give the charging status for each battery. Patented technology permits the charging of different sizes and types of battery simultaneously--charge a AA with a AAA, or an NiMH with an NiCd.

  The charger's intelligent microprocessor doles out the full charge to each battery while preventing overcharging, thanks to Delta Voltage Protection. The Safety Timer with Automatic Timer Shut-Off senses when batteries are fully charged and ceases charging. Automatic Charge Current Selection automatically chooses the optimal current for the batteries you're charging. Reverse Polarity Protection and Alkaline and Bad Battery Protection safeguard the charger and your batteries against damage when batteries are installed improperly. There's also a discharge function, allowing you to refresh the batteries prior to charging.

  The charger features an icon that shifts up and down during discharging, and stops shifting when discharge is complete. This icon also displays battery capacity while charging. The full-battery icon lights up when the batteries are fully charged. A flashing full-battery icon indicates an abnormality, such as the presence of a bad or alkaline battery, and at this point the charger will cease its operation. The charger is powered by an included external AC adapter with switching 100-240V power for worldwide use, or by the 12-24V DC cord which can plug into your car's cigarette lighter for charging on-the-go.
  • Charges up to 8 AA or AAA size nickel-metal hydride or nickel-cadmium rechargeable batteries.
  • Charging time ranges from 3.6-4.6 hr for AA batteries, and 1.6-2 hr for AAA's.
  • Eight individual LCD indicators give the charging status for each battery.
  • Patented technology permits the charging of different sizes and types of battery simultaneously--charge a AA with a AAA, or an NiMH with an NiCd.
  • Intelligent microprocessor doles out the full charge to each battery while preventing overcharging, thanks to Delta Voltage Protection. The Safety Timer with Automatic Timer Shut-Off senses when batteries are fully charged and ceases charging.
  • Automatic Charge Current Selection automatically chooses the optimal current for the batteries you're charging.
  • Reverse Polarity Protection and Alkaline and Bad Battery Protection safeguard the charger and your batteries against damage when batteries are installed improperly.
  • There's also a discharge function, allowing you to refresh the batteries prior to charging.
  • Has an icon that shifts up and down during discharging, and stops shifting when discharge is complete. This icon also displays battery capacity while charging. The full-battery icon lights up when the batteries are fully charged. A flashing full-battery icon indicates an abnormality, such as the presence of a bad or alkaline battery, and at this point the charger will cease its operation.
  • Powered by an included external AC adapter with switching 100-240V power for worldwide use, or by the 12-24V DC cord which can plug into your car's cigarette lighter for charging on-the-go.
  UPC: 847628532922
• Watson AA NiMH Rechargeable Batteries (2300mAh) - 8-Pack This 8-pack of 2300mAh Watson AA NiMH Rechargeable Batteries is a package of 8 AA size nickel-metal hydride (NiMH) rechargeable batteries. Each has a voltage of 1.2V and a capacity of 2300mAh. These batteries feature excellent high-drain performance and can be recharged up to 1000 times. Additionally, they are mercury-free and environmentally friendly. UPC: 847628532465
• Vello Light Bouncer Kit for Portable Flashes This Vello Light Bouncer Kit for Portable Flashes spreads and redirects the light from a portable flash to soften the quality of light and distribute it over a wider area. No exposure compensation is necessary with automatic flashes, but operating distances will be somewhat reduced. The Light Bouncer can be used with slaves, or alone where low ceilings are not available, or where more direct but soft fill light is desired. It attaches to the flash head in seconds with the included touch-tab fasteners. The silver insert adds a specular look to highlights. The gold insert adds a warm tone to the scene, particularly useful for outdoor fill-flash. These inserts attach with touch-tab fasteners to the bounce surface of the Light Bouncer to further modify the light.
  • Fits nearly any portable flash
  • Lightweight and portable
  • Attaches quickly and easily
  • Includes gold and silver reflectors to enhance skin tones and other lighting scenarios
  UPC: 847628028937
• Vello Cinch Strap for Portable Flashes Vello's Cinch Strap for Portable Flashes makes it easy to quickly attach accessories to your portable flash. It simply wraps around the head of your portable flash, eliminating the need for messy self-adhesive loops. Compatible with most on-camera shoe mounted flashes. It easily allows attachment of such Vello products as:
  • FD-200 Light Bouncer
  • FD-210 / Light Bouncer Plus
  • FD-300 Universal Softbox Small
  • FD-310 Universal Softbox Medium
  • FD-320 Universal Softbox Large
  • FD-400 5" Snoot/Reflector
  • FD-410 8" Snoot/Reflector
  • FD-500 Fabric Softbox
  • FD-600 Honeycomb Grip 1/8"
  • FD-610 Honeycomb Grip 1/4"
  • FD-700 Light Shapers
  UPC: 847628029040
• 2 x Watson Case for 4 AA or AAA Batteries (Blue) This plastic Watson Battery Storage Case holds up to 4 AA or AAA batteries in dedicated slots. It has a compact form factor for easy storage in your pocket or a small compartment in your gear bag. The case has a snap closure and features an attachment point for connecting a second identical case, which could in turn be connected to another to create a chain, giving you an easy expansion option for storing more batteries. UPC: 847628581913

• SB-5000 AF Speedlight raqrqfrawaxaxdbf
• SW-15H Diffusion Dome for SB-5000 Speedlight
• AS-22 Speedlight Stand for SB-700 (Replacement)
• SZ-4FL Fluorescent Filter
• SZ-4TN Incandescent Filter for SB-5000 AF Speedlight
• SS-5000 Soft Case for SB-5000 AF Speedlight
• Limited 1-Year Warranty

• Watson - 8-Bay Rapid Charger for AA / AAA NiMH or NiCd Rechargeable Batteries raqrqfrawaxaxdbf

• Watson - AA NiMH Rechargeable Batteries (2300mAh) - 8-Pack

• Vello - Light Bouncer Kit for Portable Flashes

• Vello - Cinch Strap for Portable Flashes

• 2 x Watson - Case for 4 AA or AAA Batteries (Blue)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Nikon SB-5000 AF Speedlight

  Mount	Shoe
  Guide No.	113.19' / 34.5 m ISO 100 at 35 mm Position 180.45' / 55 m ISO 100 at 200 mm Position
  Exposure Control	Manual, i-TTL
  Angle of Coverage	84° - 12° Wide-Angle Adapter: 114° - 84°
  Vari-Power	1/1 to 1/256
  Bounce Head	-7 to +90°
  Swivel Head	360°
  Coverage	14 - 200 mm (Full Frame)
  Zoom Head	Full Frame: 24 - 200 mm
  Off-Camera Terminal	PC
  Recycle Time	Approximately 1.8 to 2.6 Seconds
  Flash Duration	1/980 to 1/30820 sec
  Flash-Ready Indicator	Yes
  Compensation	-3 EV to +3 EV (in 1/3 EV steps)
  Wireless Operation	Method: RF Distance: Up to 98.43' / 30 m Mode: Commander, Slave Method: Optical Pulse Distance: Up to 32.81' / 10 m Mode: Commander, Slave
  Wireless Communication Channels	4 Channels
  Wireless Groups	6 Groups
  Power Source	4 x AA Alkaline, Rechargeable NiMH Batteries
  Dimensions (W x H x D)	2.9 x 5.4 x 4.1" / 73.0 x 137.0 x 103.5 mm
  Weight	14.81 oz / 420 g

  Box Dimensions (LxWxH)	10.5 x 4.6 x 4.6"

• Watson 8-Bay Rapid Charger for AA / AAA NiMH or NiCd Rechargeable Batteries

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  Charging Bays	8 x AA, AAA
  Supported Battery Chemistry	Ni-Cd, Ni-MH
  Charging Voltage	1.5 VDC
  Charging Amperage	250 to 500 mA
  DC Input Power	12 VDC at 1300 mA
  Charger Dimensions	7.8 x 3.1 x 1.2" / 198.00 x 79.00 x 31.00 mm
  Charger Weight	4.2 oz / 120 g

  Certifications	ETL, RoHS, as per Manufacturer

  Box Dimensions (LxWxH)	7.9 x 6.0 x 3.4"

• Watson AA NiMH Rechargeable Batteries (2300mAh) - 8-Pack

  Battery Type	8 x AA
  Battery Chemistry	NiMH
  Battery Voltage	1.2 V
  Capacity (mAh)	2300 mAh
  Maximum Recharge Cycles	1000

  Box Dimensions (LxWxH)	7.7 x 4.0 x 1.0"

• Vello Light Bouncer Kit for Portable Flashes

  Modifier Type	Bounce Diffuser Color Filter
  Attachment Method	Hook & Loop
  Dimensions	H: 7.5 x W: 6.5" / H: 19.1 x W: 16.5 cm

  Box Dimensions (LxWxH)	7.5 x 4.7 x 0.8"

• Vello Cinch Strap for Portable Flashes

  Box Dimensions (LxWxH)	4.7 x 3.0 x 0.8"

• 2 x Watson Case for 4 AA or AAA Batteries (Blue)

  Battery Type	4 x AA, AAA
  Material	Plastic
  Closure Type	Snap Fastener
  Dimensions (W x H x D)	2.5 x 2.0 x 0.5" / 6.3 x 5.1 x 1.3 cm
  Weight	0.4 oz / 11 g

  Box Dimensions (LxWxH)	3.0 x 2.5 x 0.5"
