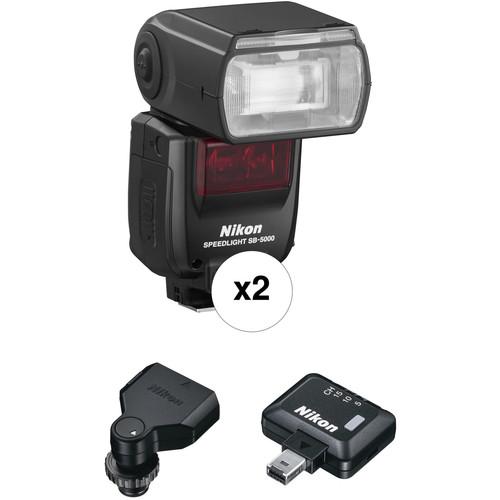

User Manual for Nikon SB-5000 AF Speedlight Two Flash Wireless Kit Click to enlarge the picture
Contents of the user manual for the Nikon SB-5000 AF Speedlight Two Flash
- Product category: On Camera Flashes Nikon
- Brand: Nikon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nikon On Camera Flashes
|
User manual for the Nikon SB-5000 AF Speedlight Two Flash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nikon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nikon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nikon product will considerably shorten its lifespan!
|
Product description A Guide to On-Camera Flash Read More Embrace the power and versatility of a wireless radio-controlled lighting system with your D5 or D500 DSLR by picking up this Nikon SB-5000 AF Speedlight Two Flash Wireless Kit from B&H. It packs in the WR-A10 Wireless Remote Adapter and WR-R10 Wireless Remote Controller, essential accessories for making your camera radio-capable, along with two SB-5000 AF Speedlights. This setup gives you wireless remote control over multiple flashes from distances up to 164'. - 2 x Nikon SB-5000 AF Speedlight Nikon has reimagined both on- and off-camera lighting with the SB-5000 AF Speedlight, which brings revolutionary radio control to the Creative Lighting System with Advanced Wireless Lighting and comes equipped with a world's first shoe-mounted flash cooling system that enables up to 100 consecutive full-power flashes. These features alone are enough to put it at the top of the speedlight heap, but the SB-5000 doesn't rest and provides a powerful guide number of 113' at ISO 100 and 35mm while also shrinking in overall size compared to its predecessors.
Of course, the SB-5000 AF Speedlight is fully compatible with Nikon's i-TTL automatic exposure system found in a majority of their cameras for fast, accurate operation. The radio control implemented in the SB-5000 requires a compatible DSLR using the WR-A10 Wireless Remote Adapter and WR-R10 Wireless Remote Controller in order to fully realize the power of the system. This enables the camera and flash to wirelessly control up to six groups of flashes from up to 98' away, without requiring any line of sight. Also, the SB-5000 and the radio system are fully compatible with the existing optical triggering method of older units and can even be mixed and matched for maximum versatility.
Designed for reliability as well as versatility, the innovative built-in cooling system of the SB-5000 is a first for shoe-mounted flashes. It vents heat quickly and efficiently, allowing you to fire up to 100 consecutive full power flashes without issue. It also means that the flash can be made smaller without compromising performance. This new design also ensures speedy and intuitive operation, implementing an Info button for fast access to some of your most commonly used settings.
As a standard flash the SB-5000 will not disappoint, providing a wide ranging zoom head of 24-200mm which can be extended down to 14mm with use of the built-in diffusion panel. The head will also tilt from -7 to +90° and rotate left and right 180° for complete bounce capabilities. Full sync mode support is available with slow, high-speed, 1st and 2nd curtain options.
The flash has a quick recycle time of 1.8-2.6 seconds and runs on four AA batteries. It can be powered by select external battery packs. A PC terminal can be found on the SB-5000 for further triggering options and it comes with a stand, diffusion dome, fluorescent and incandescent filters, and a soft case. - Radio control Advanced Wireless Lighting when used with a D5 or D500 DSLR equipped with WR-R10 Wireless Remote Controller and WR-A10 Wireless Remote Adapter
- Radio triggering range of 98' with no line-of-sight requirement and with control over 6 groups of flashes
- Shoe-mount flash cooling system with a heat-shedding design enables over 100 bursts at full output without overheating
- Guide number of 113' at ISO 100 and 35mm or 180' at ISO 100 and 200mm
- Coverage of 14-24mm in FX when using built-in wide-angle diffusion panel
- Manual power output from 1/1 to 1/256
- Light distribution angle is automatically adjustable to the camera's image area in both FX and DX formats with standard, even, and center-weighted options
- Wireless Commander TTL capabilities with both optical and radio trigger options
- Commander Mode to set up optical wireless flashes in 3 groups and in one of 4 channels
- Control and mix optical and radio flashes
- Customize settings with Unified Flash Control and a personal computer with version 2.23 or later of Nikon's Camera Control Pro 2 software installed
- Flash head tilts with click-stops at -7°, 0°, 45 °, 60°, 75°, and 90°
- Flash head rotates left and right with click-stops at 0°, 30°, 60°, 75°, 90°, 120°, 150°, and 180°
- Flash exposure compensation from -3 to +3 EV in 1/3 EV steps
- Info button for fast access to commonly adjusted settings
- Works with SK-6 Power Bracket Unit and SD-9 High-Performance Battery Pack
- Flash-ready indicator lights
- Flash duration of 1/980 to 1/30,820 second depending on output setting
- AF-assist light, modeling illuminator, monitor pre-flashes, and test firing settings
- Automatic color filter detection for adjusting the camera's color temperature settings
- Firmware can be updated through camera
UPC: 018208048151 - Nikon WR-A10 Wireless Remote Adapter Create an advanced wireless camera system with your Nikon DSLRs and Speedlights by picking up the WR-A10 Wireless Remote Adapter. This unit connects to select DSLRs with a 10-pin connector and allows users to use the WR-R10 Wireless Remote Controller, which functions as a transceiver to wirelessly trigger the shutter release or to control radio-capable Speedlights such as the SB-5000. When paired with the WR-R10 on select DSLRs users can operate one camera as a master to trigger multiple connected cameras at once from up to 164' away.
This system is compatible with the WR-1 and WR-T10 Wireless Remote Controllers for remote operation of all the cameras in the system. Also, three radio frequency channels are available to limit interference with other systems in the same location. - One optional WR-T10 Wireless Remote Controller can be paired with an unlimited number of cameras with an optional WR-R10 Wireless Remote Controller attached.
- When used with the WR-R10 and connected to select Nikon cameras with a 10-pin connector, users can designate one camera as a master and control the shutter release of up to 64 WR-R10 units.
- Range from a WR-R10 set as a master to other WR-R10 units is 164'.
- When controlling Speedlights, up to 18 radio-capable units can be paired to a camera from a range of up to 98'.
- Two link modes are available: PIN, which is designed for professional workflows, and Pairing for a simple connection.
- Three radio frequency channels (5, 10, and 15) are available to prevent and limit interference with multiple pairings or other systems.
- Can be used for triggering the shutter remotely when using slow shutter speeds to prevent camera movement.
- Compatibility
- Cameras: D5, D500, D850, D810A, D810, D4S, D800E, D800, D4, D3S, D3, D700, D3X, D300, D300S, D200, D2Xs, D2Hs
Speedlights: SB-5000
For full compatibility and support for the latest DSLRs and Speedlights, users may be required to send their WR-A10 Wireless Remote Adapter to Nikon for a free factory-installed firmware update. UPC: 018208271030 - Nikon WR-R10 Wireless Remote Controller Create an advanced wireless system with your Nikon cameras and Speedlights by picking up the WR-R10 Wireless Remote Controller. This transceiver unit connects to select cameras with an accessory port and allows users to wirelessly trigger the shutter release or to control radio-capable Speedlights such as the SB-5000. When paired with the WR-A10 on select DSLRs with the 10-pin connector, users can operate one camera as a master to trigger multiple connected cameras at once from up to 164' away.
This system is compatible with the WR-1 and WR-T10 Wireless Remote Controllers for remote operation of all the cameras in the system. Also, three radio frequency channels are available to limit interference with other systems in the same location. - One optional WR-T10 Wireless Remote Controller can be paired with an unlimited number of cameras with a WR-R10 Wireless Remote Controller attached.
- When used with the optional WR-A10 Wireless Remote Adapter and connected to select Nikon cameras with a 10-pin connector, users can designate one camera as a master and control the shutter release of up to 64 WR-R10 units.
- Range from a WR-R10 set as a master to other WR-R10 units is 164'.
- When controlling Speedlights, up to 18 radio-capable units can be paired to a camera from a range of up to 98'.
- Two link modes are available: PIN, which is designed for professional workflows, and Pairing for a simple connection.
- Three radio frequency channels (5, 10, and 15) are available to prevent and limit interference with multiple pairings or other systems.
- Live View can be used with the following cameras: D5, D4S, D810, D800, D800E, D750, D610, D600, D500, D7200, D7100, D5500, D5300, and D5200.
- Can be used for triggering the shutter remotely when using slow shutter speeds to prevent camera movement.
- Compatibility
- DSLRs: D5, D4S, D4, D3S, D3X, D3, D2X, D2Xs, D2Hs, D850, D810A, D810, D800, D800E, D750, D700, D610, D600, D500, D300S, D300, D200, D7200, D7100, D7000, D5500, D5300, D5200, D5100, D5000, D3300, D3200, D3100, D90, Df
COOLPIX: P7800, A
Speedlights: SB-5000 - Currently, only the D5, D850, and D500 DSLRs can be used with the WR-10 system to wirelessly control radio-capable Speedlights.
- For full compatibility and support for the latest DSLRs and Speedlights, users may be required to send their WR-A10 Wireless Remote Adapter to Nikon for a free factory-installed firmware update.
UPC: 018208271054 In the Box - 2 x SB-5000 AF Speedlight
- SW-15H Diffusion Dome for SB-5000 Speedlight
- AS-22 Speedlight Stand for SB-700 (Replacement)
- SZ-4FL Fluorescent Filter
- SZ-4TN Incandescent Filter for SB-5000 AF Speedlight
- SS-5000 Soft Case for SB-5000 AF Speedlight
- Limited 1-Year Warranty
- WR-A10 Wireless Remote Adapter
- WR-R10 Wireless Remote Controller
Table of Contents
|
Upload User Manual
Have you got an user manual for the Nikon SB-5000 AF Speedlight Two Flash Wireless Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Nikon SB-5000 AF Speedlight
| Mount | Shoe | | Guide No. | 113.19' / 34.5 m ISO 100 at 35 mm Position
180.45' / 55 m ISO 100 at 200 mm Position | | Exposure Control | Manual, i-TTL | | Angle of Coverage | 84° - 12°
Wide-Angle Adapter: 114° - 84° | | Vari-Power | 1/1 to 1/256 | | Bounce Head | -7 to +90° | | Swivel Head | 360° | | Coverage | 14 - 200 mm (Full Frame) | | Zoom Head | Full Frame: 24 - 200 mm | | Off-Camera Terminal | PC | | Recycle Time | Approximately 1.8 to 2.6 Seconds | | Flash Duration | 1/980 to 1/30820 sec | | Flash-Ready Indicator | Yes | | Compensation | -3 EV to +3 EV (in 1/3 EV steps) | | Wireless Operation | Method: RF
Distance: Up to 98.43' / 30 m
Mode: Commander, Slave
Method: Optical Pulse
Distance: Up to 32.81' / 10 m
Mode: Commander, Slave | | Wireless Communication Channels | 4 Channels | | Wireless Groups | 6 Groups | | Power Source | 4 x AA Alkaline, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 2.9 x 5.4 x 4.1" / 73.0 x 137.0 x 103.5 mm | | Weight | 14.81 oz / 420 g | | | | Box Dimensions (LxWxH) | 10.5 x 4.6 x 4.6" | - Nikon WR-A10 Wireless Remote Adapter
| Range | From WR-T10: 66' / 20 m
With WR-R10 to Speedlight: 98' / 30 m
With WR-R10 (Master) to WR-R10: 164' / 50 m | | Channels | 3 (5/10/15) | | Connector | Nikon 10-pin (male)
Proprietary accessory port (female) | | | | Box Dimensions (LxWxH) | 4.4 x 3.9 x 2.7" | - Nikon WR-R10 Wireless Remote Controller
| Release Type | Wireless: RF (Radio Frequency) | | Channels | 3 | | Interval Timer/Programmable | No | | Mobile Device/App-enabled | No | | Wireless Range | 164'; / 50 m | | | | Box Dimensions (LxWxH) | 4.5 x 3.9 x 2.8" |
