Product description A Guide to On-Camera Flash Read More Embrace lighting that is mobile and free from cords with this Nikon SB-5000 AF Speedlight Two Flash Wireless Portrait & Fashion Kit from . Bundling together two flagship SB-5000 Speedlights with the WR-A10 Wireless Remote Adapter and WR-R10 Wireless Remote Controller system for D5 and D500 DSLRs, this kit will help users get everything they need to embrace radio-controlled wireless lighting. It also packs in a couple accessories to help you control and modify the light from the flashes in a way that is well-suited for fashion and portraiture photography. This includes a 24 x 24" Quikbox Softbox, a telescopic handle for handheld work, a 45" convertible umbrella, an umbrella bracket with adjustable shoe, an 8' air-cushioned light stand, and a 15 lb saddle sandbag. - 2 x Nikon SB-5000 AF Speedlight Nikon has reimagined both on- and off-camera lighting with the SB-5000 AF Speedlight, which brings revolutionary radio control to the Creative Lighting System with Advanced Wireless Lighting and comes equipped with a world's first shoe-mounted flash cooling system that enables up to 100 consecutive full-power flashes. These features alone are enough to put it at the top of the speedlight heap, but the SB-5000 doesn't rest and provides a powerful guide number of 113' at ISO 100 and 35mm while also shrinking in overall size compared to its predecessors.
Of course, the SB-5000 AF Speedlight is fully compatible with Nikon's i-TTL automatic exposure system found in a majority of their cameras for fast, accurate operation. The radio control implemented in the SB-5000 requires a compatible DSLR using the WR-A10 Wireless Remote Adapter and WR-R10 Wireless Remote Controller in order to fully realize the power of the system. This enables the camera and flash to wirelessly control up to six groups of flashes from up to 98' away, without requiring any line of sight. Also, the SB-5000 and the radio system are fully compatible with the existing optical triggering method of older units and can even be mixed and matched for maximum versatility.
Designed for reliability as well as versatility, the innovative built-in cooling system of the SB-5000 is a first for shoe-mounted flashes. It vents heat quickly and efficiently, allowing you to fire up to 100 consecutive full power flashes without issue. It also means that the flash can be made smaller without compromising performance. This new design also ensures speedy and intuitive operation, implementing an Info button for fast access to some of your most commonly used settings.
As a standard flash the SB-5000 will not disappoint, providing a wide ranging zoom head of 24-200mm which can be extended down to 14mm with use of the built-in diffusion panel. The head will also tilt from -7 to +90° and rotate left and right 180° for complete bounce capabilities. Full sync mode support is available with slow, high-speed, 1st and 2nd curtain options.
The flash has a quick recycle time of 1.8-2.6 seconds and runs on four AA batteries. It can be powered by select external battery packs. A PC terminal can be found on the SB-5000 for further triggering options and it comes with a stand, diffusion dome, fluorescent and incandescent filters, and a soft case. - Radio control Advanced Wireless Lighting when used with a D5 or D500 DSLR equipped with WR-R10 Wireless Remote Controller and WR-A10 Wireless Remote Adapter
- Radio triggering range of 98' with no line-of-sight requirement and with control over 6 groups of flashes
- Shoe-mount flash cooling system with a heat-shedding design enables over 100 bursts at full output without overheating
- Guide number of 113' at ISO 100 and 35mm or 180' at ISO 100 and 200mm
- Coverage of 14-24mm in FX when using built-in wide-angle diffusion panel
- Manual power output from 1/1 to 1/256
- Light distribution angle is automatically adjustable to the camera's image area in both FX and DX formats with standard, even, and center-weighted options
- Wireless Commander TTL capabilities with both optical and radio trigger options
- Commander Mode to set up optical wireless flashes in 3 groups and in one of 4 channels
- Control and mix optical and radio flashes
- Customize settings with Unified Flash Control and a personal computer with version 2.23 or later of Nikon's Camera Control Pro 2 software installed
- Flash head tilts with click-stops at -7°, 0°, 45 °, 60°, 75°, and 90°
- Flash head rotates left and right with click-stops at 0°, 30°, 60°, 75°, 90°, 120°, 150°, and 180°
- Flash exposure compensation from -3 to +3 EV in 1/3 EV steps
- Info button for fast access to commonly adjusted settings
- Works with SK-6 Power Bracket Unit and SD-9 High-Performance Battery Pack
- Flash-ready indicator lights
- Flash duration of 1/980 to 1/30,820 second depending on output setting
- AF-assist light, modeling illuminator, monitor pre-flashes, and test firing settings
- Automatic color filter detection for adjusting the camera's color temperature settings
- Firmware can be updated through camera
UPC: 018208048151 - Nikon WR-A10 Wireless Remote Adapter Create an advanced wireless camera system with your Nikon DSLRs and Speedlights by picking up the WR-A10 Wireless Remote Adapter. This unit connects to select DSLRs with a 10-pin connector and allows users to use the WR-R10 Wireless Remote Controller, which functions as a transceiver to wirelessly trigger the shutter release or to control radio-capable Speedlights such as the SB-5000. When paired with the WR-R10 on select DSLRs users can operate one camera as a master to trigger multiple connected cameras at once from up to 164' away.
This system is compatible with the WR-1 and WR-T10 Wireless Remote Controllers for remote operation of all the cameras in the system. Also, three radio frequency channels are available to limit interference with other systems in the same location. - One optional WR-T10 Wireless Remote Controller can be paired with an unlimited number of cameras with an optional WR-R10 Wireless Remote Controller attached.
- When used with the WR-R10 and connected to select Nikon cameras with a 10-pin connector, users can designate one camera as a master and control the shutter release of up to 64 WR-R10 units.
- Range from a WR-R10 set as a master to other WR-R10 units is 164'.
- When controlling Speedlights, up to 18 radio-capable units can be paired to a camera from a range of up to 98'.
- Two link modes are available: PIN, which is designed for professional workflows, and Pairing for a simple connection.
- Three radio frequency channels (5, 10, and 15) are available to prevent and limit interference with multiple pairings or other systems.
- Can be used for triggering the shutter remotely when using slow shutter speeds to prevent camera movement.
- Compatibility
- Cameras: D5, D500, D850, D810A, D810, D4S, D800E, D800, D4, D3S, D3, D700, D3X, D300, D300S, D200, D2Xs, D2Hs
Speedlights: SB-5000
For full compatibility and support for the latest DSLRs and Speedlights, users may be required to send their WR-A10 Wireless Remote Adapter to Nikon for a free factory-installed firmware update. UPC: 018208271030 - Nikon WR-R10 Wireless Remote Controller Create an advanced wireless system with your Nikon cameras and Speedlights by picking up the WR-R10 Wireless Remote Controller. This transceiver unit connects to select cameras with an accessory port and allows users to wirelessly trigger the shutter release or to control radio-capable Speedlights such as the SB-5000. When paired with the WR-A10 on select DSLRs with the 10-pin connector, users can operate one camera as a master to trigger multiple connected cameras at once from up to 164' away.
This system is compatible with the WR-1 and WR-T10 Wireless Remote Controllers for remote operation of all the cameras in the system. Also, three radio frequency channels are available to limit interference with other systems in the same location. - One optional WR-T10 Wireless Remote Controller can be paired with an unlimited number of cameras with a WR-R10 Wireless Remote Controller attached.
- When used with the optional WR-A10 Wireless Remote Adapter and connected to select Nikon cameras with a 10-pin connector, users can designate one camera as a master and control the shutter release of up to 64 WR-R10 units.
- Range from a WR-R10 set as a master to other WR-R10 units is 164'.
- When controlling Speedlights, up to 18 radio-capable units can be paired to a camera from a range of up to 98'.
- Two link modes are available: PIN, which is designed for professional workflows, and Pairing for a simple connection.
- Three radio frequency channels (5, 10, and 15) are available to prevent and limit interference with multiple pairings or other systems.
- Live View can be used with the following cameras: D5, D4S, D810, D800, D800E, D750, D610, D600, D500, D7200, D7100, D5500, D5300, and D5200.
- Can be used for triggering the shutter remotely when using slow shutter speeds to prevent camera movement.
- Compatibility
- DSLRs: D5, D4S, D4, D3S, D3X, D3, D2X, D2Xs, D2Hs, D850, D810A, D810, D800, D800E, D750, D700, D610, D600, D500, D300S, D300, D200, D7200, D7100, D7000, D5500, D5300, D5200, D5100, D5000, D3300, D3200, D3100, D90, Df
COOLPIX: P7800, A
Speedlights: SB-5000 - Currently, only the D5, D850, and D500 DSLRs can be used with the WR-10 system to wirelessly control radio-capable Speedlights.
- For full compatibility and support for the latest DSLRs and Speedlights, users may be required to send their WR-A10 Wireless Remote Adapter to Nikon for a free factory-installed firmware update.
UPC: 018208271054 - Impact Quikbox Softbox with Shoe Mount Flash Bracket (24 x 24") The Impact Quikbox (24 x 24") is a great way to expand the capabilities of your on-camera, shoe-mount flash. The Quikbox lives up to its name by popping open and assembling in a couple of minutes. Just pop open the softbox, add the diffusers and included adapter ring and shoe adapter, mount on a lightstand and you're ready to shoot. Using a softbox with your shoe-mounted flash will help to diffuse and to evenly distribute the light output of the flash. This will help to reduce those harsh shadows which are often the result of flash photography. Also included is an internal diffuser, to minimize the possibility of hotspots. In addition, the recessed front face helps to control light spill. The included flash bracket is adjustable vertically, and features a universal shoe which is adjustable horizontally. These adjustments make this unit compatible with virtually all standard flash units (incl. Nikon SB-900 & SB-910), as well as radio receivers. In addition, for those receivers that do not feature a bottom shoe connector, the bracket shoe is removable to expose a male 1/4"-20 screw. There are also three plastic washers included in the shoe assembly, to accommodate receivers of various sizes.
- Sets up in minutes - no troublesome rods
UPC: 847628012479 - Impact QuickStik+ Telescopic Handle The Impact QuikStik+ Telescopic Handle adds flexibility and functionality to your shoe-mount flash or small strobe with light modifiers, such as Impact's Quikboxes or umbrellas. Ideal for use as a hair light, fill light or backlight, the QuikStik+ allows you to extend light sources weighing up to five pounds as high as 5.3' overhead.The QuikStik+ features an adjustable swivel handle with several unique features that promote comfort and precise placement of your light source. Using the QuickStick+ with two hands allows the hand grasping the swivel handle to act as a fulcrum on which the telescopic section pivots, in order to adjust the height. Since the handle can be moved along the length of the pole section, you're able to adjust the center of gravity for ideal balance. What sounds technical is really fast, simple, and intuitive, with the bottom line being overall comfort. You can make your handle adjustment in less time than it took to read this sentence.The included webbed nylon flag holder-type strap adds another level of comfort. The holder, in conjunction with the swivel handle, allows you to shift nearly all of the weight to your hip for one-hand operation over an extended period of time, leaving your other hand free for multi-tasking. The top stud accepts any standard 5/8" female accessory, such as the Impact Umbrella Bracket or Multi-Shoe Bracket. It is topped with a screw that also permits the use of 1/4"-20 accessories. UPC: 847628564367
- Impact Air-Cushioned Light Stand (Black, 8') This aluminum Impact Air-Cushioned Light Stand rises to a height of 8' and folds down to 29.6". The stand has sure-twist section locks and 4 sections and will support up to 8 lb. If you forget to tighten any section with your light mounted, the light slowly descends, thanks to the air-cushioned action. This useful feature saves equipment and fingers from harm during busy photo sessions.
- Air Cushioned
- Protects equipment from impact damage.
- Compact Design
- Will fit easily into most location cases.
- Accepts Casters
-
- Eases positioning of heavy lights.
- Available as accessories.
UPC: 847628012349 - Impact Deluxe Umbrella Mount with Adjustable Shoe A useful and versatile addition to any lighting kit, the Deluxe Umbrella Mount with Adjustable Shoe from Impact is designed to maximize the utility small lights or shoe-mount flashes while the heavy-duty mount has a socket that can support umbrellas up to 60" in diameter.Able to tilt 180-degrees and swivel 360-degrees, the anodized black aluminum Umbrella Mount can be installed on any industry-standard light stand with a 5/8" top stud from either end of the mount. Additional 5/8" holes are tapped into to unit to allow you to mount it vertically or horizontally for maximum versatility. The Deluxe Umbrella Mount includes removable 3/8"-16 and 1/4"-20 brass stud adapters to support accessories. One of them, for example, fastens a cold shoe with a knurled locking knob for a secure connection to your flash.
- Tilt and Swivel
- 180-degree tilt and 360-degree swivel
- Vertical or Horizontal Mounting
- Bottom and side taps allow space-saving mounting options
- Adjustable Cold Shoe
- Allows you to maximize the potential of your shoe-mount flash
- Umbrella Socket
- Supports up to 60" umbrellas
- Included Adapters
- Female 3/8"-16 and male 1/4"-20 stud adapters add compatibility with various accessories
- Mounting Options and Adjustments
- Adds significant flexibility to a simple light stand
UPC: 847628000636 - Impact Convertible Umbrella - White Satin with Removable Black Backing - 45" This is an Impact 45" white satin umbrella with removable black backing. Umbrellas soften, broaden, and diminish the light output of any flash light source. Umbrellas with a white interior will soften and weaken light more than an umbrella with a silver lining. A white umbrella without a black backing may also be used as a makeshift softbox, although the use of the light will not be as efficient as with a softbox. Choosing umbrella size is determined by the size of the subject, and the strength of the light supply being used. Choosing an umbrella surface is as subjective as choosing a paint and brush. This size is perfect for a 1 - 2 person half-length portrait, or a 3x4 ft product setup.
- Backing may be removed half way, providing a unique combination of light bounced from different surfaces.
UPC: 847628013308 - Impact Filled Saddle Sandbag (15 lb, Black) Made of thick, weather- and water-resistant Cordura nylon, the 15 lb Impact Filled Black Saddle Sandbag is a staple in studios or on location for stabilizing light stands, booms, tripods, and backgrounds. The bag features rugged and durable assembly throughout. A double-zipper design is employed for safe containment and removal of the sand, as well as a webbed handle for hanging or moving.
- Saddle-Style Sandbag
- The two-winged saddle sandbag is designed to conform to studio equipment such as light stands, tripods, backgrounds, or any other equipment that needs support and stabilization
- Sturdy Handles
- Strong top and bottom handles made with nylon webbing offer options for providing a counterweight to boom arms and make transporting the sandbag easy
- Weather and Water Resistant
- The thick Cordura fabric stands up to the elements and keeps the contents dry
- Double-Zipper Design
- The double-zipper design ensures that the contents of the bag do not spill out

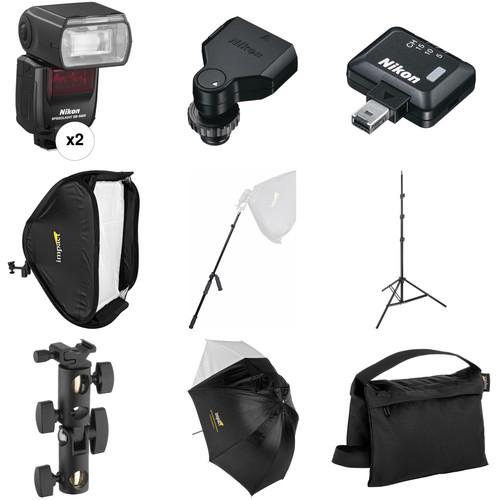

UPC: 847628589964 In the Box - 2 x SB-5000 AF Speedlight raqrqfrawaxaxdbf
- SW-15H Diffusion Dome for SB-5000 Speedlight
- AS-22 Speedlight Stand for SB-700 (Replacement)
- SZ-4FL Fluorescent Filter
- SZ-4TN Incandescent Filter for SB-5000 AF Speedlight
- SS-5000 Soft Case for SB-5000 AF Speedlight
- Limited 1-Year Warranty
- WR-A10 Wireless Remote Adapter
- WR-R10 Wireless Remote Controller
- Impact - Quikbox Softbox with Shoe Mount Flash Bracket (24 x 24") raqrqfrawaxaxdbf
- Impact - QuickStik+ Telescopic Handle
- Impact - Air-Cushioned Light Stand (Black, 8')
- Impact - Deluxe Umbrella Mount with Adjustable Shoe raqrqfrawaxaxdbf
- Impact - Convertible Umbrella - White Satin with Removable Black Backing - 45"
- Impact - Filled Saddle Sandbag (15 lb, Black)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Nikon SB-5000 AF Speedlight Two Flash Wireless Portrait & Fashion Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Nikon SB-5000 AF Speedlight
| Mount | Shoe | | Guide No. | 113.19' / 34.5 m ISO 100 at 35 mm Position
180.45' / 55 m ISO 100 at 200 mm Position | | Exposure Control | Manual, i-TTL | | Angle of Coverage | 84° - 12°
Wide-Angle Adapter: 114° - 84° | | Vari-Power | 1/1 to 1/256 | | Bounce Head | -7 to +90° | | Swivel Head | 360° | | Coverage | 14 - 200 mm (Full Frame) | | Zoom Head | Full Frame: 24 - 200 mm | | Off-Camera Terminal | PC | | Recycle Time | Approximately 1.8 to 2.6 Seconds | | Flash Duration | 1/980 to 1/30820 sec | | Flash-Ready Indicator | Yes | | Compensation | -3 EV to +3 EV (in 1/3 EV steps) | | Wireless Operation | Method: RF
Distance: Up to 98.43' / 30 m
Mode: Commander, Slave
Method: Optical Pulse
Distance: Up to 32.81' / 10 m
Mode: Commander, Slave | | Wireless Communication Channels | 4 Channels | | Wireless Groups | 6 Groups | | Power Source | 4 x AA Alkaline, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 2.9 x 5.4 x 4.1" / 73.0 x 137.0 x 103.5 mm | | Weight | 14.81 oz / 420 g | | | | Box Dimensions (LxWxH) | 10.5 x 4.6 x 4.6" | - Nikon WR-A10 Wireless Remote Adapter
| Range | From WR-T10: 66' / 20 m
With WR-R10 to Speedlight: 98' / 30 m
With WR-R10 (Master) to WR-R10: 164' / 50 m | | Channels | 3 (5/10/15) | | Connector | Nikon 10-pin (male)
Proprietary accessory port (female) | | | | Box Dimensions (LxWxH) | 4.4 x 3.9 x 2.7" | - Nikon WR-R10 Wireless Remote Controller
| Release Type | Wireless: RF (Radio Frequency) | | Channels | 3 | | Interval Timer/Programmable | No | | Mobile Device/App-enabled | No | | Wireless Range | 164'; / 50 m | | | | Box Dimensions (LxWxH) | 4.5 x 3.9 x 2.8" | - Impact Quikbox Softbox with Shoe Mount Flash Bracket (24 x 24")
| Shape | Square | | Interior | Silver | | Requires Speed Ring | Yes, Included | | Accepts Grids | Yes | | Maximum Wattage | 250 W | | Removable Front Face | Yes | | Removable Interior Baffle | Yes | | Rectangular Dimensions | W: 24.0 x H: 24.0" / W: 61.0 x H: 61.0 cm | | Weight | 2.8 lb / 1.270 kg (with Case) | | | | Box Dimensions (LxWxH) | 24.0 x 13.5 x 3.8" | - Impact QuickStik+ Telescopic Handle
| Construction | Aluminum alloy, foam grips, nylon strap | | Mount | 5/8" (16 mm) top stud with male 1/4"-20 screw | | Load Capacity | 5 lb (2.26 kg) | | Dimensions | Retracted: 25.25" (64.1 cm)
Extended: 64" (162.5 cm) | | Weight | 1.1 lb (0.49 kg) | | | | Box Dimensions (LxWxH) | 27.0 x 4.0 x 4.0" | - Impact Air-Cushioned Light Stand (Black, 8')
| Maximum Load | 8 lb (3.6 kg) | | Leg Tip | 20 mm | | Attachment Size | 5/8" Stud with 1/4"-20 in threaded tip | | Accepts Wheels | Yes | | Air Cushioned | Yes | | Maximum Height | 96" (243.8 cm) | | Minimum Height | 34" (86.3 cm) | | Folded Height | 29.6 (75.2 cm) | | Footprint Diameter | 36" (91.4 cm) | | Weight | 2.05 lb (1 kg) | | | | Box Dimensions (LxWxH) | 29.75 x 3.2 x 3.15" | - Impact Deluxe Umbrella Mount with Adjustable Shoe
| Adjustments | 360° swivel, 180° tilt | | Material of Construction | Anodized black aluminum | | Mount | 5/8" (16 mm) receiver
3/8"-16 female stud adapter
1/4"-20 male stud adapter | | | | Box Dimensions (LxWxH) | 8.3 x 4.2 x 1.7" | - Impact Convertible Umbrella - White Satin with Removable Black Backing - 45"
| Size | 45.0" / 114.3 cm | | Interior | White | | Exterior | Black | | Shaft Diameter | 8 mm | | Folded Size | L: 29.8" / L: 75.5 cm | | | | Box Dimensions (LxWxH) | 31.2 x 4.0 x 1.6" | - Impact Filled Saddle Sandbag (15 lb, Black)
| Design | Saddle Bag | | Weight Capacity | 15 lb / 6.8 kg | | Number of Bags | 1 | | Fill Material | Sand | | Closure Type | Zipper | | Water Resistance | Water Resistant | | Material | Nylon | | Dimensions (L x W) | 17.8 x 11.0" / 45.0 x 28.0 cm | | Strap Width | 1.5" / 4.0 cm | | | | Box Dimensions (LxWxH) | 10.0 x 9.9 x 4.3" |
