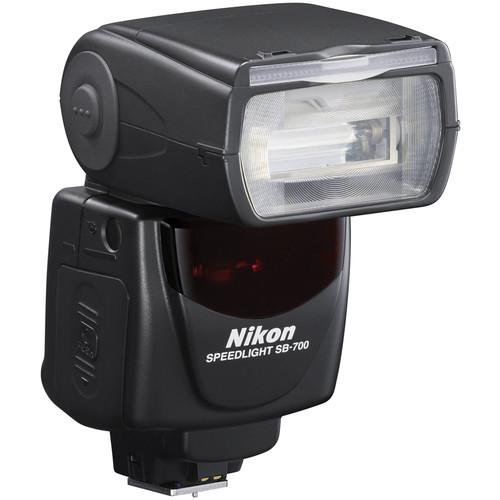

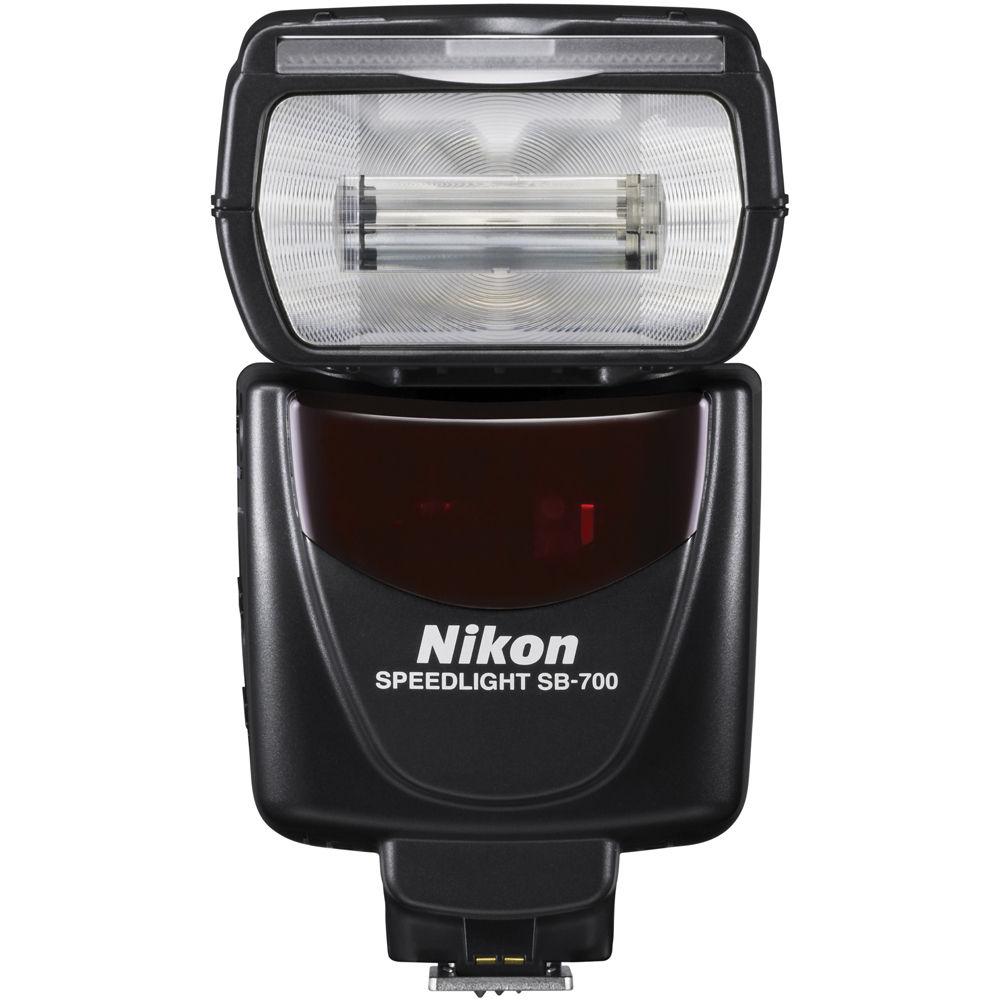

User Manual for Nikon SB-700 AF Speedlight Click to enlarge the picture
Contents of the user manual for the Nikon SB-700 AF Speedlight
- Product category: On Camera Flashes Nikon
- Brand: Nikon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nikon On Camera Flashes
 |
User manual for the Nikon SB-700 AF Speedlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nikon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nikon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nikon product will considerably shorten its lifespan!
|
Product description A Guide to On-Camera Flash Read More With a rated guide number of 92' at ISO 100 and 35mm, the SB-700 AF Speedlight from Nikon is a moderately compact flash unit packed with features for high-performance on-camera lighting capabilities. The flash is compatible with the i-TTL system for automatic metering with both FX- and DX-format cameras and is optimized for use with Nikon's Creative Lighting System for complete control over your lighting setup. Additionally, the auto zoom head has a coverage range of 24-120mm with FX-format cameras which can be extended down to 12mm with the use of the built-in wide-angle diffusion panel.
Complete bounce and swivel functionality is available for working in a variety of shooting situations. This allows users to tilt down to -7° and up to 90° as well as rotate left or right 180° for complete 360° coverage. Also, the SB-700 has three different illumination patterns, standard, even, and center-weighted, which help shape the light output for your specific needs. For wireless master TTL functionality, the speedlight utilizes a Commander Mode. In this mode users can access Advanced Wireless Lighting settings for controlling multiple off-camera flashes that can be set up in two groups (A, B) and one of four channels. The SB-700 also has a quick wireless control A:B ratio setting for quickly setting up and controlling multiple remote flashes.
Many other abilities are packed into this unit, including a stroboscopic repeating flash mode that can be set from 1-100 Hz. The SB-700 also has slow, Auto FP high-speed, first, and second curtain sync modes for achieving the desired creative look in your image. There are even red-eye reduction and red-eye reduction slow sync settings available. The flash itself is mounted to the camera or stand via a locking hot shoe and is powered by four AA batteries. And, depending on the type of battery used and the power setting, users can expect a recycle time of 2.5-3.5 seconds.
Included with the SB-700 AF Speedlight are a variety of useful tools and accessories. First, built into the flash alongside the wide-angle diffusion panel is a white slide-out bounce card for bouncing some light directly to the subject and creating catch lights. Also, there is a diffusion dome for softening the output of the flash and fluorescent and incandescent color correction filters for balancing the flash to ambient light. All of this, along with a stand, is packaged in the SS-700 Soft Case, designed specifically for the flash and accessories.
This is a refurbished item and comes with a 90-day warranty. - Guide number at the 35mm zoom position measures 92' at ISO 100 and 128' at ISO 200
- Manual power output from 1/1 full power to 1/128 power
- Light distribution angle is automatically adjustable to the camera's image area in both FX and DX formats
- Auto zoom head reaches from 24-120mm with FX format and 14-120mm with DX format
- Coverage of 12-17mm in FX and 8-11mm in DX when using built-in wide-angle diffusion panel
- Thermal cut-out protection shuts off the flash to prevent damage from overheating
- Flash head tilts with click-stops at -7°, 0°, 45 °, 60°, 75°, and 90°
- Flash head rotates left and right with click-stops at 0°, 30°, 60°, 75°, 90°, 120°, 150°, and 180°
- Flash exposure compensation from -3 to +3 EV in 1/3 EV steps

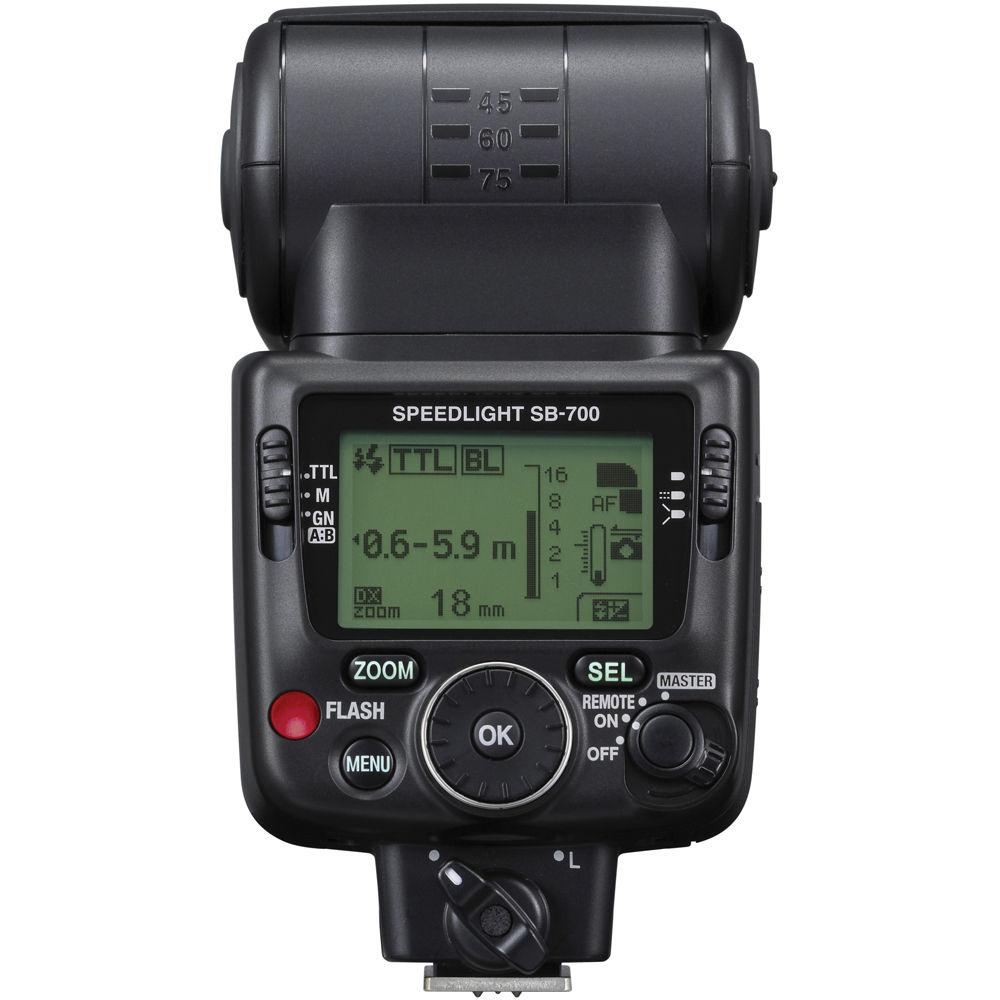

- Backlit LCD panel with nine selectable contrast levels and a rotating dial assist in viewing flash status and changing settings
- Flash duration of 1/1,042 to 1/40,000 second depending on output setting
- Flash-ready indicator lights
- AF-assist light, modeling illuminator, monitor pre-flashes, and test firing settings
- Automatic color filter detection for adjusting the camera's color temperature settings and an optional color filter pack is available
- Firmware can be updated through camera
UPC: 018208101726 In the Box Nikon SB-700 AF Speedlight (Refurbished) SW-14H Diffusion Dome for SB-700 Flash SZ-3TN Incandescent Filter for SB-700 Speedlight SZ-3FL Fluorescent Filter for SB-700 Speedlight AS-22 Speedlight Stand for SB-700 (Replacement) SS-700 Soft Case for SB-700 Speedlight Shoe Mount Flash Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nikon SB-700 AF Speedlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNikon SB-700 Specs | Mount | Shoe | | Guide No. | 92' / 28.04 m ISO 100 at 35 mm Position | | Exposure Control | Manual, i-TTL | | Angle of Coverage | 60° - 18° Vertical
78° - 25° Horizontal
Wide-Angle Adapter: 120° - 100° Vertical
Wide-Angle Adapter: 130° - 110° Horizontal | | Vari-Power | 1/1 to 1/128 | | Bounce Head | -7 to +90° | | Swivel Head | 360° | | Coverage | 12 - 120 mm (Full Frame) | | Distance Range | 2 to 66' (0.61 to 20.12 m) | | Zoom Head | Full Frame: 24 - 120 mm | | Off-Camera Terminal | Proprietary | | Recycle Time | Approximately 2.5 to 3.5 Seconds | | Flash Duration | 1/1042 to 1/40000 sec | | Compensation | -3 EV to +3 EV (in 1/3 EV steps) | | Wireless Operation | Method: Optical Pulse
Distance: Up to 32.81' / 10 m
Mode: Commander, Slave | | Wireless Communication Channels | 4 Channels | | Wireless Groups | 2 Groups | | Power Source | 4 x AA Alkaline, Lithium, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 2.8 x 5.0 x 4.1" / 71.0 x 126.0 x 104.5 mm | | Weight | 12.7 oz / 360 g without batteries | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 7.2 x 5.7 x 5.6" |
