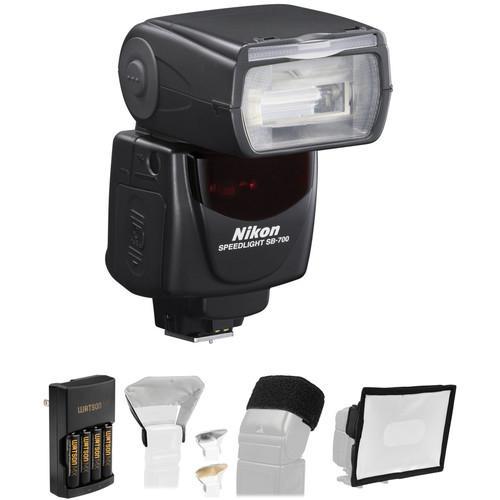

Nikon SB-700 AF Speedlight Kit

User Manual for Nikon SB-700 AF Speedlight Kit

• Product category: On Camera Flashes Nikon
• Brand: Nikon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Nikon On Camera Flashes

Product description

• Nikon SB-700 AF Speedlight With a rated guide number of 92' at ISO 100 and 35mm, the SB-700 AF Speedlight from Nikon is a moderately compact flash unit packed with features for high-performance on-camera lighting capabilities. The flash is compatible with the i-TTL system for automatic metering with both FX- and DX-format cameras and is optimized for use with Nikon's Creative Lighting System for complete control over your lighting setup. Additionally, the auto zoom head has a coverage range of 24-120mm with FX-format cameras which can be extended down to 12mm with the use of the built-in wide-angle diffusion panel.

  Complete bounce and swivel functionality is available for working in a variety of shooting situations. This allows users to tilt down to -7° and up to 90° as well as rotate left or right 180° for complete 360° coverage. Also, the SB-700 has three different illumination patterns, standard, even, and center-weighted, which help shape the light output for your specific needs. For wireless master TTL functionality, the speedlight utilizes a Commander Mode. In this mode users can access Advanced Wireless Lighting settings for controlling multiple off-camera flashes that can be set up in two groups (A, B) and one of four channels. The SB-700 also has a quick wireless control A:B ratio setting for quickly setting up and controlling multiple remote flashes.

  Many other abilities are packed into this unit, including a stroboscopic repeating flash mode that can be set from 1-100 Hz. The SB-700 also has slow, Auto FP high-speed, first, and second curtain sync modes for achieving the desired creative look in your image. There are even red-eye reduction and red-eye reduction slow sync settings available. The flash itself is mounted to the camera or stand via a locking hot shoe and is powered by four AA batteries. And, depending on the type of battery used and the power setting, users can expect a recycle time of 2.5-3.5 seconds.

  Included with the SB-700 AF Speedlight are a variety of useful tools and accessories. First, built into the flash alongside the wide-angle diffusion panel is a white slide-out bounce card for bouncing some light directly to the subject and creating catch lights. Also, there is a diffusion dome for softening the output of the flash and fluorescent and incandescent color correction filters for balancing the flash to ambient light. All of this, along with a stand, is packaged in the SS-700 Soft Case, designed specifically for the flash and accessories.
  • Guide number at the 35mm zoom position measures 92' at ISO 100 and 128' at ISO 200
  • Manual power output from 1/1 full power to 1/128 power
  • Light distribution angle is automatically adjustable to the camera's image area in both FX and DX formats
  • Auto zoom head reaches from 24-120mm with FX format and 14-120mm with DX format
  • Coverage of 12-17mm in FX and 8-11mm in DX when using built-in wide-angle diffusion panel
  • Thermal cut-out protection shuts off the flash to prevent damage from overheating
  • Flash head tilts with click-stops at -7°, 0°, 45 °, 60°, 75°, and 90°
  • Flash head rotates left and right with click-stops at 0°, 30°, 60°, 75°, 90°, 120°, 150°, and 180°
  • Distance range of 2-66'
  • Flash exposure compensation from -3 to +3 EV in 1/3 EV steps
  • Backlit LCD panel with nine selectable contrast levels and a rotating dial assist in viewing flash status and changing settings
  • Eleven custom settings
  • Flash duration of 1/1,042 to 1/40,000 second depending on output setting
  • Flash-ready indicator lights
  • AF-assist light, modeling illuminator, monitor pre-flashes, and test firing settings
  • AF-assist light, modeling illuminator, monitor pre-flashes, and test firing settings
  • Automatic color filter detection for adjusting the camera's color temperature settings and an optional color filter pack is available
  • Firmware can be updated through camera
• Watson MX 4-Hour Rapid Charger and 4 MX AA NiMH Batteries Power up your photo equipment, flashlights, gaming devices, and other electronics via the Watson MX 4-Hour Rapid Charger with 4 MX AA NiMH Batteries. The 1.2V, 2550mAh nickel-metal hydride cells are pre-charged, rechargeable up to 500 times, and capable of retaining 85% of their capacity after 1 year in storage. The Rapid unit will charge 4 of them in about 310 minutes, or 2 in about 160 minutes. It's also compatible with optional AA NiCd batteries, or AAA NiMH or NiCd cells.

  The charger's integrated micro-controller ensures that each battery is charged to its full capacity, and an automatic cut-off feature prevents overcharging. Should the controller and automatic cut-off functions both fail, the safety guard timer will kick in to ensure that power is still shut off after 6 hours. Additionally, the charger features protection against short circuits and reverse polarity. Two charging channels are individually monitored, and two LED indicators display battery status. In order to enable use all over the world, the charger runs on 100-240 VAC power. As a bonus, its compact outlet prongs can fold inwards, making the unit more compact for storage and travel. UPC: 847628599529
• Vello Light Bouncer Kit for Portable Flashes This Vello Light Bouncer Kit for Portable Flashes spreads and redirects the light from a portable flash to soften the quality of light and distribute it over a wider area. No exposure compensation is necessary with automatic flashes, but operating distances will be somewhat reduced. The Light Bouncer can be used with slaves, or alone where low ceilings are not available, or where more direct but soft fill light is desired. It attaches to the flash head in seconds with the included touch-tab fasteners. The silver insert adds a specular look to highlights. The gold insert adds a warm tone to the scene, particularly useful for outdoor fill-flash. These inserts attach with touch-tab fasteners to the bounce surface of the Light Bouncer to further modify the light.
  • Fits nearly any portable flash
  • Lightweight and portable
  • Attaches quickly and easily
  • Includes gold and silver reflectors to enhance skin tones and other lighting scenarios
  UPC: 847628028937
• Vello Cinch Strap for Portable Flashes Vello's Cinch Strap for Portable Flashes makes it easy to quickly attach accessories to your portable flash. It simply wraps around the head of your portable flash, eliminating the need for messy self-adhesive loops. Compatible with most on-camera shoe mounted flashes. It easily allows attachment of such Vello products as:
  • FD-200 Light Bouncer
  • FD-210 / Light Bouncer Plus
  • FD-300 Universal Softbox Small
  • FD-310 Universal Softbox Medium
  • FD-320 Universal Softbox Large
  • FD-400 5" Snoot/Reflector
  • FD-410 8" Snoot/Reflector
  • FD-500 Fabric Softbox
  • FD-600 Honeycomb Grip 1/8"
  • FD-610 Honeycomb Grip 1/4"
  • FD-700 Light Shapers
  UPC: 847628029040
• Vello Fabric Softbox for Portable Flash (Medium) The Fabric Softbox for Portable Flash (Medium) from Vello is designed to improve the quality of the light from your shoe-mounted flash unit. It has a soft white fabric interior lining that diminishes the harsh effects that often result from using a shoe-mounted flash unit, delivering diffused light and soft shadows. It has windows which allow for extra fill light. Touch-tab fasteners are included for mounting the unit to your flash.
  • Window openings for fill light
  • Softens and diffuses flash light, producing soft, even illumination
  • Reduces harsh shadows and hot spots
  • Folds flat for easy storage
  UPC: 847628029002

• SB-700 AF Speedlight fzdxqbuzfwbqruxdtxuzxqvasvczawdtscyz
• SW-14H Diffusion Dome for SB-700 Flash
• SZ-3TN Incandescent Filter for SB-700 Speedlight
• SZ-3FL Fluorescent Filter for SB-700 Speedlight
• AS-22 Speedlight Stand for SB-700 (Replacement)
• SS-700 Soft Case for SB-700 Speedlight Shoe Mount Flash
• Limited 1-Year Warranty

• Watson - MX 4-Hour Rapid Charger and 4 MX AA NiMH Batteries

• Vello - Light Bouncer Kit for Portable Flashes

• Vello - Cinch Strap for Portable Flashes

• Vello - Fabric Softbox for Portable Flash (Medium)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Nikon SB-700 AF Speedlight

  Mount	Shoe
  Guide No.	92' / 28.04 m ISO 100 at 35 mm Position
  Exposure Control	Manual, i-TTL
  Angle of Coverage	60° - 18° Vertical 78° - 25° Horizontal Wide-Angle Adapter: 120° - 100° Vertical Wide-Angle Adapter: 130° - 110° Horizontal
  Vari-Power	1/1 to 1/128
  Bounce Head	-7 to +90°
  Swivel Head	360°
  Coverage	12 - 120 mm (Full Frame)
  Distance Range	2 to 66' (0.61 to 20.12 m)
  Zoom Head	Full Frame: 24 - 120 mm
  Off-Camera Terminal	Proprietary
  Recycle Time	Approximately 2.5 to 3.5 Seconds
  Flash Duration	1/1042 to 1/40000 sec
  Compensation	-3 EV to +3 EV (in 1/3 EV steps)
  Wireless Operation	Method: Optical Pulse Distance: Up to 32.81' / 10 m Mode: Commander, Slave
  Wireless Communication Channels	4 Channels
  Wireless Groups	2 Groups
  Power Source	4 x AA Alkaline, Lithium, Rechargeable NiMH Batteries
  Dimensions (W x H x D)	2.8 x 5.0 x 4.1" / 71.0 x 126.0 x 104.5 mm
  Weight	12.7 oz / 360 g without batteries

  Box Dimensions (LxWxH)	6.8 x 6.1 x 4.6"

• Watson MX 4-Hour Rapid Charger and 4 MX AA NiMH Batteries

  Configuration	2 or 4 x AA or AAA NiMH or NiCd batteries
  Input Voltage	100-240 VAC, 50/60 Hz
  Output Voltage	2.8 VDC, 500 mAh
  Charging Time	4 x AAA 950 mAh: About 190 minutes 2 x AAA 950 mAh: About 95 minutes 4 x AA 2550 mAh: About 310 minutes 2 x AA 2550 mAh: About 160 minutes
  Operating Temperature	32 to 113°F / 0 to 45°C
  Dimensions	2.7 x 1.3 x 4.3" / 6.9 x 3.3 x 10.9 cm
  Weight	2.8 oz / 79.4 g

  Quantity	4 x
  Size	AA
  Chemistry	NiMH (nickel-metal hydride)
  Capacity	2550 mAh
  Output Voltage	1.2 V
  Durability	Rechargeable up to 500 times
  Temperature Range	Down to -4°F / -20°C

  Box Dimensions (LxWxH)	7.8 x 4.1 x 0.4"

• Vello Light Bouncer Kit for Portable Flashes

  Modifier Type	Bounce Diffuser Color Filter
  Attachment Method	Hook & Loop
  Dimensions	H: 7.5 x W: 6.5" / H: 19.1 x W: 16.5 cm

  Box Dimensions (LxWxH)	7.5 x 4.7 x 0.8"

• Vello Cinch Strap for Portable Flashes

  Box Dimensions (LxWxH)	4.7 x 3.0 x 0.8"

• Vello Fabric Softbox for Portable Flash (Medium)

  Modifier Type	Softbox
  Attachment Method	Hook & Loop
  Dimensions	H: 6.0 x W: 8.0" / H: 15.2 x W: 20.3 cm

  Box Dimensions (LxWxH)	8.2 x 6.3 x 0.7"
