User Manual for Nikon SB-900 AF Speedlight Flash Click to enlarge the picture
Contents of the user manual for the Nikon SB-900 AF Speedlight Flash
- Product category: On Camera Flashes Nikon
- Brand: Nikon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nikon On Camera Flashes
 |
User manual for the Nikon SB-900 AF Speedlight Flash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nikon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nikon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nikon product will considerably shorten its lifespan!
|

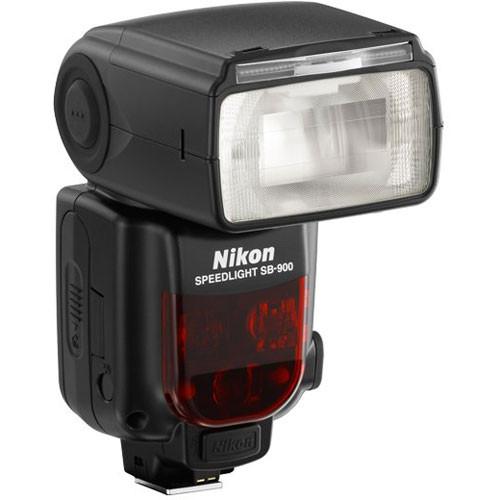

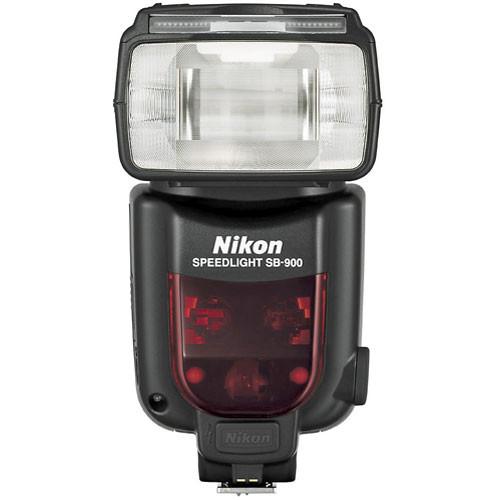

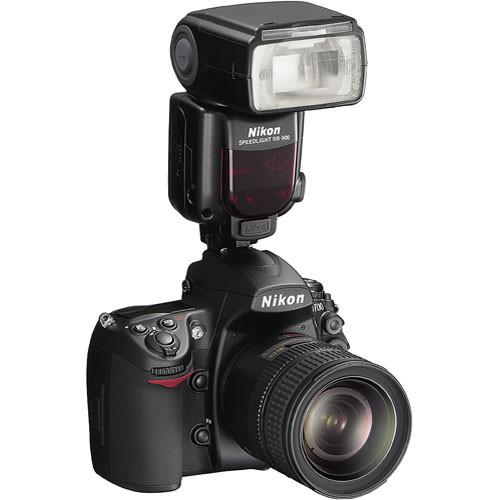

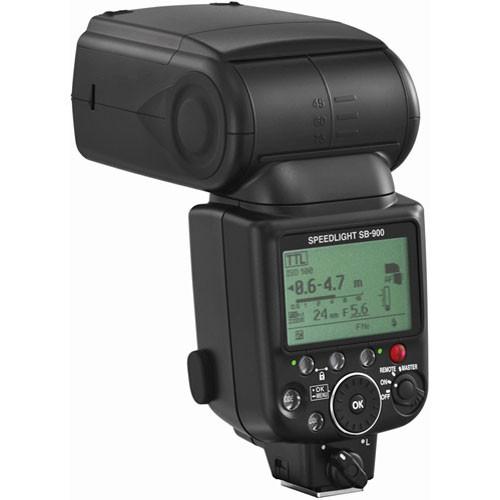

Product description A powerful and versatile flash, the Nikon SB-900 AF Speedlight features a guide number of 111.5' at ISO 100 and its automated zoom head covers a wide 17mm to 200mm focal length range, and can cover this range in just 1.2 seconds. This flash lets you select from three light distribution patterns: Standard, Center-weighted, and Even. It will also automatically detect if it is connected to a DX or FX format camera, and adjust itself accordingly.
The SB-900 can work as a stand-alone flash, or as part of a wireless group, either in Commander mode or as a slave (remote). The i-TTL system in this flash supports Advanced Wireless Lighting and versatile functions for up to four groups of Speedlights, with 3 remote i-TTL Speedlight groups controlled through the master SB-900. i-TTL Balanced Fill-Flash flash control employs Nikon's Advanced Data Communication system. This system provides an improved method for the monitor pre-flash and wireless operation that marks an evolution in higher precision over Nikon's acclaimed D-TTL Balanced Fill-Flash control system, and forms the core of the Creative Lighting System. - Multiple Flash Exposure Modes
-
- i-TTL Balanced Fill-Flash with Nikon cameras that support i-TTL (e.g. D3, D700, D200, etc.)
- [AA] Auto Aperture Flash
- [A] Auto Aperture Flash with many film SLRs, including the Nikon N55 (F55) and FM10
- [M] Manual Flash
- Bounce Capability
- Flash head tilts down to -7° or up to 90°
Flash head rotates horizontally 180° to the left and right. - i-TTL
- Intelligent i-TTL system supports Advanced Wireless Lighting and versatile functions for up to 3 remote i-TTL Speedlight groups controlled through a master SB-900 or with the "Commander" function of compatible cameras.
- 3 Light Distribution Patterns
- Allows you to improve the light quality by selecting Standard for general illumination, Center-weighted for portraits, or Even for groups and interiors.
- Stroboscopic Effect
- Repeating flash for creating stroboscopic multiple-exposure effect.
- Mixed Exposure Modes
- Individual flash mode settings ([TTL], [AA], [A] and [M]) are available for each of the four groups (including master controller) for easy total lighting control based on the brightness of the subject and not simply on general output ratios for each group.
- FV Lock
- Flash Value Lock allows photographers to change the composition or zoom for the shot while maintaining desired lighting of the subject.
- Distance Priority Manual Flash Mode
- User can set the distance and aperture, and the SB-900 automatically sets the power output, a great feature for manual flash [M] shooting at weddings and for product shots.
- Colored Gels
- Allows modification of flash output to match background scene, especially useful for digital cameras where "white balance" can be controlled. Included are Tungsten and Fluorescent adjustment filters.
- Color Gel Filter Identification
- Flash automatically identifies mounted color gel filters and adjusts the camera's auto white-balance setting with select Nikon digital SLR cameras.
- Flash Tube Overheat Protection
- Includes a built-in thermal sensor that protects the flash-tube from overheating during sustained high-speed bursts.
- Firmware Updating
- Allows uploading of performance enhancement developments to the SB-900 with select Nikon DSLR cameras.

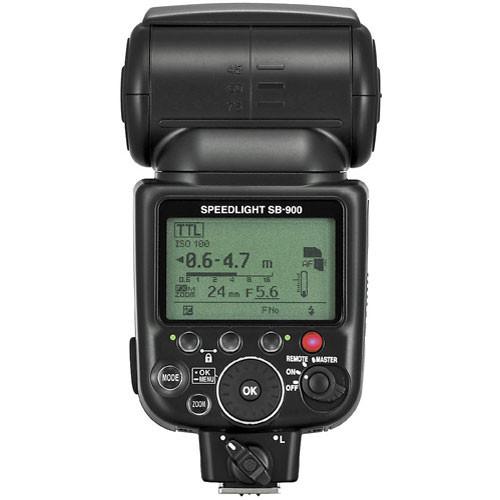

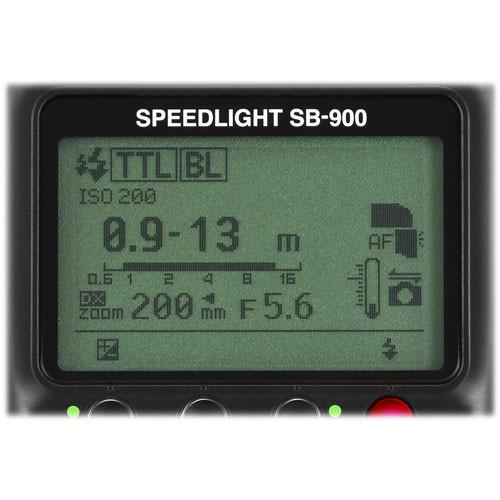

- LCD
- Large easily read illuminated LCD panel.

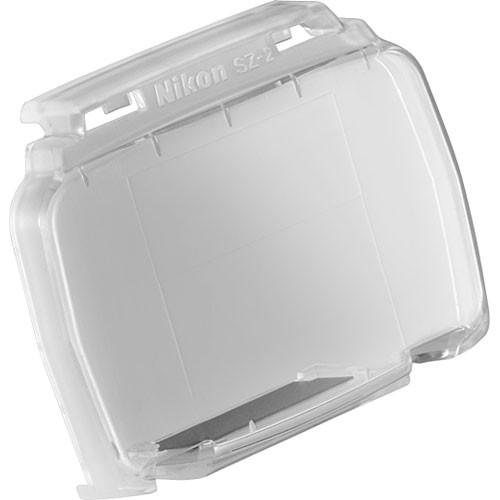

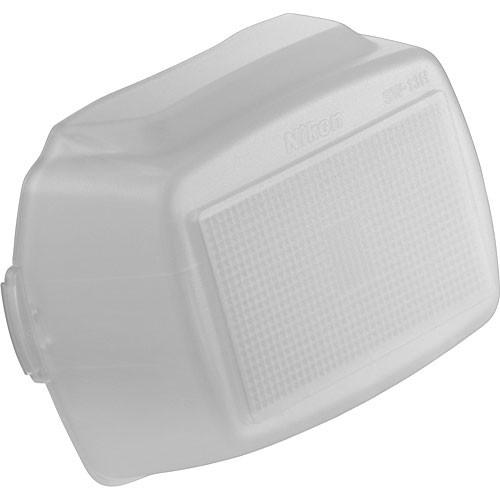

In the Box Nikon SB-900 AF Speedlight Flash (Refurbished) SS-900 Soft Case SW-13H Diffusion Dome SJ-900 Color Filter Set SZ-2 Color Filter Holder AS-21 Speedlight Stand Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nikon SB-900 AF Speedlight Flash in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNikon SB-900 Specs | Mount | Shoe | | Guide No. | 111.55' / 34 m ISO 100 at 35 mm Position | | Exposure Control | i-TTL | | Vari-Power | 1/1 to 1/128 | | Bounce Head | -7 to +90° | | Swivel Head | 360° | | Coverage | 17 - 200 mm | | Zoom Head | Full Frame: 17 - 200 mm | | Off-Camera Terminal | PC | | Recycle Time | Approximately 2.3 to 4.5 Seconds | | Flash Duration | 1/880 to 1/38500 sec | | Flash-Ready Indicator | Yes | | Compensation | -3 EV to +3 EV (in 1/3 EV steps) | | Wireless Operation | Method: Optical Pulse
Distance: Up to /
Mode: Master, Slave
Method: Infrared
Distance: Up to /
Mode: Master, Slave | | Wireless Communication Channels | 4 Channels | | Wireless Groups | 3 Groups | | Power Source | 4 x AA Alkaline, Lithium, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 3.1 x 5.7 x 4.7" / 78.0 x 146.0 x 118.5 mm | | Weight | 14.64 oz / 415 g | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 10.4 x 5.3 x 4.6" |
