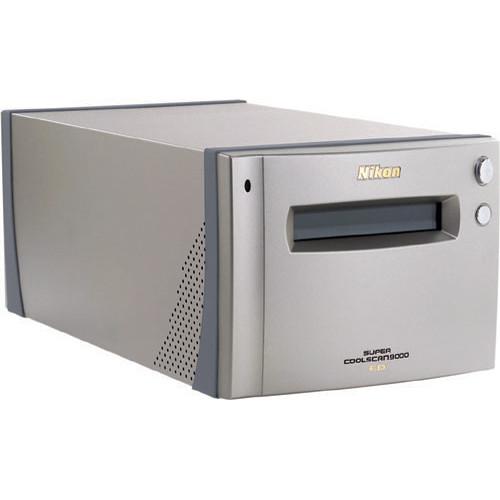

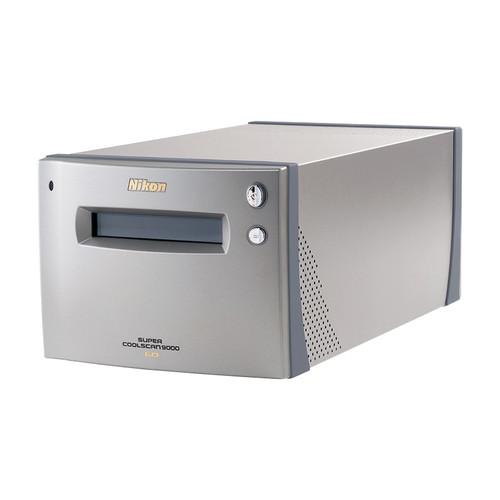

User Manual for Nikon Super Coolscan 9000 ED, 4000 dpi, Multi-Format, Film Scanner - Refurbished Click to enlarge the picture
Contents of the user manual for the Nikon Super Coolscan 9000 ED, 4000
- Product category: Uncategorized Nikon
- Brand: Nikon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nikon Uncategorized
 |
User manual for the Nikon Super Coolscan 9000 ED, 4000 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nikon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nikon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nikon product will considerably shorten its lifespan!
|
Product description Exclusive core technologies Nikon has developed is what differentiates Nikon Coolscan film scanners from other film scanners with similar specifications. These highly advanced core technologies such as LED Light Source, Scanner Nikkor ED Glass Lens, Direct Film Loading, Multi-sample Scanning, and more combine to serve as the foundation for superior quality scanning, making the Coolscan scanner the best in its class. Nikon's Super Coolscan 9000 ED film scanner offers 4,000 dpi true optical resolution and A/D conversion at 16 bits, for superior-quality digital images. Furthermore, the Super Coolscan 9000 ED features industry-leading scanning speeds and scans a 35mm image in an astounding 20 seconds. Additionally, Nikon's Coolscan Scanner features a host of cutting-edge image restoration functions. These progressive image correction tools give scanner users more freedom in image manipulation, and help ensure super high-fidelity reproduction and highly efficient operation. - 4000 dpi True Optical Resolution
- High resolution combined with a 16-bit A/D converter provides scans that capture all the detail and color of your original negative or slide
- Fast Scanning
- Nikon's Coolscan film scanners feature industry-leading scanning speeds. The Super Coolscan 9000 ED scans a 35mm image in 40 seconds and 185 sec. for Medium Format (120/220mm). The scanner also provides Quick AF and Quick Preview
- Scanner Nikkor ED Glass Lens
- This Precision lens system greatly reduces chromatic aberration and image distortion, and delivers sharp images.
- LED Light Source
- This unique Light Source generates little heat, eliminating the risk of damage to films. It also requires no maintenance.
- Nikon Color Management System
- Provides consistently accurate reproduction of image data on monitors and in printouts. Each model is compatible with ICC version 4 standards.
- Digital ICE-4 Advanced
- Comprises four cutting-edge image-correction components which help ensure superior image quality and operational efficiency.
- Digital ICE - Image Correction & Enhancement.
Digital ICE removes defects or scratches on the surface of the film with out losing any details or any other elements of the original image* - Digital ROC - Restoration Of Color
Digital ROC brings faded color of old films or slides back to life. Enjoy vibrant, faithfully rendered images. - Digital GEM - Grain Equalization & Management
Digital GEM reduces the effects of film grain. The resulting images are sharp, clear and devoid of grain clumping or graininess. - Digital DEE - Dynamic Exposure Extender
Digital DEE helps reveal details hidden in shadows and highlights. It compensates for both underexposure and overexposure *Not compatible with non-chromogenic black & white film
- Scan Image Enhancer
- Provides one-touch image correction. Automatic brightness and color saturation adjustments with no complicated control settings, make it easy to produce images with optimal contrast.
- Multi-sample Scanning
- Removes virtually all the noise that can appear after only one scan and helps produce rich, noise-free images. By making as many as 16 passes, it ensures faithful reproduction with smoother gradation.
User Manual PDF 6.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Nikon Super Coolscan 9000 ED, 4000 dpi, Multi-Format, Film Scanner - Refurbished in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNikon 9237B Specs | Film Types | 35mm slides and film Medium-format slides and film Medical slides with optional adapter | | | | Scan Sensor | 10,000-pixel, three-line monochrome linear CCD image sensor | | Optical Resolution | 4000 dpi | | Hardware Resolution | 4000 dpi | | Interpolated Resolution | No | | Color Depth | 48-Bit RGB (16-Bit A/D Converter)
Output at 8 or 16 bits per channel (24-Bit or 48-Bit RGB) | | Dynamic Range | 4.8 | | Focus System | Contrast Detect Autofocus | | | | Preview Speed | 13 seconds for 35mm film
38 seconds for medium format film (120/220mm) | | Scan Speed | 40 seconds for 35mm film
185 seconds for medium format film (120/220mm) | | Batch Scanning | Up to 12 frames of 35mm film, Up to 5 mounted 35mm slides | | Automation | Digital ICE4 Advanced | | | | Computer Interface | IEEE 1394 (FireWire) | | System & Software Requirements | Windows System - Pentium 300MHz or faster Processor
- Windows 98SE, Me, 2000 Pro, XP
- IEEE1394 Port or available PCI Slot
- 128MB RAM or more (512MB or more recommended)
- 40MB hard disk space required for installation (200MB recommended), with an additional 200MB of free disk space available while Nikon Scan is running
- 800 x 600 Display with 16-bit color (full color recommended)
- CD-ROM drive required for installation
Macintosh System - Power PC G3 or later (G4 or later recommended)
- Mac OS 9 (9.1 or later), Mac OS X (10.1.5 or later)
- IEEE1394 Port or available PCI Slot
- 128MB RAM or more (512MB or more recommended)
- 70MB hard drive space required for installation (200MB recommended), with an additional 200MB (Mac OS 9) or 550MB (Mac OS X) of free disk space available while Nikon Scan is running
- 800 x 600 Display with 16-bit color (full color recommended)
- CD-ROM drive required for installation
| | | | Light Source | R, G, B and Infrared (IR) LEDs light source with rod disperser | | Power Requirements | 100-240V AC, 50-60Hz | | Dimensions (WxHxD) | 9.8 x 8.0 x 19.6" | | Weight | 19.8 lbs | | | | Package Weight | 28.9 lb | | Box Dimensions (LxWxH) | 24.0 x 18.0 x 16.2" |
