Product description

• First Look - Nikon Z6 Mirrorless Camera

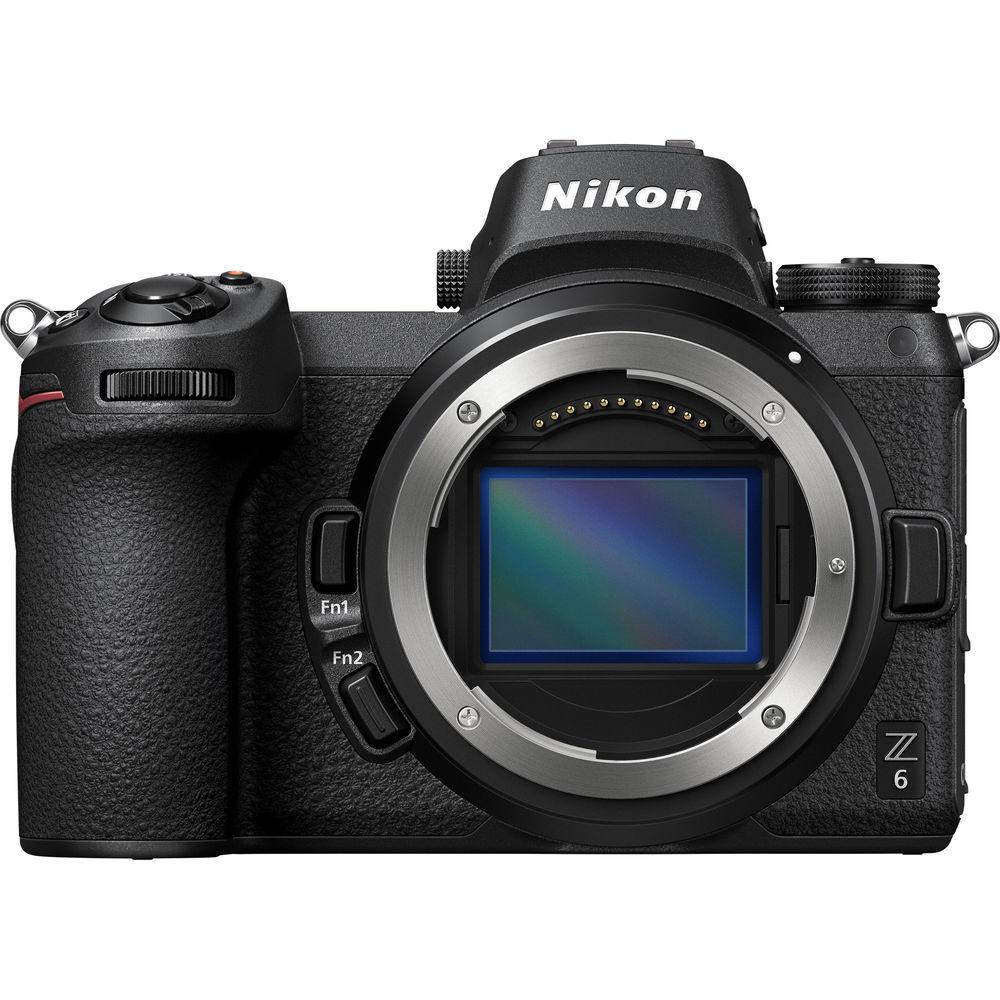

Nikon Z System
• Introducing the Z mount, Nikon's full-frame mirrorless system promises to deliver class-leading image quality and optics in a compact form factor. The Z mount itself makes much of this possible with a 17% larger inner diameter than the F mount, enabling the use of more advanced optics and lens designs, including ultra-fast f/0.95 options. For minimizing camera and lens size, the Z mount features a 65% shorter flange distance, measuring just 16mm, which allows for dramatically slimmed down body designs. The larger mount also supports faster and larger-volume communications between the body and lens to improve overall performance throughout the system.

24.5MP FX-Format BSI CMOS Sensor and EXPEED 6 Processor
• A 24.5MP BSI CMOS sensor is used for all-around shooting, impressive low-light quality, and fast readout speeds to benefit continuous shooting, movies, and time-lapse recording. The back-illuminated design of the sensor affords noticeably cleaner high-sensitivity output for reduced noise when working at high ISO values, up to a native ISO 51200, as well as vivid and smooth quality at sensitivities as low as ISO 100. Benefitting the sensor is the apt EXPEED 6 image processor, which affords a wealth of speed throughout the camera system, including the ability to shoot continuously at 12 fps in raw.

4K UHD Video Recording
• Utilizing the sensor and processor attributes for more than just still imagery, the Z 6 is also a more-than-capable multimedia camera. Video recording is possible at UHD 4K (3840 x 2160) using either the full-frame area or a DX crop area in 30p, 25, or 24p frame rates. Full HD 1080p video recording is also supported at up to 120p for slow motion playback, and video files can be saved to the in-camera memory cards or as an uncompressed file to an optional external recorder via HDMI out.

  Advanced video functionalities have been added with the Z 6. This includes the N-Log gamma for capturing flat-looking footage that maximizes dynamic range. Other additions are the ability to output high-quality 10-bit data over HDMI and an Electronic VR function for smooth handheld shooting. Focus Peaking can be used to benefit manual focus control and a Zebra Stripes option is also available to help detect over-exposed areas within the frame. Audio recording can be handled using the built-in stereo microphone or an optional external mic can be added via the 3.5mm stereo jack for greater control over quality, and live monitoring is possible via the headphone jack.

273-Point Phase-Detect AF System
• Located on the sensor is an array of 273 phase-detect autofocus points covering 90% of the image area both vertically and horizontally. This provides fast and accurate focusing for both stills and video and with a wide coverage area, subject tracking will work out to near the edges of the frame. Hybrid AF is available for video, which will automatically switch between phase- and contrast-detect systems to provide smooth focus during shooting. Additionally, the latest NIKKOR Z lenses are optimized for silent operation.

Body Design
• • Built-in to the body is a 5-axis sensor-shift Vibration Reduction mechanism for up to 5 stops of stabilization regardless of the lens used. This system also works with adapted lenses when using the optional FTZ Adapter where 3-axis stabilization is used.

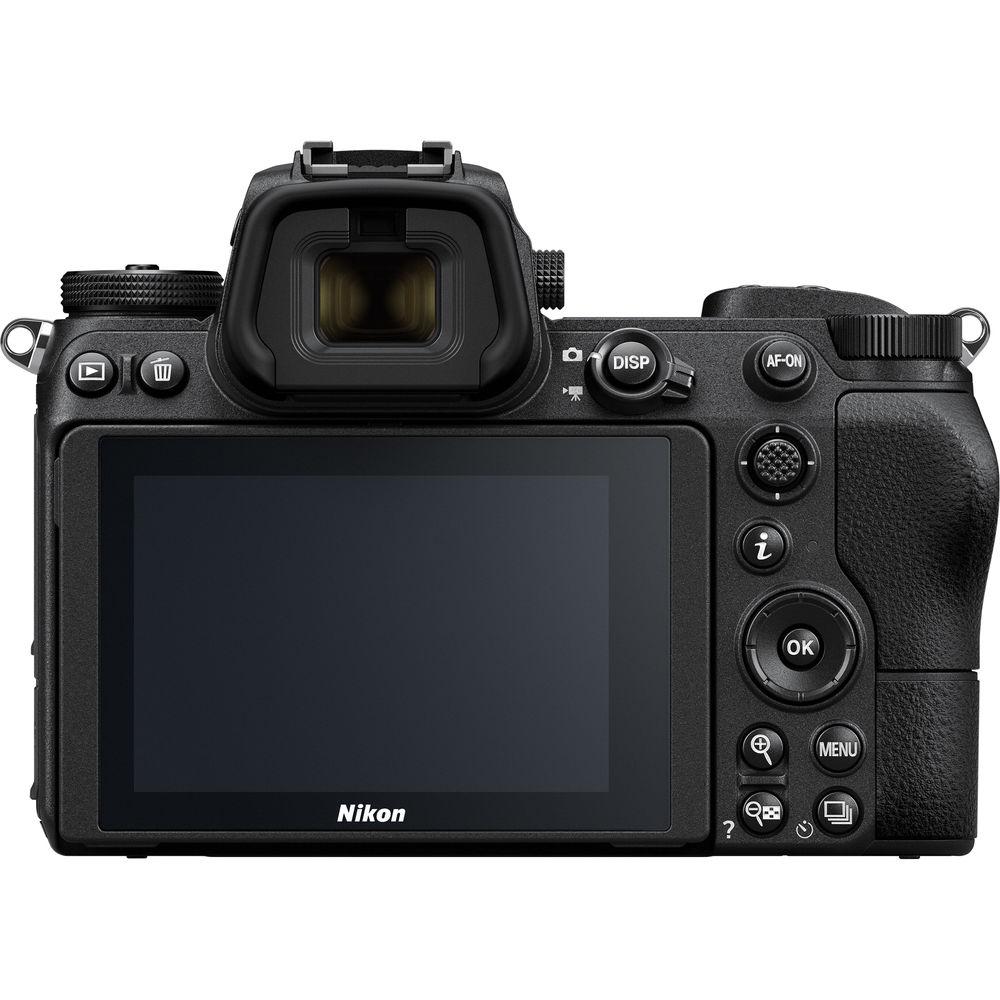

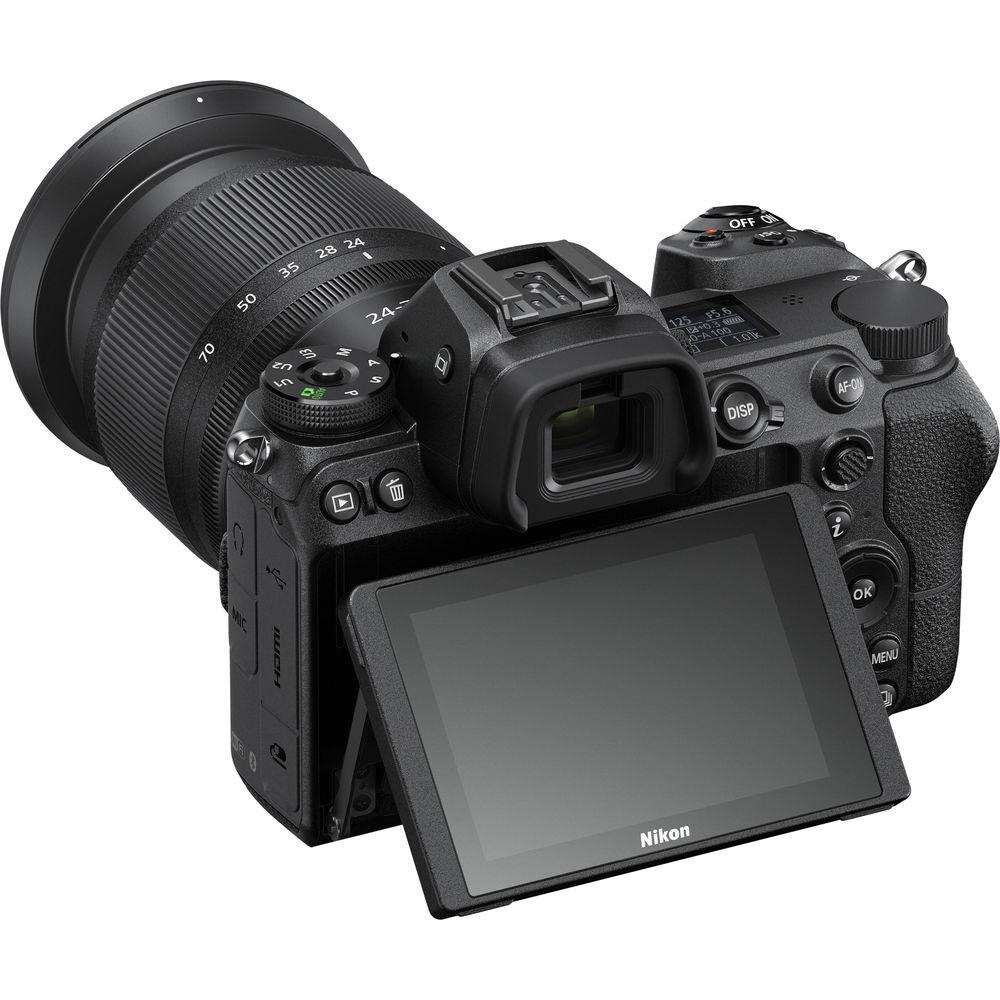

  • A large 3.2" 2.1m-dot LCD screen is available for bright, clear, and vivid image playback and live view shooting. The screen has a tilting design to benefit working from both high and low angles, and it is also a touchscreen for more intuitive operation, navigation, and settings control.
  • A 3.6m-dot electronic finder is present for comfortable eye-level viewing. It has a high 0.80x magnification and uses NIKKOR optics to guarantee a sharp, clear image. The finder also has a Fluorine coating for easier cleaning.

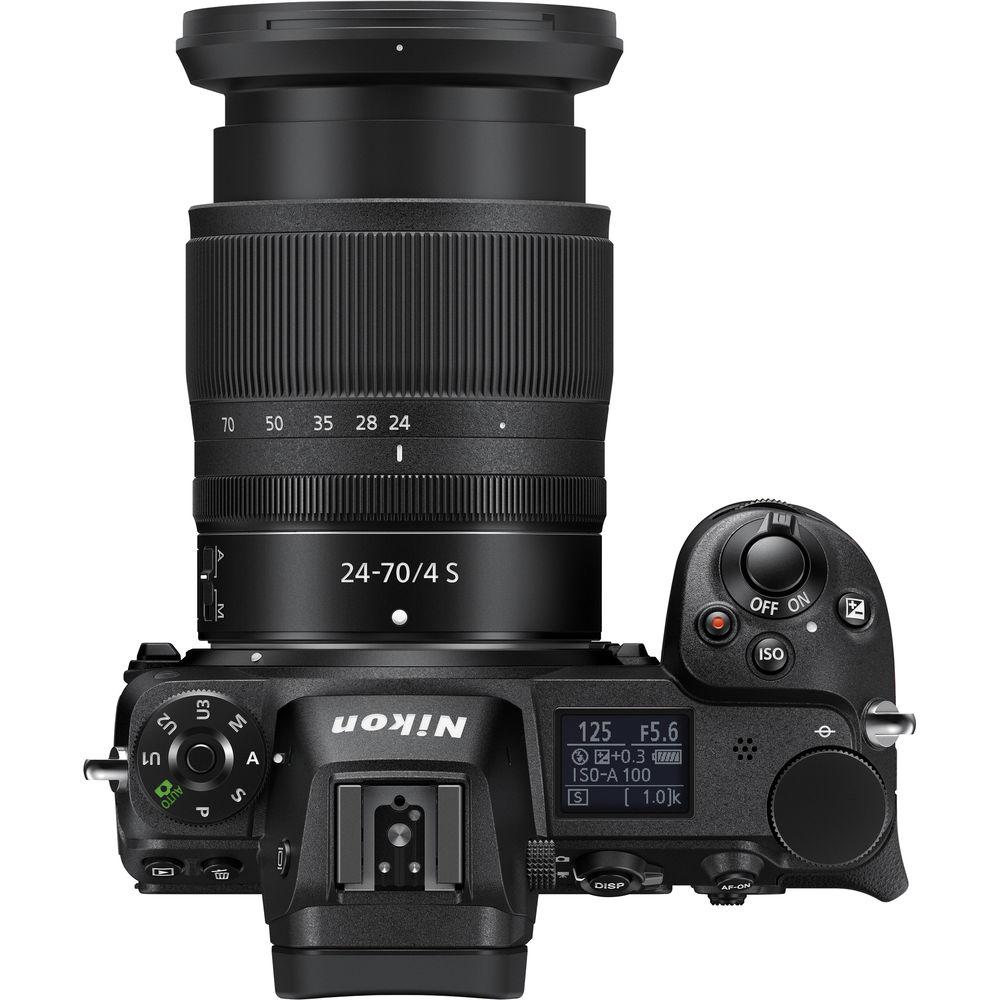

  • The top panel of the Z 6 is configured with a dot-matrix OLED. This low-energy display provides quick access to important camera settings.
  • Configured with one XQD memory card slot, the camera will be able to quickly save images. The slot is compatible with CFexpress, enabling support for future media.
  • A robust magnesium-alloy chassis is both dust- and weather-resistant to benefit working in harsh climates and inclement conditions.
  • The ergonomic grip and overall form factor is shaped to benefit handling for extended periods of time and is further accentuated by an anti-slip material and a joystick for seamless settings and focus point selection.
  • Built-in SnapBridge connectivity to enable seamless transfer of low-resolution imagery as well as remote shooting capabilities. BLE (Bluetooth Low Energy) and Wi-Fi enables communication between the camera and a smart device and, additionally, the mobile device can remotely trigger the shutter and display a live view image from the camera to enable working from a distance.
  • Included EN-EL15b rechargeable lithium-ion battery provides approximately 310 shots per charge, and in-camera charging is supported. This camera is also compatible with EN-EL15 and EN-EL15a batteries, however do not support in-camera charging.

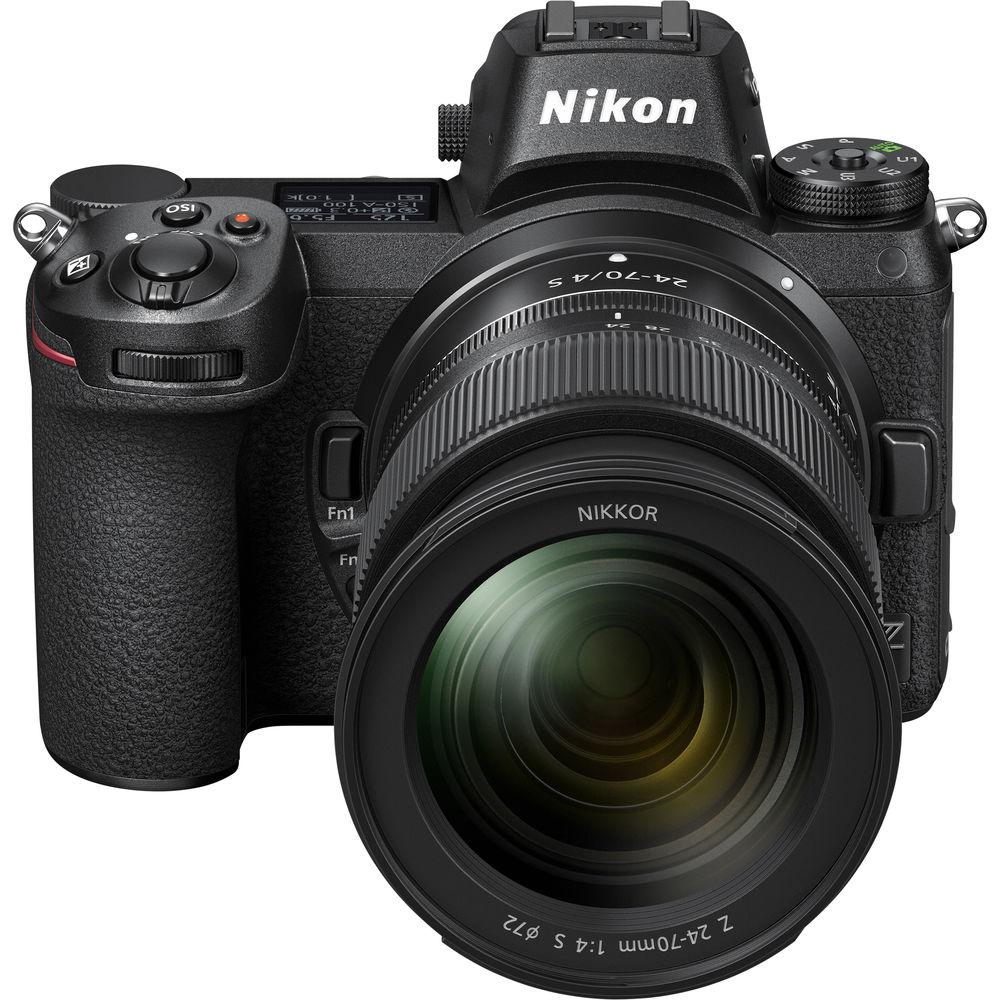

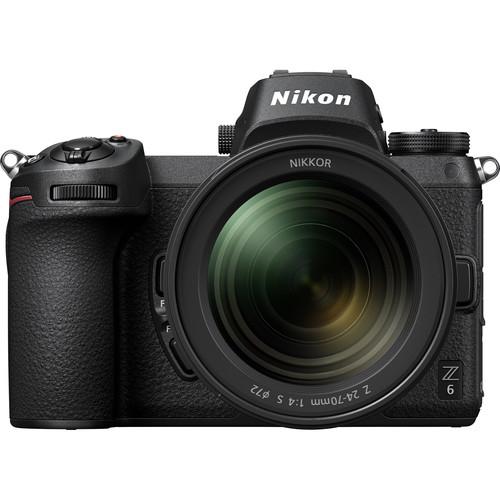

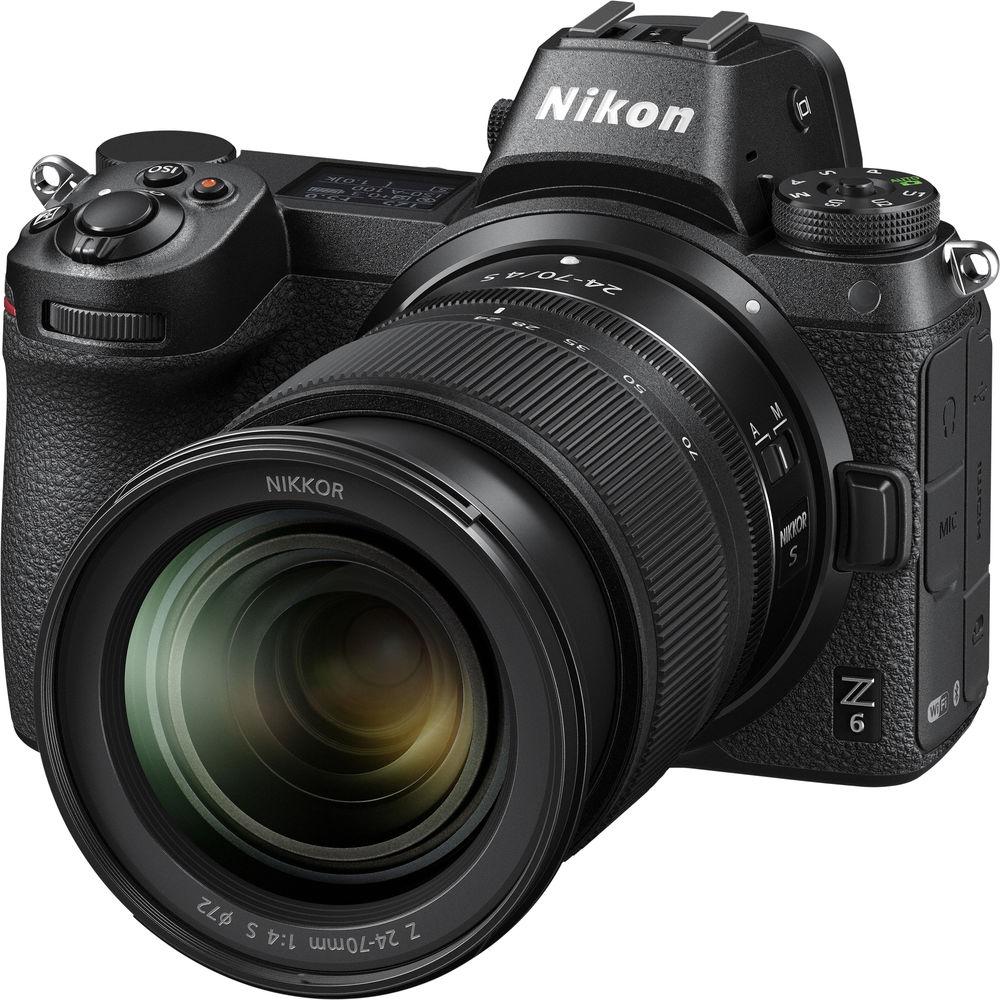

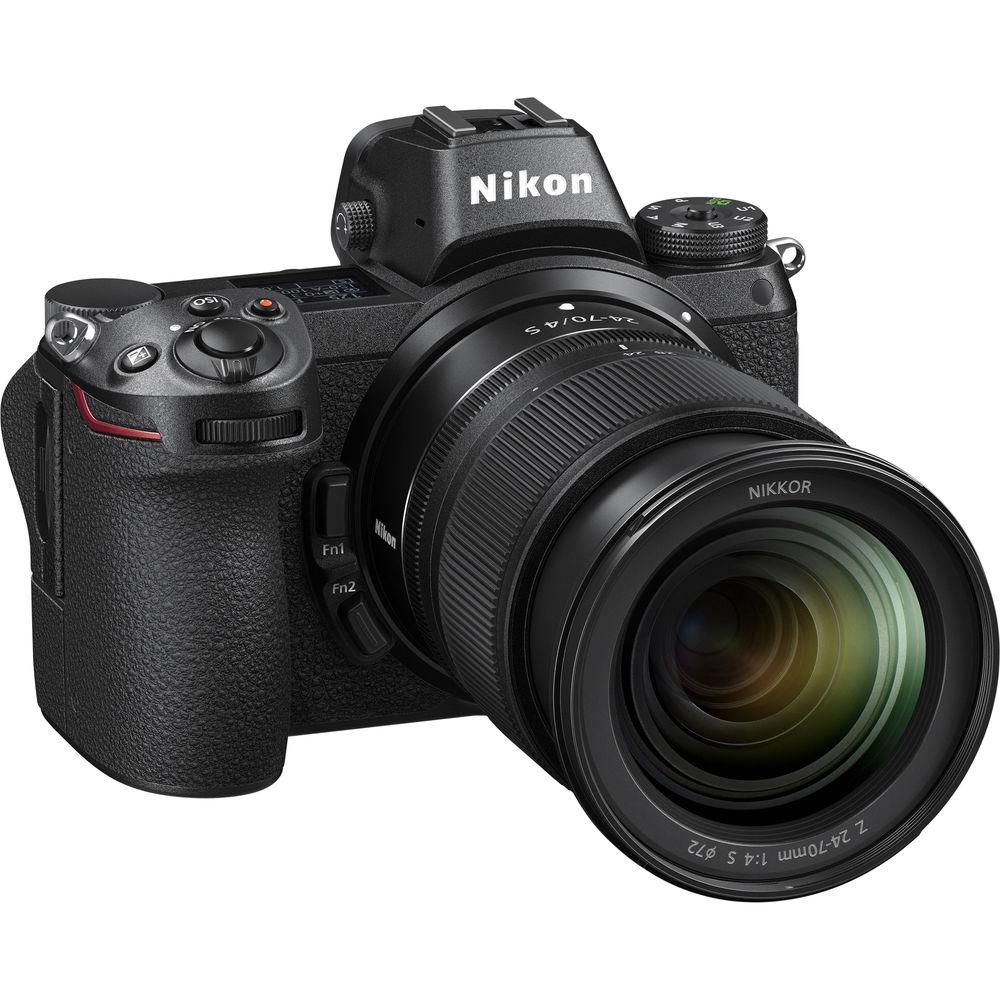

NIKKOR Z 24-70mm f/4 S Lens
• Included with the camera body is the standard zoom NIKKOR Z 24-70mm f/4 S lens, which covers a wide-angle to portrait-length range and features a constant f/4 maximum aperture. The optical design incorporates one aspherical element as well as a unique aspherical extra-low dispersion element; both of which help to greatly reduce a variety of aberrations and distortion for high sharpness and accurate color rendering. A Nano Crystal Coating is also used to control flare and ghosting for increased contrast in strong lighting conditions. Suiting both photo and video applications, a stepping AF motor is also featured for smooth, near-silent autofocus performance.

Upload User Manual

Please enter here the link to the user manual of this product: User manual for Nikon Z 6 Mirrorless Digital Camera with 24-70mm Lens can be downloaded below, so the upload option is not active. OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0% User manual for Nikon Z 6 Mirrorless Digital Camera with 24-70mm Lens can be downloaded below, so the upload option is not active.

Download User Manual

Download PDF User Manual - Nikon Z 6 Mirrorless Digital Camera with 24-70mm Lens (PDF file, 7 MB)

Technical parameters

Nikon Z6 Specs

Focal Length	24 to 70mm
Maximum Aperture	f/4
Minimum Aperture	f/22
Angle of View	84 Rating 94% users recommend this product to others. And what about you? This product has already been rated by 73 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
