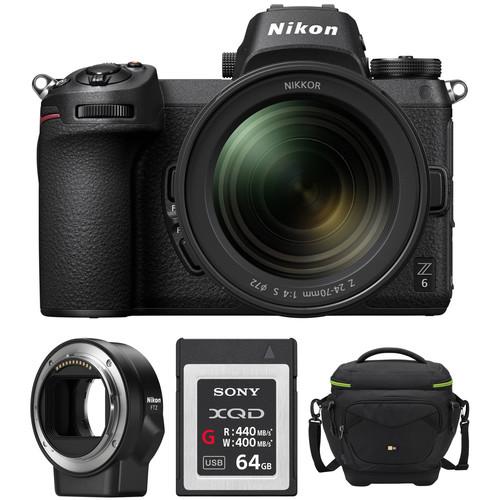

User Manual for Nikon Z 6 Mirrorless Digital Camera with 24-70mm Lens, FTZ Mount Adapter, and Bag Kit

• Product category: Mirrorless System Cameras Nikon
• Brand: Nikon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Nikon Mirrorless System Cameras

Product description

• Nikon Z 6 Mirrorless Digital Camera with 24-70mm Lens
  • First Look - Nikon Z6 Mirrorless Camera
  • Nikon Z Series: Z 6 and Z 7 Product Tour
  Part of Nikon's next step in their imaging journey, the Z 6 Mirrorless Camera is positioned as the "all-arounder" within the new Z System. Beginning with the Z Mount itself, a large-diameter design with a short 16mm flange distance allows Nikon to create compact, yet powerful cameras and develop more advanced optics. The Z 6 is among the first in the series, and features a high-performing FX-format 24.5MP BSI CMOS sensor and the EXPEED 6 Image Processing Engine delivering outstanding image quality and speed with a native sensitivity range of ISO 100-51200.

  On the sensor you will find an advanced phase-detect autofocus system using 273 points covering 90% of the image area, and the sensor features 5-axis Vibration Reduction technology for stabilized photos and video regardless of the lens used. This advanced hybrid AF system will also benefit video. The Z 6 features UHD 4K recording at up to 30p and can use the N-Log gamma profile along with the camera's 10-bit HDMI output to create cinema-quality video.

  As with many mirrorless systems, the Z Series boasts a much more compact form factor than its DSLR counterparts. The Z 6 is no exception with its slimmed down design and lighter build, though it maintains the weather sealing and ergonomics for which Nikon is known. The camera features multiple displays and screens for ease of use, including a 0.80x 3.6m-dot EVF with NIKKOR optics and a Fluorine coating, ensuring clear viewing. The rear of the camera is equipped with a 3.2" 2.1m-dot tilting touchscreen LCD while the top offers a dot-matrix OLED for quickly checking settings. For storage, the Z 6 has a single XQD card slot that is compatible with CFexpress for faster speeds in the future. Additionally, the body is equipped with both Wi-Fi and Bluetooth.
  Nikon Z System
  • Introducing the Z mount, Nikon's full-frame mirrorless system promises to deliver class-leading image quality and optics in a compact form factor. The Z mount itself makes much of this possible with a 17% larger inner diameter than the F mount, enabling the use of more advanced optics and lens designs, including ultra-fast f/0.95 options. For minimizing camera and lens size, the Z mount features a 65% shorter flange distance, measuring just 16mm, which allows for dramatically slimmed down body designs. The larger mount also supports faster and larger-volume communications between the body and lens to improve overall performance throughout the system.
  24.5MP FX-Format BSI CMOS Sensor and EXPEED 6 Processor
  • A 24.5MP BSI CMOS sensor is used for all-around shooting, impressive low-light quality, and fast readout speeds to benefit continuous shooting, movies, and time-lapse recording. The back-illuminated design of the sensor affords noticeably cleaner high-sensitivity output for reduced noise when working at high ISO values, up to a native ISO 51200, as well as vivid and smooth quality at sensitivities as low as ISO 100. Benefitting the sensor is the apt EXPEED 6 image processor, which affords a wealth of speed throughout the camera system, including the ability to shoot continuously at 12 fps in raw.
  4K UHD Video Recording
  • Utilizing the sensor and processor attributes for more than just still imagery, the Z 6 is also a more-than-capable multimedia camera. Video recording is possible at UHD 4K (3840 x 2160) using either the full-frame area or a DX crop area in 30p, 25, or 24p frame rates. Full HD 1080p video recording is also supported at up to 120p for slow motion playback, and video files can be saved to the in-camera memory cards or as an uncompressed file to an optional external recorder via HDMI out.

    Advanced video functionalities have been added with the Z 6. This includes the N-Log gamma for capturing flat-looking footage that maximizes dynamic range. Other additions are the ability to output high-quality 10-bit data over HDMI and an Electronic VR function for smooth handheld shooting. Focus Peaking can be used to benefit manual focus control and a Zebra Stripes option is also available to help detect over-exposed areas within the frame. Audio recording can be handled using the built-in stereo microphone or an optional external mic can be added via the 3.5mm stereo jack for greater control over quality, and live monitoring is possible via the headphone jack.
  273-Point Phase-Detect AF System
  • Located on the sensor is an array of 273 phase-detect autofocus points covering 90% of the image area both vertically and horizontally. This provides fast and accurate focusing for both stills and video and with a wide coverage area, subject tracking will work out to near the edges of the frame. Hybrid AF is available for video, which will automatically switch between phase- and contrast-detect systems to provide smooth focus during shooting. Additionally, the latest NIKKOR Z lenses are optimized for silent operation.
  Body Design
  • • Built-in to the body is a 5-axis sensor-shift Vibration Reduction mechanism for up to 5 stops of stabilization regardless of the lens used. This system also works with adapted lenses when using the optional FTZ Adapter where 3-axis stabilization is used.
    • A large 3.2" 2.1m-dot LCD screen is available for bright, clear, and vivid image playback and live view shooting. The screen has a tilting design to benefit working from both high and low angles, and it is also a touchscreen for more intuitive operation, navigation, and settings control.
    • A 3.6m-dot electronic finder is present for comfortable eye-level viewing. It has a high 0.80x magnification and uses NIKKOR optics to guarantee a sharp, clear image. The finder also has a Fluorine coating for easier cleaning.
    • The top panel of the Z 6 is configured with a dot-matrix OLED. This low-energy display provides quick access to important camera settings.
    • Configured with one XQD memory card slot, the camera will be able to quickly save images. The slot is compatible with CFexpress, enabling support for future media.
    • A robust magnesium-alloy chassis is both dust- and weather-resistant to benefit working in harsh climates and inclement conditions.
    • The ergonomic grip and overall form factor is shaped to benefit handling for extended periods of time and is further accentuated by an anti-slip material and a joystick for seamless settings and focus point selection.
    • Built-in SnapBridge connectivity to enable seamless transfer of low-resolution imagery as well as remote shooting capabilities. BLE (Bluetooth Low Energy) and Wi-Fi enables communication between the camera and a smart device and, additionally, the mobile device can remotely trigger the shutter and display a live view image from the camera to enable working from a distance.
    • Included EN-EL15b rechargeable lithium-ion battery provides approximately 310 shots per charge, and in-camera charging is supported. This camera is also compatible with EN-EL15 and EN-EL15a batteries, however do not support in-camera charging.
  NIKKOR Z 24-70mm f/4 S Lens
  • Included with the camera body is the standard zoom NIKKOR Z 24-70mm f/4 S lens, which covers a wide-angle to portrait-length range and features a constant f/4 maximum aperture. The optical design incorporates one aspherical element as well as a unique aspherical extra-low dispersion element; both of which help to greatly reduce a variety of aberrations and distortion for high sharpness and accurate color rendering. A Nano Crystal Coating is also used to control flare and ghosting for increased contrast in strong lighting conditions. Suiting both photo and video applications, a stepping AF motor is also featured for smooth, near-silent autofocus performance.
  UPC: 018208015986
• Nikon FTZ Mount Adapter
  • First Look - Nikon Z6 Mirrorless Camera
  • Nikon Z Series: Z 6 and Z 7 Product Tour
  Enabling the use of nearly any Nikon F-mount lens on Z-mount mirrorless camera bodies, the FTZ Mount Adapter is a sophisticated means for expanding the range of usable lenses. While compatible with approximately 360 distinct F-mount lenses, this adapter is especially ideal for use with over 90 E, G, and D-type lenses, where it fully maintains autofocus and auto-exposure capabilities for seamless use of the SLR lenses on the mirrorless body. The adapter, which is built from magnesium alloy and is weather-sealed, also incorporates a 1/4"-20 mount on the base to provide a more balanced means for working on a tripod with longer, heavier lenses.
  Lens Compatibility
  • Full AF/AE supported when using:

    • AF-S type G/D/E lenses
    • AF-P type G/E lenses
    • AF-I type D lenses
    • AF-S / AF-I teleconverters
    UPC: 018208041855
  • Sony 64GB XQD G Series Memory Card
    • First Look - Nikon Z6 Mirrorless Camera
    • Nikon Z Series: Z 6 and Z 7 Product Tour
    Supporting enhanced data read and write speed, the 64GB XQD G Series Memory Card from Sony can be used to record a variety of content up to and including 4K video. In addition to recording 4K content, the 440 MB/s read and 400 MB/s write speeds make it easy to capture photos in both burst mode and in RAW format, as well as streamline workflows. This XQD G Series Card from Sony also supports both PCI Express Gen. 2 and USB 3.0 interfaces, allowing it to be used with a wide range of devices.
    • Compliant to XQD Format Version 2, both PCI Express Gen.2 and USB 3.0 interface are supported on a newly developed controller for high performance.
    • 440 MB/s read and 400 MB/s write speeds.
    • Supports EB Streaming between card and Sony camcorders enabling constant 2-way communication and insuring stable recording while avoiding speed degradation.
    UPC: 027242900035
  • Case Logic Kontrast DSLR Shoulder Bag (Black)
    • First Look - Nikon Z6 Mirrorless Camera
    • Nikon Z Series: Z 6 and Z 7 Product Tour
    Store, transport, and protect your DSLR with attached lens, 2-4 extra lenses, flash, and related accessories with the black Kontrast DSLR Shoulder Bag from Case Logic. The padded main compartment has a hammock system that suspends the camera for improved shock protection, and padded, touch-fastening dividers for organizing gear. Water-resistant DuraBase, foam padding, and polyester construction ensures strength and durability. The lid unzips away from wearer for easy access to gear, and has a convenient zip pocket underneath for small items. Dual, zippered side and front pockets provide additional storage capacity. The front pocket features two slip-in pockets. Carry your Kontrast Shoulder Bag with the padded top handle, or wear with the removable, padded shoulder strap. The gray interior lining makes finding gear in low light easier. UPC: 085854233613
  In the Box
  • Z 6 Mirrorless Digital Camera with 24-70mm Lens dfazyxwbdwzbeqqrczyxc
  • NIKKOR Z 24-70mm f/4 S Lens
  • EN-EL15b Rechargeable Lithium-Ion Battery
  • MH-25A Battery Charger for EN-EL15 Li-Ion Battery
  • UC-E24 USB Cable
  • HDMI/USB Cable Clip
  • BS-1 Hot-Shoe Cover
  • AN-DC19 Camera Strap
  • BF-N1 Body Cap
  • DK-29 Rubber Eyecup
  • Limited 1-Year Warranty
  • FTZ Mount Adapter
  • Sony - 64GB XQD G Series Memory Card
  • Case Logic - Kontrast DSLR Shoulder Bag (Black)
  Table of Contents

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Nikon Z 6 Mirrorless Digital Camera with 24-70mm Lens

  Lens Mount	Nikon Z
  Camera Format	Full-Frame (1x Crop Factor)
  Pixels	Actual: 25.28 Megapixel Effective: 24.5 Megapixel
  Maximum Resolution	6000 x 4000
  Aspect Ratio	1:1, 3:2, 4:5
  Sensor Type	CMOS
  Sensor Size	35.9 x 23.9 mm
  Image File Format	JPEG, RAW
  Bit Depth	14-Bit
  Image Stabilization	Sensor-Shift, 5-Axis

  ISO Sensitivity	Auto, 100 to 51200 (Extended: 50 to 204800)
  Shutter Speed	Electronic Front Curtain Shutter 1/8000 to 30 Seconds Bulb Mode
  Metering Method	Center-Weighted Average, Matrix, Spot, Highlight Weighted
  Exposure Modes	Aperture Priority, Auto, Manual, Program, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3, 1/2 EV Steps)
  Metering Range	-4 to 17 EV
  White Balance	Auto, Cloudy, Color Temperature, Direct Sunlight, Flash, Fluorescent, Incandescent, Preset Manual, Shade
  Continuous Shooting	Up to 12 fps at 24.5 MP Up to 5.5 fps at 24.5 MP
  Interval Recording	Yes
  Self Timer	2/5/10/20-Second Delay

  Recording Modes	MOV/MP4/H.264 UHD 4K (3840 x 2160) at 23.976p/25p/29.97p Full HD (1920 x 1080) at 23.976p/25p/29.97p/50p/59.94p/100p/120p
  External Recording Modes	10-Bit UHD 4K (3840 x 2160) Full HD (1920 x 1080)
  Recording Limit	Up to 29 Minutes, 59 Seconds
  Video Encoding	NTSC/PAL
  Audio Recording	Built-In Microphone (Stereo) External Microphone Input
  Audio File Format	AAC, Linear PCM (Stereo)

  Focus Type	Auto and Manual Focus
  Focus Mode	Continuous-Servo AF (C), Full-Time Servo (F), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Phase Detection: 273

  Viewfinder Type	Electronic
  Viewfinder Size	0.5"
  Viewfinder Resolution	3,690,000 Dot
  Viewfinder Eye Point	21 mm
  Viewfinder Coverage	100%
  Viewfinder Magnification	Approx. 0.8x
  Diopter Adjustment	-4 to +2 m
  Monitor Size	3.2"
  Monitor Resolution	2,100,000 Dot
  Monitor Type	Tilting Touchscreen LCD

  Built-in Flash	None
  Flash Modes	First-Curtain Sync, Off, Rear Curtain/Slow Sync, Rear Sync, Red-Eye Reduction, Slow Sync, Slow Sync/Red-Eye Reduction
  Maximum Sync Speed	1/200 Second
  Flash Compensation	-3 to +1 EV (1/3, 1/2 EV Steps)
  Dedicated Flash System	iTTL
  External Flash Connection	Hot Shoe

  Memory Card Slot	1 x XQD
  Internal Memory	None
  Connectivity	3.5mm Headphone, 3.5mm Microphone, HDMI C (Mini), Nikon DC2, USB Type-C
  Wireless	Wi-Fi Bluetooth
  GPS	None

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	0 to 85%

  Battery	1 x EN-EL15b Rechargeable Lithium-Ion
  Dimensions (W x H x D)	5.3 x 4.0 x 2.7" / 134.0 x 100.5 x 67.5 mm
  Weight	1.29 lb / 585 g (Body Only)

  Focal Length	24 to 70mm
  Maximum Aperture	f/4
  Minimum Aperture	f/22
  Angle of View	84 Rating 94% users recommend this product to others. And what about you? This product has already been rated by 07 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
