Product description

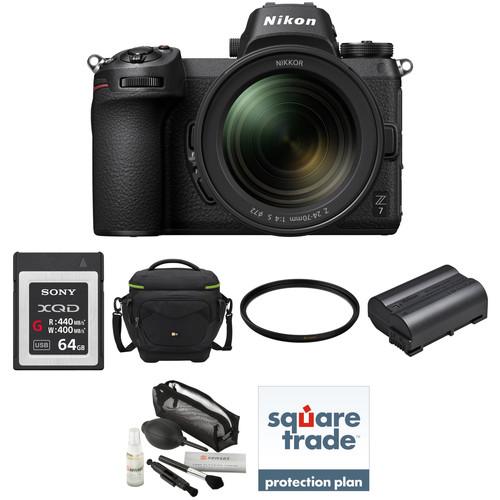

• Nikon Z 7 Mirrorless Digital Camera with 24-70mm Lens
  • Nikon Z Series: Z 6 and Z 7 Product Tour
  Nikon has taken the next step in their imaging journey with the Z 7 Mirrorless Camera, dubbed "The Perfectionist," and the revolutionary Z System. This high-resolution FX-format camera introduces the Z Mount, a large diameter design with a short 16mm flange distance that allows Nikon to create compact, yet powerful cameras and develop more advanced optics. The Z 7 is among the first in the series, and brings with it a 45.7MP BSI CMOS sensor and EXPEED 6 Image Processing Engine, delivering outstanding image quality and speed with a native sensitivity range of ISO 64-25600.

  On the sensor you will find an advanced phase-detect autofocus system using 493 points covering 90% of the image area and the sensor features 5-axis Vibration Reduction technology for stabilized photos and video regardless of the lens used. This advanced hybrid AF system will also benefit video. The Z 7 features UHD 4K recording at up to 30p and can use the N-Log gamma profile along with the camera's 10-bit HDMI output to create cinema-quality video. The camera's high-resolution sensor also permits the use of an 8K Time-Lapse mode.

  As with many mirrorless systems, the Z Series boasts a much more compact form factor than its DSLR counterparts. The Z 7 is no exception with its slimmed down design and lighter build, though it maintains the weather sealing and ergonomics for which Nikon is known. The camera features multiple displays and screens for ease of use, including a 0.80x 3.6m-dot EVF with NIKKOR optics and a Fluorine coating, ensuring clear viewing. The rear of the camera is equipped with a 3.2" 2.1m-dot tilting touchscreen LCD while the top offers a dot-matrix OLED for quickly checking settings. For storage, the Z 7 has a single XQD card slot that is compatible with CFexpress for faster speeds in the future. Additionally, the body is equipped with both Wi-Fi and Bluetooth.
  Nikon Z System
  • Introducing the Z mount, Nikon's full-frame mirrorless system promises to deliver class-leading image quality and optics in a compact form factor. The Z mount itself makes much of this possible with a 17% larger inner diameter than the F mount, enabling the use of more advanced optics and lens designs, including ultra-fast f/0.95 options. For minimizing camera and lens size, the Z mount features a 65% shorter flange distance, measuring just 16mm, which allows for dramatically slimmed down body designs. The larger mount also supports faster and larger-volume communications between the body and lens to improve overall performance throughout the system.
  45.7MP FX-Format BSI CMOS Sensor and EXPEED 6 Processor
  • A 45.7MP BSI CMOS sensor is used for high-resolution shooting, impressive low-light quality, and fast readout speeds to benefit continuous shooting, movies, and time-lapse recording. The back-illuminated design of the sensor affords noticeably cleaner high-sensitivity output for reduced noise when working at high ISO values, up to a native ISO 25600, as well as vivid and smooth quality at sensitivities as low as ISO 64. The sensor's design also omits the conventional optical low-pass filter in order to achieve the greatest sharpness and resolution from the sensor. Benefitting the sensor is the apt EXPEED 6 image processor, which affords a wealth of speed throughout the camera system, including the ability to shoot continuously at 9 fps in raw.
  4K UHD Video Recording and 8K Time-Lapse
  • Utilizing the sensor and processor attributes for more than just still imagery, the Z 7 is also a more-than-capable multimedia camera. Video recording is possible at UHD 4K (3840 x 2160) using either the full-frame area or a DX crop area in 30p, 25p, or 24p frame rates. Full HD 1080p video recording is also supported at up to 120p for slow motion playback, and video files can be saved to the in-camera memory cards or as an uncompressed file to an optional external recorder via HDMI out.

    Advanced video functionalities have been added with the Z 7. This includes the N-Log gamma for capturing flat-looking footage that maximizes dynamic range. Other additions are the ability to output high-quality 10-bit data over HDMI and an Electronic VR function for smooth handheld shooting. Focus Peaking can be used to benefit manual focus control and a Zebra Stripes option is also available to help detect over-exposed areas within the frame. Audio recording can be handled using the built-in stereo microphone or an optional external mic can be added via the 3.5mm stereo jack for greater control over quality, and live monitoring is possible via the headphone jack.

    The Z 7 also blends both still and video capabilities with the ability to produce 8K time-lapses using the Interval Timer Mode or in-camera 4K time-lapse movies, with the ability to record up to 9999 exposures for either method. This system also makes use of a silent interval timer, which produces no shutter noise, does not contribute to wear on the shutter mechanism, and is energy efficient to maximize battery life.
  493-Point Phase-Detect AF System
  • Located on the sensor is an array of 493 phase-detect autofocus points covering 90% of the image area both vertically and horizontally. This provides fast and accurate focusing for both stills and video and with a wide coverage area, subject tracking will work out to near the edges of the frame. Hybrid AF is available for video, which will automatically switch between phase- and contrast-detect systems to provide smooth focus during shooting. Additionally, the latest NIKKOR Z lenses are optimized for silent operation.
  Body Design
  • • Built-in to the body is a 5-axis sensor-shift Vibration Reduction mechanism for up to 5 stops of stabilization regardless of the lens used. This system also works with adapted lenses when using the optional FTZ Adapter where 3-axis stabilization is used.
    • A large 3.2" 2.1m-dot LCD screen is available for bright, clear, and vivid image playback and live view shooting. The screen has a tilting design to benefit working from both high and low angles, and it is also a touchscreen for more intuitive operation, navigation, and settings control.
    • A 3.6m-dot electronic finder is present for comfortable eye-level viewing. It has a high 0.80x magnification and uses NIKKOR optics to guarantee a sharp, clear image. The finder also has a Fluorine coating for easier cleaning.
    • The top panel of the Z 7 is configured with a dot-matrix OLED. This low-energy display provides quick access to important camera settings.
    • Configured with one XQD memory card slot, the camera will be able to quickly save images. The slot is compatible with CFexpress, enabling support for future media.
    • A robust magnesium-alloy chassis is both dust- and weather-resistant to benefit working in harsh climates and inclement conditions.
    • The ergonomic grip and overall form factor is shaped to benefit handling for extended periods of time and is further accentuated by an anti-slip material and a joystick for seamless settings and focus point selection.
    • Built-in SnapBridge connectivity to enable seamless transfer of low-resolution imagery as well as remote shooting capabilities. BLE (Bluetooth Low Energy) and Wi-Fi enables communication between the camera and a smart device and, additionally, the mobile device can remotely trigger the shutter and display a live view image from the camera to enable working from a distance.
    • Included EN-EL15b rechargeable lithium-ion battery provides approximately 330 shots per charge, and in-camera charging is supported. This camera is also compatible with EN-EL15 and EN-EL15a batteries, however do not support in-camera charging.
  NIKKOR Z 24-70mm f/4 S Lens
  • Included with the camera body is the standard zoom NIKKOR Z 24-70mm f/4 S lens, which covers a wide-angle to portrait-length range and features a constant f/4 maximum aperture. The optical design incorporates one aspherical element as well as a unique aspherical extra-low dispersion element; both of which help to greatly reduce a variety of aberrations and distortion for high sharpness and accurate color rendering. A Nano Crystal Coating is also used to control flare and ghosting for increased contrast in strong lighting conditions. Suiting both photo and video applications, a stepping AF motor is also featured for smooth, near-silent autofocus performance.
  UPC: 018208015948
• Sony 64GB XQD G Series Memory Card
  • Nikon Z Series: Z 6 and Z 7 Product Tour
  Supporting enhanced data read and write speed, the 64GB XQD G Series Memory Card from Sony can be used to record a variety of content up to and including 4K video. In addition to recording 4K content, the 440 MB/s read and 400 MB/s write speeds make it easy to capture photos in both burst mode and in RAW format, as well as streamline workflows. This XQD G Series Card from Sony also supports both PCI Express Gen. 2 and USB 3.0 interfaces, allowing it to be used with a wide range of devices.
  • Compliant to XQD Format Version 2, both PCI Express Gen.2 and USB 3.0 interface are supported on a newly developed controller for high performance.
  • 440 MB/s read and 400 MB/s write speeds.
  • Supports EB Streaming between card and Sony camcorders enabling constant 2-way communication and insuring stable recording while avoiding speed degradation.
  UPC: 027242900035
• Case Logic Kontrast DSLR Shoulder Bag (Black)
  • Nikon Z Series: Z 6 and Z 7 Product Tour
  Store, transport, and protect your DSLR with attached lens, 2-4 extra lenses, flash, and related accessories with the black Kontrast DSLR Shoulder Bag from Case Logic. The padded main compartment has a hammock system that suspends the camera for improved shock protection, and padded, touch-fastening dividers for organizing gear. Water-resistant DuraBase, foam padding, and polyester construction ensures strength and durability. The lid unzips away from wearer for easy access to gear, and has a convenient zip pocket underneath for small items. Dual, zippered side and front pockets provide additional storage capacity. The front pocket features two slip-in pockets. Carry your Kontrast Shoulder Bag with the padded top handle, or wear with the removable, padded shoulder strap. The gray interior lining makes finding gear in low light easier. UPC: 085854233613
• Chiaro 72mm 99-UVBTS Brass UV Filter
  • Nikon Z Series: Z 6 and Z 7 Product Tour
  The 72mm 99-UVBTS Brass UV Filter is Chiaro’s top-performing protective UV filter offering 99% light transmission. It’s ideal for photographers who demand the highest-quality glass and other essential features for uncompromised image fidelity and premium construction.To achieve superior 99% light transmission, Chiaro uses highly-polished Schott glass, multi-coating, and additional advanced elements that improve the filter’s light transmission. A scratch-resistant coating minimizes scratching of the glass and helps assure that water, oil, dust, and fingerprints are removed with a gentle wipe. The durable brass filter ring is designed to screw on and off effortlessly, and it’s thin to prevent vignetting when used with wide-angle lenses. Side knurling is crafted to help ensure that you’ll have a firm grip when attaching or removing your filter.Image quality is what matters most at Chiaro. The company has tested and combined many features and essentials to achieve superior image quality and the highest light transmission. To help take the confusion out of selecting a filter, Chiaro prominently displays the light transmission levels so that you can choose the perfect filter for your lens and photo session.
  99% Light Transmission
  • Protecting your lens doesn't mean you have to lose optical quality. By using highly-polished Schott glass and advanced coatings, Chiaro can offer a 99% transmission rate, which is the highest possible transmission rate for glass. And the company verifies the ratings with ISO certified lab testing.
  Resistance Coating
  • The layers of advanced resistance coating on the filter are designed to resist moderate scratches, and allows you to easily clean your filter. Water beads up and rolls off your filter, and oil and fingerprints can come off with a gentle wipe. Dust and debris won't adhere to the filter and can be removed with a puff of air.
  Polished Schott Glass
  • Glass that's polished to perfection is essential to achieve a high level of light transmission. The Schott glass in this Chiaro filter is highly-polished for flatness that ensures superior optical clarity.
  Multi-Coating
  • Multi-coating enhances light transmission to the demanding level set for all Chiaro filters. It reduces unwanted internal reflections and ghosting that can compromise your images.
  UV Protection
  • The filter blocks UV light and reduces the bluish cast of daylight that can affect color accuracy, especially at higher altitudes.
  Brass Construction
  • The durable brass filter ring offers a substantial, premium feel. The unique properties of brass minimize the chance of jamming or binding when you're screwing the filter onto your lens or stacking filters.
  Slim Design
  • Measuring only 3.2mm, this filter is slim enough to use on wide-angle lenses without experiencing vignetting.
  Top and Side Knurling
  • In addition to top knurling, Chiaro added side knurling that helps offer better options to grip the filter when you're attaching and removing it, or when you're stacking filters.
  Secure Attachment
  • It takes two full turns to mount the filter on your lens. This feature will securely hold your Chiaro filter through the most demanding photo shoots.
  Front Threads
  • The front threads on the filter allow you to stack filters by screwing them onto your Chiaro filter.
  UPC: 847628593138
• Nikon EN-EL15b Rechargeable Lithium-Ion Battery
  • Nikon Z Series: Z 6 and Z 7 Product Tour
  Power select Nikon cameras with this EN-EL15b Rechargeable Lithium-Ion Battery, which serves as a spare or replacement for the one provided with the camera. It is designed to offer long life and consistent power, and can be charged or discharged at any time without developing memory effects. The battery is compatible with the MH-25 and MH-25a chargers, or can be charged in-camera using the EH-7P Charging AC Adapter.
  Camera Compatibility
  • Nikon Z 7 and Z 6 mirrorless cameras
  UPC: 018208042180
• Sensei OC-CK Optics Care and Cleaning Kit
  • Nikon Z Series: Z 6 and Z 7 Product Tour
  Keep your optical surfaces clean with the Sensei Optics Care and Cleaning Kit. This kit contains a pack of lens tissues, a lens cleaning pen, a bulb air blower, a paint brush, a lipstick brush, lens cleaning fluid, and a see-through mesh travel case to put everything in. This kit can be used to clean a variety of different optics and glass. You can use the air bulb blower and any of the three supplied brushes to initially remove dust from the surface. Sensei recommends applying a small amount of the alcohol- and ammonia-free cleaning fluid directly to the lens tissue. Then, gently rub in small circular motions to remove stubborn smudges or fingerprints from the glass. For those more stubborn blemishes or smudges, the lens pen is very effective. UPC: 847628008427

• Z 7 Mirrorless Digital Camera with 24-70mm Lens wudbfyrzdbbdeus
• NIKKOR Z 24-70mm f/4 S Lens
• EN-EL15b Rechargeable Lithium-Ion Battery
• MH-25A Battery Charger for EN-EL15 Li-Ion Battery
• EH-7P Charging AC Adapter
• UC-E24 USB Cable
• HDMI/USB Cable Clip
• BS-1 Hot-Shoe Cover
• AN-DC19 Camera Strap
• BF-N1 Body Cap
• DK-29 Rubber Eyecup
• Limited 1-Year Warranty

• Sony - 64GB XQD G Series Memory Card

• Case Logic - Kontrast DSLR Shoulder Bag (Black)

• Chiaro - 72mm 99-UVBTS Brass UV Filter

• EN-EL15b Rechargeable Lithium-Ion Battery

• Sensei - OC-CK Optics Care and Cleaning Kit

• SquareTrade - 2 Year Drops & Spills Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Nikon Z 7 Mirrorless Digital Camera with 24-70mm Lens

  Lens Mount	Nikon Z
  Camera Format	Full-Frame (1x Crop Factor)
  Pixels	Actual: 46.89 Megapixel Effective: 45.7 Megapixel
  Maximum Resolution	8256 x 5504
  Aspect Ratio	1:1, 3:2, 4:5, 16:9
  Sensor Type	CMOS
  Sensor Size	35.9 x 23.9 mm
  Image File Format	JPEG, RAW
  Bit Depth	14-Bit
  Image Stabilization	Sensor-Shift, 5-Axis

  ISO Sensitivity	Auto, 64 to 25600 (Extended: 32 to 102400)
  Shutter Speed	Electronic Front Curtain Shutter 1/8000 to 30 Seconds Bulb Mode
  Metering Method	Center-Weighted Average, Matrix, Spot, Highlight Weighted
  Exposure Modes	Aperture Priority, Auto, Manual, Program, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3, 1/2 EV Steps)
  Metering Range	-3 to 17 EV
  White Balance	Auto, Cloudy, Color Temperature, Direct Sunlight, Flash, Fluorescent, Incandescent, Preset Manual, Shade
  Continuous Shooting	Up to 9 fps at 45.7 MP Up to 5.5 fps at 45.7 MP
  Interval Recording	Yes
  Self Timer	2/5/10/20-Second Delay

  Recording Modes	MOV/MP4/H.264 UHD 4K (3840 x 2160) at 23.976p/25p/29.97p Full HD (1920 x 1080) at 23.976p/25p/29.97p/50p/59.94p/100p/120p
  External Recording Modes	10-Bit UHD 4K (3840 x 2160) Full HD (1920 x 1080)
  Recording Limit	Up to 29 Minutes, 59 Seconds
  Video Encoding	NTSC/PAL
  Audio Recording	Built-In Microphone (Stereo) External Microphone Input
  Audio File Format	AAC, Linear PCM (Stereo)

  Focus Type	Auto and Manual Focus
  Focus Mode	Continuous-Servo AF (C), Full-Time Servo (F), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Phase Detection: 493

  Viewfinder Type	Electronic
  Viewfinder Size	0.5"
  Viewfinder Resolution	3,690,000 Dot
  Viewfinder Eye Point	21 mm
  Viewfinder Coverage	100%
  Viewfinder Magnification	Approx. 0.8x
  Diopter Adjustment	-4 to +2 m
  Monitor Size	3.2"
  Monitor Resolution	2,100,000 Dot
  Monitor Type	Tilting Touchscreen LCD

  Built-in Flash	None
  Flash Modes	First-Curtain Sync, Off, Rear Curtain/Slow Sync, Rear Sync, Red-Eye Reduction, Slow Sync, Slow Sync/Red-Eye Reduction
  Maximum Sync Speed	1/200 Second
  Flash Compensation	-3 to +1 EV (1/3, 1/2 EV Steps)
  Dedicated Flash System	iTTL
  External Flash Connection	Hot Shoe

  Memory Card Slot	1 x XQD
  Internal Memory	None
  Connectivity	3.5mm Headphone, 3.5mm Microphone, HDMI C (Mini), Nikon DC2, USB Type-C
  Wireless	Wi-Fi Bluetooth
  GPS	None

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	0 to 85%

  Battery	1 x EN-EL15b Rechargeable Lithium-Ion
  Dimensions (W x H x D)	5.3 x 4.0 x 2.7" / 134.0 x 100.5 x 67.5 mm
  Weight	1.29 lb / 585 g (Body Only)

  Focal Length	24 to 70mm
  Maximum Aperture	f/4
  Minimum Aperture	f/22
