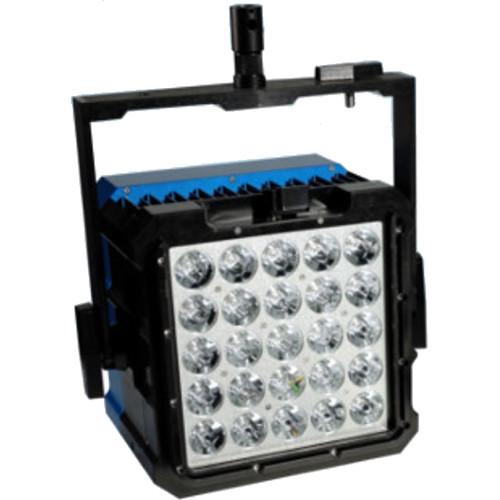

User Manual for Nila Boxer Daylight LED Fixture Click to enlarge the picture
Contents of the user manual for the Nila Boxer Daylight LED Fixture
- Product category: LED Lights Nila
- Brand: Nila
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nila LED Lights
|
User manual for the Nila Boxer Daylight LED Fixture contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nila product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nila user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nila product will considerably shorten its lifespan!
|
Product description The Boxer Daylight LED Fixture from Nila is a daylight-balanced LED fixture that draws 200W of power, and is power factor corrected for improved efficiency. Featuring instant-on operation, there is no waiting for the light to come up to temperature or brightness, and the built-in dimmer provides 0-100% seamless adjustment with consistent color reproduction throughout the dimming range.
The fixture supports wired and wireless DMX control for remote dimming. The fixture is flicker-free up to 5000 fps for high-speed recording applications, and the long-life LEDs are rated for a lifespan of up to 60,000 hours. This versatile light also sports a robust aluminum alloy housing with an anodized finish and a built-in chimera mount. - Features
-
- Daylight-balanced 200W LED fixture
- Built-in dimmer supports 0-100% control and maintains stable color reproduction throughout the entire dimming range
- Instant-on and flicker-free output throughout the entire dimming range for up to 5000 fps
- Emits no UV or IR light
- Wireless or wired DMX control is possible
- Supports 90-305 VAC input for use worldwide
- 22 to 30 VDC power input via 3-pin XLR connector
- Long-life LEDs are rated for an approximate 60,000-hour lifespan
- Included yoke offers friction tilt control for positioning
- Please note that the yoke features a baby pin for mounting to a stand
- Durable machined aluminum-alloy housing with an anodized finish
- Made in the USA
- ETL and CE compliant
- Power Factor Corrected
- It is power factor corrected. which means that it incorporates technology to make it more power efficient, ensuring that its actual power usage is closer to its rated power draw than if it was non-power factor corrected.
In the Box Nila Boxer Daylight LED Fixture (No Accessories Included) AC Power Cord Limited 2-Year Warranty Data Sheet PDF 1.6mbfdwcderayecswzywvcau Table of Contents
|
Upload User Manual
Have you got an user manual for the Nila Boxer Daylight LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNila Boxer Specs | Color Range | Daylight-balanced | | Photometrics | Open Face
10.0' / 3.0 m: 2900 fc
20.0' / 6.1 m: 800 fc
30.0' / 9.1 m: 340 fc | | Operating Voltage | 90-305 VAC, 50-60 Hz | | Power Draw | 200 W (power factor corrected) | | Dimming | 0-100% | | Control | Wireless or wired DMX | | Lamp Life | Approx. 60,000 hours | | Cooling | Passive | | Connectors | AC: Locking IEC with NEMA 5-15P connector (10' / 3.1 m)
DC: 3-pin XLR
DMX: 2x RJ-45 | | Compliances | ETL, CE | | Mount | Included yoke with baby pin stud | | Material | Machined aluminum alloy housing with anodized finish | | Dimensions | Fixture: 10 x 10 x 8" / 256 x 256 x 190 mm
With yoke attached: 13 x 16 x 8" / 333 x 256 x 190 mm | | Weight | With Lens & Yoke: 24 lb / 11 kg | | | | Box Dimensions (LxWxH) | 20.0 x 15.0 x 15.0" |
