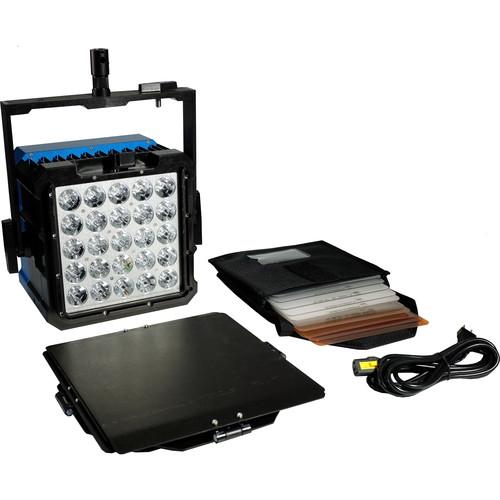

User Manual for Nila Boxer Deluxe Tungsten Kit Click to enlarge the picture
Contents of the user manual for the Nila Boxer Deluxe Tungsten Kit
- Product category: LED Lights Nila
- Brand: Nila
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nila LED Lights
|
User manual for the Nila Boxer Deluxe Tungsten Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nila product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nila user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nila product will considerably shorten its lifespan!
|
Product description The Boxer Deluxe Tungsten Kit was put together by Nila for image makers who need lots of light with a minimum of fuss. Designed to replace HMIs and tungsten fixtures, the Boxer draws just 200 watts and is flicker-free at 100% power at any frame rate and up to 5000 fps for the rest of the dimming range. Dimming with consistent color can be controlled locally or via DMX and operation is dead quiet due to the convection cooling employed. Focusing is done via the included 10, 20, 40, 60, 80, and 10° x 60° holographic lenses. The Boxer is ready for worldwide use thanks to its 90-305 VAC power supply while battery power is an option when mains power is unavailable. - Boxer Tungsten LED Fixture (No Accessories Included) The Boxer Tungsten LED Fixture from Nila is a tungsten-balanced LED fixture that draws 200W of power, and is power factor corrected for improved efficiency. Featuring instant-on operation, there is no waiting for the light to come up to temperature or brightness, and the built-in dimmer provides 0-100% seamless adjustment with consistent color reproduction throughout the dimming range.
The fixture supports wired and wireless DMX control for remote dimming. The fixture is flicker-free up to 5000 fps for high-speed recording applications, and the long-life LEDs are rated for a lifespan of up to 60,000 hours. This versatile light also sports a robust aluminum alloy housing with an anodized finish and a built-in chimera mount. - Features
-
- Tungsten-balanced 200W LED fixture
- Built-in dimmer supports 0-100% control and maintains stable color reproduction throughout the entire dimming range
- Instant-on and flicker-free output throughout the entire dimming range for up to 5000 fps
- Emits no UV or IR light
- Wireless or wired DMX control is possible
- Supports 90-305 VAC input for use worldwide
- 22 to 30 VDC power input via 3-pin XLR connector
- Long-life LEDs are rated for an approximate 60,000-hour lifespan
- Included yoke offers friction tilt control for positioning
- Please note that the yoke features a baby pin for mounting to a stand
- Durable machined aluminum-alloy housing with an anodized finish
- Made in the USA
- ETL and CE compliant
- Power Factor Corrected
- It is power factor corrected. which means that it incorporates technology to make it more power efficient, ensuring that its actual power usage is closer to its rated power draw than if it was non-power factor corrected.
- 10 Degree Narrow Spot Holographic Lens for Boxer LED Light The 10 Degree Narrow Spot Holographic Lens for Boxer LED Light from Nila changes the light's beam spread.
- 60 Degree Wide Holographic Lens for Boxer LED Light The 60 Degree Wide Holographic Lens for Boxer LED Light from Nila changes the light's beam spread.
- 20 Degree Spot Holographic Lens for Boxer LED Light The 20 Degree Spot Holographic Lens for Boxer LED Light from Nila changes the light's beam spread.
- 80 Degree Flood Holographic Lens for Boxer LED Light The 80 Degree Flood Holographic Lens for Boxer LED Light from Nila changes the light's beam spread.
- 40 Degree Medium Holographic Lens for Boxer LED Light The 40 Degree Medium Holographic Lens for Boxer LED Light from Nila changes the light's beam spread.
- 10 x 60 Degree Elliptical Holographic Lens for Boxer LED Light The 10 x 60 Degree Elliptical Holographic Lens for Boxer LED Light from Nila changes the light's beam spread.
- CTB Gel Set for Boxer Fixture Take advantage of this CTB Gel Set for Boxer Fixture from Nila when using your Tungsten Boxer LED light. This set of four blue rigid gels includes 1/8, 1/4, 1/2, and full daylight intensity. It is sold here as a spare or replacement gel set.
- Boxer Barndoor Set The 4-leaf Boxer Barndoor Set from Nila fits on the front of the fixture, allowing you to control and contour its light output while reducing spill light.
- Boxer Lens Pouch for Six Lenses & Four Color Gels Store, protect, and transport up to six lenses and four color gels with the well made Boxer Lens Pouch from Nila. Designated dividers help organize and protect gear from impact. For strength and durability, the pouch has heavy-duty stitching.
In the Box Bundle Items Boxer Tungsten LED Fixture (No Accessories Included) stdfbcqxwesscactteyuq 10 Degree Narrow Spot Holographic Lens for Boxer LED Light 60 Degree Wide Holographic Lens for Boxer LED Light stdfbcqxwesscactteyuq 20 Degree Spot Holographic Lens for Boxer LED Light 80 Degree Flood Holographic Lens for Boxer LED Light 40 Degree Medium Holographic Lens for Boxer LED Light 10 x 60 Degree Elliptical Holographic Lens for Boxer LED Light CTB Gel Set for Boxer Fixture Boxer Barndoor Set Boxer Lens Pouch for Six Lenses & Four Color Gels
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Nila Boxer Deluxe Tungsten Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Boxer Tungsten LED Fixture (No Accessories Included)
| Color Range | Tungsten-balanced | | Photometrics | Open Face
10.0' / 3.0 m: 2900 fc
20.0' / 6.1 m: 800 fc
30.0' / 9.1 m: 340 fc | | Operating Voltage | 90-305 VAC, 50-60 Hz | | Power Draw | 200 W (power factor corrected) | | Dimming | 0-100% | | Control | Wireless or wired DMX | | Lamp Life | Approx. 60,000 hours | | Cooling | Passive | | Connectors | AC: Locking IEC with NEMA 5-15P connector (10' / 3.1 m)
DC: 3-pin XLR
DMX: 2x RJ-45 | | Compliances | ETL, CE | | Mount | Included yoke with baby pin stud | | Material | Machined aluminum alloy housing with anodized finish | | Dimensions | Fixture: 10 x 10 x 8" / 256 x 256 x 190 mm
With yoke attached: 13 x 16 x 8" / 333 x 256 x 190 mm | | Weight | With Lens & Yoke: 24 lb / 11 kg | - 10 Degree Narrow Spot Holographic Lens for Boxer LED Light
| Beam Angle | 10° | | Compatibility | Boxer | - 60 Degree Wide Holographic Lens for Boxer LED Light
| Beam Angle | 60° | | Compatibility | Boxer | | | | Box Dimensions (LxWxH) | 9.2 x 8.0 x 0.9" | - 20 Degree Spot Holographic Lens for Boxer LED Light
| Beam Angle | 20° | | Compatibility | Boxer | - 80 Degree Flood Holographic Lens for Boxer LED Light
| Beam Angle | 80° | | Compatibility | Boxer | - 40 Degree Medium Holographic Lens for Boxer LED Light
| Beam Angle | 40° | | Compatibility | Boxer | - 10 x 60 Degree Elliptical Holographic Lens for Boxer LED Light
| Beam Angle | 10 x 60° | | Compatibility | Boxer | - CTB Gel Set for Boxer Fixture
| Compatibility | Nila Boxer Tungsten LED Light | - Boxer Barndoor Set
| | | Box Dimensions (LxWxH) | 13.6 x 13.4 x 2.3" | - Boxer Lens Pouch for Six Lenses & Four Color Gels
| Dimensions | Not provided by manufacturer | | Weight | Not provided by manufacturer | | | | Box Dimensions (LxWxH) | 9.7 x 9.4 x 2.3" |
