Nila Boxer Tungsten LED Fixture

Search your instruction manual in PDF to download

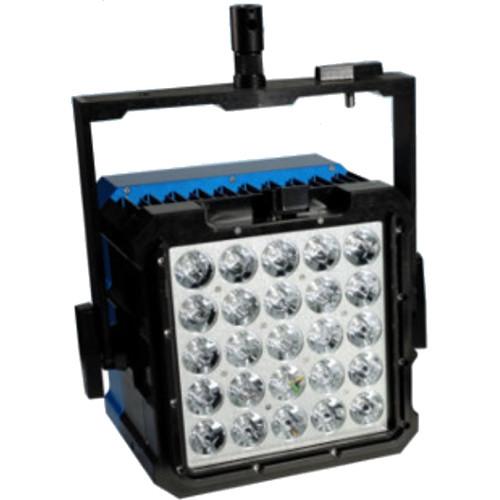

User Manual for Nila Boxer Tungsten LED Fixture

Click to enlarge the picture
Nila Boxer Tungsten LED Fixture Contents of the user manual for the Nila Boxer Tungsten LED Fixture
  • Product category: LED Lights Nila
  • Brand: Nila
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Nila LED Lights

User manual for the Nila Boxer Tungsten LED Fixture contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Nila product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Nila user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Nila product will considerably shorten its lifespan!

Product description

The Boxer Tungsten LED Fixture from Nila is a tungsten-balanced LED fixture that draws 200W of power, and is power factor corrected for improved efficiency. Featuring instant-on operation, there is no waiting for the light to come up to temperature or brightness, and the built-in dimmer provides 0-100% seamless adjustment with consistent color reproduction throughout the dimming range.

The fixture supports wired and wireless DMX control for remote dimming. The fixture is flicker-free up to 5000 fps for high-speed recording applications, and the long-life LEDs are rated for a lifespan of up to 60,000 hours. This versatile light also sports a robust aluminum alloy housing with an anodized finish and a built-in chimera mount.
    • Tungsten-balanced 200W LED fixture
    • Built-in dimmer supports 0-100% control and maintains stable color reproduction throughout the entire dimming range
    • Instant-on and flicker-free output throughout the entire dimming range for up to 5000 fps
    • Emits no UV or IR light
    • Wireless or wired DMX control is possible
    • Supports 90-305 VAC input for use worldwide
    • 22 to 30 VDC power input via 3-pin XLR connector
    • Long-life LEDs are rated for an approximate 60,000-hour lifespan
    • Included yoke offers friction tilt control for positioning
    • Please note that the yoke features a baby pin for mounting to a stand
    • Durable machined aluminum-alloy housing with an anodized finish
    • Made in the USA
    • ETL and CE compliant
    Power Factor Corrected
  • It is power factor corrected. which means that it incorporates technology to make it more power efficient, ensuring that its actual power usage is closer to its rated power draw than if it was non-power factor corrected.
In the Box Nila Boxer Tungsten LED Fixture (No Accessories Included)
  • AC Power Cord
  • Limited 2-Year Warranty
  • Data Sheet PDF 1.6mbsutxscetzbxbtctezvyxvzsscyeadbt Table of Contents

    Upload User Manual

    Have you got an user manual for the Nila Boxer Tungsten LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)


    Download User Manual

    The user manual for the Nila Boxer Tungsten LED Fixture can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Nila Boxer Tungsten LED FixtureDownload PDF User Manual - upload/ nila-boxer-tungsten-led-fixture-221400-user-manual.pdf
    (PDF file, 3.39 MB)

    Technical parameters

    Nila Boxer Specs

    Color Range Tungsten-balanced
    Photometrics Open Face
    10.0' / 3.0 m: 2900 fc
    20.0' / 6.1 m: 800 fc
    30.0' / 9.1 m: 340 fc
    Operating Voltage 90-305 VAC, 50-60 Hz
    Power Draw 200 W (power factor corrected)
    Dimming 0-100%
    Control Wireless or wired DMX
    Lamp Life Approx. 60,000 hours
    Cooling Passive
    Connectors AC: Locking IEC with NEMA 5-15P connector (10' / 3.1 m)
    DC: 3-pin XLR
    DMX: 2x RJ-45
    Compliances ETL, CE
    Mount Included yoke with baby pin stud
    Material Machined aluminum alloy housing with anodized finish
    Dimensions Fixture: 10 x 10 x 8" / 256 x 256 x 190 mm
    With yoke attached: 13 x 16 x 8" / 333 x 256 x 190 mm
    Weight With Lens & Yoke: 24 lb / 11 kg
