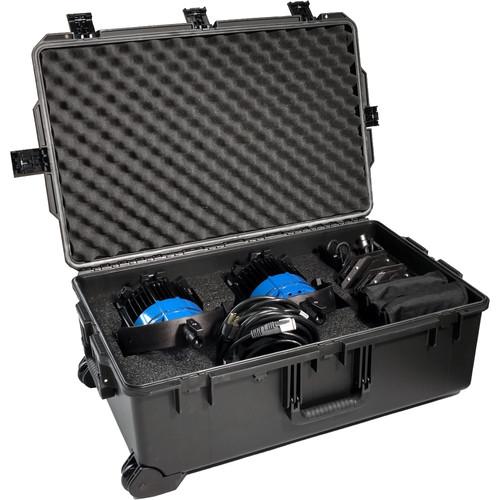

User Manual for Nila Double Varsa V2 Daylight Kit with V-Mount Battery Plates Click to enlarge the picture
Contents of the user manual for the Nila Double Varsa V2 Daylight Kit
- Product category: LED Lights Nila
- Brand: Nila
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nila LED Lights
|
User manual for the Nila Double Varsa V2 Daylight Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nila product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nila user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nila product will considerably shorten its lifespan!
|
Product description The Double Varsa V2 Daylight Kit with V-Mount Battery Plates from Nila is a wise choice for location or the studio. The kit includes 2 IP65-rated, weatherproof Daylight Varsa V2 LED fixtures, each with a V-mount battery plate, 6 holographic lenses, CTO gel set with pouch, and a set of 4-way barndoors. A kit case is included to store and transport it all. - Varsa Single Deluxe Daylight V2 LED Kit The Varsa Single Deluxe Daylight V2 LED Kit from Nila provides you with a daylight balanced LED light. yoke and power cable. The Varsa light draws 75W power and is dimmable from 100 to 0%. It is flicker-free up to 5000 fps at any dimming setting. In fact, the Varsa V2 is flicker-free at 100% at any frame rate. The Varsa light fixture is DMX controllable (control panel not included). An added feature of the V2 is its IP65 weatherproof rating making the light more than up to the challenge of wet climates. The Varsa V2 is power factor corrected, which means that it incorporates technology to make it more power efficient, ensuring that its actual power usage is closer to its rated power draw than if it was not power factor corrected. The light is ready for worldwide use thanks to its 100-240 VAC power supply.
- 40 Degree Medium Holographic Lens for Varsa LED Light The 40 Degree Medium Holographic Lens for Varsa LED Light from Nila changes the light's beam spread.
- 20 Degree Spot Holographic Lens for Varsa LED Light The 20 Degree Spot Holographic Lens for Varsa LED Light from Nila changes the light's beam spread.
- 10 Degree Narrow Spot Holographic Lens for Varsa LED Light The 10 Degree Narrow Spot Holographic Lens for Varsa LED Light from Nila changes the light's beam spread.
- 10 x 60 Degree Elliptical Holographic Lens for Varsa LED Light The 10 x 60 Degree Elliptical Holographic Lens for Varsa LED Light from Nila changes the light's beam spread.
- 60 Degree Wide Holographic Lens for Varsa LED Light The 60 Degree Wide Holographic Lens for Varsa LED Light from Nila changes the light's beam spread.
- 80 Degree Flood Holographic Lens for Varsa LED Light The 80 Degree Flood Holographic Lens for Varsa LED Light from Nila changes the light's beam spread.
- Varsa CTO Set This Varsa CTO Set from Nila includes a 1/8, a 1/4, a 1/2, and a Full Color Temperature Orange filter. These filters are compatible with the Nila Varsa Light Fixture, which has an integrated faceplate that can accommodate one filter at a time. Each of the filters in the Varsa CTO Set can be used to conveniently lower the color temperature output of a Varsa light fixture installed with a daylight color temperature bulb to a tungsten color temperature instead. Depending on the color temperature of the daylight bulb being used, a Varsa light fixture's faceplate allows the filters within this CTO set to be exchanged in order to obtain the desired tungsten color temperature output.
These filters have a Full, 1/2, 1/4, or 1/8 grade. Each grade corresponds to that of a +167, +81, +42, or +20 mired shift, and reduces the output of a light source by 1.1, 0.5, 0.3, or 0.1 stops respectively. -
- Compatible with the Nila Varsa Light Fixture
- Converts the output of a Varsa light fixture installed with a daylight color temperature bulb to a tungsten color temperature
- Full, 1/2, 1/4, or 1/8 grades correspond to a +167, +81, +42, or +20 mired shift, a 47, 73, 81, or 92% light transmission rate, and reduces the output of a light source by 1.1, 0.5, 0.3, or 0.1 stops respectively
- Constructed from polycarbonate for durability
- Varsa Barndoor Set The 4-leaf Varsa Barndoor Set from Nila fits on the front of the fixture, allowing you to control and contour its light output while reducing spill light.
- V-Mount Battery Adapter Plate The Nila V-Mount Battery Adapter Plate allows you to power the Varsa, Zaila or Boxer LED lights with Sony-type V-Mount batteries
In the Box Bundle Items 2 x Varsa Single Deluxe Daylight V2 LED Kit fyefeevcsx 2 x 40 Degree Medium Holographic Lens for Varsa LED Light fyefeevcsx 2 x 20 Degree Spot Holographic Lens for Varsa LED Light 2 x 10 Degree Narrow Spot Holographic Lens for Varsa LED Light 2 x 10 x 60 Degree Elliptical Holographic Lens for Varsa LED Light 2 x 60 Degree Wide Holographic Lens for Varsa LED Light 2 x 80 Degree Flood Holographic Lens for Varsa LED Light 2 x Varsa CTO Set 2 x Varsa Barndoor Set V-Mount Battery Adapter Plate
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Nila Double Varsa V2 Daylight Kit with V-Mount Battery Plates in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Varsa Single Deluxe Daylight V2 LED Kit
| | | Beam Angle | 10 to 80° With Optional Lenses | | Color Temperature | 5600K | | Cooling System | Passive | | Dimming | Yes, 0 to 100% (Continuous) | | Display | LCD | | Housing Material | Aluminum | | Photometrics | 1200 fc / 13,000 lux at 10' / 3 m | | Expected Lamp Life | 60000 Hours | | Fixture Dimensions | Overall: 7.0 x 6.5 x 7.0" / 17.8 x 16.5 x 17.8 cm Without Yoke | | Fixture Weight | 10 lb / 4.54 kg (Including Yoke) | | | | Fixture Mount | None | | Accessory Mount | None | | | | Yoke Material | Aluminum | | Yoke Type | Yoke/Bracket | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 10 to 18 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 75 W | | | | Cable Length | 10' / 3.05 m | - 40 Degree Medium Holographic Lens for Varsa LED Light
| Beam Angle | 40° | | Compatibility | Varsa | | | | Box Dimensions (LxWxH) | 7.8 x 7.4 x 2.2" | - 20 Degree Spot Holographic Lens for Varsa LED Light
| Beam Angle | 20° | | Compatibility | Varsa | | | | Box Dimensions (LxWxH) | 6.0 x 6.0 x 0.2" | - 10 Degree Narrow Spot Holographic Lens for Varsa LED Light
| Beam Angle | 10° | | Compatibility | Varsa | | | | Box Dimensions (LxWxH) | 5.9 x 5.8 x 0.5" | - 10 x 60 Degree Elliptical Holographic Lens for Varsa LED Light
| Beam Angle | 10 x 60° | | Compatibility | Varsa | | | | Box Dimensions (LxWxH) | 6.1 x 4.3 x 0.5" | - 60 Degree Wide Holographic Lens for Varsa LED Light
| Beam Angle | 60° | | Compatibility | Varsa | | | | Box Dimensions (LxWxH) | 6.2 x 3.1 x 1.0" | - 80 Degree Flood Holographic Lens for Varsa LED Light
| Beam Angle | 80° | | Compatibility | Varsa | | | | Box Dimensions (LxWxH) | 5.9 x 5.8 x 1.4" | - Varsa CTO Set
| Compatibility | Nila Varsa Light Fixture | | Type | Light balancing | | Size | 7.0 x 7.0" (17.8 x 17.8 cm) | | Effect | Converts the output of a Nila Varsa light fixture installed with a daylight color temperature bulb to a tungsten color temperature | | Transmission | 1/8 CTO: 92% (0.1 stop)
1/4 CTO: 81% (0.3 stop)
1/2 CTO: 73% (0.5 stop)
Full CTO: 47% (1.1 stop) | | Mired Shift | 1/8 CTO: +20
1/4 CTO: +42
1/2 CTO: +81
Full CTO: +167 | | Color Temperature | 1/8 CTO: 5500K to 4900K
1/4 CTO: 5500K to 4500K
1/2 CTO: 5500K to 3800K
Full CTO: 5500K to 2900K | | Construction | Polycarbonate | | | | Box Dimensions (LxWxH) | 5.8 x 5.8 x 0.4" | - Varsa Barndoor Set
| | | Box Dimensions (LxWxH) | 9.7 x 9.5 x 2.4" | - V-Mount Battery Adapter Plate
| | | Box Dimensions (LxWxH) | 8.7 x 5.3 x 2.3" |
