User manual

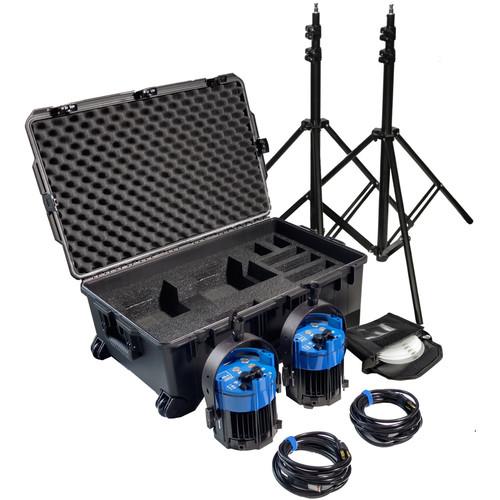

Nila Hi-Speed Capture Daylight 2-Light Kit

User Manual for Nila Hi-Speed Capture Daylight 2-Light Kit

• Product category: LED Lights Nila
• Brand: Nila
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Nila LED Lights

Product description

• Varsa Single Deluxe Daylight V2 LED Kit The Varsa Single Deluxe Daylight V2 LED Kit from Nila provides you with a daylight balanced LED light. yoke and power cable. The Varsa light draws 75W power and is dimmable from 100 to 0%. It is flicker-free up to 5000 fps at any dimming setting. In fact, the Varsa V2 is flicker-free at 100% at any frame rate. The Varsa light fixture is DMX controllable (control panel not included). An added feature of the V2 is its IP65 weatherproof rating making the light more than up to the challenge of wet climates. The Varsa V2 is power factor corrected, which means that it incorporates technology to make it more power efficient, ensuring that its actual power usage is closer to its rated power draw than if it was not power factor corrected. The light is ready for worldwide use thanks to its 100-240 VAC power supply.
• 20 Degree Spot Holographic Lens for Varsa LED Light The 20 Degree Spot Holographic Lens for Varsa LED Light from Nila changes the light's beam spread.
• 40 Degree Medium Holographic Lens for Varsa LED Light The 40 Degree Medium Holographic Lens for Varsa LED Light from Nila changes the light's beam spread.
• 60 Degree Wide Holographic Lens for Varsa LED Light The 60 Degree Wide Holographic Lens for Varsa LED Light from Nila changes the light's beam spread.

• V2 Fixture

• Yoke

• Power Cable

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

Also Includes

• 2 x Light Stands
• Kit Case
• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Varsa Single Deluxe Daylight V2 LED Kit

  Beam Angle	10 to 80° With Optional Lenses
  Color Temperature	5600K
  Cooling System	Passive
  Dimming	Yes, 0 to 100% (Continuous)
  Display	LCD
  Housing Material	Aluminum
  Photometrics	1200 fc / 13,000 lux at 10' / 3 m
  Expected Lamp Life	60000 Hours
  Fixture Dimensions	Overall: 7.0 x 6.5 x 7.0" / 17.8 x 16.5 x 17.8 cm Without Yoke
  Fixture Weight	10 lb / 4.54 kg (Including Yoke)

  Battery Plate	None

  Fixture Mount	None
  Accessory Mount	None

  Yoke Material	Aluminum
  Yoke Type	Yoke/Bracket

  Remote Control Type	DMX

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	10 to 18 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	75 W

  Cable Length	10' / 3.05 m

  IP Rating	IP65

• 20 Degree Spot Holographic Lens for Varsa LED Light

  Beam Angle	20°
  Compatibility	Varsa

  Box Dimensions (LxWxH)	6.0 x 6.0 x 0.2"

• 40 Degree Medium Holographic Lens for Varsa LED Light

  Beam Angle	40°
  Compatibility	Varsa

  Box Dimensions (LxWxH)	7.8 x 7.4 x 2.2"

• 60 Degree Wide Holographic Lens for Varsa LED Light

  Beam Angle	60°
  Compatibility	Varsa

  Box Dimensions (LxWxH)	6.2 x 3.1 x 1.0"
