Nila Varsa Single Deluxe Daylight LED

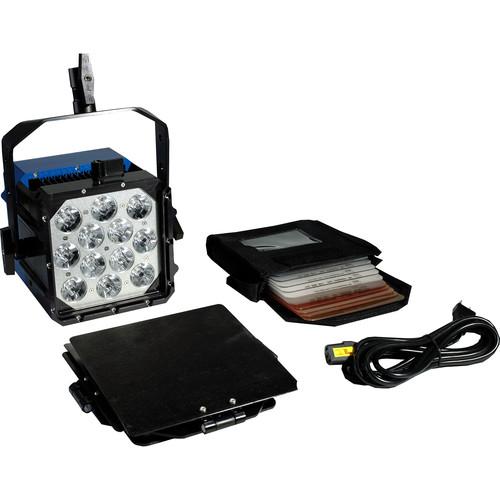

User Manual for Nila Varsa Single Deluxe Daylight LED Kit

• Product category: LED Lights Nila
• Brand: Nila
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Nila LED Lights

Product description

• Varsa Daylight LED Fixture The Varsa Daylight LED Fixture from Nila is a daylight-balanced LED fixture that draws 70W, yet it is as powerful as a 400W HMI. In addition, it is power factor corrected for improved efficiency. Featuring instant-on operation, there is no waiting for the light to come up to temperature or brightness, and the built-in dimmer provides 0-100% adjustment with consistent color reproduction throughout the dimming range.

  The fixture supports wired and wireless DMX control for remote dimming. The fixture is flicker-free up to 5000 fps at any dimming setting, and the long-life LEDs are rated for a lifespan of up to 60,000 hours. This versatile light also sports a robust aluminum-alloy housing with an anodized finish and a built-in chimera mount.
  Features
  • • Daylight-balanced 200W LED fixture
    • Built-in dimmer supports 0-100% control and maintains stable color reproduction throughout the entire dimming range
    • Instant-on and flicker-free output throughout the entire dimming range for up to 5000 fps
    • Flicker free at any frame rate when at 100% brightness
    • Emits no UV or IR light
    • Wireless or wired DMX control is possible
    • Supports 90-305 VAC input for use worldwide
    • 10 to 18 VDC power input via 4-pin XLR connector
    • Long-life LEDs are rated for an approximate 60,000-hour lifespan
    • Included yoke offers friction tilt control for positioning
    • Please note that the yoke features a baby pin for mounting to a stand
    • Durable machined aluminum-alloy housing with an anodized finish
    • Made in the USA
    • ETL and CE compliant
  Power Factor Corrected
  • It is power factor corrected, which means that it incorporates technology to make it more power efficient, ensuring that its actual power usage is closer to its rated power draw than if it was non-power factor corrected.
• Varsa Barndoor Set The 4-leaf Varsa Barndoor Set from Nila fits on the front of the fixture, allowing you to control and contour its light output while reducing spill light.
• 10 Degree Narrow Spot Holographic Lens for Varsa LED Light The 10 Degree Narrow Spot Holographic Lens for Varsa LED Light from Nila changes the light's beam spread.
• 20 Degree Spot Holographic Lens for Varsa LED Light The 20 Degree Spot Holographic Lens for Varsa LED Light from Nila changes the light's beam spread.
• 40 Degree Medium Holographic Lens for Varsa LED Light The 40 Degree Medium Holographic Lens for Varsa LED Light from Nila changes the light's beam spread.
• 60 Degree Wide Holographic Lens for Varsa LED Light The 60 Degree Wide Holographic Lens for Varsa LED Light from Nila changes the light's beam spread.
• 80 Degree Flood Holographic Lens for Varsa LED Light The 80 Degree Flood Holographic Lens for Varsa LED Light from Nila changes the light's beam spread.
• 10 x 60 Degree Elliptical Holographic Lens for Varsa LED Light The 10 x 60 Degree Elliptical Holographic Lens for Varsa LED Light from Nila changes the light's beam spread.
• Varsa Lens Pouch for Six Lenses & Four Color Gels Store, protect, and transport up to six lenses and four color gels in the well made Varsa Lens Pouch from Nila. Designated dividers help organize and protect gear from impact. For strength and durability, the pouch has heavy-duty stitching.
• Varsa CTO Set This Varsa CTO Set from Nila includes a 1/8, a 1/4, a 1/2, and a Full Color Temperature Orange filter. These filters are compatible with the Nila Varsa Light Fixture, which has an integrated faceplate that can accommodate one filter at a time. Each of the filters in the Varsa CTO Set can be used to conveniently lower the color temperature output of a Varsa light fixture installed with a daylight color temperature bulb to a tungsten color temperature instead. Depending on the color temperature of the daylight bulb being used, a Varsa light fixture's faceplate allows the filters within this CTO set to be exchanged in order to obtain the desired tungsten color temperature output.

  These filters have a Full, 1/2, 1/4, or 1/8 grade. Each grade corresponds to that of a +167, +81, +42, or +20 mired shift, and reduces the output of a light source by 1.1, 0.5, 0.3, or 0.1 stops respectively.
  • • Compatible with the Nila Varsa Light Fixture
    • Converts the output of a Varsa light fixture installed with a daylight color temperature bulb to a tungsten color temperature
    • Full, 1/2, 1/4, or 1/8 grades correspond to a +167, +81, +42, or +20 mired shift, a 47, 73, 81, or 92% light transmission rate, and reduces the output of a light source by 1.1, 0.5, 0.3, or 0.1 stops respectively
    • Constructed from polycarbonate for durability

• AC Power Cord

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• 1/8 CTO Filter

• 1/4 CTO Filter

• 1/2 CTO Filter

• Full CTO Filter

• Limited 2-Year Warranty

Also Includes

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Varsa Daylight LED Fixture

  Color Range	Daylight-balanced
  Photometrics	Open Face 3.0' / 0.9 m: 9400 fc 10.0' / 3.0 m: 1200 fc 20.0' / 6.1 m: 300 fc (daylight-balanced fixture only)
  Operating Voltage	90 to 305 VAC, 50-60 Hz 10 to 18 VDC
  Power Draw	70 W (power factor corrected)
  Dimming	0-100%
  Control	Wireless or wired DMX
  Lamp Life	Approx. 60,000 hours
  Cooling	Passive
  Connectors	AC: Locking IEC with NEMA 5-15P connector (10' / 3.1 m) DC: 4-pin XLR DMX: 2 x RJ-45
  Compliances	ETL, CE
  Mount	Included yoke with baby pin stud
  Material	Machined aluminum alloy housing with anodized finish
  Dimensions	Fixture: 7 x 6.5 x 7" / 178 x 165 x 178 mm With yoke attached: 9 x 12 x 7" / 229 x 305 x 256 mm
  Weight	With Lens & Yoke: 10 lb / 4.5 kg

  Box Dimensions (LxWxH)	12.5 x 9.4 x 7.7"

• Varsa Barndoor Set

  Box Dimensions (LxWxH)	9.7 x 9.5 x 2.4"

• 10 Degree Narrow Spot Holographic Lens for Varsa LED Light

  Beam Angle	10°
  Compatibility	Varsa

  Box Dimensions (LxWxH)	5.9 x 5.8 x 0.5"

• 20 Degree Spot Holographic Lens for Varsa LED Light

  Beam Angle	20°
  Compatibility	Varsa

  Box Dimensions (LxWxH)	6.0 x 6.0 x 0.2"

• 40 Degree Medium Holographic Lens for Varsa LED Light

  Beam Angle	40°
  Compatibility	Varsa

  Box Dimensions (LxWxH)	7.8 x 7.4 x 2.2"

• 60 Degree Wide Holographic Lens for Varsa LED Light

  Beam Angle	60°
  Compatibility	Varsa

  Box Dimensions (LxWxH)	6.2 x 3.1 x 1.0"

• 80 Degree Flood Holographic Lens for Varsa LED Light

  Beam Angle	80°
  Compatibility	Varsa

  Box Dimensions (LxWxH)	5.9 x 5.8 x 1.4"

• 10 x 60 Degree Elliptical Holographic Lens for Varsa LED Light

  Beam Angle	10 x 60°
  Compatibility	Varsa

  Box Dimensions (LxWxH)	6.1 x 4.3 x 0.5"

• Varsa Lens Pouch for Six Lenses & Four Color Gels

  Dimensions	Not provided by manufacturer
  Weight	Not provided by manufacturer

• Varsa CTO Set

  Compatibility	Nila Varsa Light Fixture
  Type	Light balancing
  Size	7.0 x 7.0" (17.8 x 17.8 cm)
  Effect	Converts the output of a Nila Varsa light fixture installed with a daylight color temperature bulb to a tungsten color temperature
  Transmission	1/8 CTO: 92% (0.1 stop) 1/4 CTO: 81% (0.3 stop) 1/2 CTO: 73% (0.5 stop) Full CTO: 47% (1.1 stop)
  Mired Shift	1/8 CTO: +20 1/4 CTO: +42 1/2 CTO: +81 Full CTO: +167
  Color Temperature	1/8 CTO: 5500K to 4900K 1/4 CTO: 5500K to 4500K 1/2 CTO: 5500K to 3800K Full CTO: 5500K to 2900K
  Construction	Polycarbonate

  Box Dimensions (LxWxH)	5.8 x 5.8 x 0.4"
