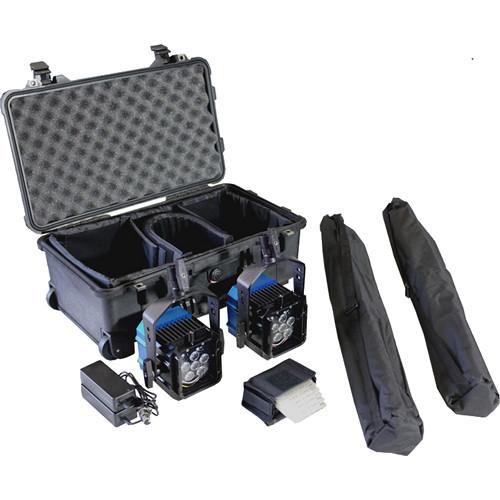

User Manual for Nila Zaila High-Speed Lab Daylight-Balanced 2-Light LED Kit Click to enlarge the picture
Contents of the user manual for the Nila Zaila High-Speed Lab Daylight-Balanced 2-Light
- Product category: LED Lights Nila
- Brand: Nila
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nila LED Lights
|
User manual for the Nila Zaila High-Speed Lab Daylight-Balanced 2-Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nila product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nila user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nila product will considerably shorten its lifespan!
|
Product description Comprising a complete setup designed for high-speed video capture at frame rates up to 5000 fps, the Zaila High-Speed Lab Daylight-Balanced 2-Light LED Kit from Nila includes two fixtures, two sets of three lenses, and two light stands.
The LED fixtures are daylight-balanced and accept the included holographic lenses to adjust the beam angle and focus, and each fixture also incorporates a Chimera mount to accept optional soft boxes without the need for an additional speed ring. The fixture also features a built-in dimmer for 0-100% control, and can also be controlled via DMX for remote dimming adjustments. The fixtures, stands, lenses, and lens pouch all fit inside the included Double Zaila Case with a custom-cut insert to protect your gear during travel and storage. - Zaila Daylight LED Fixture The Zaila Daylight LED Fixture from Nila draws 40 watts, yet it is as powerful as a 200W HMI. Featuring instant-on operation. There is no waiting for the light to come up to temperature or brightness before using, and the built-in dimmer provides 0-100% adjustment with consistent color reproduction throughout the dimming range.
The fixture supports wired and wireless DMX control for remote dimming (DMX control panel not included), and it can be dimmed locally from the back of the unit. The fixture is flicker-free up to 5000 fps at any dimming setting, and the long-life LEDs are rated for a lifespan of up to 60,000 hours. This versatile light also sports a robust aluminum alloy housing with an anodized finish and a built-in chimera mount. - Features
-
- Daylight-balanced 40W LED fixture
- Built-in dimmer supports 0-100% adjustment and maintains stable color reproduction throughout the entire dimming range
- Instant-on and flicker-free output throughout the entire dimming range for up to 5000 fps
- Flicker free at any frame rate when at 100% brightness
- Emits no UV or IR light
- Wireless or wired DMX control is possible
- Supports 100 to 240 VAC input for use worldwide
- 10 to 18 VDC power input via 4-pin XLR connector
- Long-life LEDs are rated for an approximate 60,000-hour lifespan
- Included yoke offers friction tilt control for positioning
- Please note that the yoke features a baby pin receiver for mounting to a stand
- Durable machined aluminum alloy housing with an anodized finish
- Made in the USA
- ETL and CE compliant
- Power Factor Corrected
- It is power factor corrected, which means that it incorporates technology to make it more power efficient, ensuring that its actual power usage is closer to its rated power draw than if it was non-power factor corrected.
- 20 Degree Spot Holographic Lens for Zaila LED Light The 20 Degree Spot Holographic Lens for Zaila LED Light from Nila changes the light's beam spread.
- 40 Degree Medium Holographic Lens for Zaila LED Light The 40 Degree Medium Holographic Lens for Zaila LED Light from Nila changes the light's beam spread.
- 60 Degree Wide Holographic Lens for Zaila LED Light The 60 Degree Wide Holographic Lens for Zaila LED Light from Nila changes the light's beam spread.
- Zaila Lens Pouch for Six Lenses & Four Color Gels Store, protect, and transport up to six lenses and four color gels with the well made Zaila Lens Pouch from Nila. Designated dividers help organize and protect gear from impact. For strength and durability, the pouch has heavy-duty stitching.
- Air-Cushioned 8' Compact Light Stand (ENG Kit Stand, Black) Support your Varsa or other up to 16.5 lb light with the black, non-glare Air-Cushioned 8' Compact Light Stand from Nila. This lightweight, three-section stand is included with Nila's ENG Kit. It has a 3' wide footprint, non-slip leg tips for stability, a 5/8" adapter, and a 32" to 8' height range. For strength, durability, and reduced weight, the stand is constructed of heavy-gauge aluminum tubing. Photographers will appreciate the air cushioning that helps prevent personal injury, damage to gear, and makes lowering heavy loads easier.
- Double Zaila Case with Insert Store, transport, and protect your Double Zaila Kit in the Double Zaila Case with Insert from Nila. The case holds two full Zaila Kits. Inside the case are slots designed to house your battery adapter plates, Chimera Soft Box and light stands. The case is a rolling Pelican case made with a Nila insert.
In the Box Bundle Items 2 x Zaila Daylight LED Fixture stdfbcqxwesscactteyuq 2 x 20 Degree Spot Holographic Lens for Zaila LED Light 2 x 40 Degree Medium Holographic Lens for Zaila LED Light 2 x 60 Degree Wide Holographic Lens for Zaila LED Light stdfbcqxwesscactteyuq Zaila Lens Pouch for Six Lenses & Four Color Gels 2 x Air-Cushioned 8' Compact Light Stand (ENG Kit Stand, Black) Double Zaila Case with Insert stdfbcqxwesscactteyuq Table of Contents
|
Upload User Manual
Have you got an user manual for the Nila Zaila High-Speed Lab Daylight-Balanced 2-Light LED Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Zaila Daylight LED Fixture
| | | Color Temperature | 5600K | | Cooling System | Passive | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Photometrics | 10°:
1400 fc / 15,064 lux at 3' / 0.91 m
120 fc / 1291.2 lux at 10' / 3.05 m
30 fc / 322.8 lux at 20' / 6.1 m
20°:
800 fc / 8608 lux at 3' / 0.91 m
64 fc / 688.6 lux at 10' / 3.05 m
16 fc / 172.2 lux at 20' / 6.1 m
40°:
500 fc / 5380 lux at 3' / 0.91 m
42 fc / 451.9 lux at 10' / 3.05 m
11 fc / 118.4 lux at 20' / 6.1 m
60°:
190 fc / 2044.4 lux at 3' / 0.91 m
17 fc / 182.9 lux at 10' / 3.05 m
5 fc / 53.8 lux at 20' / 6.1 m
80°:
110 fc / 1183.6 lux at 3' / 0.91 m
11 fc / 118.4 lux at 10' / 3.05 m
3 fc / 32.3 lux at 20' / 6.1 m | | Expected Lamp Life | 60,000 Hours | | Fixture Dimensions | 5.0 x 5.0 x 5.4" / 127.0 x 127.0 x 137.0 mm
7.0 x 9.5 x 5.4" / 178.0 x 241.0 x 137.0 mm (Including Yoke) | | Fixture Weight | 5 lb / 2.3 kg (Including Yoke, Lens) | | | | Power Input Connector | 4-Pin XLR | | DMX Connector | RJ45 | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 230 VAC, 50 / 60 Hz | | DC Input Power | 10 to 18 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 40 W | | | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.55" | - 20 Degree Spot Holographic Lens for Zaila LED Light
| Beam Angle | 20° | | Compatibility | Zaila | | | | Box Dimensions (LxWxH) | 3.6 x 3.4 x 0.9" | - 40 Degree Medium Holographic Lens for Zaila LED Light
| Beam Angle | 40° | | Compatibility | Zaila | | | | Box Dimensions (LxWxH) | 3.6 x 3.4 x 0.3" | - 60 Degree Wide Holographic Lens for Zaila LED Light
| Beam Angle | 60° | | Compatibility | Zaila | | | | Box Dimensions (LxWxH) | 3.6 x 3.4 x 0.3" | - Zaila Lens Pouch for Six Lenses & Four Color Gels
| Dimensions | Not provided by manufacturer | | Weight | Not provided by manufacturer | | | | Box Dimensions (LxWxH) | 4.7 x 4.0 x 1.6" | - Air-Cushioned 8' Compact Light Stand (ENG Kit Stand, Black)
| Materials | Anodized, black finish, heavy-gauge aluminum tubing | | Connector | 5/8" Light stand adapter | | Load Capacity | 16.5 lb / 7.5 kg | | Height | Max: 8' / 2.4 m
Min: 32" / 81.3 cm | | Weight | 3.8 lb / 1.7 kg | | | | Box Dimensions (LxWxH) | 36.0 x 3.0 x 3.0" | - Double Zaila Case with Insert
| Exterior Dimensions | Not supplied by manufacturer | | Weight | Not supplied by manufacturer | | | | Box Dimensions (LxWxH) | 22.4 x 14.0 x 9.5" |
