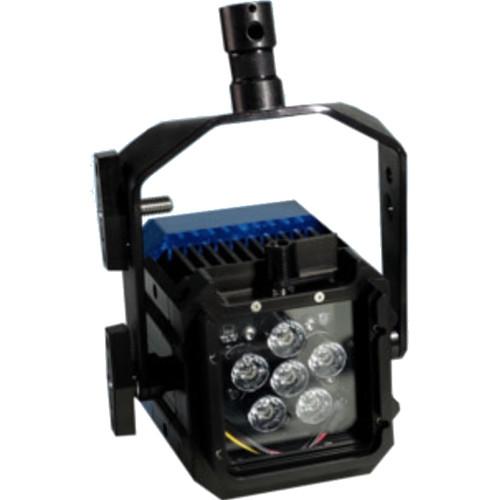

User Manual for Nila Zaila Tungsten LED Fixture Click to enlarge the picture
Contents of the user manual for the Nila Zaila Tungsten LED Fixture
- Product category: LED Lights Nila
- Brand: Nila
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nila LED Lights
|
User manual for the Nila Zaila Tungsten LED Fixture contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nila product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nila user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nila product will considerably shorten its lifespan!
|
Product description The Zaila Tungsten LED Fixture from Nila draws 40 watts, yet it is as powerful as a 350W tungsten fixture. Featuring instant-on operation. There is no waiting for the light to come up to temperature or brightness before using, and the built-in dimmer provides 0-100% adjustment with consistent color reproduction throughout the dimming range.
The fixture supports wired and wireless DMX control for remote dimming (DMX control panel not included), and it can be dimmed locally from the back of the unit. The fixture is flicker-free up to 5000 fps at any dimming setting, and the long-life LEDs are rated for a lifespan of up to 60,000 hours. This versatile light also sports a robust aluminum alloy housing with an anodized finish and a built-in chimera mount. - Features
-
- Tungsten-balanced 40W LED fixture
- Built-in dimmer supports 0-100% adjustment and maintains stable color reproduction throughout the entire dimming range
- Instant-on and flicker-free output throughout the entire dimming range for up to 5000 fps
- Flicker free at any frame rate when at 100% brightness
- Emits no UV or IR light
- Wireless or wired DMX control is possible
- Supports 100 to 240 VAC input for use worldwide
- 10 to 18 VDC power input via 4-pin XLR connector
- Long-life LEDs are rated for an approximate 60,000-hour lifespan
- Included yoke offers friction tilt control for positioning
- Please note that the yoke features a baby pin receiver for mounting to a stand
- Durable machined aluminum alloy housing with an anodized finish
- Made in the USA
- ETL and CE compliant
- Power Factor Corrected
- It is power factor corrected, which means that it incorporates technology to make it more power efficient, ensuring that its actual power usage is closer to its rated power draw than if it was non-power factor corrected.
In the Box Nila Zaila Tungsten LED Fixture AC Power Cord AC/DC Power Supply Limited 2-Year Warranty Guides & Manuals dtebyqdqzzaueuzyauuvvbfyfdbq Table of Contents
|
Upload User Manual
Have you got an user manual for the Nila Zaila Tungsten LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Nila Zaila Tungsten LED Fixture can be downloaded in PDF format at the link stated below.
Technical parametersNila Zaila Specs | | | Color Temperature | 3200K | | Cooling System | Passive | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Photometrics | 10°:
1400 fc / 15,064 lux at 3' / 0.91 m
120 fc / 1291.2 lux at 10' / 3.05 m
30 fc / 322.8 lux at 20' / 6.1 m
20°:
800 fc / 8608 lux at 3' / 0.91 m
64 fc / 688.6 lux at 10' / 3.05 m
16 fc / 172.2 lux at 20' / 6.1 m
40°:
500 fc / 5380 lux at 3' / 0.91 m
42 fc / 451.9 lux at 10' / 3.05 m
11 fc / 118.4 lux at 20' / 6.1 m
60°:
190 fc / 2044.4 lux at 3' / 0.91 m
17 fc / 182.9 lux at 10' / 3.05 m
5 fc / 53.8 lux at 20' / 6.1 m
80°:
110 fc / 1183.6 lux at 3' / 0.91 m
11 fc / 118.4 lux at 10' / 3.05 m
3 fc / 32.3 lux at 20' / 6.1 m | | Expected Lamp Life | 60,000 Hours | | Fixture Dimensions | 5.0 x 5.0 x 5.4" / 127.0 x 127.0 x 137.0 mm
7.0 x 9.5 x 5.4" / 178.0 x 241.0 x 137.0 mm (Including Yoke) | | Fixture Weight | 5 lb / 2.3 kg (Including Yoke, Lens) | | | | Power Input Connector | 4-Pin XLR | | DMX Connector | RJ45 | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 10 to 18 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 40 W | | | | Box Dimensions (LxWxH) | 12.0 x 10.0 x 10.0" |
