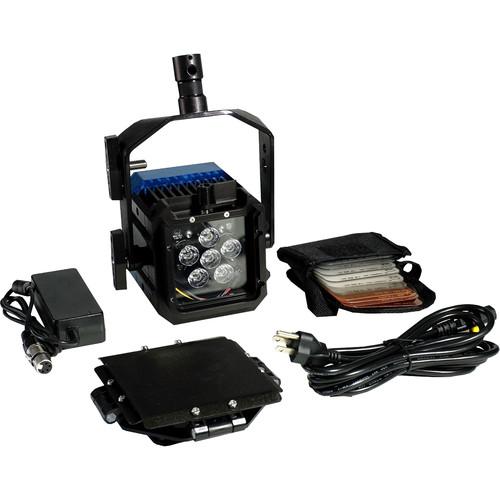

Nila Zaila V2 Deluxe Daylight LED

User Manual for Nila Zaila V2 Deluxe Daylight LED Light Kit

• Product category: LED Lights Nila
• Brand: Nila
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Nila LED Lights

Product description

• Zaila Daylight LED Fixture The Zaila Daylight LED Fixture from Nila draws 40 watts, yet it is as powerful as a 200W HMI. Featuring instant-on operation. There is no waiting for the light to come up to temperature or brightness before using, and the built-in dimmer provides 0-100% adjustment with consistent color reproduction throughout the dimming range.

  The fixture supports wired and wireless DMX control for remote dimming (DMX control panel not included), and it can be dimmed locally from the back of the unit. The fixture is flicker-free up to 5000 fps at any dimming setting, and the long-life LEDs are rated for a lifespan of up to 60,000 hours. This versatile light also sports a robust aluminum alloy housing with an anodized finish and a built-in chimera mount.
  Features
  • • Daylight-balanced 40W LED fixture
    • Built-in dimmer supports 0-100% adjustment and maintains stable color reproduction throughout the entire dimming range
    • Instant-on and flicker-free output throughout the entire dimming range for up to 5000 fps
    • Flicker free at any frame rate when at 100% brightness
    • Emits no UV or IR light
    • Wireless or wired DMX control is possible
    • Supports 100 to 240 VAC input for use worldwide
    • 10 to 18 VDC power input via 4-pin XLR connector
    • Long-life LEDs are rated for an approximate 60,000-hour lifespan
    • Included yoke offers friction tilt control for positioning
    • Please note that the yoke features a baby pin receiver for mounting to a stand
    • Durable machined aluminum alloy housing with an anodized finish
    • Made in the USA
    • ETL and CE compliant
  Power Factor Corrected
  • It is power factor corrected, which means that it incorporates technology to make it more power efficient, ensuring that its actual power usage is closer to its rated power draw than if it was non-power factor corrected.
• Zaila Barndoor Set The 4-leaf Zaila Barndoor Set from Nila fits on the front of the fixture, allowing you to control and contour its light output while reducing spill light.
• 10 Degree Narrow Spot Holographic Lens for Zaila LED Light The 10 Degree Narrow Spot Holographic Lens for Zaila LED Light from Nila changes the light's beam spread.
• 20 Degree Spot Holographic Lens for Zaila LED Light The 20 Degree Spot Holographic Lens for Zaila LED Light from Nila changes the light's beam spread.
• 40 Degree Medium Holographic Lens for Zaila LED Light The 40 Degree Medium Holographic Lens for Zaila LED Light from Nila changes the light's beam spread.
• 60 Degree Wide Holographic Lens for Zaila LED Light The 60 Degree Wide Holographic Lens for Zaila LED Light from Nila changes the light's beam spread.
• 80 Degree Flood Holographic Lens for Zaila LED Light The 80 Degree Flood Holographic Lens for Zaila LED Light from Nila changes the light's beam spread.
• 10 x 60 Degree Elliptical Holographic Lens for Zaila LED Light The 10 x 60 Degree Elliptical Holographic Lens for Zaila LED Light from Nila changes the light's beam spread.
• Zaila CTO Set This Zaila CTO Set from Nila includes a 1/8, a 1/4, a 1/2, and a Full Color Temperature Orange filter. These filters are compatible with the Nila Zaila Light Fixture, which has an integrated faceplate that can accommodate one filter at a time. Each of the filters in the Zaila CTO Set can be used to conveniently lower the color temperature output of a Zaila light fixture installed with a daylight color temperature bulb to a tungsten color temperature instead. Depending on the color temperature of the daylight bulb being used, a Zaila light fixture's faceplate allows the filters within this CTO set to be exchanged in order to obtain the desired tungsten color temperature output.

  These filters have a Full, 1/2, 1/4, or 1/8 grade. Each grade corresponds to that of a +167, +81, +42, or +20 mired shift, and reduces the output of a light source by 1.1, 0.5, 0.3, or 0.1 stops respectively.
  • • Compatible with the Nila Zaila Light Fixture
    • Converts the output of a Zaila light fixture installed with a daylight color temperature bulb to a tungsten color temperature
    • Full, 1/2, 1/4, or 1/8 grades correspond to a +167, +81, +42, or +20 mired shift, a 47, 73, 81, or 92% light transmission rate, and reduces the output of a light source by 1.1, 0.5, 0.3, or 0.1 stops respectively
    • Constructed from polycarbonate for durability
• Zaila Lens Pouch for Six Lenses & Four Color Gels Store, protect, and transport up to six lenses and four color gels with the well made Zaila Lens Pouch from Nila. Designated dividers help organize and protect gear from impact. For strength and durability, the pouch has heavy-duty stitching.

• AC Power Cord

• AC/DC Power Supply

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• 1/8 CTO Filter

• 1/4 CTO Filter

• 1/2 CTO Filter

• Full CTO Filter

• Limited 2-Year Warranty

• Limited 2-Year Warranty

Also Includes

• Power Cable
• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Zaila Daylight LED Fixture

  Color Temperature	5600K
  Cooling System	Passive
  Dimming	Yes, 0 to 100%
  Display	None
  Housing Material	Aluminum
  Photometrics	10°: 1400 fc / 15,064 lux at 3' / 0.91 m 120 fc / 1291.2 lux at 10' / 3.05 m 30 fc / 322.8 lux at 20' / 6.1 m 20°: 800 fc / 8608 lux at 3' / 0.91 m 64 fc / 688.6 lux at 10' / 3.05 m 16 fc / 172.2 lux at 20' / 6.1 m 40°: 500 fc / 5380 lux at 3' / 0.91 m 42 fc / 451.9 lux at 10' / 3.05 m 11 fc / 118.4 lux at 20' / 6.1 m 60°: 190 fc / 2044.4 lux at 3' / 0.91 m 17 fc / 182.9 lux at 10' / 3.05 m 5 fc / 53.8 lux at 20' / 6.1 m 80°: 110 fc / 1183.6 lux at 3' / 0.91 m 11 fc / 118.4 lux at 10' / 3.05 m 3 fc / 32.3 lux at 20' / 6.1 m
  Expected Lamp Life	60,000 Hours
  Fixture Dimensions	5.0 x 5.0 x 5.4" / 127.0 x 127.0 x 137.0 mm 7.0 x 9.5 x 5.4" / 178.0 x 241.0 x 137.0 mm (Including Yoke)
  Fixture Weight	5 lb / 2.3 kg (Including Yoke, Lens)

  Power Input Connector	4-Pin XLR
  DMX Connector	RJ45

  Yoke Mount	TVMP/ Hex Bolt
  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Remote Control Type	DMX

  AC Input Power	100 to 230 VAC, 50 / 60 Hz
  DC Input Power	10 to 18 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	40 W

  IP Rating	IP20

  Box Dimensions (LxWxH)	14.0 x 11.0 x 6.55"

• Zaila Barndoor Set

  Box Dimensions (LxWxH)	10.0 x 10.0 x 3.0"

• 10 Degree Narrow Spot Holographic Lens for Zaila LED Light

  Beam Angle	10°
  Compatibility	Zaila

  Box Dimensions (LxWxH)	3.6 x 3.4 x 0.3"

• 20 Degree Spot Holographic Lens for Zaila LED Light

  Beam Angle	20°
  Compatibility	Zaila

  Box Dimensions (LxWxH)	3.6 x 3.4 x 0.9"

• 40 Degree Medium Holographic Lens for Zaila LED Light

  Beam Angle	40°
  Compatibility	Zaila

  Box Dimensions (LxWxH)	3.6 x 3.4 x 0.3"

• 60 Degree Wide Holographic Lens for Zaila LED Light

  Beam Angle	60°
  Compatibility	Zaila

  Box Dimensions (LxWxH)	3.6 x 3.4 x 0.3"

• 80 Degree Flood Holographic Lens for Zaila LED Light

  Beam Angle	80°
  Compatibility	Zaila

  Box Dimensions (LxWxH)	3.6 x 3.4 x 0.3"

• 10 x 60 Degree Elliptical Holographic Lens for Zaila LED Light

  Beam Angle	10 x 60°
  Compatibility	Zaila

  Box Dimensions (LxWxH)	3.6 x 3.4 x 0.3"

• Zaila CTO Set

  Compatibility	Nila Zaila Light Fixture
  Type	Light balancing
  Size	3.5 x 3.5" (8.9 x 8.9 cm)
  Effect	Converts the output of a Nila Zaila light fixture installed with a daylight color temperature bulb to a tungsten color temperature
  Transmission	1/8 CTO: 92% (0.1 stop) 1/4 CTO: 81% (0.3 stop) 1/2 CTO: 73% (0.5 stop) Full CTO: 47% (1.1 stop)
  Mired Shift	1/8 CTO: +20 1/4 CTO: +42 1/2 CTO: +81 Full CTO: +167
  Color Temperature	1/8 CTO: 5500K to 4900K 1/4 CTO: 5500K to 4500K 1/2 CTO: 5500K to 3800K Full CTO: 5500K to 2900K
  Construction	Polycarbonate

  Box Dimensions (LxWxH)	3.4 x 3.3 x 0.4"

• Zaila Lens Pouch for Six Lenses & Four Color Gels

  Dimensions	Not provided by manufacturer
  Weight	Not provided by manufacturer

  Box Dimensions (LxWxH)	4.7 x 4.0 x 1.6"
