User Manual for Nimar Base Water Sports Housing with Pistol Grip for Canon EOS 5D Mark III, 5DS, or 5DS R Click to enlarge the picture
Contents of the user manual for the Nimar Base Water Sports Housing with
- Product category: Still Cameras & Housings Nimar
- Brand: Nimar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nimar Still Cameras & Housings
 |
User manual for the Nimar Base Water Sports Housing with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nimar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nimar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nimar product will considerably shorten its lifespan!
|

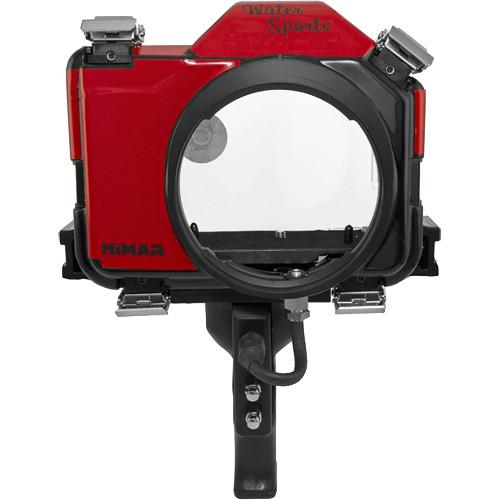

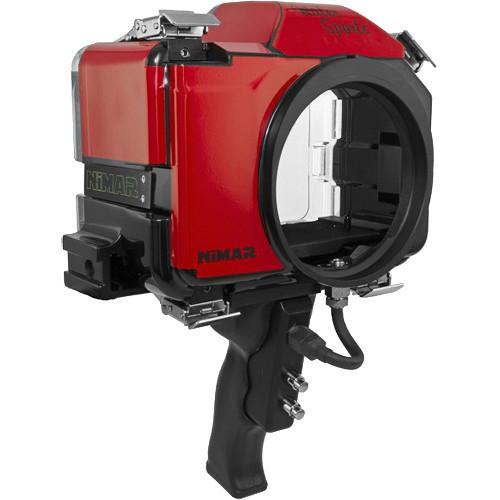

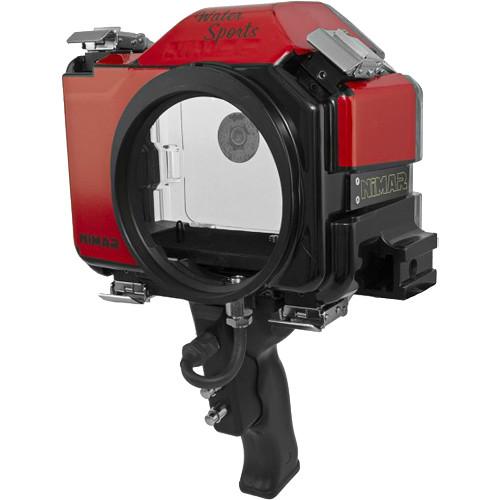

Product description Capture brilliant photos and HD video above, on, and below the surface with your Canon EOS 5D Mark III, 5DS, or 5DS R camera in the red/clear Nimar Base Water Sports Housing. Although it features the same 197' depth rating as the brand's original dive enclosures, this is an entry-level model designed especially for active shooting in shallower depths and when capturing activities such as surfing and water-skiing.
The housing is equipped with a 2-button pistol grip trigger that allows for aiming, maneuvering, and image capture with a single hand, all without shaking the camera--thus ensuring clear, blur-free shots. This grip enables shutter operation and auto focus via mechanical buttons. All remaining camera functions must be preset or automatic, as there are no controls for them on the Base.

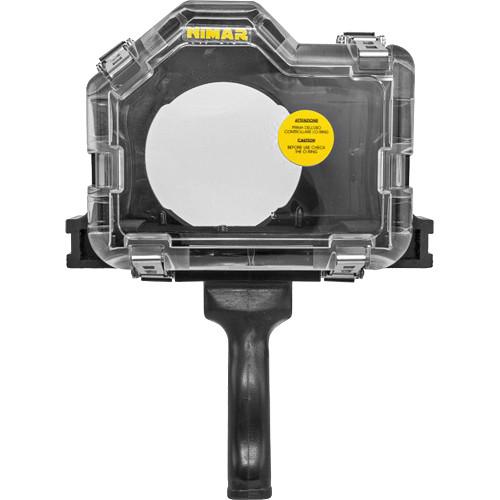

Built for durability, the Water Sports Housing is constructed from durable, corrosion-resistant polycarbonate, which is red on the top, front, and sides, but clear in the back to allow you to monitor the O-ring seal and the camera. It ships without a required lens port, and accepts interchangeable ports for various lenses. Additionally, an optional sync connector can be installed to allow for the attachment of an external strobe for increased brightness and color correction. - Construction Details
-
- Depth rating: 197'
- Made from durable, corrosion-resistant polycarbonate, which is red on top, front, and sides, but clear in back to allow you to monitor O-ring seal and camera

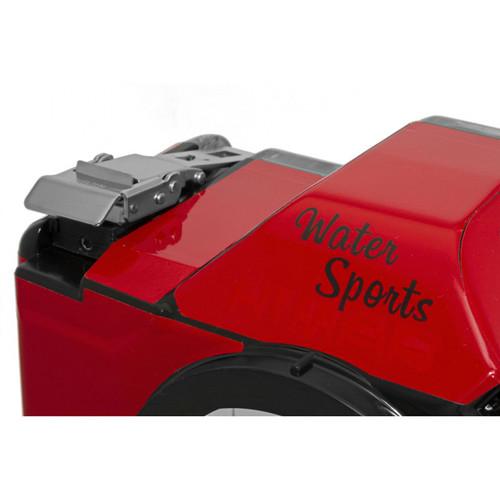

- Features 4 stainless steel AISI 316 hooks with safety clips for secure closure
- Controls and Handling
-
- 2-button pistol grip trigger for aiming, maneuvering, and shooting with a single hand, all without shaking camera
- Enables shutter release and auto focus control via mechanical push-buttons
- All remaining camera functions must be automatic or preset prior to camera installation, as there are no controls for them on housing
- Lens Port System
-
Ships without required lens port and accepts series of interchangeable ports for various Canon lenses:- Flat Acrylic Port for EF 24mm f/2.8 IS USM, 24mm f/1.4 L USM, 28mm f/2.8 IS USM, 35mm f/2 IS USM, and 50mm f/1.4 USM
- 6" Polycarbonate Dome for EF 15 mm f/2.8 Fisheye
- 5" Optical Glass Dome for 8-15mm f/4 L USM Fisheye
- Flat Acrylic Port for EF-S 18-135 mm f/3.5-5.6 IS, 18-135 mm f/3.5-5.6 IS STM, and 18-135 mm f/3.5-5.6 IS USM
- Flat Acrylic Port for EF 24-70mm f/2.8 L USM
- Flat Acrylic Port for EF 24-70mm F/2.8 L II USM
- 5" Optical Glass Dome for EF-S 10-22mm f/3.5-4.5 USM
- 5" Optical Glass Dome for EF 24mm f/1.4L II USM
- Flat Acrylic Port for EF 24-105mm f/4L IS USM
- Flat Acrylic Port for EF 16-35 mm f/2.8 L USM, 16-35 mm f/2.8 L II USM, and 16-35 mm f/4L IS USM
- 5" Optical Glass Dome for EF 16-35 mm f/2.8 L USM, 16-35 mm f/2.8 L II USM, and 16-35 mm f/4L IS USM
- Flat Acrylic Port for EF 17-40mm f/4 L USM
- 5" Optical Glass Dome for EF 17-40mm f/4L USM
- Flat Acrylic Port for EF-S 17-85 mm f/4-5.6 IS USM
- Flat Acrylic Port for EF 15-85mm f/3.5-5.6 IS USM
- Flat Glass Port for EF-S 18-55mm f/3.5-5.6 II, 18-55mm f/3.5-5.6 II USM, 18-55mm f/3.5-5.6 IS, 18-55mm f/3.5-5.6 IS II, 18-55mm f/3.5-5.6 IS STM, 18-55mm DC III, 60mm f/2.8 Macro USM, and 50mm f/2.5 Compact Macro
- 5" Optical Glass Dome for EF-S 10-18mm f/4.5-5.6 IS STM
- Flat Acrylic Port for EF 70-200mm f/4L USM and 70-200mm f/4 L IS USM
- Strobe Connection and Operation
-
- Optional 5-pin, chromed brass connector can be installed to allow for attachment of an external strobe via sync cord
UPC: 810075021332 In the Box Nimar Base Water Sports Housing with Pistol Grip for Canon EOS 5D Mark III, 5DS, or 5DS R (Red/Clear) 2-Button Pistol Grip Spare Main O-Ring Seal Silicone Grease for O-Rings Protective Cover for Bayonet Port Mount Sliding Mount/Plate for Camera Silica Gel Desiccant Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nimar Base Water Sports Housing with Pistol Grip for Canon EOS 5D Mark III, 5DS, or 5DS R in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNimar Water Sports Specs | Depth Rating | 197' / 60 m | | Control Type | Mechanical push-buttons on pistol grip trigger | | Controls | Shutter release
Auto focus
Rest of controls must be preset or set to auto mode before camera is put into housing | | Material of Construction | Body: Bayer Makrolon polycarbonate
Controls: Chromed brass
Hooks/Latches with Safety Clips: AISI 316 stainless steel | | Lens Port | Ships without a required lens port
Compatible with interchangeable, bayonet-mount ports for various lenses | | Buoyancy | Housing Only: Positive
Full System: May vary with choice of lens and port | | External Flash Connector | Optional 5-pin, chromed brass connector for attachment of strobe via sync cord | | Dimensions | 8.7 x 11.8 x 4.7" / 22 x 30 x 12 cm | | Weight | 4.2 lb / 1.9 kg | | | | Package Weight | 6.3 lb | | Box Dimensions (LxWxH) | 11.2 x 11.2 x 8.0" |
