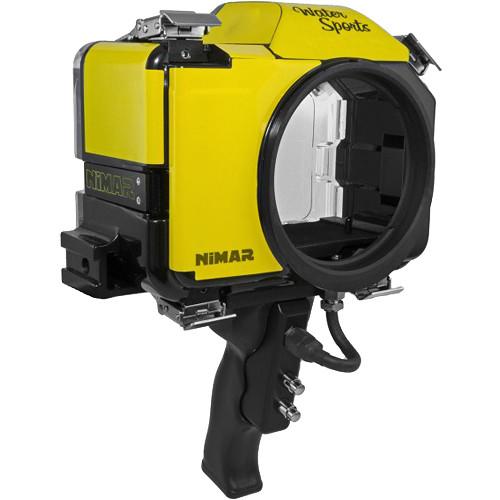

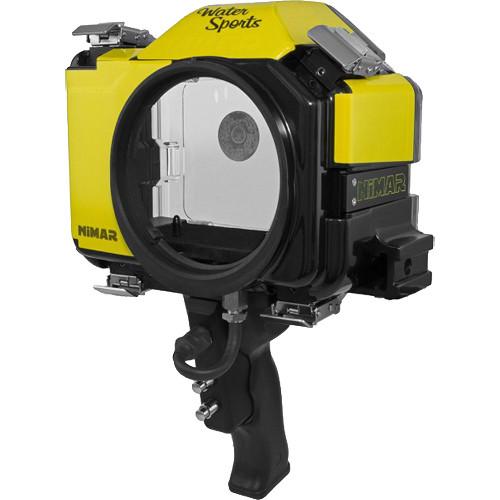

User Manual for Nimar Base Water Sports Housing with Pistol Grip for Nikon D3300 Click to enlarge the picture
Contents of the user manual for the Nimar Base Water Sports Housing with
- Product category: Still Cameras & Housings Nimar
- Brand: Nimar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nimar Still Cameras & Housings
 |
User manual for the Nimar Base Water Sports Housing with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nimar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nimar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nimar product will considerably shorten its lifespan!
|
Product description With your Nikon D3300 DSLR Camera in Nimar's yellow and clear Base Water Sports Housing, you can capture brilliant photos and HD video above, on, and below the surface. This enclosure is equipped with a 2-button pistol grip trigger that enables one-handed aiming and shooting without shaking the camera--thus ensuring clear, blur-free shots.
The housing features the same 197' depth rating as Nimar's original dive enclosures. However, this is an entry-level model designed to help you photograph or record people surfing, water-skiing, and playing sports in shallow depths.

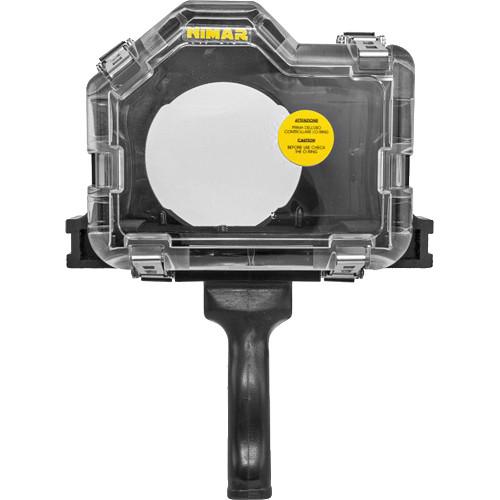

Built for durability, the Water Sports Housing is made from corrosion-resistant polycarbonate, which is yellow on the top, front, and sides, but clear in the back to allow you to monitor the O-ring seal and camera. The enclosure ships without a required lens port, and accepts interchangeable ports for various lenses. Additionally, an optional bulkhead can be installed to allow for the connection of external strobes via sync cords. - Construction Details
-
- Depth rating: 197'
- Made from durable, corrosion-resistant polycarbonate
- Yellow on the top, front, and sides, but clear in the back to allow you to monitor the O-ring seal and camera
- Features 4 stainless-steel AISI 316 latches with safety clips that ensure a secure closure
- Controls and Handling
-
- 2-button pistol grip trigger allows for one-handed aiming and shooting without shaking the camera
- Enables shutter release and auto focus control via mechanical push buttons
- All remaining camera functions must be automatic or preset prior to camera installation, as there are no controls for them on housing
- Lens Ports
-
Ships without a required lens port, and accepts a series of interchangeable ports for various lenses:- Flat Port for AF NIKKOR 24mm f/2.8D, 28mm f/2.8D, and 35mm f/2D, as well as AF-S DX NIKKOR 35mm f/1.8G and AF-S NIKKOR 50mm f/1.4 G
- 6" Dome Port for AF-DX Fisheye NIKKOR 10.5mm f/2.8G ED and AF Fisheye NIKKOR 16mm f/2.8D
- Flat Port for AF-S-DX NIKKOR 18-105mm f/3.5-5.6G ED VR
- Flat Port for AF-S-DX NIKKOR 16-85mm f/3.5-5.6G ED VR
- 5" Dome Port for AF-S DX 10-24mm f/3.5-4.5G ED
- Flat Port for AF-S-DX NIKKOR 16-80mm f/2.8-4E ED VR
- Flat Port for AF-S DX NIKKOR 18-55mm f/3.5-5.6G ED VR, AF Micro NIKKOR 60mm f/2.8 D, and AF-S Micro NIKKOR 60mm f/2.8G ED
- Flat Port for AF-S DX NIKKOR 18-55mm f/3.5-5.6G ED II, AF Micro NIKKOR 60mm f/2.8 D, and AF-S Micro NIKKOR 60mm f/2.8G ED
- Flat Port for AF-P DX NIKKOR 18-55mm f/3.5-5.6G VR, AF Micro NIKKOR 60mm f/2.8 D, and AF-S Micro NIKKOR 60mm f/2.8G ED
- Flat Port for AF-S DX NIKKOR 18-55mm f/3.5-5.6G ED VR II, AF Micro NIKKOR 60mm f/2.8 D, and AF-S Micro NIKKOR 60mm f/2.8G ED
- Flat Port for AF-S DX NIKKOR 18-70mm f/3.5-4.5G IF-ED (3.8x)
- Flat Port for AF-S DX NIKKOR 24-85mm f/3.5-5.6G ED VR
- Flat Port for AF-S-DX NIKKOR 24-120mm f/3.5-5.6G ED VR
- 5" Dome Port for AF-S DX Zoom NIKKOR 12-24mm f/4G IF ED
- Flat Port for AF-S 70-200mm f/4 G ED VR
- Strobe Connection and Operation
-
- Optional 5-pin, chrome-plated brass bulkhead can be installed to allow for the connection of external strobes via sync cords
- External strobes are more powerful than the camera's built-in flash, providing greater brightness and better color-correction capabilities
UPC: 810075021370 In the Box Nimar Base Water Sports Housing with Pistol Grip for Nikon D3300 (Yellow/Clear) 2-Button Pistol Grip Trigger Spare Main O-Ring Seal Silicone Grease for O-Rings Protective Cover for Bayonet Port Mount Sliding Mount/Plate for Camera Bag of Silica Gel Desiccant Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nimar Base Water Sports Housing with Pistol Grip for Nikon D3300 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNimar Water Sports Specs | Depth Rating | 197' / 60 m | | Control Type | Mechanical push buttons on pistol grip trigger | | Controls | Shutter release
Auto focus
Rest of controls must be preset or set to auto mode before camera installation | | Material of Construction | Body: Bayer Makrolon polycarbonate
Controls: Chrome-plated brass
Latches with Safety Clips: AISI 316 stainless steel | | Lens Port | Ships without a required port
Compatible with interchangeable, bayonet-mount ports for various lenses
See list in overview section for full details | | Buoyancy | Housing Only: Positive
Complete System: May vary with choice of lens and port | | External Flash Connector | Optional 5-pin, chrome-plated brass bulkhead for connection of strobes via sync cords | | Dimensions | 8.7 x 11.8 x 4.7" / 22 x 30 x 12 cm | | Weight | 4.2 lb / 1.9 kg | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 11.0 x 11.0 x 8.0" |
