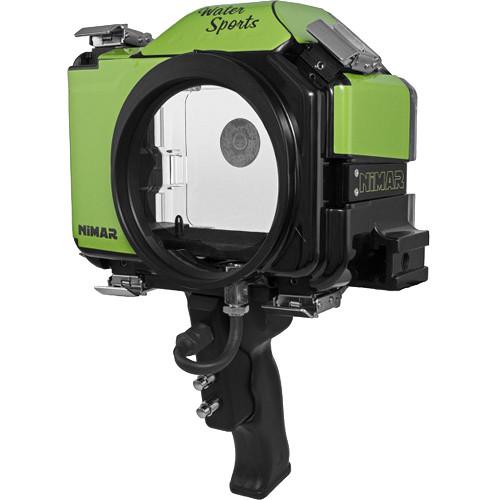

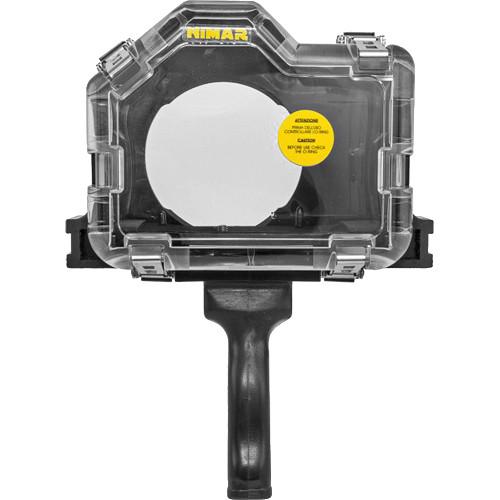

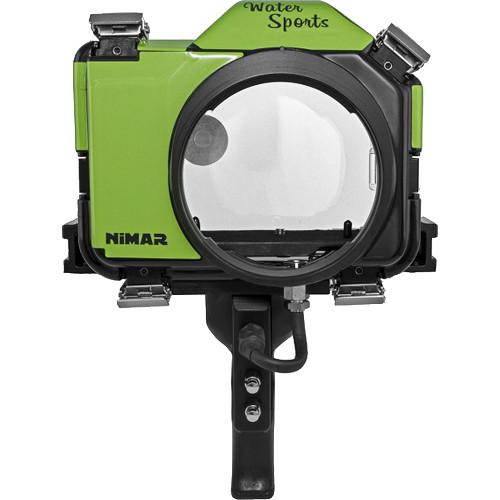

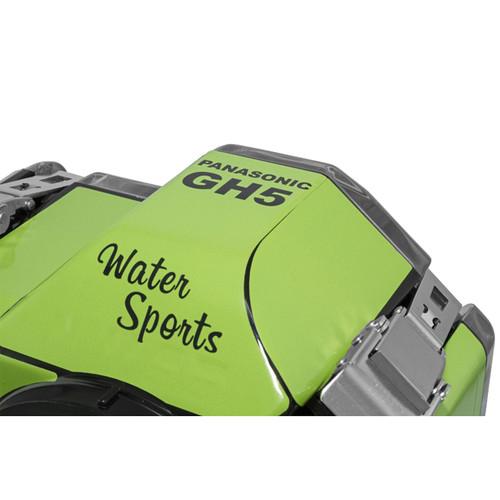

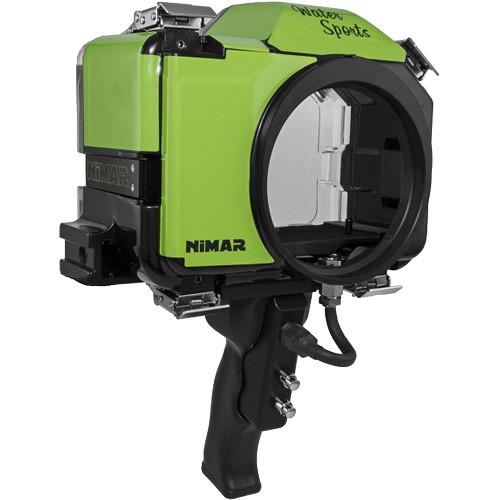

Product description With your Panasonic Lumix DC-GH5 or GH5S Mirrorless Camera in Nimar's green and clear Base Water Sports Housing, you can capture brilliant photos and HD video above, on, and below the surface. This enclosure is equipped with a 2-button pistol grip trigger that enables one-handed aiming and shooting without shaking the camera--thus ensuring clear, blur-free shots.
The housing features the same 197' depth rating as Nimar's original dive enclosures. However, this is an entry-level model designed to help you photograph or record people surfing, water-skiing, and playing sports in shallow depths.
Built for durability, the Water Sports Housing is made from corrosion-resistant polycarbonate, which is green on the top, front, and sides, but clear in the back to allow you to monitor the O-ring seal and camera. The enclosure ships without a required lens port, and accepts interchangeable ports for different lenses. Additionally, an optional bulkhead can be installed to allow for the connection of external strobes via sync cords. - Construction Details
-
- Depth rating: 197'
- Made from durable, corrosion-resistant polycarbonate, which is green on the top, front, and sides, but clear in the back to allow you to monitor the O-ring seal and camera
- Features 4 AISI 316 stainless steel latches with safety clips that ensure a secure closure
- Controls and Handling
-
- 2-button pistol grip trigger allows for one-handed aiming and shooting without shaking the camera
- Enables shutter release and auto focus control via mechanical push-buttons
- All remaining camera functions must be automatic or preset prior to camera installation, as there are no controls for them on the housing
- Lens Ports
-
Ships without a required lens port, and accepts interchangeable ports for different lenses:- 5" Optical Glass Dome for Lumix GX 12-35mm f/2.8
- 5" Optical Glass Dome for Lumix G Vario 7-14mm f/4 ASPH.
- Flat Acrylic Port for Lumix G Vario 12-60mm f/3.5-5.6 ASPH.
- Strobe Connection and Operation
-
- Optional 5-pin, chrome-plated brass bulkhead can be installed to allow for the connection of external strobes via sync cords
- External strobes provide a huge increase in brightness and perform color correction to restore hues that are absorbed by the water
UPC: 810075021400 In the Box Nimar Base Water Sports Housing with Pistol Grip for Panasonic Lumix DC-GH5 or GH5S (Green/Clear) 2-Button Pistol Grip Trigger Spare Main O-Ring Seal Silicone Grease for O-Rings Protective Cover for Bayonet Port Mount Sliding Mount/Plate for Camera Bag of Silica Gel Desiccant Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nimar Base Water Sports Housing with Pistol Grip for Panasonic Lumix DC-GH5 or GH5S in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNimar Water Sports Specs | Depth Rating | 197' / 60 m | | Control Type | Mechanical push-buttons on pistol grip trigger | | Controls | Shutter release
Auto focus
Rest of controls must be preset or set to auto mode before camera installation | | Material of Construction | Body: Bayer Makrolon polycarbonate
Controls: Chrome-plated brass
Latches with Safety Clips: AISI 316 stainless steel | | Lens Port | Ships without a required port
Compatible with interchangeable, bayonet-mount ports for different lenses | | Buoyancy | Housing Only: Positive
Complete System: May vary with choice of lens and port | | External Flash Connector | Optional 5-pin, chrome-plated brass bulkhead for connecting strobes via sync cords | | Dimensions | 8.7 x 11.8 x 4.7" / 22 x 30 x 12 cm | | Weight | 4.2 lb / 1.9 kg | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 13.0 x 10.9 x 9.1" |
