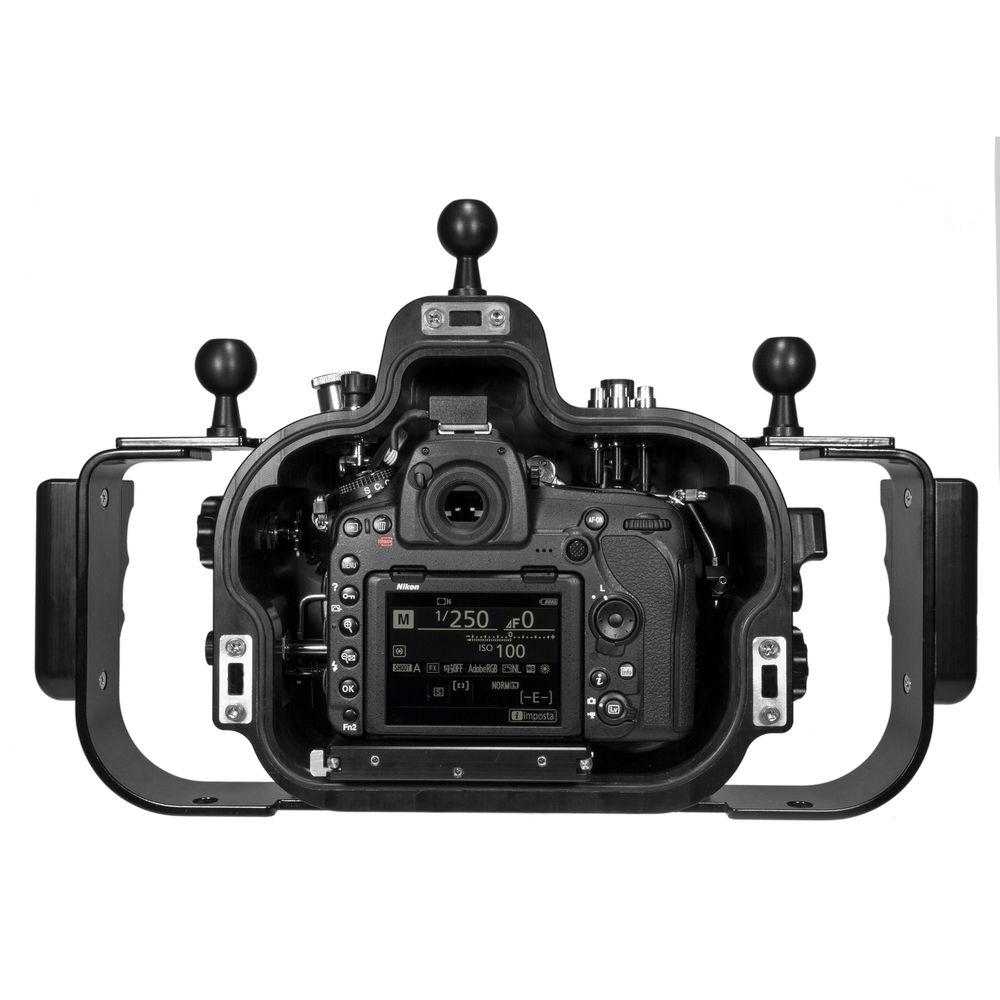

User Manual for Nimar PRO Underwater Camera Housing for Nikon D800 Click to enlarge the picture
Contents of the user manual for the Nimar PRO Underwater Camera Housing for
- Product category: Still Cameras & Housings Nimar
- Brand: Nimar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nimar Still Cameras & Housings
 |
User manual for the Nimar PRO Underwater Camera Housing for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nimar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nimar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nimar product will considerably shorten its lifespan!
|

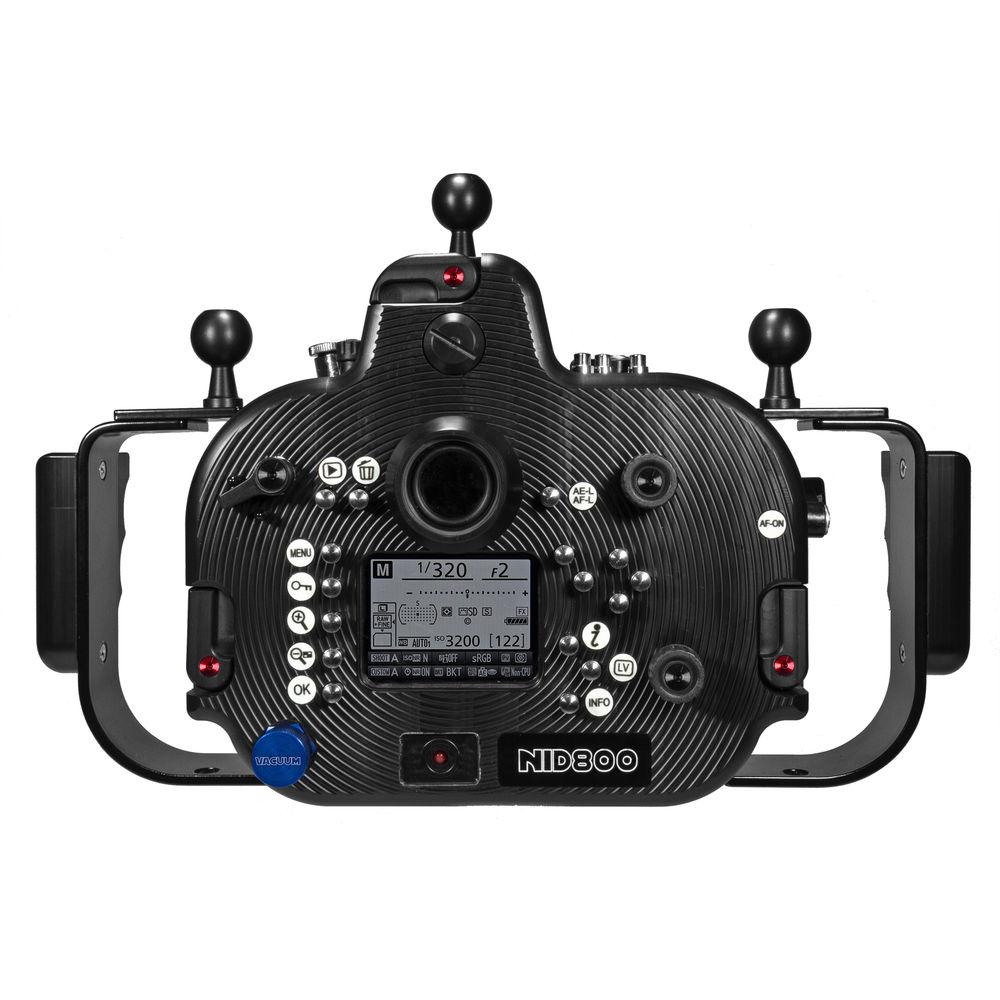

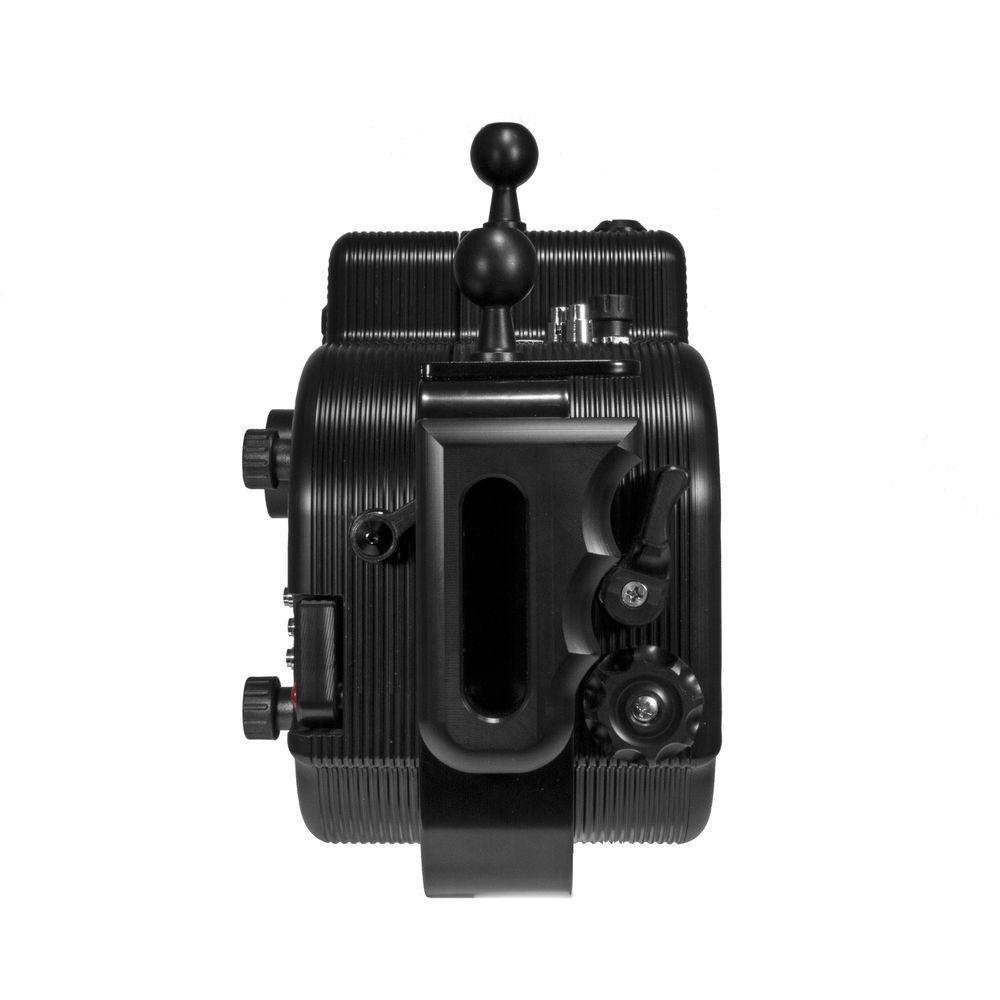

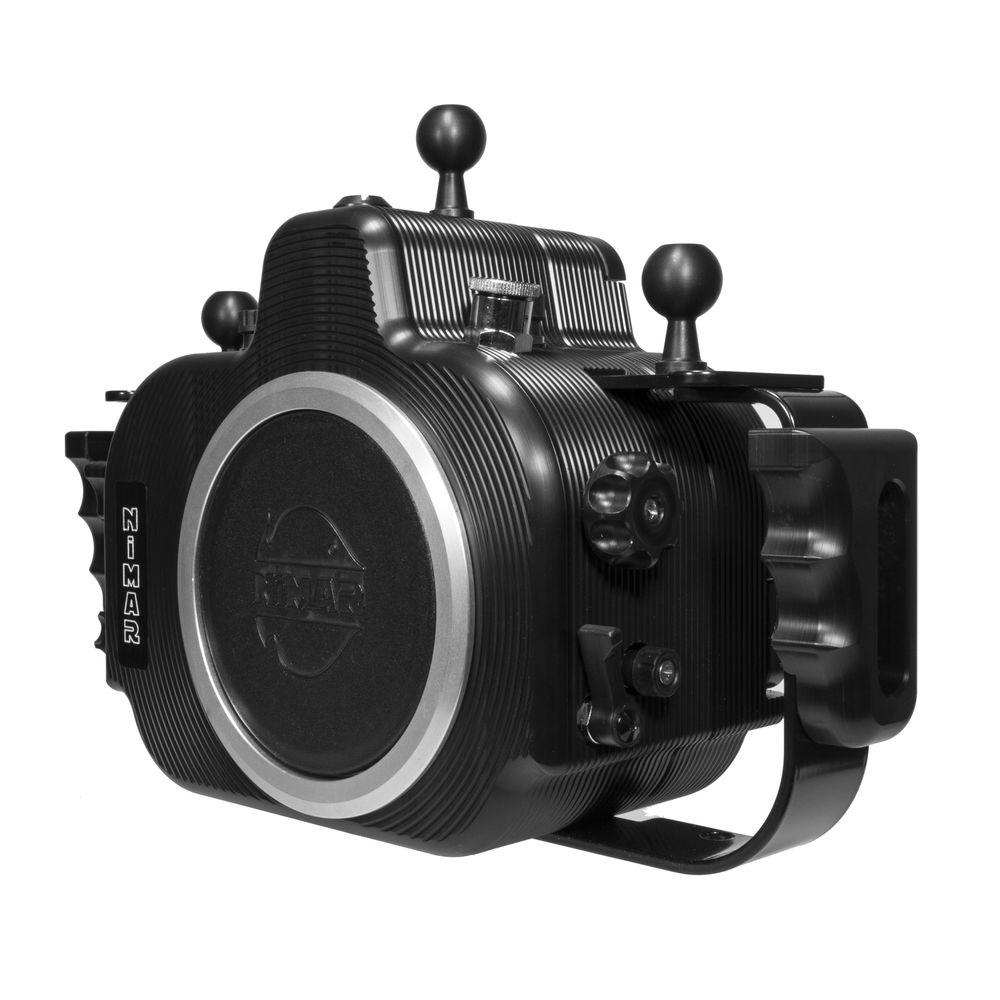

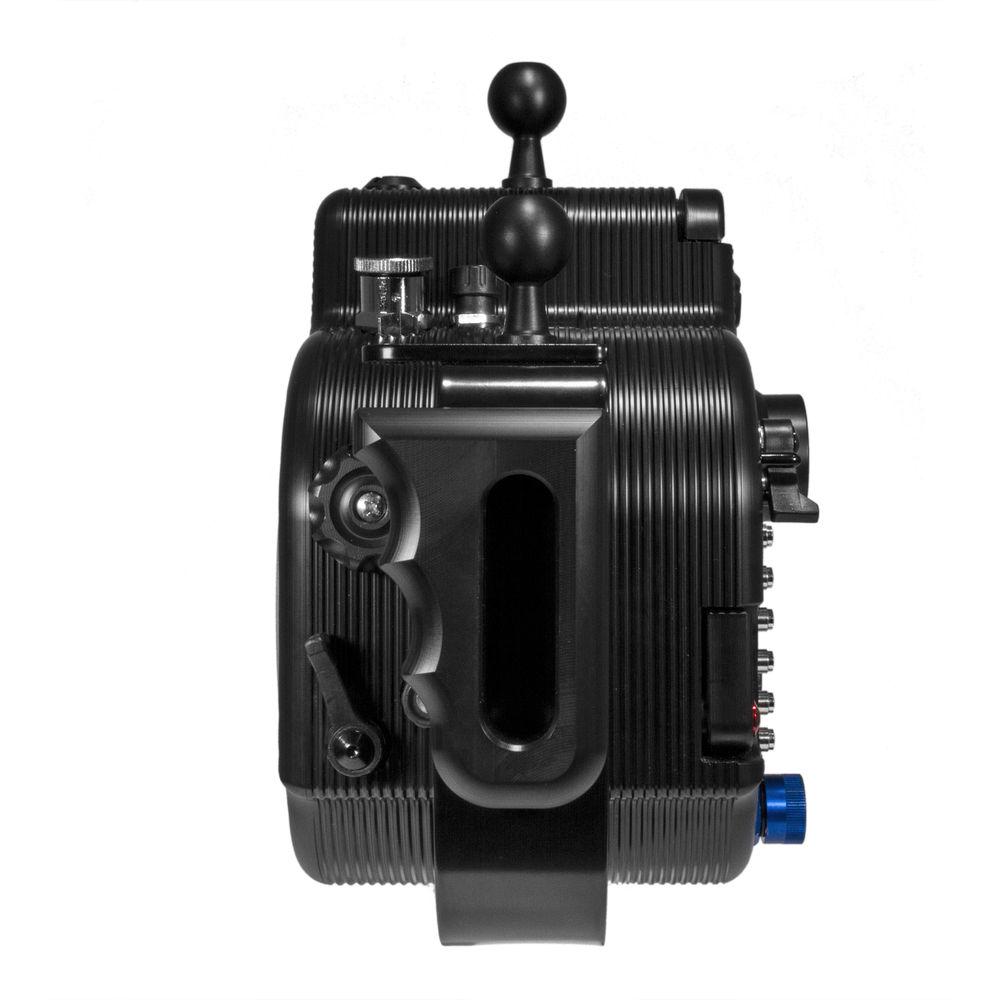

Product description With your Nikon D800 DSLR camera in this Nimar Underwater Housing, you can capture beautiful images of coral, blue hippo tang fish, and whale sharks at depths as great as 328'. The enclosure features a moisture alarm that alerts you in the unlikely event of a breach in the waterproof seal. The M14 port allows for the addition of an optional bulkhead connector to enable the hard-wiring of a strobe using a sync cord. Mechanical controls afford access to virtually all camera functions, while dual ergonomic grips improve handling and provide attachment points for optional lighting arms. The housing ships without a required lens port, and accepts interchangeable ports for many different lenses. For compatibility, please see the port chart.zwrfyayrdzdusbxfubxrdzwtuxrvffcufbe Built with durability in mind, the housing is crafted from corrosion-resistant polycarbonate, which is clear in the back to allow you to monitor the camera and O-ring seal. Snap-locking latches ensure that the enclosure stays shut during your dive. - Construction Details
-

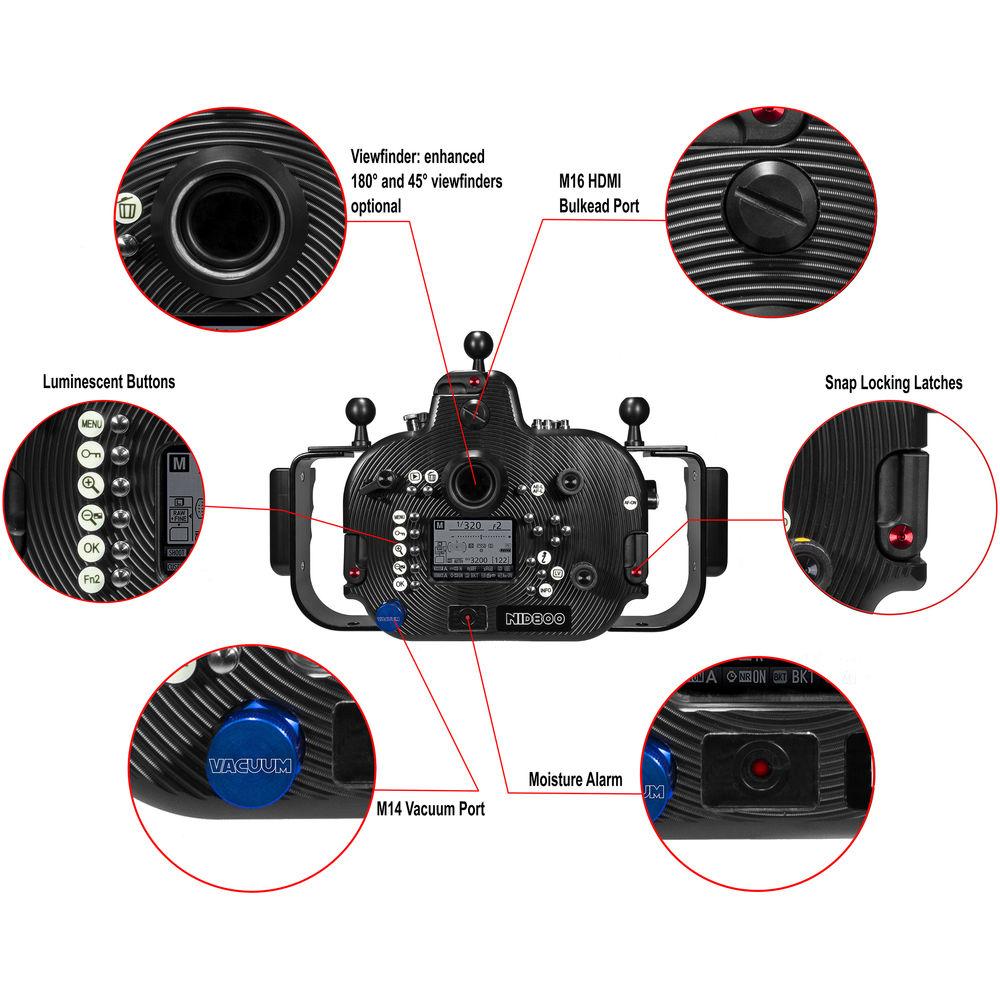

- Depth rating: 328'
- Moisture alarm
- Constructed of acetal resin and aluminum alloy
- Snap-locking latches
- M14 vacuum port
- M16 HDMI bulkhead port

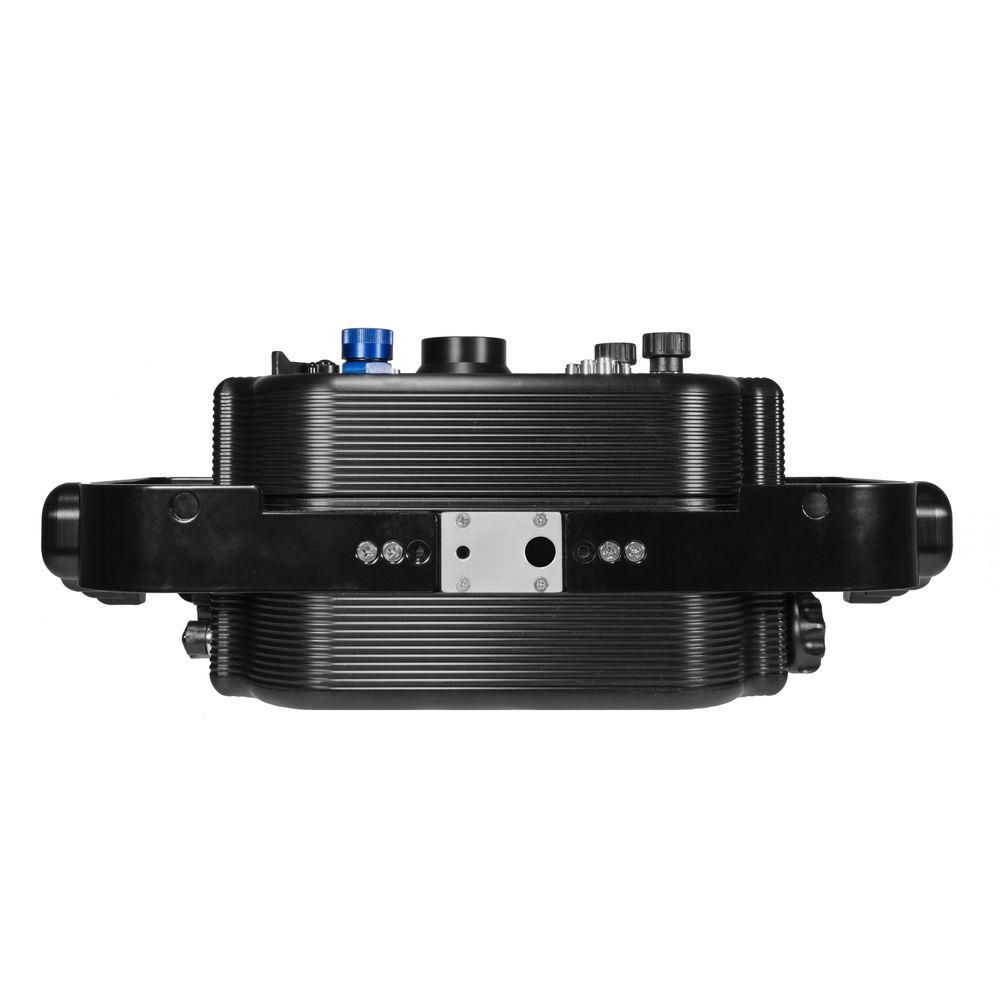

- Tripod mounting points
- Controls and Handling
-
- Mechanical controls with complete access to all key camera functions
- Luminescent buttons
- Dual ergonomic grips with 1"/25mm mounting balls
- Lens release button: Easy change-out of lenses without removing camera from housing
- Camera mounting plate does not need to be removed for surface use or when changing the battery or memory cards
- Lens Ports
-
Interchangeable lens port system with removable mount ring compatible with N120 Nauticam mount - Aquatica, Ikelite, Sea&Sea, Seacam, Subal, and NiMAR ring mounts available upon request from manufacturer
- For full lens port compatibility info, see the Port Chart
- Port lock system holds port securely in place
- Strobe Connection and Operation
-
- M14 sync cable bulkhead
- M14 port for TTL trigger or second sync cable bulkhead

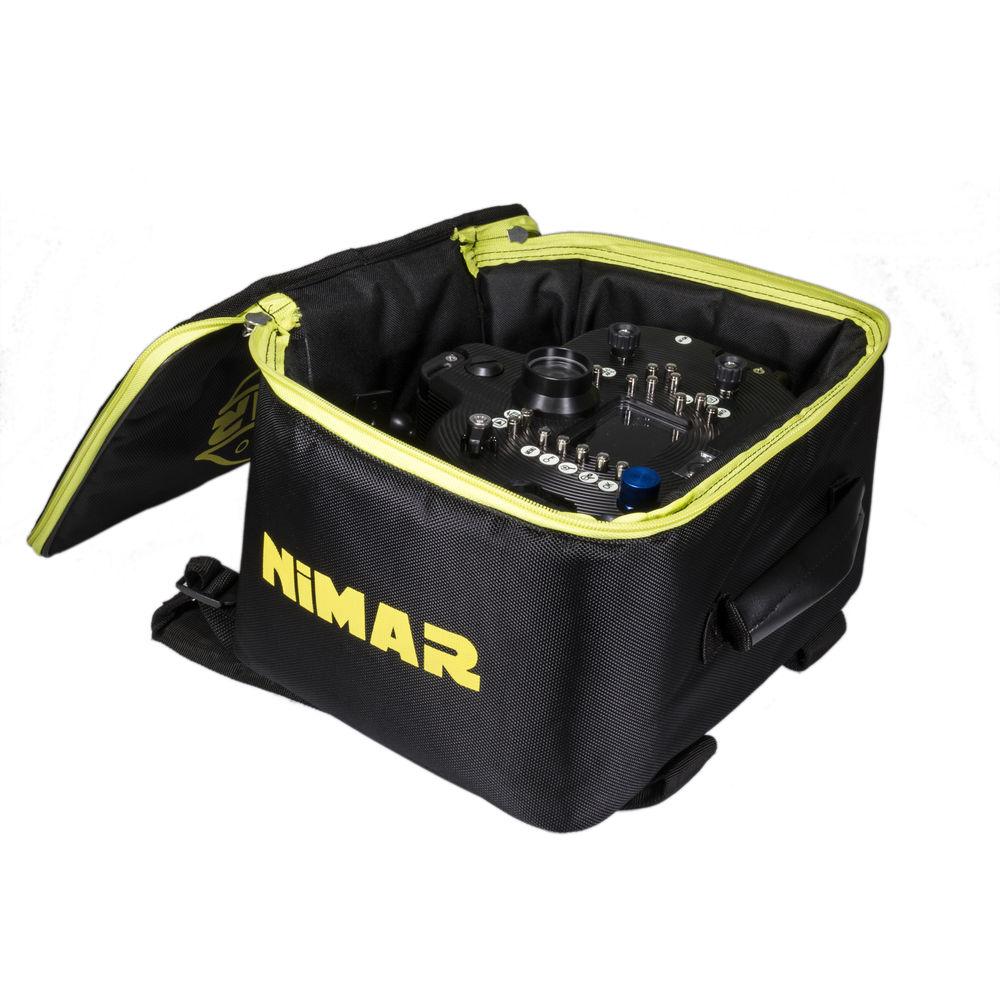

In the Box Nimar PRO Underwater Camera Housing for Nikon D800 Aluminum-Handles Bracket with Inox Screws Bayonet Protective Cap Spare Main O-Ring Silicone Grease Silica Gel Bag Soft Bag Backpack Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nimar PRO Underwater Camera Housing for Nikon D800 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNimar PRO Specs | Depth Rating | 328' / 100 m | | Control Type | Mechanical push-buttons, dials, and a lever | | Material of Construction | Acetyl resin, aluminum alloy | | Lens Port | Ships with N120 Nauticam port mount
Port mounts for Ikelite, Aquatica, Ikelite, Sea&Sea, Seacam, Subal, and NiMAR ring mount available | | Buoyancy | Housing Only: Slightly positive

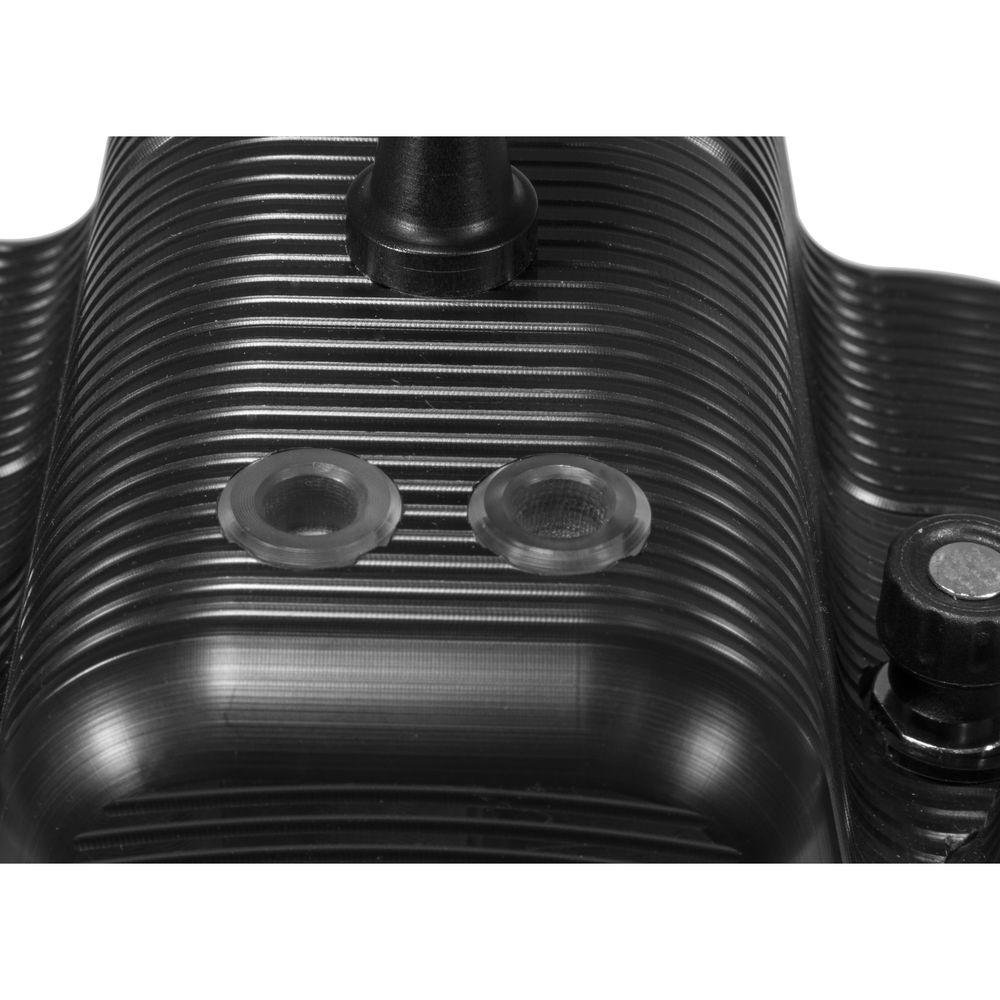

Complete System: Depends on choice of lens and port | | Internal Flash Usable | Yes, camera's built-in flash triggers strobes via fiber-optic cables | | External Strobe Connector | 2x Fiber-optic ports for connecting external strobes via cables (cables not included)
M14 port for adding optional bulkhead sync connector for strobes (cord not included) | | Mounting | 3 x 1" / 25 mm ball mounts on handles & housing | | Moisture Alarm | Yes | | Dimensions | 14.6 x 8.0 x 5.0" / 37.2 x 20.5 x 12.7 cm | | Weight | 6.9 lb / 3.2 kg |
