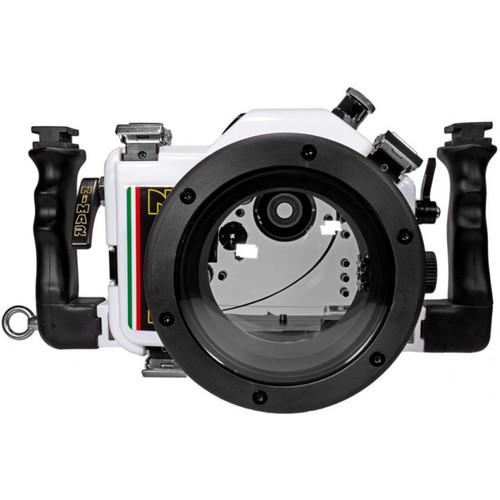

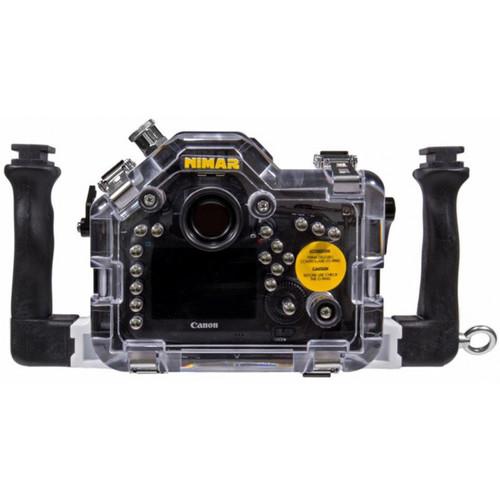

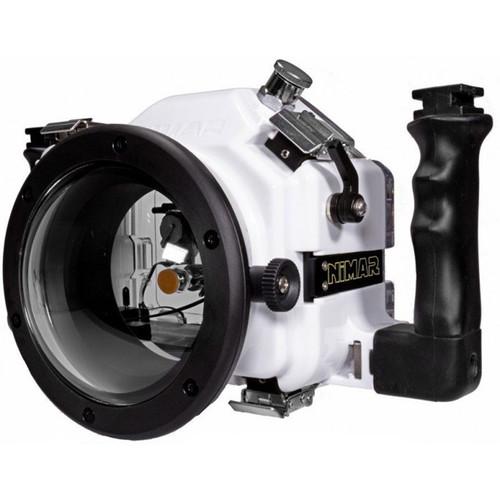

User Manual for Nimar Underwater Housing for Canon EOS 5D Mark II

Click to enlarge the picture
Nimar Underwater Housing for Canon EOS 5D Mark II Contents of the user manual for the Nimar Underwater Housing for Canon EOS
  • Product category: Still Cameras & Housings Nimar
  • Brand: Nimar
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Nimar Still Cameras & Housings

Nimar Underwater Housing for Canon EOS 5D Mark II Nimar Underwater Housing for Canon EOS 5D Mark II Nimar Underwater Housing for Canon EOS 5D Mark II Nimar Underwater Housing for Canon EOS 5D Mark II Nimar Underwater Housing for Canon EOS 5D Mark II Nimar Underwater Housing for Canon EOS 5D Mark II
User manual for the Nimar Underwater Housing for Canon EOS contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Nimar product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Nimar user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Nimar product will considerably shorten its lifespan!



Product description

With your Canon EOS 5D Mark II DSLR Camera in this Nimar Underwater Housing, you can capture brilliant images of coral, blue hippo tang fish, and whale sharks at depths as great as 197'. The enclosure features a moisture alarm that alerts you in the unlikely event of a breach in the waterproof seal. A manual, 5-pin Nikonos bulkhead enables the connection of optional external strobes via sync cords.

Mechanical controls afford access to virtually all camera functions, while dual ergonomic grips improve handling and provide attachment points for optional lighting arms. A removable eyepiece helps you compose shots through the camera's viewfinder. The housing ships without a required lens port, and accepts interchangeable ports for a broad array of different lenses. For complete compatibility details, see the list below.

Built for durability, the housing is constructed from corrosion-resistant Bayer Makrolon polycarbonate, which is white on the front, sides, and top, but clear in the back to allow you to monitor the O-ring seal and camera. Stainless-steel latches with safety clips ensure that the enclosure stays shut during your dive.
    Construction Details
    • Depth rating: 197'

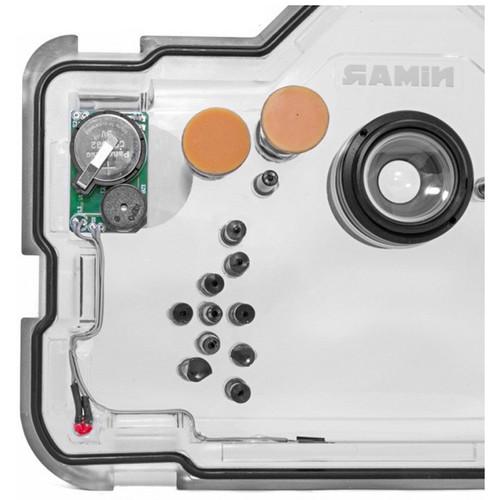

    • Moisture alarm alerts you in the unlikely event of a breach in the waterproof seal, so you can get to the surface before your camera and lens sustain any damage
    • Made from corrosion-resistant Bayer Makrolon polycarbonate, which is white on the front, top, and sides, but clear in the back to allow you to monitor the O-ring seal and camera
    • Stainless-steel latches with safety clips ensure that the housing remains shut while submerged
    Controls and Handling
    • Mechanical push-buttons, dials, and levers afford access to virtually all camera functions, including power on/off, shutter, live view, video recording, exposure compensation, metering, flash compensation, aperture, mode dial, main control dial, multi-selector, menu, OK, ISO, white balance, playback, magnification / reduction in reproduction, quality setting, info, help, protect, and delete
    • Dual ergonomic grips improve handling and provide attachment points for optional lighting arms
    • Removable eyepiece helps you compose shots through the camera's viewfinder
    Lens Ports
    • Ships without a required lens port, and accepts interchangeable, bayonet-mount ports for a broad array of different lenses:
    • NI38C Flat Port for Canon EF-S 18-55mm f/3.5-5.6 II/II USM/IS/IS II/IS STM, 18-55mm f/3.5-5.6 DC III, 60mm f/2.8 Macro USM, and 50mm f/2.5 Compact Macro lenses, as well as the Sigma MACRO 50mm f/2.8 EX DG
    • NI320 5" Optical Glass Dome for Canon EF 24mm f/2.8 IS USM, 28mm f/2.8 IS USM, 35mm f/2 IS USM, and 50mm f/1.4 USM
    • NI31 6" Polycarbonate Dome for Canon EF 15mm f/2.8 Fisheye
    • NI31C 5" Optical Glass Dome for Canon 8-15mm f/4 L USM Fisheye
    • NI32 Flat Port for Canon EF 100mm f/2.8 Macro USM and 100mm f/2.8 L Macro IS USM, Sigma 105mm f/2.8 Macro DG OS HSM, and Tamron SP 90mm f/2.8 Di VC USD
    • NI32MF Flat Port with Manual Focus for Canon EF 100mm f/2.8 L Macro IS USM
    • NI33 Flat Port for Canon EF-S 18-135 mm f/3.5-5.6 IS / IS STM / IS USM
    • NI33C Flat Port for Canon EF 24-70mm f/2.8 L USM
    • NI33C1 for Canon EF 24-70mm f/2.8 L II USM
    • NI34C1 5" Optical Glass Dome for Canon EF-S 10-22mm f/3.5-4.5 USM
    • NI34C2 5" Optical Glass Dome for Canon EF 24mm f/1.4L II USM
    • NI34CA Flat Port for Canon EF 24-105mm f/4 L IS USM
    • NI35C Flat Port for Canon EF 16-35mm f/2.8 L USM, 16-35mm f/2.8 L II USM, and 16-35mm f/4L IS USM
    • NI35C1 5" Optical Glass Dome for Canon EF 16-35mm f/2.8 L USM, 16-35mm f/2.8 L II USM, and 16-35mm f/4L IS USM
    • NI35CA Flat Port for Canon EF 17-40mm f/4 L USM
    • NI35CA1 5" Optical Glass Dome for Canon EF 17-40mm f/4 L USM
    • NI36C Flat Port for Canon EF-S 17-85mm f/4-5.6 IS USM
    • NI36CA Flat Port for Canon EF 15-85mm f/3.5-5.6 IS USM
    • NI37C Flat Port for Canon EF-S 60mm f/2.8 Macro USM and EF 50mm f/2.5 Compact Macro, as well as Sigma MACRO 50mm f/2.8 EX DG
    • NI46C 5" Optical Glass Dome for Canon EF-S 10-18mm f/4.5-5.6 IS STM
    • NI31A 6" Polycarbonate Dome for Sigma 15mm f/2.8 EX DC DIAGONAL Fisheye HSM
    • NI31S 6" Polycarbonate Dome for Sigma 10mm f/2.8 EX DC Diagonal Fisheye HSM
    • NI32S Flat Port for Sigma MACRO 105mm f/2.8 EX DG
    • NI46S 5" Optical Glass Dome for Sigma 10-20mm F/4-5.6 EX DC/HSM
    • NI47S Flat Port for Sigma 17-70mm f/2.8-4.5 DC MACRO and 17-70mm f/2.8-4 DC MACRO
    • NI47S1 Flat Port for Sigma 17-70mm f/2.8-4 DC MACRO HSM/C
    • NI46S1 5" Optical Glass Dome for Sigma 10-20mm f/3.5 EX DC
    • NI47T Flat Port for Tamron SP AF 17-50mm f/2.8 XR Di II LD Aspherical (IF)
    • NIMD 4" Glass Dome for Tokina Fisheye 10-17mm f/3.5-4.5 DX
    • NI35TO 5" Optical Glass Dome for Tokina AT-X Pro 11-16mm f/2.8 DX II
    • NI35TO1 5" Optical Glass Dome for Tokina AT-X 11-20mm f/2.8 PRO DX
    • NI46TO 5" Optical Glass Dome for Tokina AT-X 10-17mm f/3.5-4.5 DX Fisheye/NH
    Strobe Connection and Operation
    • Manual, 5-pin Nikonos bulkhead for connecting optional strobes via sync cords
In the Box Nimar Underwater Housing for Canon EOS 5D Mark II (White)
  • 2 x Removable Side Grip Handles
  • Tool Kit
  • Rubber Eyepiece Guard
  • Protective Rubber Tips for Controls
  • Port Mount Cover
  • Mounting Plate for Camera
  • Spare Main O-Ring
  • Silicone Grease
  • Silica Gel Bag
  • Soft Storage Bag
  • Limited 2-Year Warranty
  • Port Chart PDF 160.9kburyqezqrycbwxytscvrctvrbycbau Table of Contents




    Upload User Manual

    Have you got an user manual for the Nimar Underwater Housing for Canon EOS 5D Mark II in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Nimar NI5DMKII Specs

    Depth Rating 197' / 60 m
    Control Type Mechanical push-buttons, dials, and levers
    Controls Enable access to virtually all camera functions: power on/off, shutter, live view, video recording, exposure compensation, metering, flash compensation, aperture, mode dial, main control dial, multi-selector, menu, OK, ISO, white balance, playback, magnification / reduction in reproduction, quality setting, info, help, protect, and delete
    Material of Construction Body: Bayer Makrolon polycarbonate
    Grip Handles: ABS plastic with AISI 316 stainless-steel eyelet
    Latches with Safety Clips: AISI 316 stainless steel
    Lens Port Ships without a required lens port
    Accepts interchangeable ports for a broad array of different lenses
    For complete compatibility details, see list in overview section
    Buoyancy Housing Only: Slightly positive
    Complete System: Depends on choice of lens and port
    External Flash Connector Manual, 5-pin Nikonos bulkhead for connecting optional strobes via sync cords
    Mounting 2x T-mounts on grip handles for lighting arms
    Moisture Alarm Yes
    Dimensions With Handles and Eyepiece: 13.4 x 6.7 x 5.9" / 34 x 17 x 15 cm
    Weight With Handles: 5.3 lb / 2.4 kg
