Product description - Underwater Housing for Canon EOS 5D MkIII - 5Ds - 5Dsr

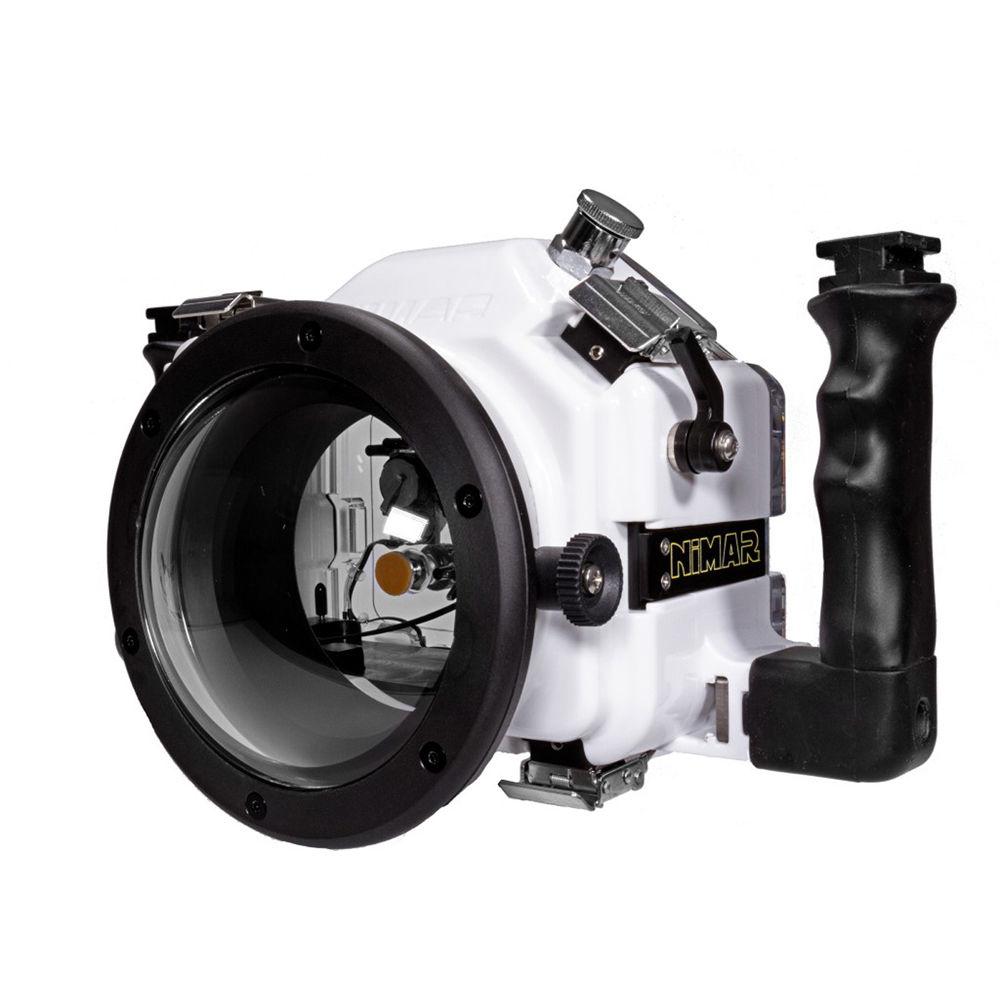

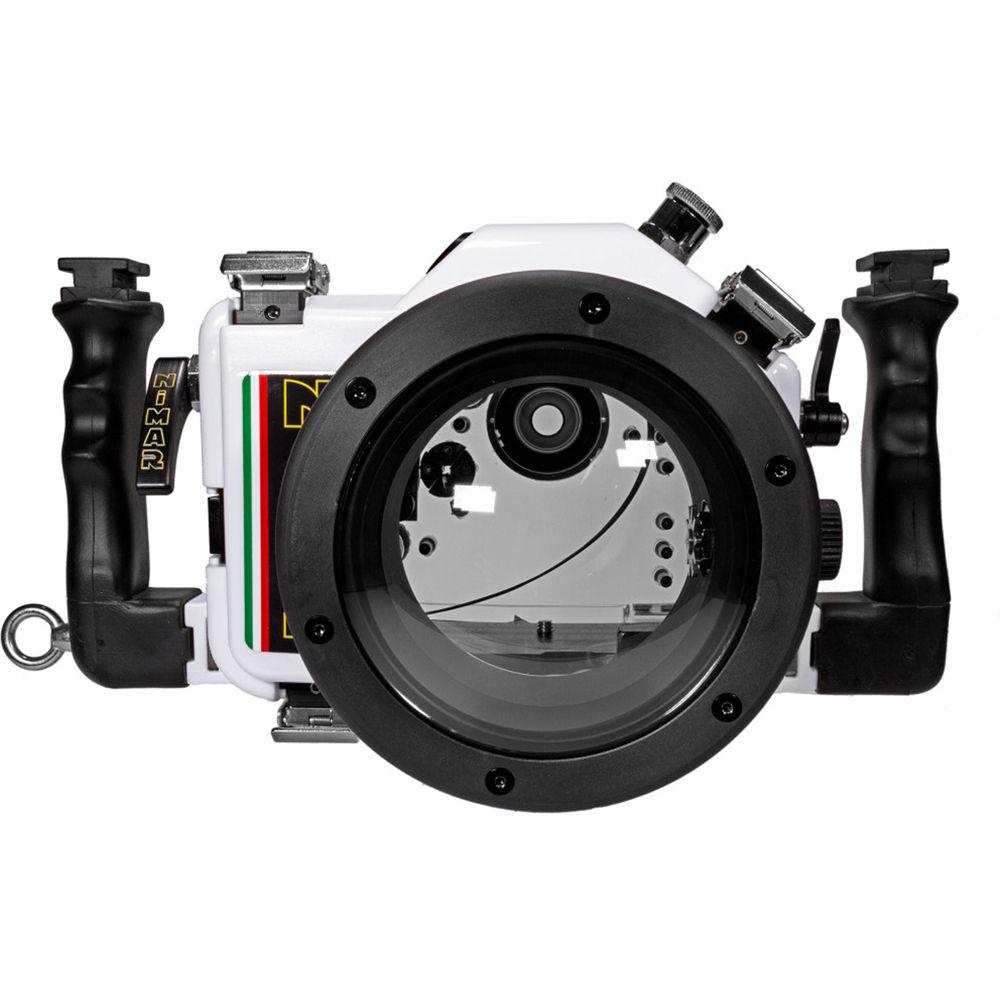

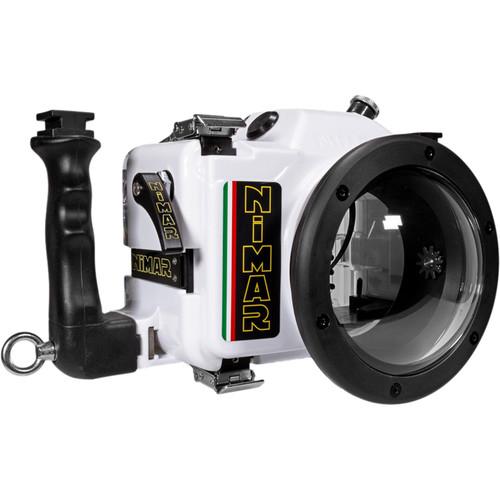

Capture brilliant photos and video as far as 197' beneath the surface with your Canon EOS 5D Mark III DSLR camera in this dedicated Underwater Housing from Nimar. It features a moisture alarm that alerts you in the unlikely event of a breach in the waterproof seal. A 5-pin Nikonos bulkhead connector enables the attachment of optional external strobes via sync cords.
Mechanical push-button and dial controls provide access to most camera functions, including shutter, video recording, mode dial, menu, playback, live view, and multi-controller. The housing also features a removable eyepiece with a magnification of 1.5x to help you compose your shots through the camera's viewfinder. Ergonomic grips on the sides improve handling and provide attachment points for optional lighting arms. The housing ships without a required lens port, and accepts interchangeable ports for a broad array of different lenses. For full compatibility details, see the list below.
Built for durability, the enclosure is crafted from corrosion-resistant polycarbonate, which is white on the front, top, and sides, but clear in the back to allow you to monitor the camera and O-ring seal. - Construction Details
-
- Depth rating of 197'
- Moisture alarm alerts you in the unlikely event of any breach in the waterproof seal--giving you time to get to the surface and prevent damage to your camera and lens
- Made from durable, corrosion-resistant Bayer Makrolon polycarbonate

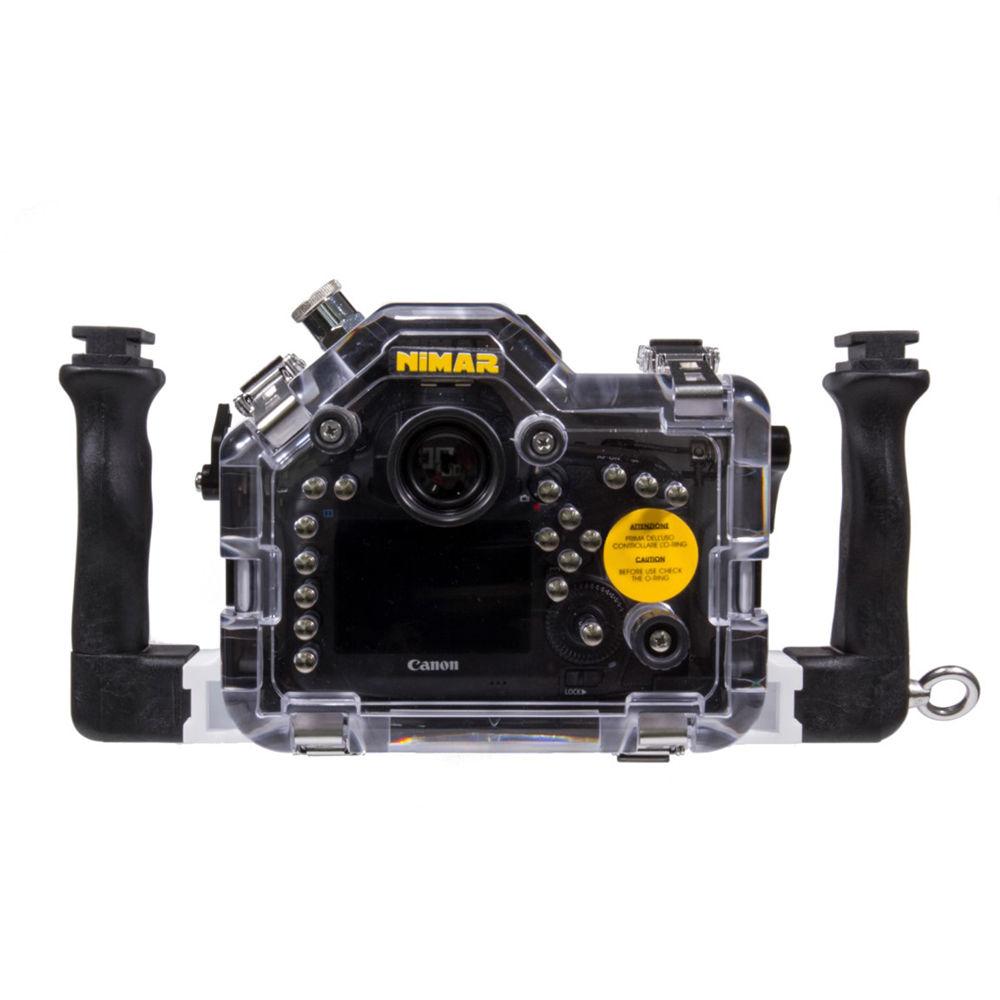

- White on the front, top, and sides, but clear in the back to allow you to monitor the camera and O-ring seal
- Controls are manufactured from chromed brass
- Hooks with safety clips are made of stainless steel
- Controls and Handling
-
- Mechanical push-button and dial controls afford access to most camera functions: shutter, mode dial lock release, mode dial, menu, rating, index/magnify/reduce, playback, delete, live view, video recording, multi-controller, quick control button, setting, quick control dial, AF start, AE lock, and AF-point selection
- Removable optical viewfinder offers a magnification of 1.5x
- Dual removable grips afford improved handling and provide T-mounts for attachment of optional strobe and video light arms
- Lens Ports
- Ships without a required lens port, and accepts interchangeable dome and flat ports for a broad array of different lenses:
- NI38C Flat Port for Canon EF-S 18-55mm f/3.5-5.6 II/II USM/IS/IS II/IS STM, 18-55mm f/3.5-5.6 DC III, 60mm f/2.8 Macro USM, and 50mm f/2.5 Compact Macro lenses, as well as the Sigma MACRO 50mm f/2.8 EX DG
- NI320 5" Optical Glass Dome for Canon EF 24mm f/2.8 IS USM, 28mm f/2.8 IS USM, 35mm f/2 IS USM, and 50mm f/1.4 USM
- NI31 6" Polycarbonate Dome for Canon EF 15mm f/2.8 Fisheye
- NI31C 5" Optical Glass Dome for Canon 8-15mm f/4 L USM Fisheye
- NI32 Flat Port for Canon EF 100mm f/2.8 Macro USM and 100mm f/2.8 L Macro IS USM, Sigma 105mm f/2.8 Macro DG OS HSM, and Tamron SP 90mm f/2.8 Di VC USD
- NI32MF Flat Port with Manual Focus for Canon EF 100mm f/2.8 L Macro IS USM
- NI33 Flat Port for Canon EF-S 18-135 mm f/3.5-5.6 IS / IS STM / IS USM
- NI33C Flat Port for Canon EF 24-70mm f/2.8 L USM
- NI33C1 for Canon EF 24-70mm f/2.8 L II USM
- NI34C1 5" Optical Glass Dome for Canon EF-S 10-22mm f/3.5-4.5 USM
- NI34C2 5" Optical Glass Dome for Canon EF 24mm f/1.4L II USM
- NI34CA Flat Port for Canon EF 24-105mm f/4 L IS USM
- NI35C Flat Port for Canon EF 16-35mm f/2.8 L USM, 16-35mm f/2.8 L II USM, and 16-35mm f/4L IS USM
- NI35C1 5" Optical Glass Dome for Canon EF 16-35mm f/2.8 L USM, 16-35mm f/2.8 L II USM, and 16-35mm f/4L IS USM
- NI35CA Flat Port for Canon EF 17-40mm f/4 L USM
- NI35CA1 5" Optical Glass Dome for Canon EF 17-40mm f/4 L USM
- NI36C Flat Port for Canon EF-S 17-85mm f/4-5.6 IS USM
- NI36CA Flat Port for Canon EF 15-85mm f/3.5-5.6 IS USM
- NI37C Flat Port for Canon EF-S 60mm f/2.8 Macro USM and EF 50mm f/2.5 Compact Macro, as well as Sigma MACRO 50mm f/2.8 EX DG
- NI46C 5" Optical Glass Dome for Canon EF-S 10-18mm f/4.5-5.6 IS STM
- NI31A 6" Polycarbonate Dome for Sigma 15mm f/2.8 EX DC DIAGONAL Fisheye HSM
- NI31S 6" Polycarbonate Dome for Sigma 10mm f/2.8 EX DC Diagonal Fisheye HSM
- NI32S Flat Port for Sigma MACRO 105mm f/2.8 EX DG
- NI46S 5" Optical Glass Dome for Sigma 10-20mm F/4-5.6 EX DC/HSM
- NI47S Flat Port for Sigma 17-70mm f/2.8-4.5 DC MACRO and 17-70mm f/2.8-4 DC MACRO
- NI47S1 Flat Port for Sigma 17-70mm f/2.8-4 DC MACRO HSM/C
- NI46S1 5" Optical Glass Dome for Sigma 10-20mm f/3.5 EX DC
- NI47T Flat Port for Tamron SP AF 17-50mm f/2.8 XR Di II LD Aspherical (IF)
- NIMD 4" Glass Dome for Tokina Fisheye 10-17mm f/3.5-4.5 DX
- NI35TO 5" Optical Glass Dome for Tokina AT-X Pro 11-16mm f/2.8 DX II
- NI35TO1 5" Optical Glass Dome for Tokina AT-X 11-20mm f/2.8 PRO DX
- NI46TO 5" Optical Glass Dome for Tokina AT-X 10-17mm f/3.5-4.5 DX Fisheye/NH
- Strobe Connection and Operation
-
- Manual, 5-pin Nikonos bulkhead connector enables attachment of optional external strobes via sync cords
UPC: 810075020021 In the Box Nimar Underwater Housing for Canon EOS 5D Mark III, 5DS, or 5DS R Removable Side Grip Handles Rubber Eyepiece Guard Bayonet Port Mount Cover Protective Rubber Tips for Controls Spare Main O-Ring Seal Camera Mount Silicone Grease Silica Gel Bag Soft Bag Tool Kit Test Certificate Limited 2-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Nimar Underwater Housing for Canon EOS 5D Mark III, 5DS, or 5DS R in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNimar NI5DMK3 Specs | Depth Rating | 197' / 60 m | | Control Type | Mechanical push-buttons and dials | | Controls | Allows access to most camera functions, including shutter, mode dial lock release, mode dial, menu, rating, index/magnify/reduce, playback, delete, live view, video recording, multi-controller, quick control button, setting, quick control dial, AF start, AE lock, and AF-point selection | | Material of Construction | Housing Body: Bayer Makrolon polycarbonate
Grip Handles: ABS with Aisi 316 stainless steel eyelet
Controls and Flash Bulkhead: Chromed brass
Latches with Safety Clips: Stainless steel | | Lens Port | Ships without a required lens port
Accepts interchangeable dome and flat ports for various lenses
For complete compatibility info, see list in overview | | Buoyancy | Housing Only: Slightly positive
Complete System: May vary depending on choice of lens and port | | External Strobe Connector | Manual, 5-pin Nikonos bulkhead connector for attaching optional strobes via sync cords | | Mounting | 2x T-mounts on grip handles | | Moisture Alarm | Yes | | Dimensions | With Handles and Eyepiece: 13.4 x 6.7 x 5.9" / 34 x 17 x 15 cm | | Weight | With Handles: 5.3 lb / 2.4 kg | | | | Package Weight | 7.75 lb | | Box Dimensions (LxWxH) | 11.4 x 11.2 x 8.1" |
