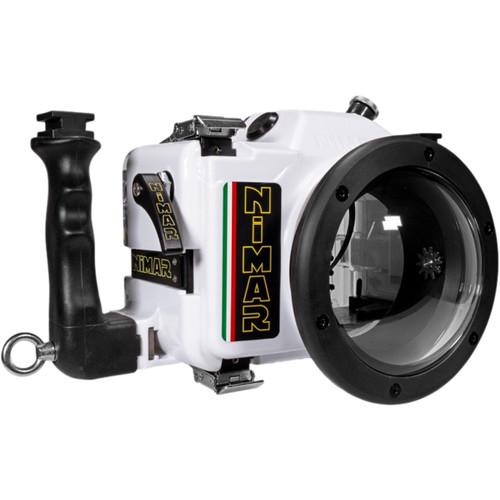

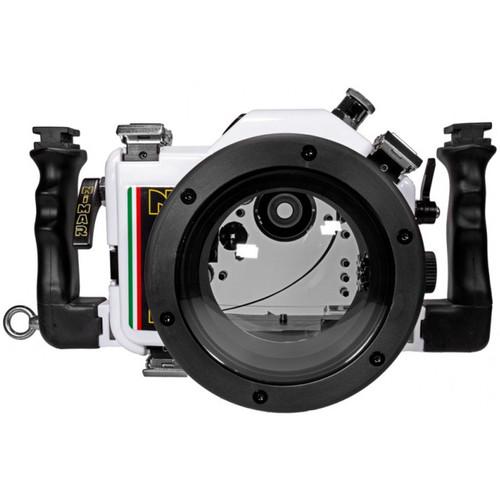

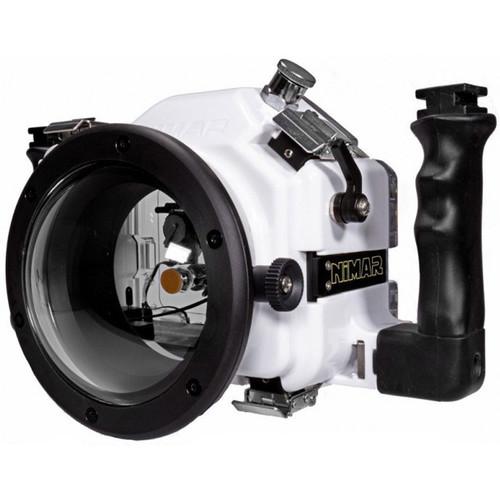

Product description With your Canon EOS 6D DSLR Camera in this Nimar Underwater Housing, you can capture brilliant images of parrot fish, moray eels, and coral at depths as great as 197'. The enclosure features a moisture alarm that alerts you in the unlikely event of a breach in the waterproof seal. A manual, 5-pin Nikonos bulkhead enables the connection of optional external strobes via sync cords.
Mechanical controls afford access to virtually all camera functions, while dual ergonomic grips improve handling and provide attachment points for optional lighting arms. A removable eyepiece with 1.5x magnification helps you compose shots through the camera's viewfinder. The housing ships without a required lens port, and accepts interchangeable ports for a broad array of different lenses. For complete compatibility details, see the list below.

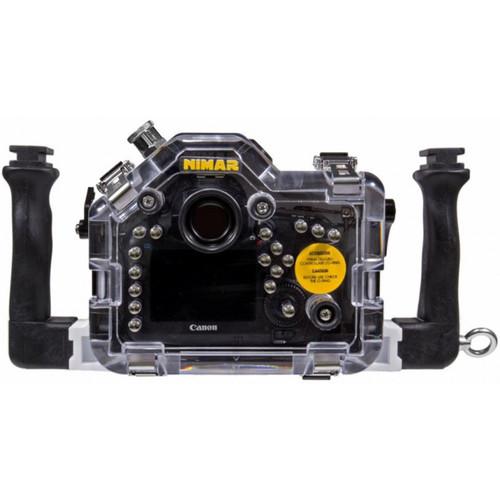

Built for durability, the housing is constructed from corrosion-resistant polycarbonate, which is white on the front, sides, and top, but clear in the back to allow you to monitor the camera and O-ring seal. Stainless steel latches with safety clips ensure that the enclosure stays shut during your dive. - Construction Details
-
- Depth Rating: 197'

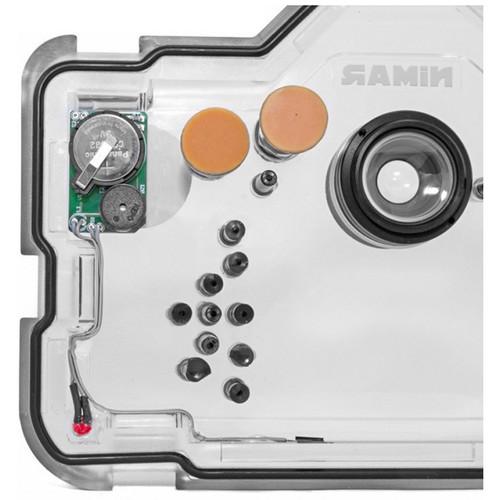

- Moisture alarm alerts you in the unlikely event of a breach in the waterproof seal, so you can get to the surface before your camera and lens sustain any damage
- Made from corrosion-resistant Bayer Makrolon polycarbonate, which is white on the front, top, and sides, but clear in the back to allow you to monitor the camera and O-ring seal
- Stainless steel latches with safety clips ensure that the housing remains shut while submerged
- Controls and Handling
-

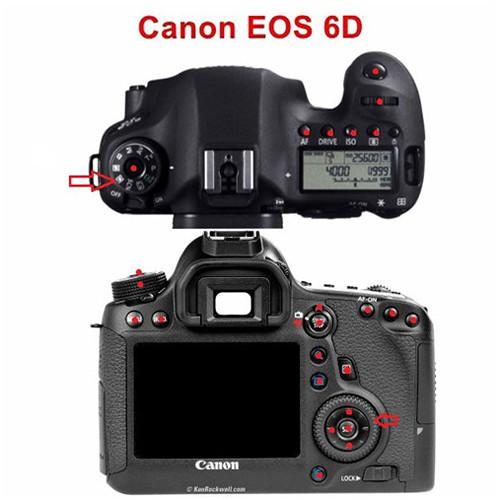

- Mechanical push-buttons, dials, and levers afford access to virtually all camera functions: power on/off, shutter, video recording, live view, mode dial, mode dial lock release, main control dial, AF-On, AF mode selection, AF point selection, drive mode selection, ISO, exposure metering, AE lock / FE lock, setting, quick control dial, quick control button, multi-controller, playback, menu, info, delete, and index/magnify/reduce
- Equipped with a removable eyepiece with 1.5x magnification to help you compose shots through the camera's viewfinder
- Dual ergonomic grips improve balance and handling, while providing T-mounts for optional lighting arms
- Lens Ports
-
Ships without a required lens port, and accepts interchangeable, bayonet-mount ports for a broad array of different lenses:- NI38C Flat Port for Canon EF-S 18-55mm f/3.5-5.6 II/II USM/IS/IS II/IS STM, 18-55mm f/3.5-5.6 DC III, 60mm f/2.8 Macro USM, and 50mm f/2.5 Compact Macro lenses, as well as the Sigma MACRO 50mm f/2.8 EX DG
- NI320 5" Optical Glass Dome for Canon EF 24mm f/2.8 IS USM, 28mm f/2.8 IS USM, 35mm f/2 IS USM, and 50mm f/1.4 USM
- NI31 6" Polycarbonate Dome for Canon EF 15mm f/2.8 Fisheye
- NI31C 5" Optical Glass Dome for Canon 8-15mm f/4 L USM Fisheye
- NI32 Flat Port for Canon EF 100mm f/2.8 Macro USM and 100mm f/2.8 L Macro IS USM, Sigma 105mm f/2.8 Macro DG OS HSM, and Tamron SP 90mm f/2.8 Di VC USD
- NI32MF Flat Port with Manual Focus for Canon EF 100mm f/2.8 L Macro IS USM
- NI33 Flat Port for Canon EF-S 18-135 mm f/3.5-5.6 IS / IS STM / IS USM
- NI33C Flat Port for Canon EF 24-70mm f/2.8 L USM
- NI33C1 for Canon EF 24-70mm f/2.8 L II USM
- NI34C1 5" Optical Glass Dome for Canon EF-S 10-22mm f/3.5-4.5 USM
- NI34C2 5" Optical Glass Dome for Canon EF 24mm f/1.4L II USM
- NI34CA Flat Port for Canon EF 24-105mm f/4 L IS USM
- NI35C Flat Port for Canon EF 16-35mm f/2.8 L USM, 16-35mm f/2.8 L II USM, and 16-35mm f/4L IS USM
- NI35C1 5" Optical Glass Dome for Canon EF 16-35mm f/2.8 L USM, 16-35mm f/2.8 L II USM, and 16-35mm f/4L IS USM
- NI35CA Flat Port for Canon EF 17-40mm f/4 L USM
- NI35CA1 5" Optical Glass Dome for Canon EF 17-40mm f/4 L USM
- NI36C Flat Port for Canon EF-S 17-85mm f/4-5.6 IS USM
- NI36CA Flat Port for Canon EF 15-85mm f/3.5-5.6 IS USM
- NI37C Flat Port for Canon EF-S 60mm f/2.8 Macro USM and EF 50mm f/2.5 Compact Macro, as well as Sigma MACRO 50mm f/2.8 EX DG
- NI46C 5" Optical Glass Dome for Canon EF-S 10-18mm f/4.5-5.6 IS STM
- NI31A 6" Polycarbonate Dome for Sigma 15mm f/2.8 EX DC DIAGONAL Fisheye HSM
- NI31S 6" Polycarbonate Dome for Sigma 10mm f/2.8 EX DC Diagonal Fisheye HSM
- NI32S Flat Port for Sigma MACRO 105mm f/2.8 EX DG
- NI46S 5" Optical Glass Dome for Sigma 10-20mm F/4-5.6 EX DC/HSM
- NI47S Flat Port for Sigma 17-70mm f/2.8-4.5 DC MACRO and 17-70mm f/2.8-4 DC MACRO
- NI47S1 Flat Port for Sigma 17-70mm f/2.8-4 DC MACRO HSM/C
- NI46S1 5" Optical Glass Dome for Sigma 10-20mm f/3.5 EX DC
- NI47T Flat Port for Tamron SP AF 17-50mm f/2.8 XR Di II LD Aspherical (IF)
- NIMD 4" Glass Dome for Tokina Fisheye 10-17mm f/3.5-4.5 DX
- NI35TO 5" Optical Glass Dome for Tokina AT-X Pro 11-16mm f/2.8 DX II
- NI35TO1 5" Optical Glass Dome for Tokina AT-X 11-20mm f/2.8 PRO DX
- NI46TO 5" Optical Glass Dome for Tokina AT-X 10-17mm f/3.5-4.5 DX Fisheye/NH
- Strobe Connection and Operation
-

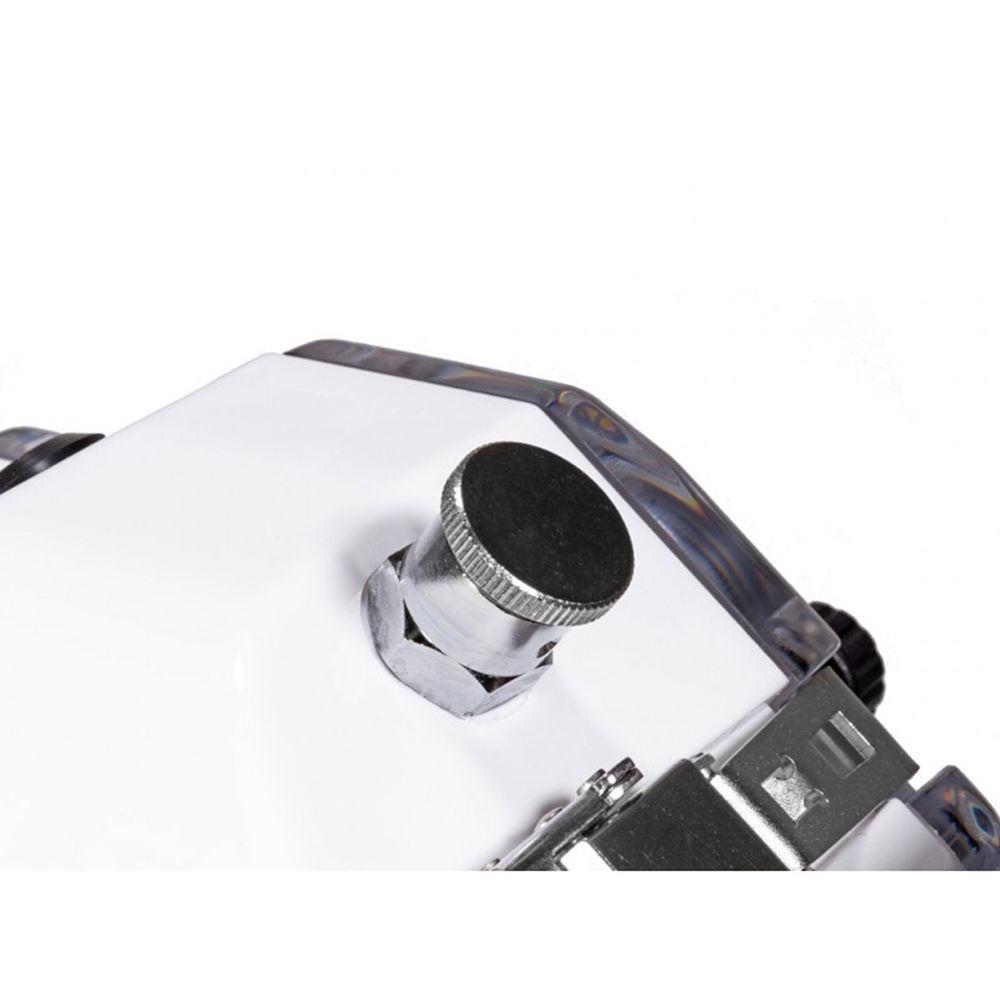

- Manual, 5-pin Nikonos bulkhead for connecting optional strobes via sync cords
- Sync connection solves problems of false triggering by other light sources and inconsistent exposure due to weak transmission, both of which can occur with fiber-optic cables
UPC: 810075020823 In the Box Nimar Underwater Housing for Canon EOS 6D (White) 2 x Removable Side Grip Handles Spare Main O-Ring Silicone Grease Rubber Eyepiece Guard Port Mount Cover Protective Rubber Tips for Controls Galvanized Key for Control Levers Allen Key for Fastening Handles Mounting Plate for Camera Silica Gel Bag Soft Storage Bag Limited 2-Year Warranty Compatibility chart PDF 181.8kbyqafueyqwuwuywztxuqfwterfbcds Table of Contents
|
Upload User Manual
Have you got an user manual for the Nimar Underwater Housing for Canon EOS 6D in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNimar NI6D Specs | Depth Rating | 197' / 60 m | | Control Type | Mechanical push-buttons, dials, and levers | | Controls | Provide access to virtually all camera functions: power on/off, shutter, video recording, live view, mode dial, mode dial lock release, main control dial, AF-On, AF mode selection, AF point selection, drive mode selection, ISO, exposure metering, AE lock / FE lock, setting, quick control dial, quick control button, multi-controller, playback, menu, info, delete, and index/magnify/reduce | | Material of Construction | Body: Bayer Makrolon polycarbonate
4 Latches with Safety Clips: AISI 316 stainless steel
Grip Handles: ABS plastic with AISI 316 stainless steel eyelet | | Lens Port | Ships without a required lens port
Accepts interchangeable, bayonet-mount ports for a broad array of lenses
For full compatibility details, see list in overview section | | Buoyancy | Housing Only: Slightly positive
Complete System: Depends on choice of lens and port | | External Flash Connector | Manual, 5-pin Nikonos bulkhead for connecting optional strobes via sync cords | | Viewfinder | Removable eyepiece with 1.5x magnification | | Mounting | 2x T-mounts on grip handles for optional lighting arms | | Moisture Alarm | Yes | | Dimensions | With Handles and Eyepiece: 13.4 x 6.7 x 5.9" / 34 x 17 x 15 cm | | Weight | With Handles: 5.3 lb / 2.4 kg | | | | Package Weight | 7.85 lb | | Box Dimensions (LxWxH) | 11.6 x 11.2 x 8.4" |
