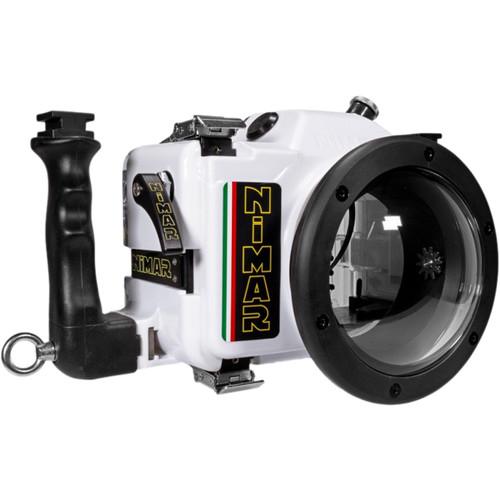

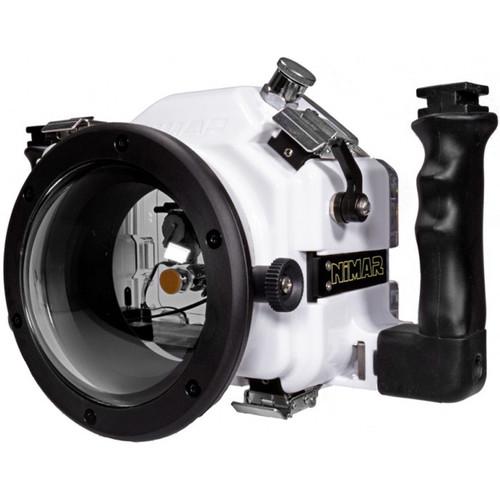

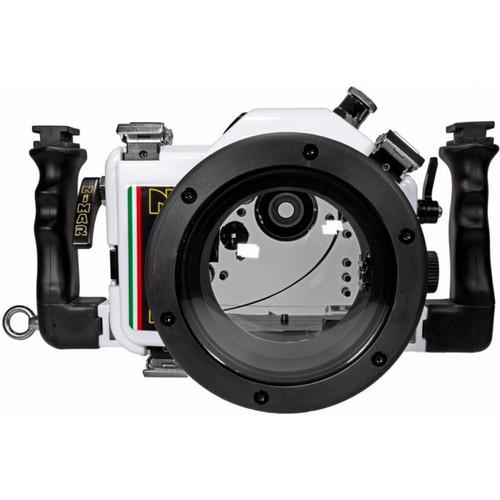

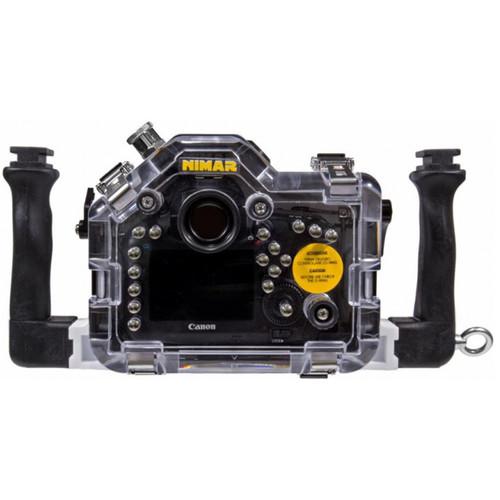

Product description Capture brilliant images at depths as great as 197' with your Canon EOS 7D DSLR camera in this dedicated Underwater Housing from Nimar. It features a moisture alarm that alerts you in the unlikely event of a breach in the waterproof seal. A manual, 5-pin Nikonos bulkhead connector enables the attachment of optional external strobes via sync cords.
Mechanical push-buttons, dials, and a lever afford access to virtually all camera functions, while ergonomic grips improve handling and provide attachment points for optional lighting arms. A removable eyepiece with a magnification of 1.5x helps you compose shots through the camera's viewfinder. The housing ships without a required lens port, and accepts interchangeable ports for a broad array of different lenses. For complete compatibility details, see the list below.
Built for durability, the housing is crafted from corrosion-resistant polycarbonate, which is clear to allow you to maintain a full view of the camera and O-ring seal. Stainless steel latches with safety clips ensure that the enclosure stays shut during your dive. - Construction Details
-
- Depth rating: 197'

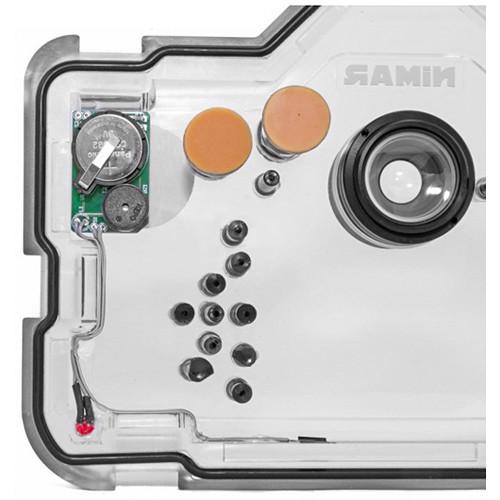

- Moisture alarm alerts you in the unlikely event of a breach in the waterproof seal--giving you time to get to the surface and prevent damage to your camera and lens
- Made from durable, corrosion-resistant Bayer Makrolon polycarbonate
- Clear to allow you to maintain a full view of the camera and O-ring seal
- Stainless steel latches with safety clips ensure that the housing stays shut while submerged
- Controls and Handling
-
- Mechanical push-buttons, dials, and a lever afford access to virtually all camera functions: shutter, video recording, live view, metering, exposure compensation, flash compensation, aperture, mode dial, main control dial, multi-selector, ISO, menu, white balance, playback, OK, info, reduction / magnification in reproduction, quality setting, help, protect, and delete
- Dual removable, ergonomic grips improve handling and provide attachment points for optional lighting arms
- Removable eyepiece with a magnification of 1.5x helps you compose shots through the camera's viewfinder
- Lens Ports
-
Ships without a required lens port, and accepts interchangeable dome and flat ports for a broad array of different lenses:- NI38C Flat Port for Canon EF-S 18-55mm f/3.5-5.6 II/II USM/IS/IS II/IS STM, 18-55mm f/3.5-5.6 DC III, 60mm f/2.8 Macro USM, and 50mm f/2.5 Compact Macro lenses, as well as the Sigma MACRO 50mm f/2.8 EX DG
- NI320 5" Optical Glass Dome for Canon EF 24mm f/2.8 IS USM, 28mm f/2.8 IS USM, 35mm f/2 IS USM, and 50mm f/1.4 USM
- NI31 6" Polycarbonate Dome for Canon EF 15mm f/2.8 Fisheye
- NI31C 5" Optical Glass Dome for Canon 8-15mm f/4 L USM Fisheye
- NI32 Flat Port for Canon EF 100mm f/2.8 Macro USM and 100mm f/2.8 L Macro IS USM, Sigma 105mm f/2.8 Macro DG OS HSM, and Tamron SP 90mm f/2.8 Di VC USD
- NI32MF Flat Port with Manual Focus for Canon EF 100mm f/2.8 L Macro IS USM
- NI33 Flat Port for Canon EF-S 18-135 mm f/3.5-5.6 IS / IS STM / IS USM
- NI33C Flat Port for Canon EF 24-70mm f/2.8 L USM
- NI33C1 for Canon EF 24-70mm f/2.8 L II USM
- NI34C1 5" Optical Glass Dome for Canon EF-S 10-22mm f/3.5-4.5 USM
- NI34C2 5" Optical Glass Dome for Canon EF 24mm f/1.4L II USM
- NI34CA Flat Port for Canon EF 24-105mm f/4 L IS USM
- NI35C Flat Port for Canon EF 16-35mm f/2.8 L USM, 16-35mm f/2.8 L II USM, and 16-35mm f/4L IS USM
- NI35C1 5" Optical Glass Dome for Canon EF 16-35mm f/2.8 L USM, 16-35mm f/2.8 L II USM, and 16-35mm f/4L IS USM
- NI35CA Flat Port for Canon EF 17-40mm f/4 L USM
- NI35CA1 5" Optical Glass Dome for Canon EF 17-40mm f/4 L USM
- NI36C Flat Port for Canon EF-S 17-85mm f/4-5.6 IS USM
- NI36CA Flat Port for Canon EF 15-85mm f/3.5-5.6 IS USM
- NI37C Flat Port for Canon EF-S 60mm f/2.8 Macro USM and EF 50mm f/2.5 Compact Macro, as well as Sigma MACRO 50mm f/2.8 EX DG
- NI46C 5" Optical Glass Dome for Canon EF-S 10-18mm f/4.5-5.6 IS STM
- NI31A 6" Polycarbonate Dome for Sigma 15mm f/2.8 EX DC DIAGONAL Fisheye HSM
- NI31S 6" Polycarbonate Dome for Sigma 10mm f/2.8 EX DC Diagonal Fisheye HSM
- NI32S Flat Port for Sigma MACRO 105mm f/2.8 EX DG
- NI46S 5" Optical Glass Dome for Sigma 10-20mm F/4-5.6 EX DC/HSM
- NI47S Flat Port for Sigma 17-70mm f/2.8-4.5 DC MACRO and 17-70mm f/2.8-4 DC MACRO
- NI47S1 Flat Port for Sigma 17-70mm f/2.8-4 DC MACRO HSM/C
- NI46S1 5" Optical Glass Dome for Sigma 10-20mm f/3.5 EX DC
- NI47T Flat Port for Tamron SP AF 17-50mm f/2.8 XR Di II LD Aspherical (IF)
- NIMD 4" Glass Dome for Tokina Fisheye 10-17mm f/3.5-4.5 DX
- NI35TO 5" Optical Glass Dome for Tokina AT-X Pro 11-16mm f/2.8 DX II
- NI35TO1 5" Optical Glass Dome for Tokina AT-X 11-20mm f/2.8 PRO DX
- NI46TO 5" Optical Glass Dome for Tokina AT-X 10-17mm f/3.5-4.5 DX Fisheye/NH
- Strobe Connection and Operation
-
- Manual, 5-pin Nikonos bulkhead connector enables the attachment of optional external strobes via sync cords
UPC: 810075020564 In the Box Nimar Underwater Housing for Canon EOS 7D 2 x Removable Side Grip Handles Tool Kit Camera Mounting Plate Spare Main O-Ring Silicone Grease Rubber Eyepiece Guard Bayonet Port Mount Cover Protective Rubber Tips for Controls Silica Gel Bag Soft Storage Bag Limited 2-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Nimar Underwater Housing for Canon EOS 7D in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNimar NI7D Specs | Depth Rating | 197' / 60 m | | Control Type | Mechanical push-buttons, dials, and a lever | | Controls | Enable access to virtually all camera functions: shutter, video recording, live view, metering, exposure compensation, flash compensation, aperture, mode dial, main control dial, multi-selector, ISO, menu, white balance, playback, OK, info, reduction / magnification in reproduction, quality setting, help, protect, and delete | | Material of Construction | Body: Bayer Makrolon polycarbonate
Grip Handles: ABS plastic with Aisi 316 stainless steel eyelet
Latches with Safety Clips: Aisi 316 stainless steel | | Lens Port | Ships without a required lens port
Accepts interchangeable, bayonet-mount dome and flat ports for various lenses
For complete compatibility info, see list in overview | | Buoyancy | Housing Only: Slightly positive
Complete System: May vary with choice of lens and port | | External Strobe Connector | Manual, 5-pin Nikonos bulkhead connector for attaching optional strobes via sync cords (cords not included) | | Mounting | 2x T-mounts on grip handles for lighting arms | | Moisture Alarm | Yes | | Dimensions | With Handles and Eyepiece: 13.4 x 6.7 x 5.9" / 34 x 17 x 15 cm | | Weight | With Handles: 5.3 lb / 2.4 kg | | | | Package Weight | 6.65 lb | | Box Dimensions (LxWxH) | 11.2 x 8.7 x 7.0" |
