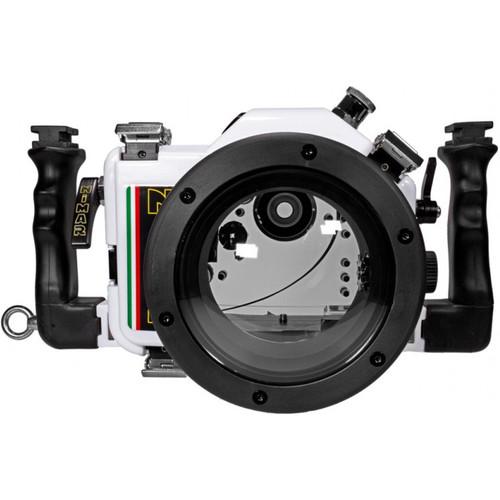

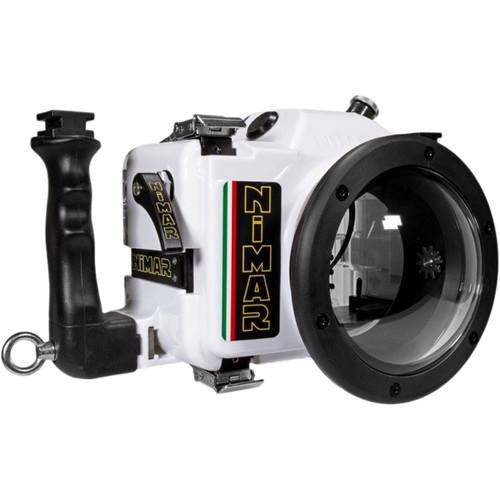

Product description You can capture beautiful images of coral reefs, parrot fish, and humpback whales at depths as great as 197', thanks to Nimar's dedicated Underwater Housing for your Canon EOS 7D Mark II DSLR camera. It features a moisture alarm that alerts you immediately in the unlikely event of a breach in the waterproof seal. A manual, 5-pin Nikonos connector enables the attachment of optional external strobes via sync cords.
Mechanical controls afford access to virtually all camera functions. The housing is equipped with a removable eyepiece with 1.5x magnification, which enhances your visibility when composing shots through the camera's viewfinder. Dual ergonomic grips improve handling while providing attachment points for optional lighting arms. The enclosure ships without a required lens port, and accepts interchangeable ports for various lenses. For complete compatibility details, see the list below.
Built for durability, the housing is made from corrosion-resistant polycarbonate, which is clear to allow you to monitor the camera and O-ring seal. Four stainless steel latches with safety clips ensure a secure closure. - Construction Details
-
- Depth rating: 197'
- Made from durable, corrosion-resistant polycarbonate
- Clear to allow you to monitor the camera and O-ring seal

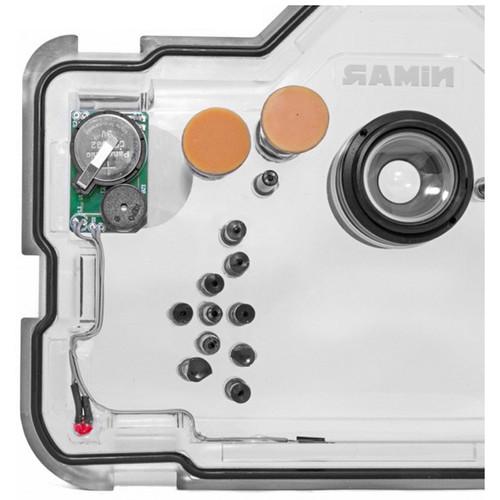

- Moisture alarm alerts you in the unlikely event of a breach in the waterproof seal, giving you time to get to the surface and prevent damage to your camera and lens
- Four AISI 316 stainless steel latches with safety clips ensure a secure closure
- Controls and Handling
-

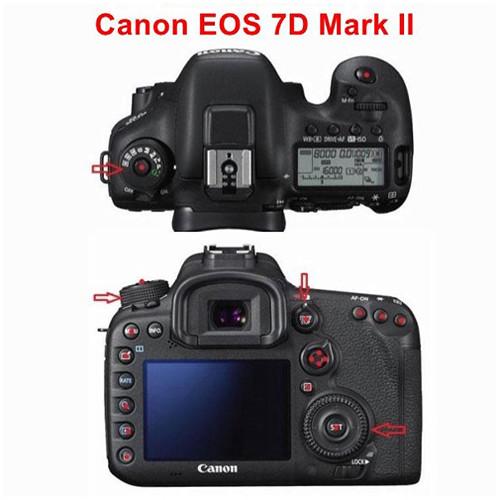

- Mechanical controls, including push-buttons, knobs, and a lever, afford access to virtually all camera functions: shutter, video recording, live view, mode dial, mode dial lock release, quick control dial, quick control button, multi-controller, menu, set, AF on / start, AF point selection, AE lock, creative photo / comparative playback, index / magnify / reduce, playback, and delete
- Equipped with a removable eyepiece with 1.5x magnification, which enhances visibility when composing shots through the camera's viewfinder
- Dual ergonomic grips improve balance and handling underwater, while providing T-mounts for optional lighting arms
- Lens Ports
-
Ships without a required lens port, and accepts interchangeable bayonet-mount ports for various lenses:- NI38C Flat Port for Canon EF-S 18-55mm f/3.5-5.6 II/II USM/IS/IS II/IS STM, 18-55mm f/3.5-5.6 DC III, 60mm f/2.8 Macro USM, and 50mm f/2.5 Compact Macro lenses, as well as the Sigma MACRO 50mm f/2.8 EX DG
- NI320 5" Optical Glass Dome for Canon EF 24mm f/2.8 IS USM, 28mm f/2.8 IS USM, 35mm f/2 IS USM, and 50mm f/1.4 USM
- NI31 6" Polycarbonate Dome for Canon EF 15mm f/2.8 Fisheye
- NI31C 5" Optical Glass Dome for Canon 8-15mm f/4 L USM Fisheye
- NI32 Flat Port for Canon EF 100mm f/2.8 Macro USM and 100mm f/2.8 L Macro IS USM, Sigma 105mm f/2.8 Macro DG OS HSM, and Tamron SP 90mm f/2.8 Di VC USD
- NI32MF Flat Port with Manual Focus for Canon EF 100mm f/2.8 L Macro IS USM
- NI33 Flat Port for Canon EF-S 18-135 mm f/3.5-5.6 IS / IS STM / IS USM
- NI33C Flat Port for Canon EF 24-70mm f/2.8 L USM
- NI33C1 for Canon EF 24-70mm f/2.8 L II USM
- NI34C1 5" Optical Glass Dome for Canon EF-S 10-22mm f/3.5-4.5 USM
- NI34C2 5" Optical Glass Dome for Canon EF 24mm f/1.4L II USM
- NI34CA Flat Port for Canon EF 24-105mm f/4 L IS USM
- NI35C Flat Port for Canon EF 16-35mm f/2.8 L USM, 16-35mm f/2.8 L II USM, and 16-35mm f/4L IS USM
- NI35C1 5" Optical Glass Dome for Canon EF 16-35mm f/2.8 L USM, 16-35mm f/2.8 L II USM, and 16-35mm f/4L IS USM
- NI35CA Flat Port for Canon EF 17-40mm f/4 L USM
- NI35CA1 5" Optical Glass Dome for Canon EF 17-40mm f/4 L USM
- NI36C Flat Port for Canon EF-S 17-85mm f/4-5.6 IS USM
- NI36CA Flat Port for Canon EF 15-85mm f/3.5-5.6 IS USM
- NI37C Flat Port for Canon EF-S 60mm f/2.8 Macro USM and EF 50mm f/2.5 Compact Macro, as well as Sigma MACRO 50mm f/2.8 EX DG
- NI46C 5" Optical Glass Dome for Canon EF-S 10-18mm f/4.5-5.6 IS STM
- NI31A 6" Polycarbonate Dome for Sigma 15mm f/2.8 EX DC DIAGONAL Fisheye HSM
- NI31S 6" Polycarbonate Dome for Sigma 10mm f/2.8 EX DC Diagonal Fisheye HSM
- NI32S Flat Port for Sigma MACRO 105mm f/2.8 EX DG
- NI46S 5" Optical Glass Dome for Sigma 10-20mm F/4-5.6 EX DC/HSM
- NI47S Flat Port for Sigma 17-70mm f/2.8-4.5 DC MACRO and 17-70mm f/2.8-4 DC MACRO
- NI47S1 Flat Port for Sigma 17-70mm f/2.8-4 DC MACRO HSM/C
- NI46S1 5" Optical Glass Dome for Sigma 10-20mm f/3.5 EX DC
- NI47T Flat Port for Tamron SP AF 17-50mm f/2.8 XR Di II LD Aspherical (IF)
- NIMD 4" Glass Dome for Tokina Fisheye 10-17mm f/3.5-4.5 DX
- NI35TO 5" Optical Glass Dome for Tokina AT-X Pro 11-16mm f/2.8 DX II
- NI35TO1 5" Optical Glass Dome for Tokina AT-X 11-20mm f/2.8 PRO DX
- NI46TO 5" Optical Glass Dome for Tokina AT-X 10-17mm f/3.5-4.5 DX Fisheye/NH
Zoom rings/gears are available for lenses with variable focal lengths - Strobe Connection and Operation
-

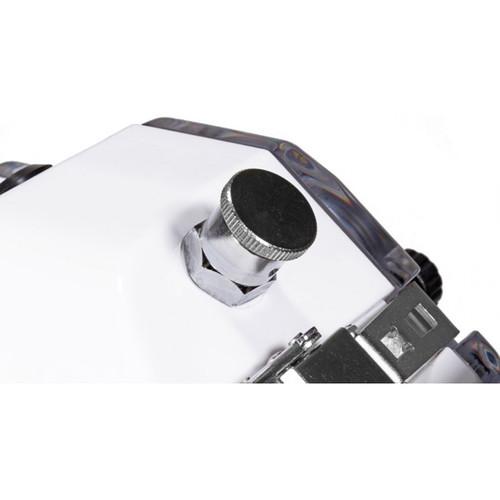

- Manual, 5-pin Nikonos connector enables the attachment of optional external strobes via sync cords
UPC: 810075020625 In the Box Nimar Underwater Housing for Canon EOS 7D Mark II Removable Side Grip Handles Spare Main O-Ring Silicone Grease Rubber Eyepiece Guard Bayonet Port Mount Cover Protective Rubber Tips for Controls Tool Kit Camera Mounting Plate Silica Gel Bag Soft Storage Bag Limited 2-Year Warranty Guides & Manuals zxusrszdabxzzarwvvasyctwxxysx Table of Contents
|
Upload User Manual
Have you got an user manual for the Nimar Underwater Housing for Canon EOS 7D Mark II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNimar NI7DMK2 Specs | Depth Rating | 197' / 60 m | | Control Type | Mechanical push-buttons, knobs, and a lever | | Controls | Access to virtually all camera functions, including shutter, video recording, live view, mode dial, mode dial lock release, quick control dial, quick control button, multi-controller, menu, set, AF on / start, AF point selection, AE lock, creative photo / comparative playback, index / magnify / reduce, playback, and delete | | Material of Construction | Housing: Bayer Makrolon polycarbonate
Controls: Chromed brass
Latches with Safety Clips: AISI 316 stainless steel | | Lens Port | Ships without a required lens port
Accepts interchangeable bayonet-mount ports
See list in overview for compatibility details | | Buoyancy | Housing Only: Slightly positive
Complete System: May vary based on choice of lens and port | | External Flash Connector | Manual, 5-pin Nikonos bulkhead for connecting external strobes via sync cords (not included) | | Viewfinder | Removable eyepiece with 1.5x magnification | | Moisture Alarm | Yes | | Mounting | 2x T-mounts on grip handles for optional lighting arms | | Dimensions | With Handles and Eyepiece: 13.4 x 6.7 x 5.9" / 34 x 17 x 15 cm | | Weight | With Handles: 5.3 lb / 2.4 kg | | | | Package Weight | 7.45 lb | | Box Dimensions (LxWxH) | 10.6 x 10.4 x 7.8" |
