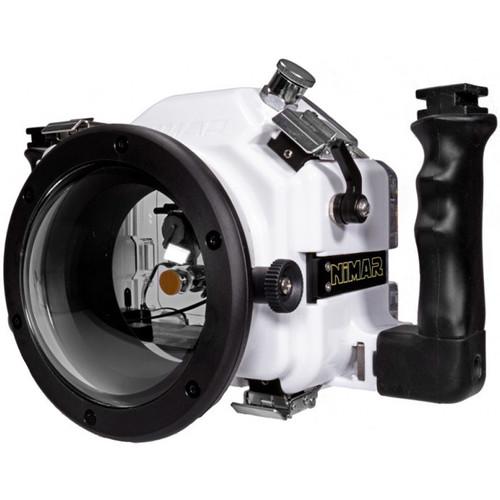

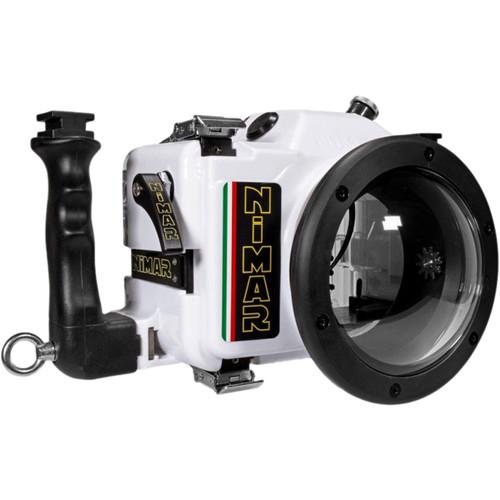

Product description You can capture beautiful photos and videos at 197' beneath the surface with your Canon EOS 80D DSLR camera, thanks to this dedicated Nimar Underwater Housing. It features a moisture alarm that alerts you right away in the unlikely event of a breach in the waterproof seal. A manual, 5-pin Nikonos bulkhead connector enables the attachment of optional external strobes via sync cords.
Mechanical push-buttons, dials, and a lever give you access to the vast majority of camera functions, including shutter, video recording, live view, mode dial, multi-controller, and quick control dial. A removable eyepiece with 1.5x magnification offers an enhanced view through the camera's optical finder. Additionally, ergonomic side grips improve balance and handling underwater, while providing T-mounts for optional lighting arms. The housing ships without a required lens port, and its bayonet mount accepts interchangeable flat and dome ports for various lenses. For full compatibility details, see the list below.

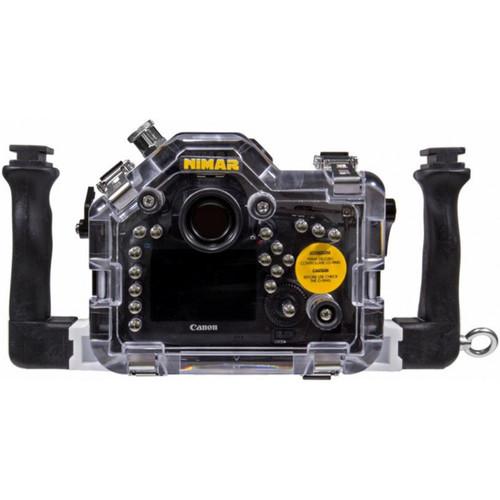

Built for durability, the housing is constructed from corrosion-resistant Bayer Makrolon polycarbonate. It features a few black strips bearing the Nimar name, but is mostly clear to allow you to monitor the O-ring seal and maintain a nearly full view of the camera. - Construction Details
-
- Depth rating: 197'

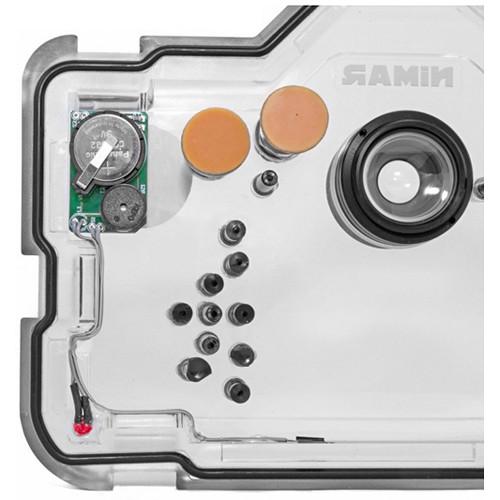

- Audible moisture alarm alerts you immediately in the unlikely event of a breach in the waterproof seal
- Body is made from durable, corrosion-resistant Bayer Makrolon polycarbonate
- Features a few black strips bearing the Nimar name, but is mostly clear to allow you to monitor the O-ring seal and maintain a nearly full view of the camera

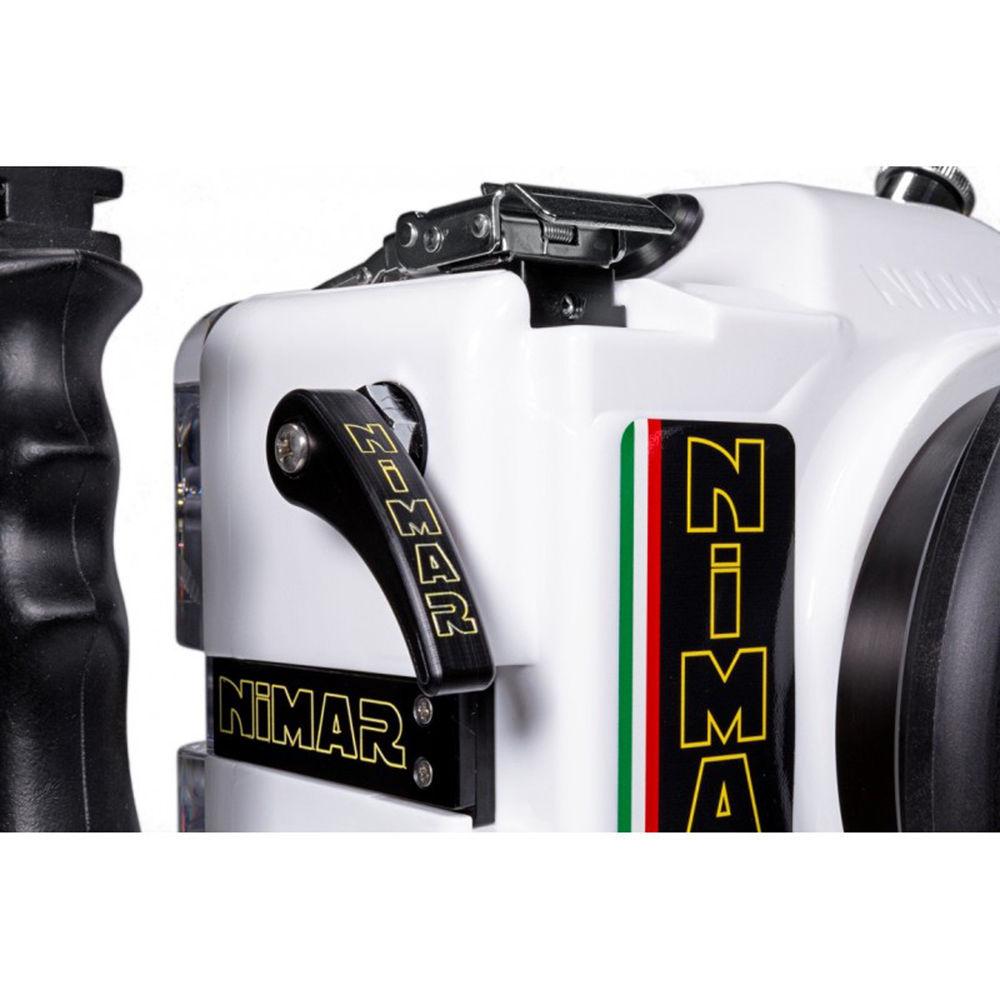

- 4 Aisi 316 stainless-steel latches ensure a secure closure
- Controls and strobe bulkhead are made from chrome-plated brass
- Controls and Handling
-

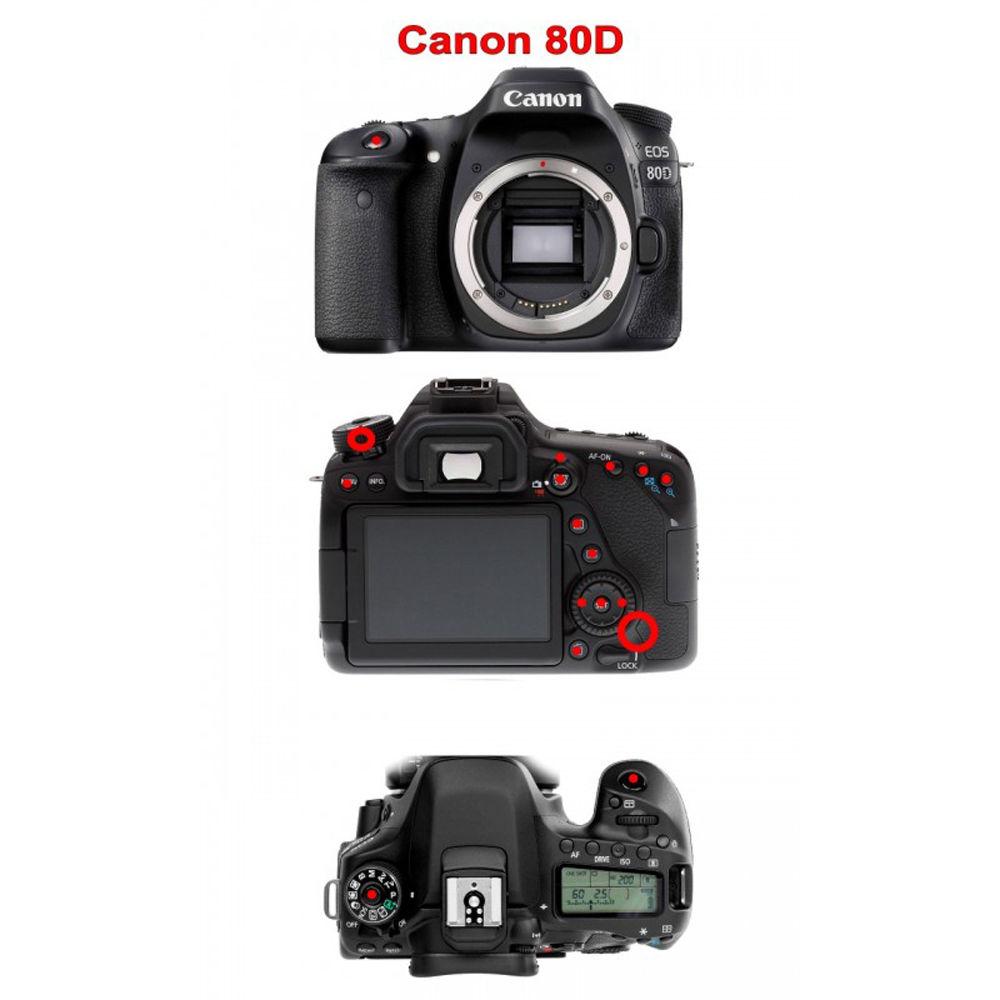

- Mechanical controls, including push-buttons, dials/knobs, and a lever, enable access to the vast majority of camera functions: shutter, video recording, live view, mode dial, mode dial lock release, multi-controller, quick control dial, quick control button, AF on, AF point selection, AE lock / FE lock, menu, set, playback, and delete
- Removable eyepiece with 1.5x magnification offers an enhanced view through the camera's optical finder
- Dual ergonomic grips improve balance and handling underwater, while providing T-mounts for optional lighting arms
- Housing body has slightly positive buoyancy; the buoyancy of the complete system may vary with the choice of lens and port
- Lens Ports
-

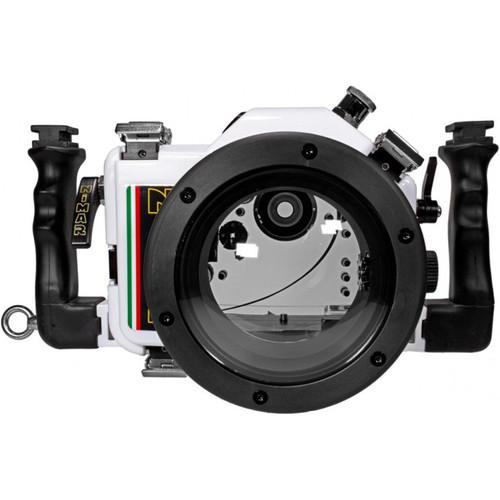

Ships without a required port, and features a bayonet mount that accepts interchangeable flat and dome ports for various lenses:- NI38C Flat Port for Canon EF-S 18-55mm f/3.5-5.6 II/II USM/IS/IS II/IS STM, 18-55mm f/3.5-5.6 DC III, 60mm f/2.8 Macro USM, and 50mm f/2.5 Compact Macro lenses, as well as the Sigma MACRO 50mm f/2.8 EX DG
- NI320 5" Optical Glass Dome for Canon EF 24mm f/2.8 IS USM, 28mm f/2.8 IS USM, 35mm f/2 IS USM, and 50mm f/1.4 USM
- NI31 6" Polycarbonate Dome for Canon EF 15mm f/2.8 Fisheye
- NI31C 5" Optical Glass Dome for Canon 8-15mm f/4 L USM Fisheye
- NI32 Flat Port for Canon EF 100mm f/2.8 Macro USM and 100mm f/2.8 L Macro IS USM, Sigma 105mm f/2.8 Macro DG OS HSM, and Tamron SP 90mm f/2.8 Di VC USD
- NI32MF Flat Port with Manual Focus for Canon EF 100mm f/2.8 L Macro IS USM
- NI33 Flat Port for Canon EF-S 18-135 mm f/3.5-5.6 IS / IS STM / IS USM
- NI33C Flat Port for Canon EF 24-70mm f/2.8 L USM
- NI33C1 for Canon EF 24-70mm f/2.8 L II USM
- NI34C1 5" Optical Glass Dome for Canon EF-S 10-22mm f/3.5-4.5 USM
- NI34C2 5" Optical Glass Dome for Canon EF 24mm f/1.4L II USM
- NI34CA Flat Port for Canon EF 24-105mm f/4 L IS USM
- NI35C Flat Port for Canon EF 16-35mm f/2.8 L USM, 16-35mm f/2.8 L II USM, and 16-35mm f/4L IS USM
- NI35C1 5" Optical Glass Dome for Canon EF 16-35mm f/2.8 L USM, 16-35mm f/2.8 L II USM, and 16-35mm f/4L IS USM
- NI35CA Flat Port for Canon EF 17-40mm f/4 L USM
- NI35CA1 5" Optical Glass Dome for Canon EF 17-40mm f/4 L USM
- NI36C Flat Port for Canon EF-S 17-85mm f/4-5.6 IS USM
- NI36CA Flat Port for Canon EF 15-85mm f/3.5-5.6 IS USM
- NI37C Flat Port for Canon EF-S 60mm f/2.8 Macro USM and EF 50mm f/2.5 Compact Macro, as well as Sigma MACRO 50mm f/2.8 EX DG
- NI46C 5" Optical Glass Dome for Canon EF-S 10-18mm f/4.5-5.6 IS STM
- NI31A 6" Polycarbonate Dome for Sigma 15mm f/2.8 EX DC DIAGONAL Fisheye HSM
- NI31S 6" Polycarbonate Dome for Sigma 10mm f/2.8 EX DC Diagonal Fisheye HSM
- NI32S Flat Port for Sigma MACRO 105mm f/2.8 EX DG
- NI46S 5" Optical Glass Dome for Sigma 10-20mm F/4-5.6 EX DC/HSM
- NI47S Flat Port for Sigma 17-70mm f/2.8-4.5 DC MACRO and 17-70mm f/2.8-4 DC MACRO
- NI47S1 Flat Port for Sigma 17-70mm f/2.8-4 DC MACRO HSM/C
- NI46S1 5" Optical Glass Dome for Sigma 10-20mm f/3.5 EX DC
- NI47T Flat Port for Tamron SP AF 17-50mm f/2.8 XR Di II LD Aspherical (IF)
- NIMD 4" Glass Dome for Tokina Fisheye 10-17mm f/3.5-4.5 DX
- NI35TO 5" Optical Glass Dome for Tokina AT-X Pro 11-16mm f/2.8 DX II
- NI35TO1 5" Optical Glass Dome for Tokina AT-X 11-20mm f/2.8 PRO DX
- NI46TO 5" Optical Glass Dome for Tokina AT-X 10-17mm f/3.5-4.5 DX Fisheye/NH
- Strobe Connection and Operation
-

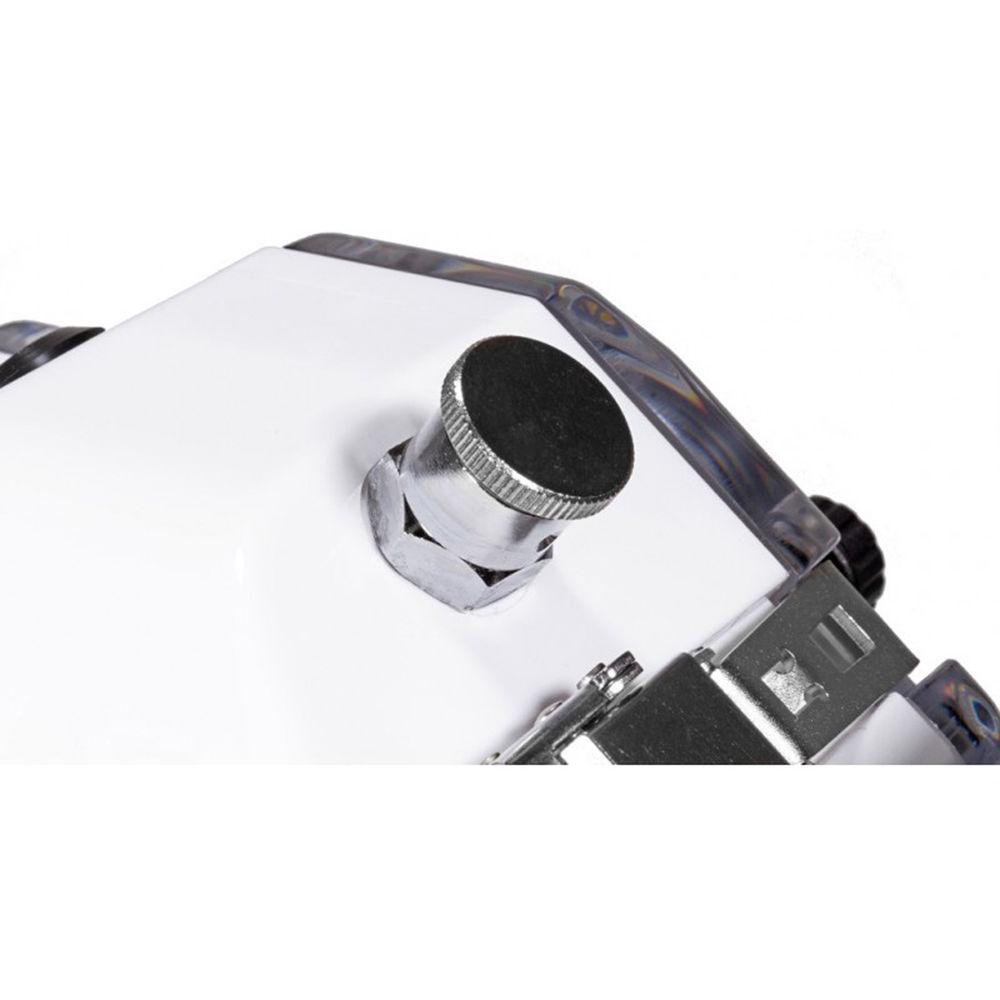

- Manual, 5-pin Nikonos bulkhead enables connection of optional, external strobes via sync cords
UPC: 810075021790 In the Box Nimar Underwater Housing for Canon EOS 80D 2 x Removable Grip Handles Tool Kit Spare Main O-Ring Silicone Grease Rubber Eyepiece Guard Bayonet Port Mount Cover Soft Storage Bag Set of Protective Rubber Tips for Controls Camera Mount Silica Gel Bag Test Certificate Limited 2-Year Warranty Lens port Chart PDF 165.7kbwrbfducrtvuctz Table of Contents
|
Upload User Manual
Have you got an user manual for the Nimar Underwater Housing for Canon EOS 80D in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNimar NI80D Specs | Depth Rating | 197' / 60 m | | Control Type | Mechanical push-buttons, dials, and a lever | | Controls | Provide access to the vast majority of camera functions, including shutter, video recording, live view, mode dial, mode dial lock release, multi-controller, quick control dial, quick control button, AF on / AF start, AF point selection, AE lock / FE lock, index / reduce, magnify, menu, set, playback, and delete | | Material of Construction | Body: Bayer Makrolon polycarbonate
Grips: ABS plastic
Latches: AISI 316 stainless steel | | Lens Port | Ships without a required port
Bayonet mount accepts interchangeable flat and dome ports for various lenses
For full compatibility info, see list in overview | | Buoyancy | Housing Only: Slightly positive
Complete System: May vary based on choice of lens and port | | External Flash Connector | Manual, 5-pin Nikonos bulkhead for connecting external strobes via sync cords (not included) | | Mounting | 2x T-mounts on grip handles for lighting arms | | Moisture Alarm | Yes | | Dimensions | With Handles and Eyepiece: 13.4 x 6.7 x 5.9" / 34 x 17 x 15 cm | | Weight | With Handles: 5.3 lb / 2.4 kg | | | | Package Weight | 7.5 lb | | Box Dimensions (LxWxH) | 11.4 x 11.2 x 8.1" |
