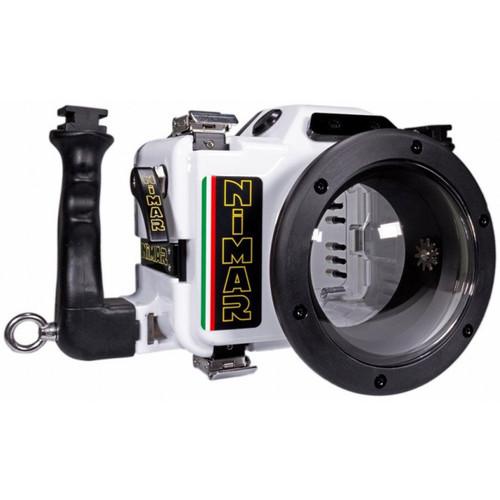

Product description With your Canon EOS Rebel T3i DSLR Camera, a.k.a. 600D, in this Nimar Underwater Housing, you can capture beautiful images of coral, blue hippo tang fish, and whale sharks at depths as great as 197'. The enclosure features a moisture alarm that alerts you in the unlikely event of a breach in the waterproof seal. The camera's built-in flash can trigger optional external strobes via cables connected to the housing's dual fiber-optic ports. As an alternative, the M14 port allows for the addition of an optional bulkhead connector for hard-wiring a strobe using a sync cord.
Mechanical controls afford access to virtually all camera functions, while dual ergonomic grips improve handling and provide attachment points for optional lighting arms. A removable eyepiece helps you compose shots through the camera's viewfinder. The housing ships without a required lens port, and accepts interchangeable ports for a broad array of different lenses. For complete compatibility details, see the list below.
Built for durability, the housing is crafted from corrosion-resistant polycarbonate, which is white on the front, top, and sides, but clear in the back to allow you to monitor the camera and O-ring seal. Stainless-steel latches with safety clips ensure that the enclosure stays shut during your dive. - Construction Details
-
- Depth rating: 197'

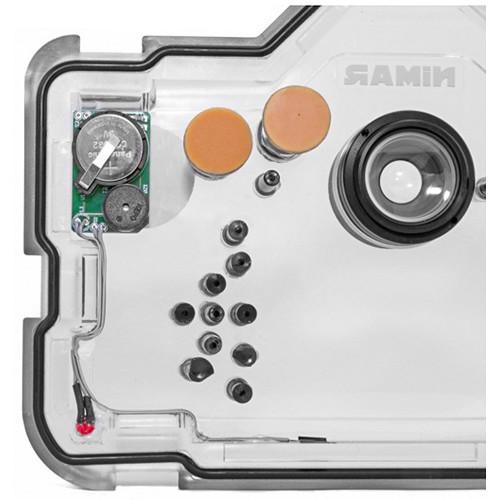

- Moisture alarm alerts you in the unlikely event of a breach in the waterproof seal, so you can get to the surface before your camera and lens sustain any damage
- Made from corrosion-resistant Bayer Makrolon polycarbonate, which is white on the front, top, and sides, but clear in the back to allow you to monitor the O-ring seal and camera
- Stainless-steel latches with safety clips ensure that the housing remains shut while submerged
- Controls and Handling
-
- Mechanical push-buttons, dials, and a lever afford access to virtually all camera functions, including power on/off, shutter, live view, video recording, metering, exposure compensation, aperture, flash compensation, mode dial, main control dial, multi-selector, menu, OK, ISO, playback, magnification / reduction in reproduction, quality setting, info, help, protect, and delete
- Dual ergonomic grips improve handling and provide attachment points for optional lighting arms
- Removable eyepiece helps you compose shots through the camera's viewfinder
- Lens Ports
-
Ships without a required lens port, and accepts interchangeable, bayonet-mount ports for a broad array of different lenses:- NI38C Flat Port for Canon EF-S 18-55mm f/3.5-5.6 II/II USM/IS/IS II/IS STM, 18-55mm f/3.5-5.6 DC III, 60mm f/2.8 Macro USM, and 50mm f/2.5 Compact Macro lenses, as well as the Sigma MACRO 50mm f/2.8 EX DG
- NI320 5" Optical Glass Dome for Canon EF 24mm f/2.8 IS USM, 28mm f/2.8 IS USM, 35mm f/2 IS USM, and 50mm f/1.4 USM
- NI31 6" Polycarbonate Dome for Canon EF 15mm f/2.8 Fisheye
- NI31C 5" Optical Glass Dome for Canon 8-15mm f/4 L USM Fisheye
- NI32 Flat Port for Canon EF 100mm f/2.8 Macro USM and 100mm f/2.8 L Macro IS USM, Sigma 105mm f/2.8 Macro DG OS HSM, and Tamron SP 90mm f/2.8 Di VC USD
- NI32MF Flat Port with Manual Focus for Canon EF 100mm f/2.8 L Macro IS USM
- NI33 Flat Port for Canon EF-S 18-135 mm f/3.5-5.6 IS / IS STM / IS USM
- NI33C Flat Port for Canon EF 24-70mm f/2.8 L USM
- NI33C1 for Canon EF 24-70mm f/2.8 L II USM
- NI34C1 5" Optical Glass Dome for Canon EF-S 10-22mm f/3.5-4.5 USM
- NI34C2 5" Optical Glass Dome for Canon EF 24mm f/1.4L II USM
- NI34CA Flat Port for Canon EF 24-105mm f/4 L IS USM
- NI35C Flat Port for Canon EF 16-35mm f/2.8 L USM, 16-35mm f/2.8 L II USM, and 16-35mm f/4L IS USM
- NI35C1 5" Optical Glass Dome for Canon EF 16-35mm f/2.8 L USM, 16-35mm f/2.8 L II USM, and 16-35mm f/4L IS USM
- NI35CA Flat Port for Canon EF 17-40mm f/4 L USM
- NI35CA1 5" Optical Glass Dome for Canon EF 17-40mm f/4 L USM
- NI36C Flat Port for Canon EF-S 17-85mm f/4-5.6 IS USM
- NI36CA Flat Port for Canon EF 15-85mm f/3.5-5.6 IS USM
- NI37C Flat Port for Canon EF-S 60mm f/2.8 Macro USM and EF 50mm f/2.5 Compact Macro, as well as Sigma MACRO 50mm f/2.8 EX DG
- NI46C 5" Optical Glass Dome for Canon EF-S 10-18mm f/4.5-5.6 IS STM
- NI31A 6" Polycarbonate Dome for Sigma 15mm f/2.8 EX DC DIAGONAL Fisheye HSM
- NI31S 6" Polycarbonate Dome for Sigma 10mm f/2.8 EX DC Diagonal Fisheye HSM
- NI32S Flat Port for Sigma MACRO 105mm f/2.8 EX DG
- NI46S 5" Optical Glass Dome for Sigma 10-20mm F/4-5.6 EX DC/HSM
- NI47S Flat Port for Sigma 17-70mm f/2.8-4.5 DC MACRO and 17-70mm f/2.8-4 DC MACRO
- NI47S1 Flat Port for Sigma 17-70mm f/2.8-4 DC MACRO HSM/C
- NI46S1 5" Optical Glass Dome for Sigma 10-20mm f/3.5 EX DC
- NI47T Flat Port for Tamron SP AF 17-50mm f/2.8 XR Di II LD Aspherical (IF)
- NIMD 4" Glass Dome for Tokina Fisheye 10-17mm f/3.5-4.5 DX
- NI35TO 5" Optical Glass Dome for Tokina AT-X Pro 11-16mm f/2.8 DX II
- NI35TO1 5" Optical Glass Dome for Tokina AT-X 11-20mm f/2.8 PRO DX
- NI46TO 5" Optical Glass Dome for Tokina AT-X 10-17mm f/3.5-4.5 DX Fisheye/NH
- Strobe Connection and Operation
-

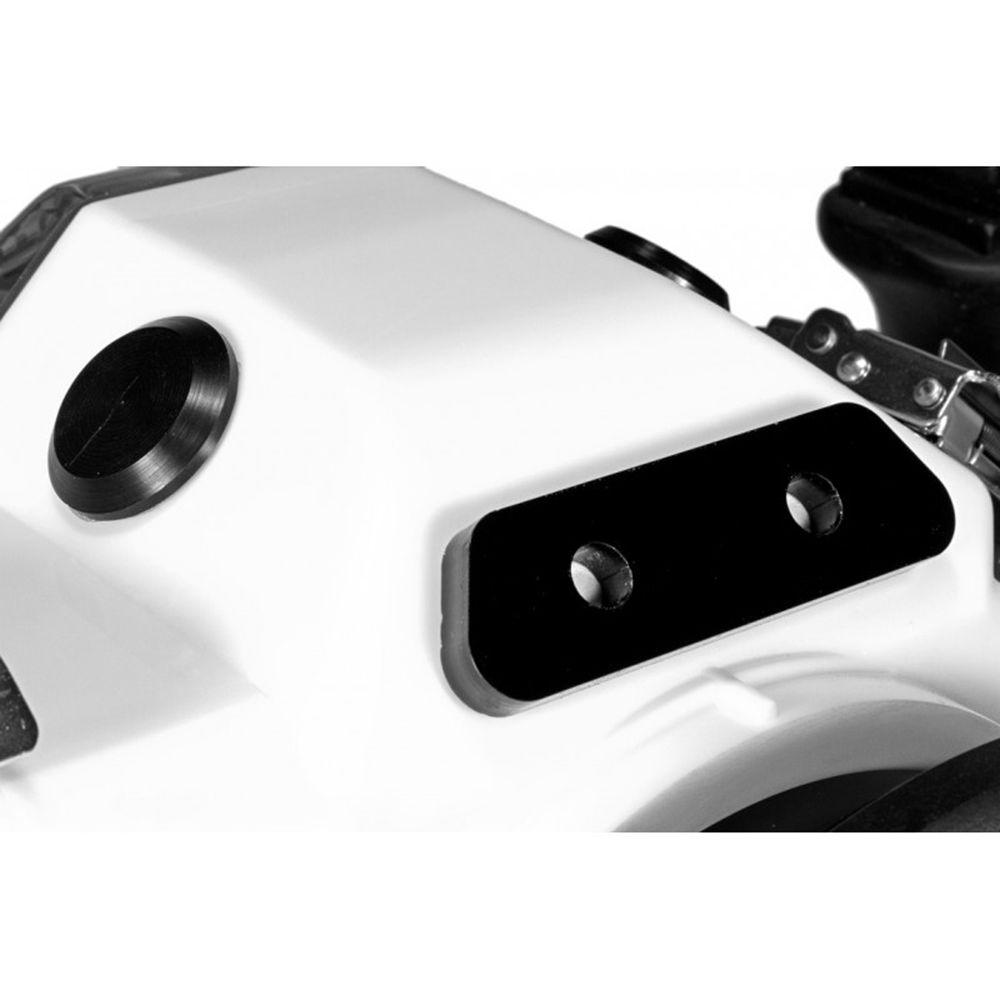

- Camera's built-in flash can trigger optional external strobes via cables connected to the housing's dual fiber-optic ports
- M14 port allows for the addition of an optional bulkhead connector for hard-wiring a strobe with a sync cord
In the Box Nimar Underwater Housing for Canon EOS Rebel T3i (White) 2 x Removable Side Grip Handles Tool Kit Rubber Eyepiece Guard Protective Rubber Tips for Controls Port Mount Cover Spare Main O-Ring Silicone Grease Mounting Plate for Camera Silica Gel Bag Soft Storage Bag Limited 2-Year Warranty Port Chart PDF 160.9kbbayfqtwbzrtftceqdxzayq Table of Contents
|
Upload User Manual
Have you got an user manual for the Nimar Underwater Housing for Canon EOS Rebel T3i in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNimar NI600D Specs | Depth Rating | 197' / 60 m | | Control Type | Mechanical push-buttons, dials, and a lever | | Controls | Enable access to virtually all camera functions, including power on/off, shutter, live view, video recording, metering, exposure compensation, aperture, flash compensation, mode dial, main control dial, multi-selector, menu, OK, ISO, playback, magnification / reduction in reproduction, quality setting, info, help, protect, and delete | | Material of Construction | Body: Bayer Makrolon polycarbonate
Grip Handles: ABS plastic with AISI 316 stainless-steel eyelet
Latches with Safety Clips: AISI 316 stainless steel | | Lens Port | Ships without a required lens port
Accepts interchangeable, bayonet-mount ports for many different lenses
For complete compatibility details, see list in overview section | | Buoyancy | Housing Only: Slightly positive
Complete System: Depends on choice of lens and port | | Internal Flash Usable | Yes, camera's built-in flash triggers optional strobes via fiber-optic cables | | External Strobe Connector | 2x Fiber-optic ports (cables not included)
M14 port for adding optional bulkhead sync connector (cord not included) | | Mounting | 2x T-mounts on grip handles for lighting arms | | Moisture Alarm | Yes | | Dimensions | With Handles and Eyepiece: 13.4 x 6.7 x 5.9" / 34 x 17 x 15 cm | | Weight | With Handles: 5.3 lb / 2.4 kg |
