User Manual for Nimar Underwater Housing for Canon EOS Rebel T6 or T7 Click to enlarge the picture
Contents of the user manual for the Nimar Underwater Housing for Canon EOS
- Product category: Still Cameras & Housings Nimar
- Brand: Nimar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nimar Still Cameras & Housings
 |
User manual for the Nimar Underwater Housing for Canon EOS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nimar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nimar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nimar product will considerably shorten its lifespan!
|

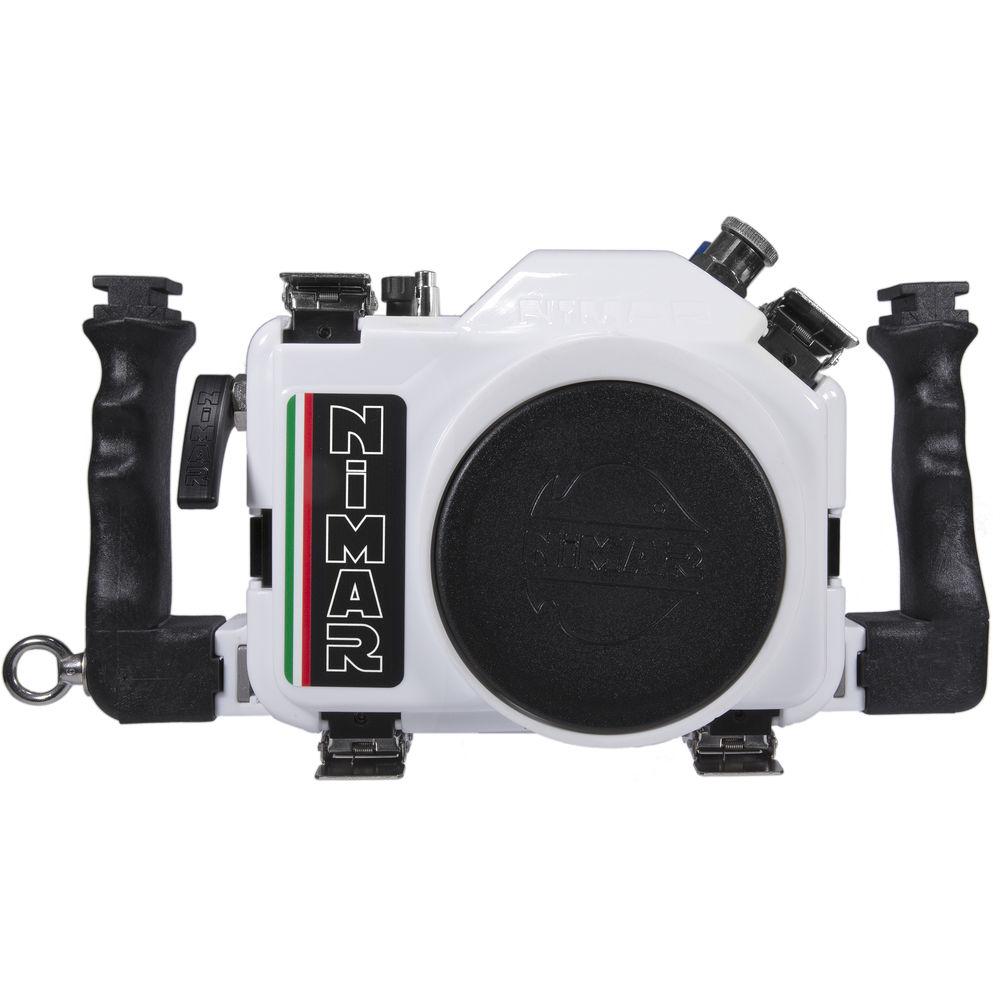

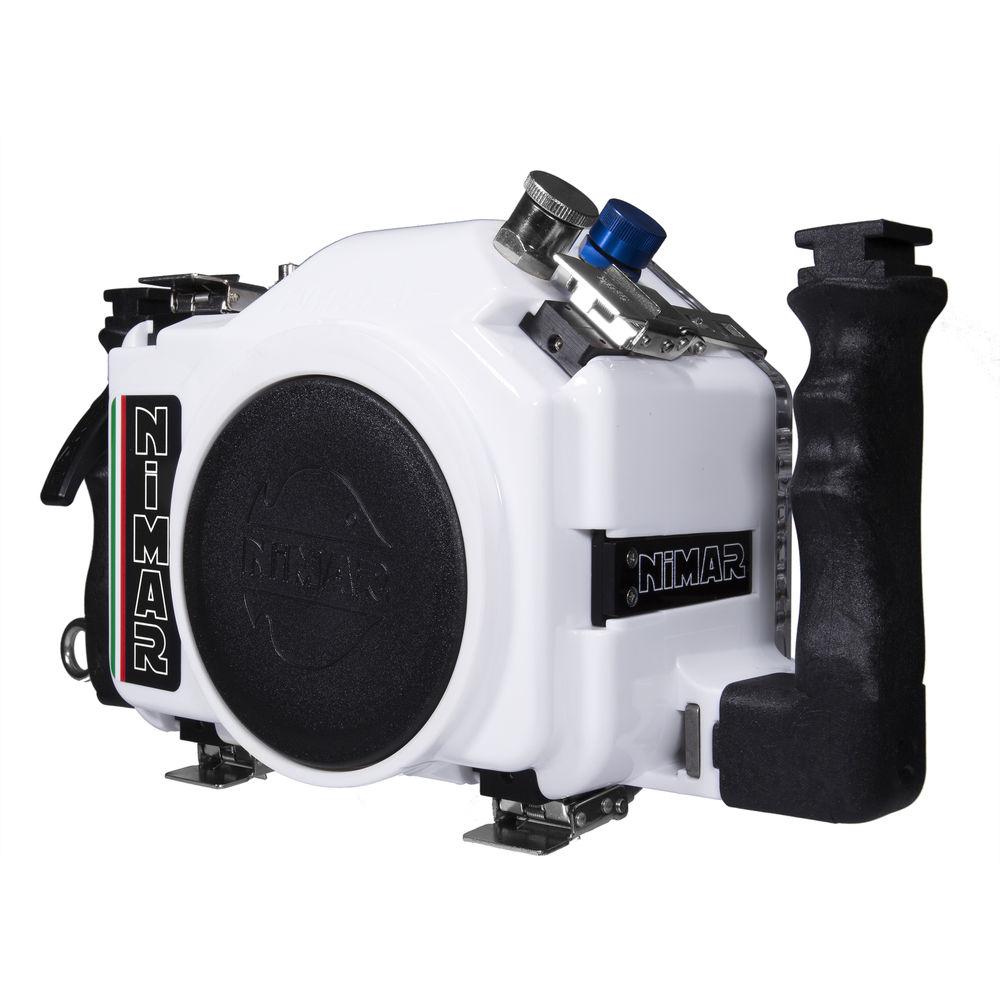

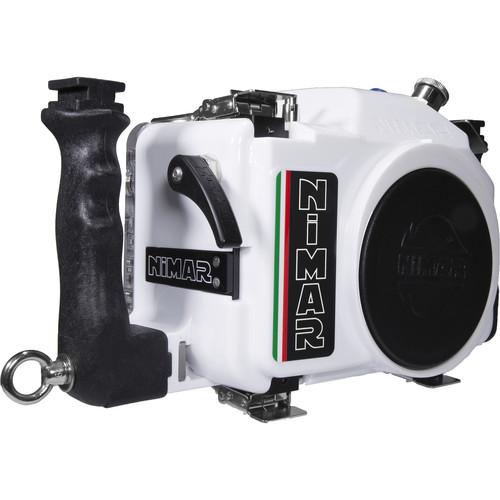

Product description Designed for Canon's EOS Rebel T6 and T7 DSLR Cameras, a.k.a. the 1300D and 2000D, respectively, this Nimar Underwater Housing lets you capture images of undersea life at depths of 197'. The enclosure features a moisture alarm that alerts you in the unlikely event of a breach in the waterproof seal. A 5-pin connector enables the attachment of optional external strobes via sync cords.
Mechanical controls afford access to virtually all camera functions, while dual ergonomic grips improve handling and provide attachment points for optional lighting arms. A removable eyepiece helps you compose shots through the camera's viewfinder. The housing ships without a required lens port, and accepts interchangeable ports for a broad array of different lenses. For complete compatibility details, see the Port Chart.

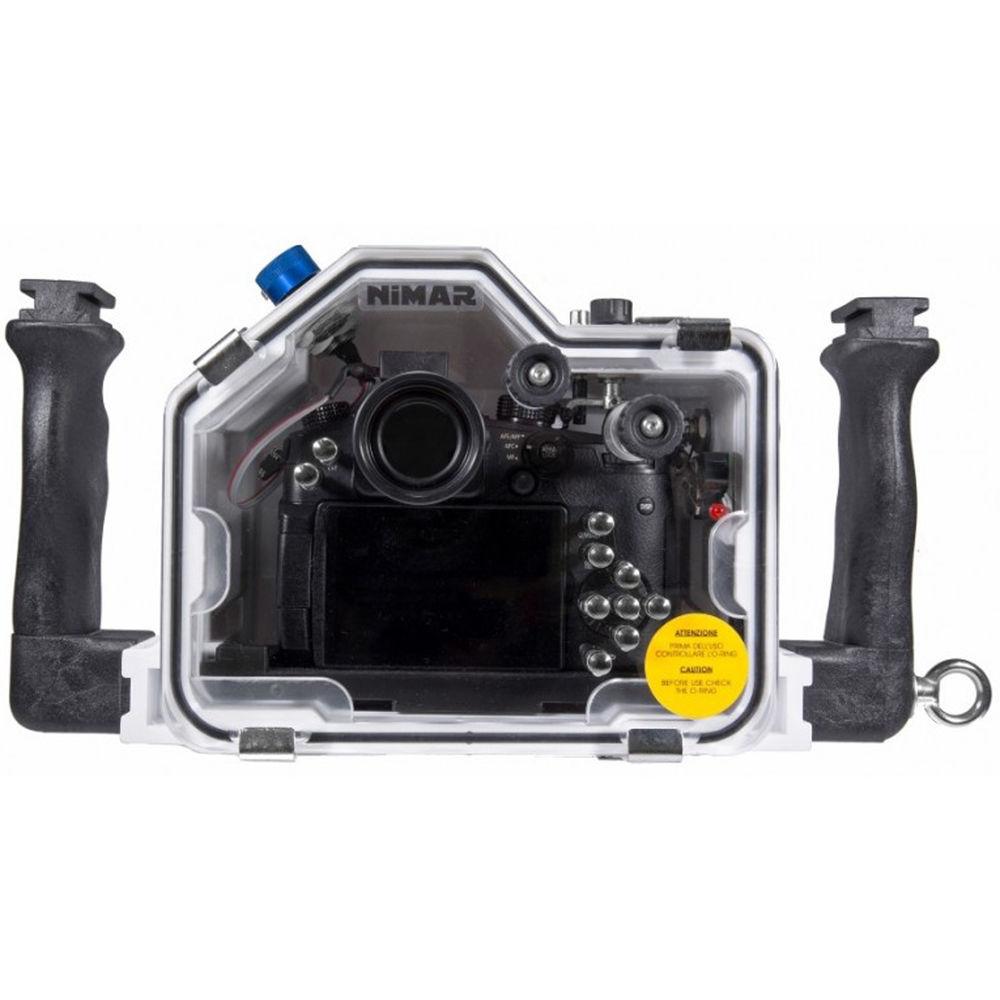

Built for durability, the housing is crafted from corrosion-resistant polycarbonate, which is white on the front, top, and sides, but clear in the back to allow you to monitor the camera and O-ring seal. Stainless steel latches with safety clips ensure that the enclosure stays shut during your dive. - Construction Details
-
- Depth rating: 197'
- Moisture alarm alerts you in the unlikely event of a breach in the waterproof seal
- Made from corrosion-resistant Bayer Makrolon polycarbonate
- White front, top, and sides but clear back to allow you to monitor the O-ring seal and camera
- AISI 316 stainless steel latches with safety clips
- Controls and Handling
-
- Mechanical push buttons, dials, and lever afford access to virtually all camera functions, including on/off, shutter, live view, video recording, metering, exposure compensation, aperture, flash compensation, mode dial, main control dial, multi-selector, ISO, menu, OK, playback, magnification / reduction in reproduction, quality setting, info, help, protect
- Dual ergonomic grips improve handling and provide attachment points for optional lighting arms
- Removable eyepiece helps you compose shots through the camera's viewfinder
- Strobe Connection and Operation
-
- 5-pin connector enables the attachment of optional external strobes via sync cords
UPC: 810075023381 In the Box Nimar Underwater Housing for Canon EOS Rebel T6 or T7 (White) 2 x Removable Side Grip Handle Spare Main O-Ring Rubber Eyepiece Guard Port Mount Cover Soft Storage Bag Protective Rubber Tips for Controls Tool Kit Silicone Grease Mounting Plate for Camera Silica Gel Bag Limited 2-Year Warranty Port chart PDF 598.1kbuxdyrqaswtvecrcfccrfse Table of Contents
|
Upload User Manual
Have you got an user manual for the Nimar Underwater Housing for Canon EOS Rebel T6 or T7 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNimar NI1300D Specs | Depth Rating | 197' / 60 m | | Material of Construction | Body: Bayer Makrolon Polycarbonate
Latches with Safety Clips: AISI 316 Stainless Steel | | External Strobe Connector | 5-Pin Sync Cord Connector | | Mounting | 2 x T-Mounts on Grip Handles for Lighting Arms | | Moisture Alarm | Yes | | Dimensions | With Handles and Eyepiece: 13.4 x 6.7 x 5.9" / 34 x 17 x 15 cm | | Weight | With Handles: 5.4 lb / 2.4 kg | | | | Package Weight | 7.425 lb | | Box Dimensions (LxWxH) | 11.15 x 11.1 x 7.7" |
